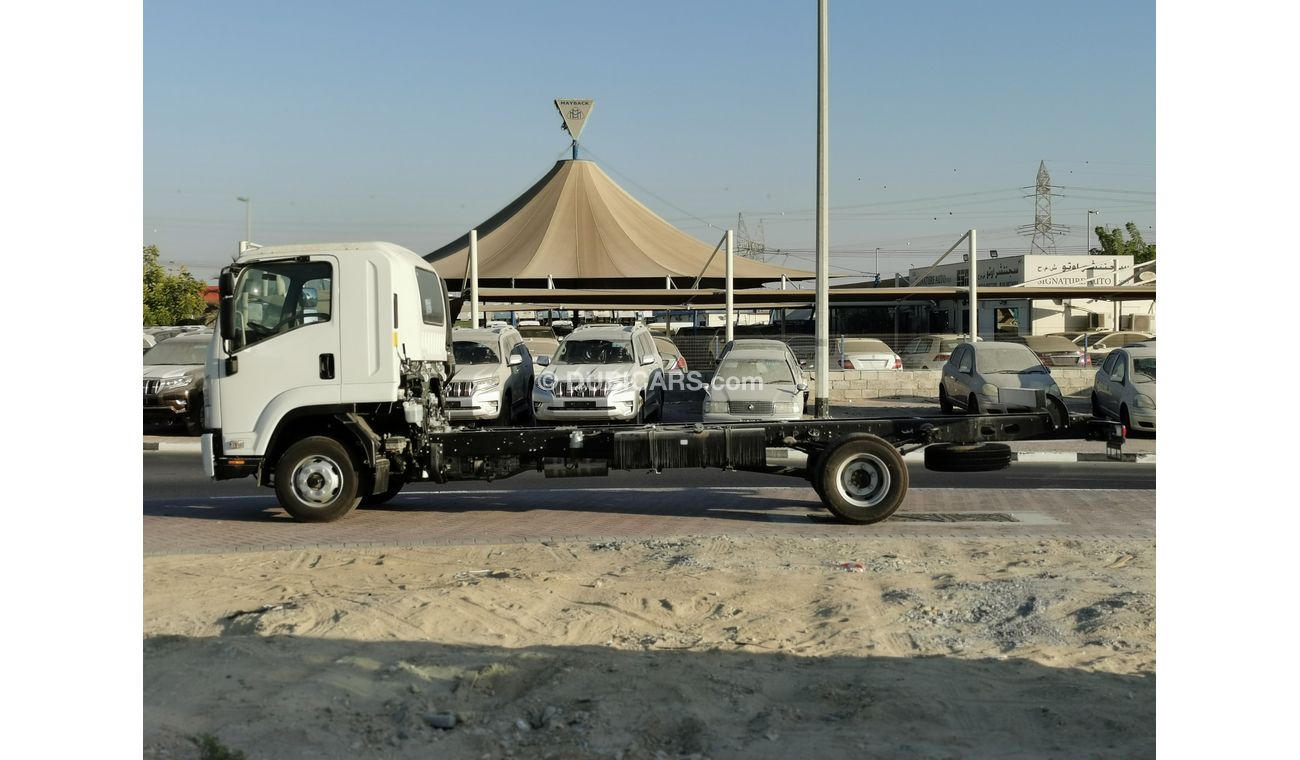

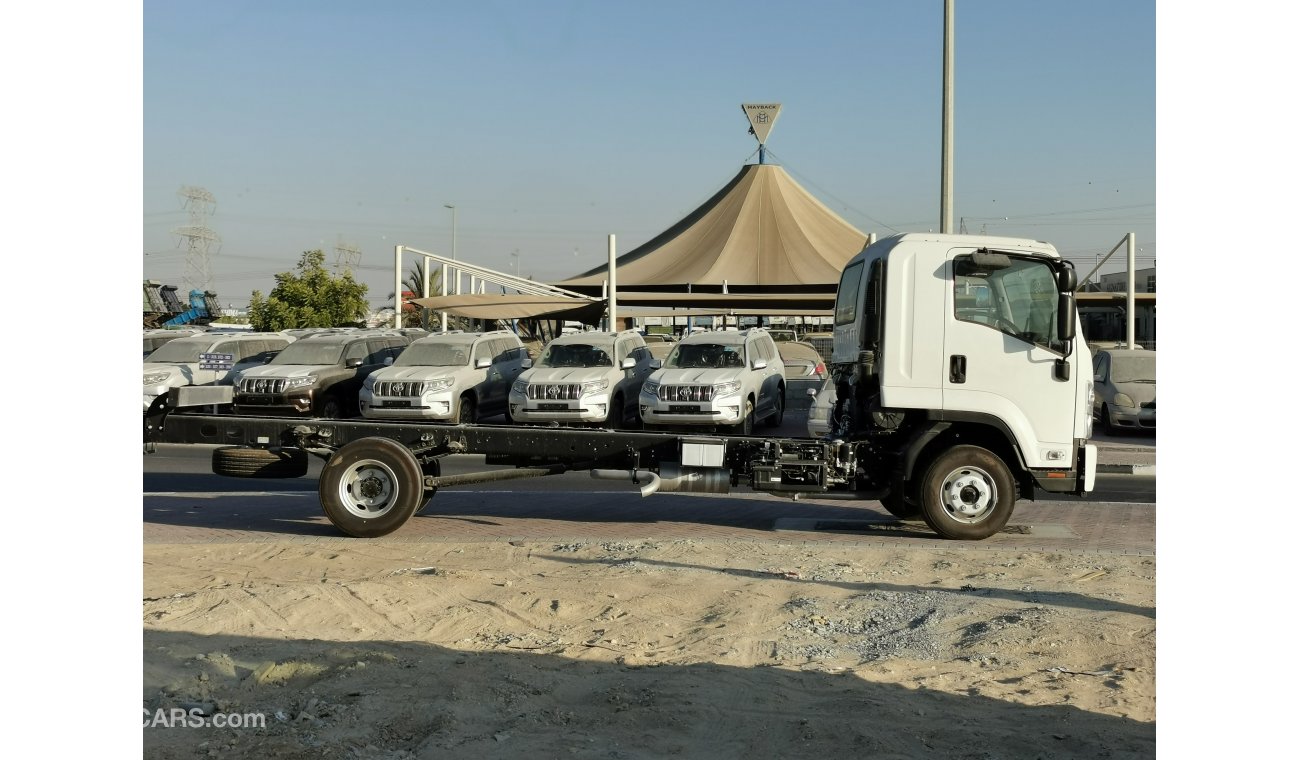

إيسوزو FRR 34N (7 TON) CHASSIS,CAB,6 CYL. INLINE, COMMON RAIL, TURBO, INTERCOOLED

SPECIFICATION SHEET
PL NOTE : DUE TO CONTINUOUS IMPROVEMENTS BY THE MANUFACTURER, ALL
SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE
MAKE
:
ISUZU, JAPAN
MODEL
:

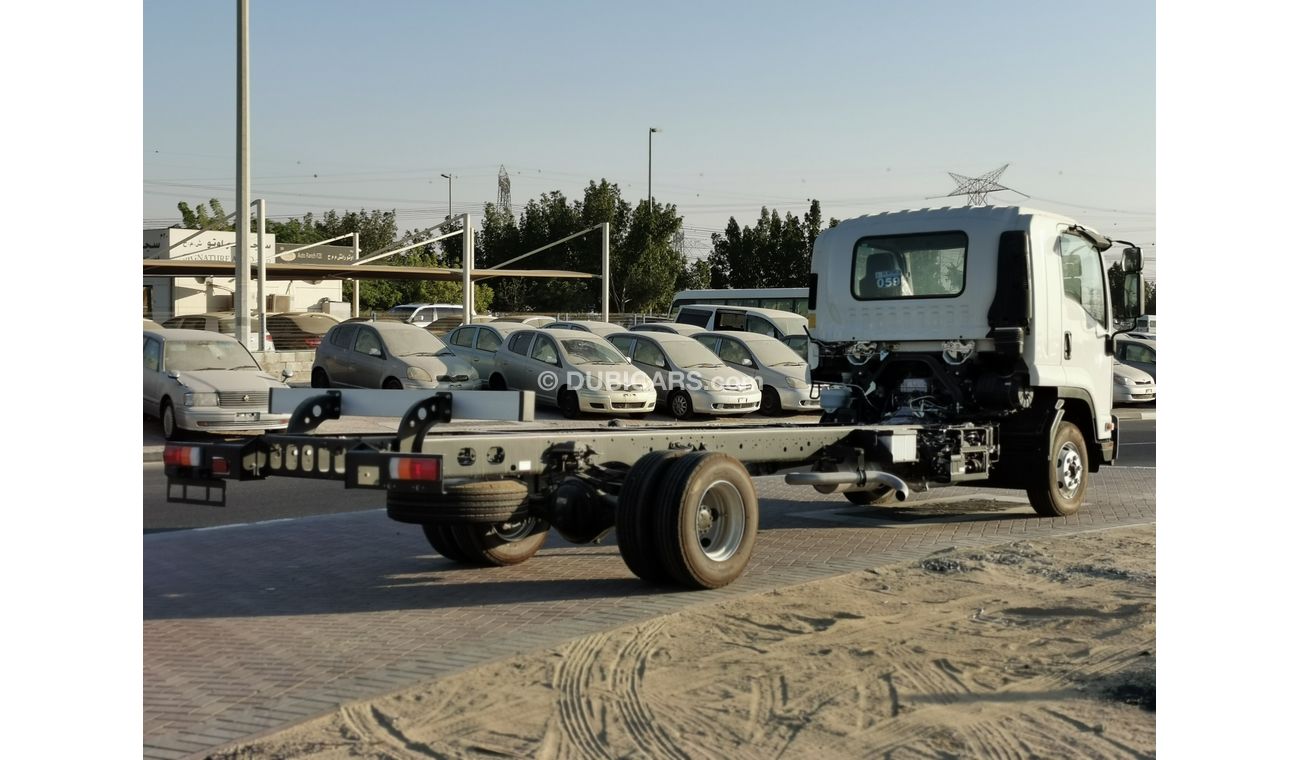

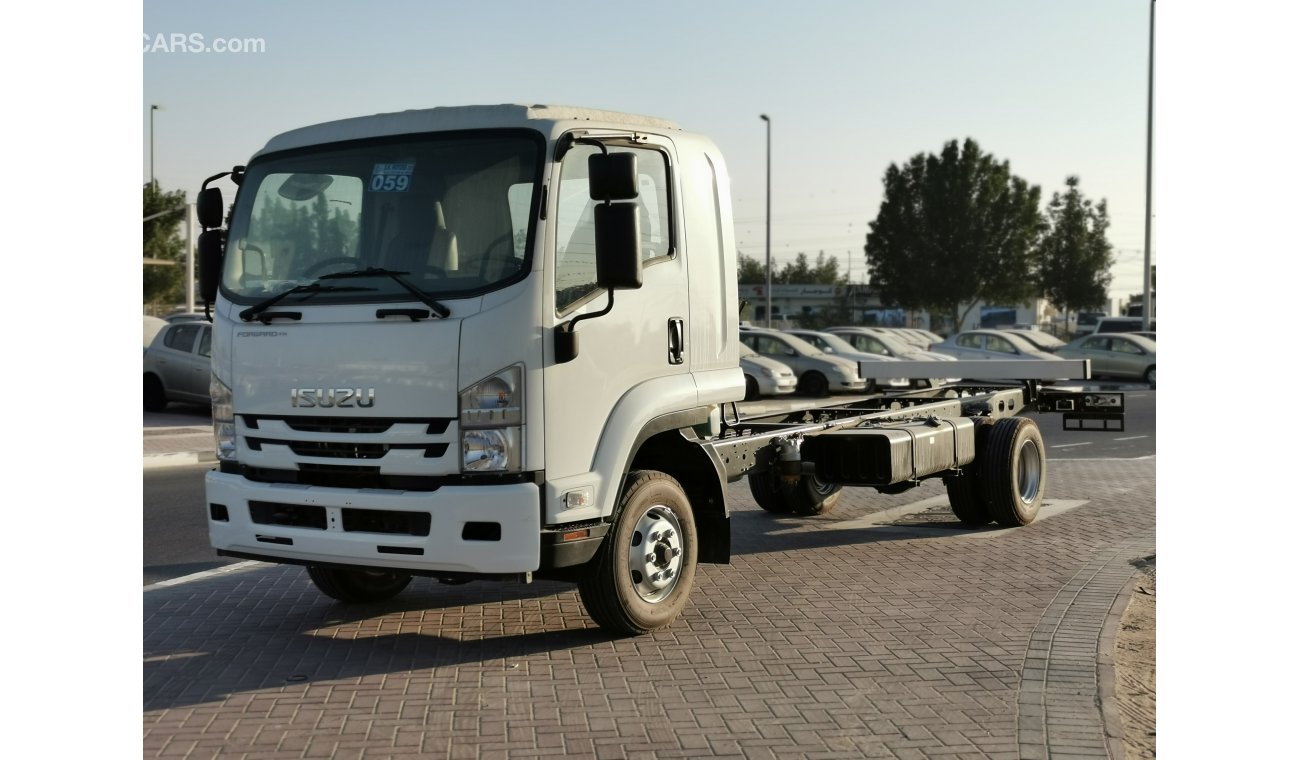

FRR 34N (7 TON) CHASSIS
BODY TYPE
:
CHASSIS CAB
SEATING CAPACITY
:
2+1 PERSONS
GVW
(kg)
:
11,000
KERB WEIGHT
(kg)
:
3,620
DIMENSIONS (L x W x H)
(mm)
:
8,315 x 2,120 x 2,750
WHEEL BASE
(mm)
:
4,860
CAB TO END OF FRAME
(mm)
:
6,089

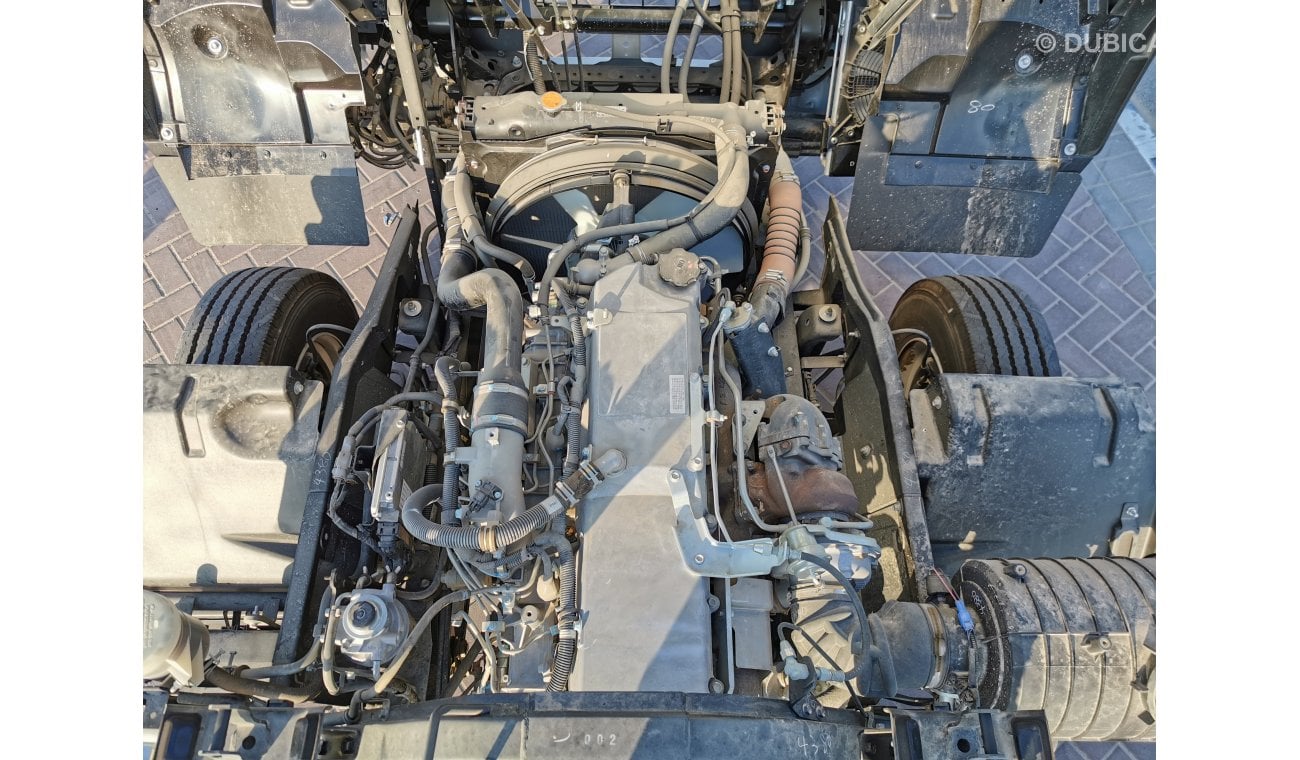

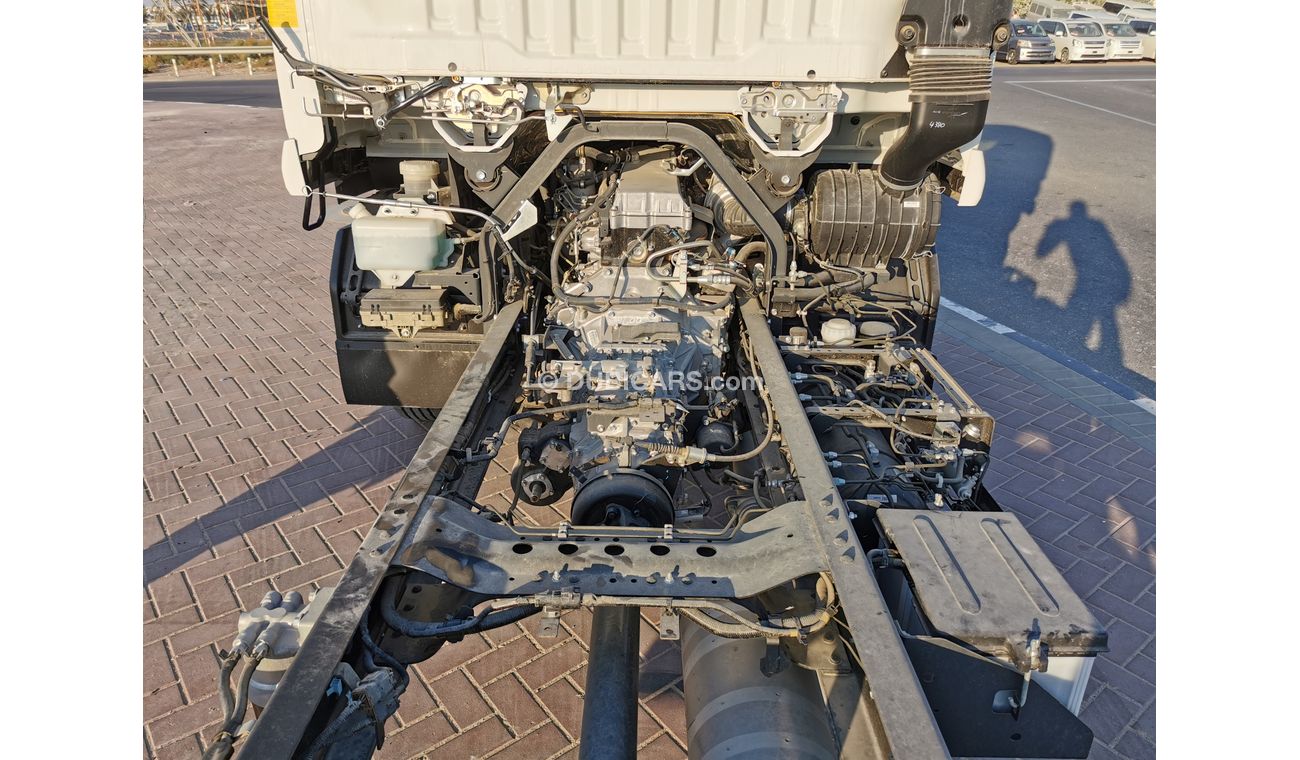

ENGINE TYPE
:
6HK1-TCN, INLINE, 6 CYL. INLINE, COMMON RAIL, TURBO, INTERCOOLED, SOHC
CAPACITY
(cc)
:
7,790
MAX OUTPUT
(ps/rpm)
:
240 / 2,400
MAX. TORQUE
(Kg-m/rpm)
:
72 / 1,450

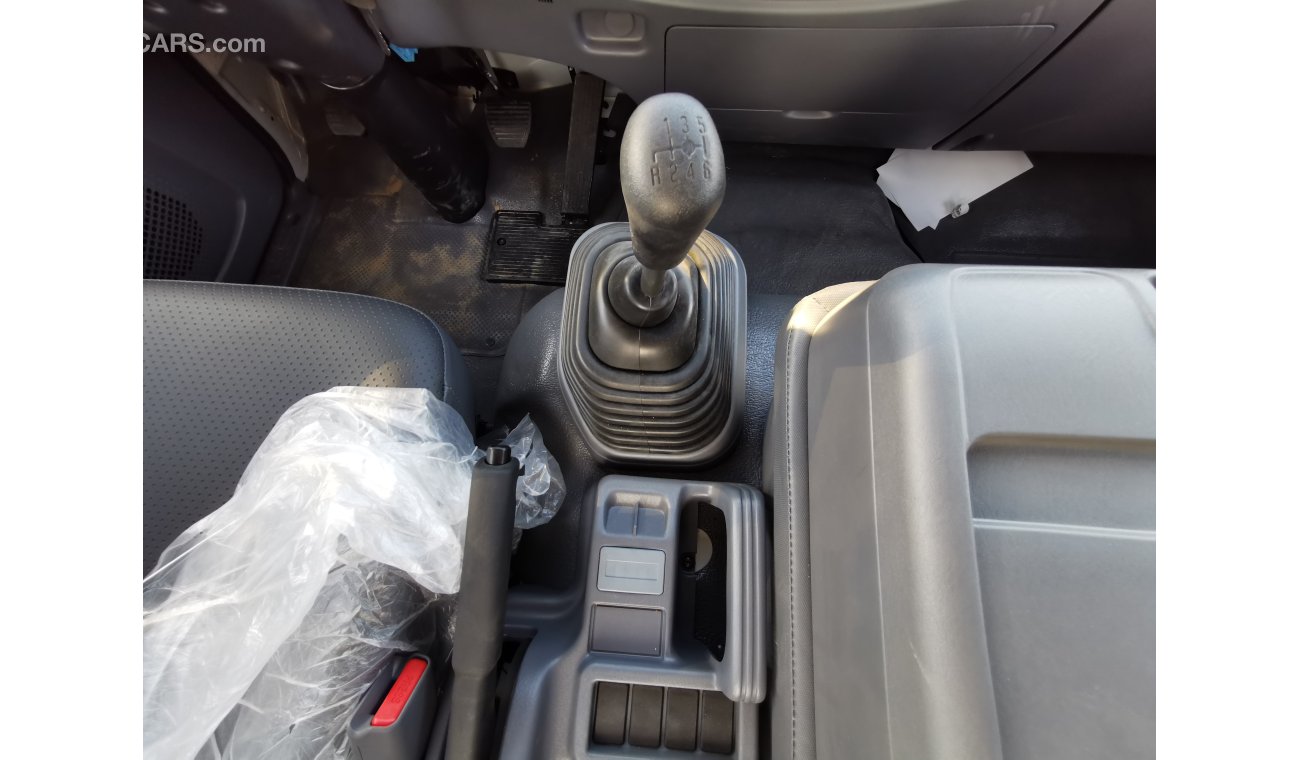

TRANSMISSION
:
MZW-6P, MANUAL, 6 SPEED with OVERDRIVE

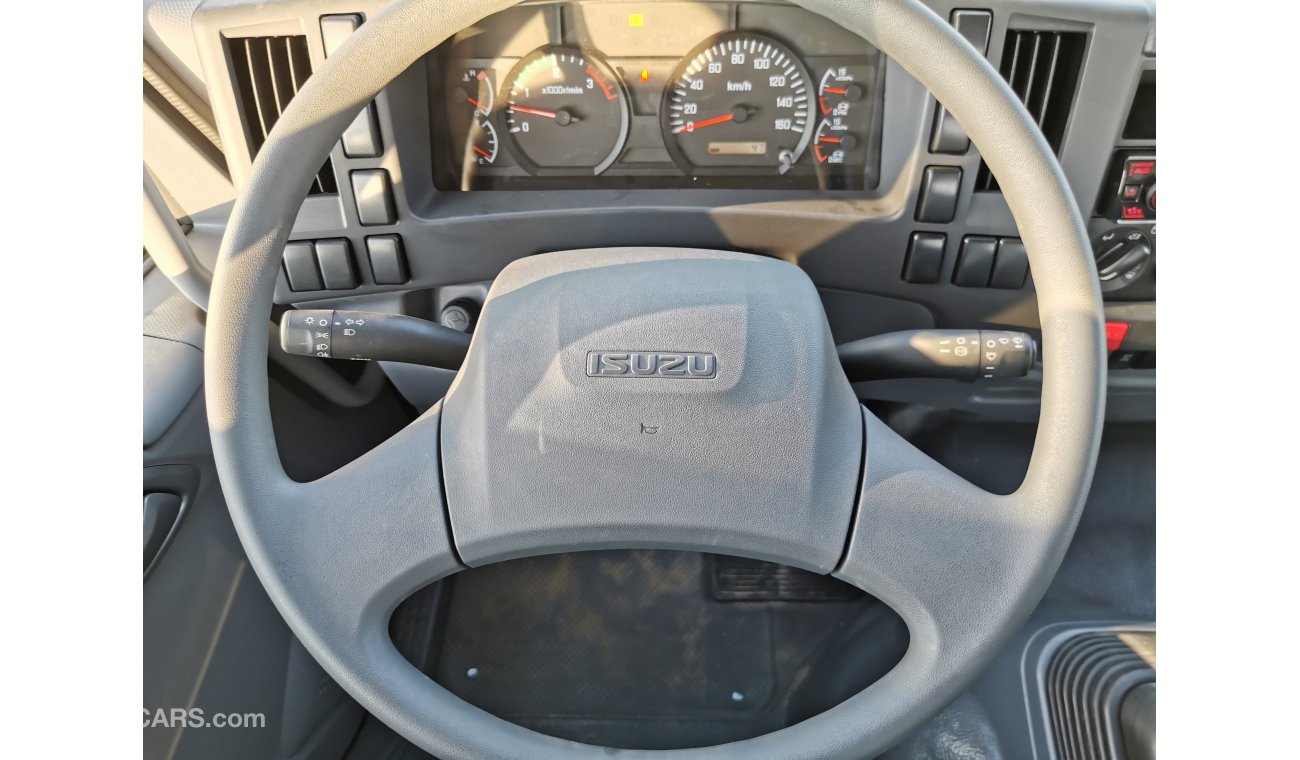

STEERING
:
TILT & TELESCOPIC, POWER ASSISTED
SUSPENSION : FRONT
SEMI-ELLIPTICAL ALLOY LEAF SPRINGS

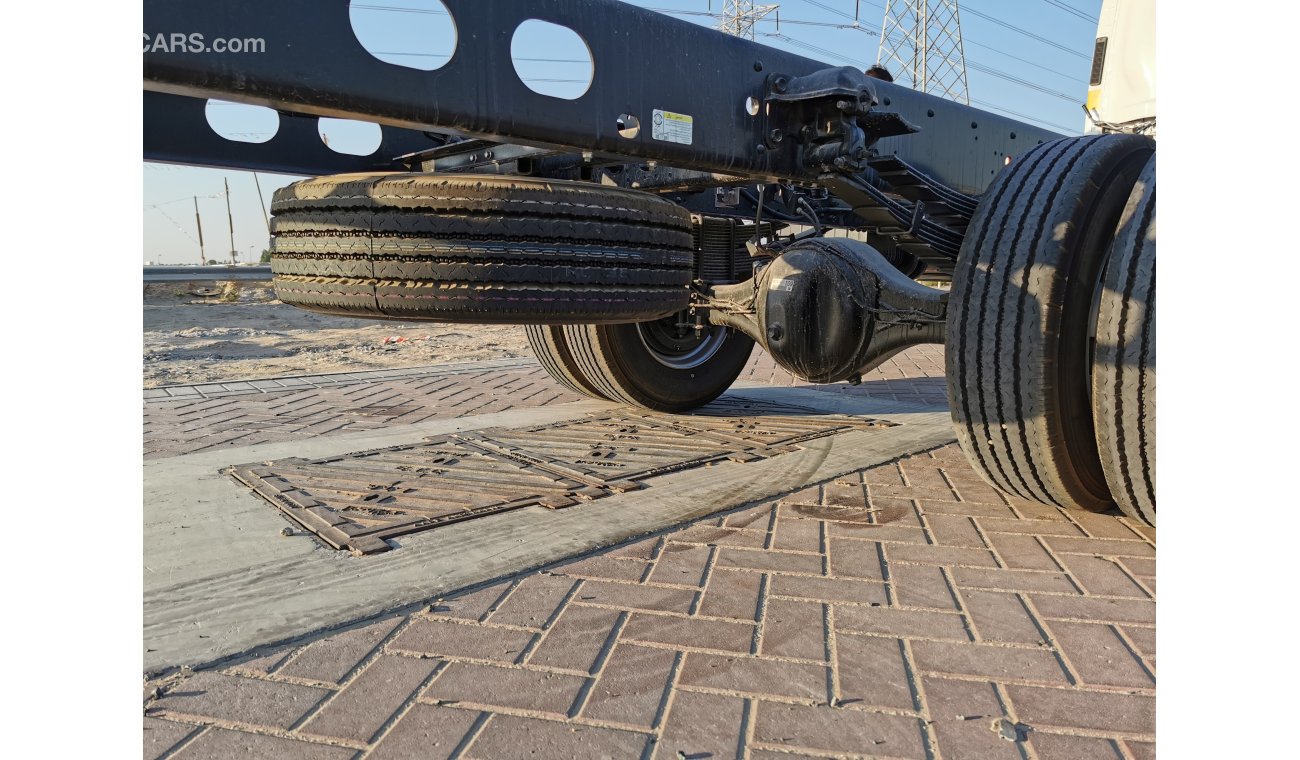

REAR
:
SEMI ELLIPTICAL ALLOY LEAF SPRINGS
BRAKES
:
AIR OVER HYDRAULIC WITH ABS

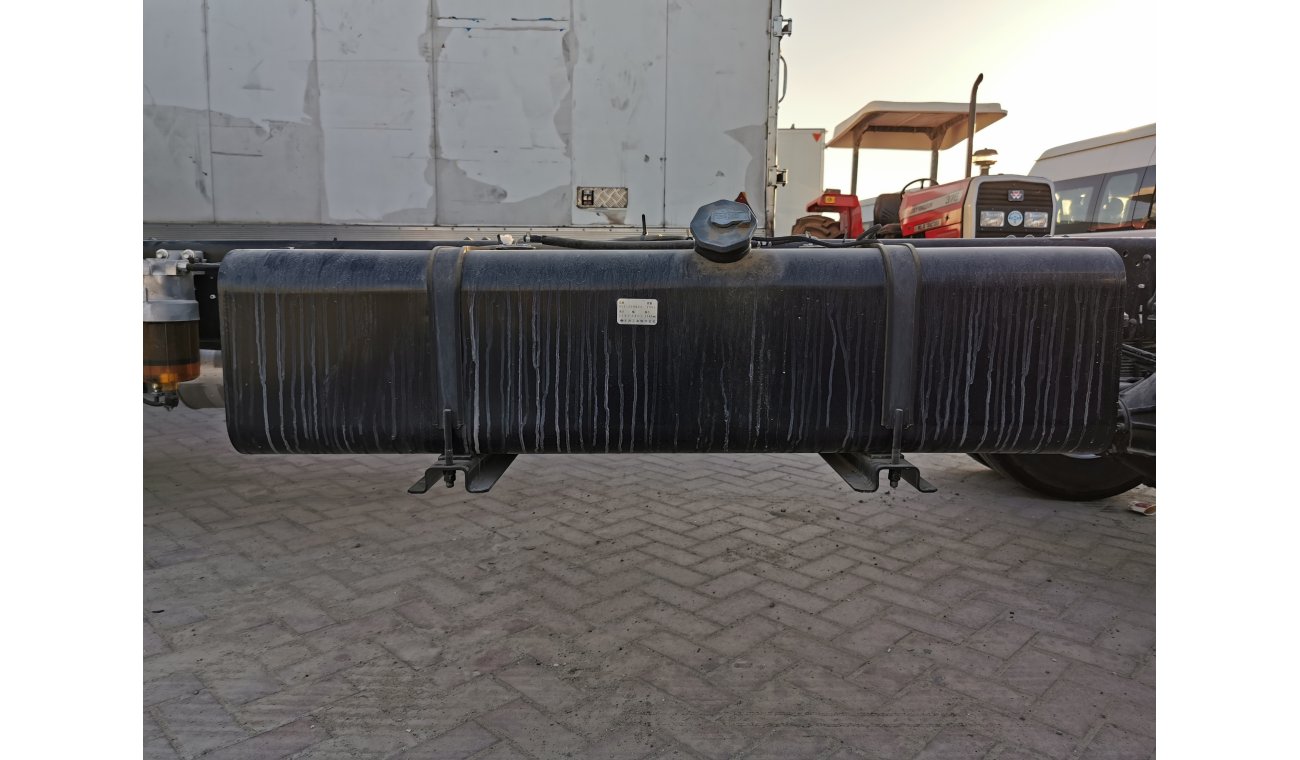

FUEL TANK CAPACITY
(lit)
:
200
TYRE SIZE FRONT
:
235/75 R17.5 TUBELESS
REAR (DUAL)
:
235/75 R17.5 TUBELESS
FEATURES:

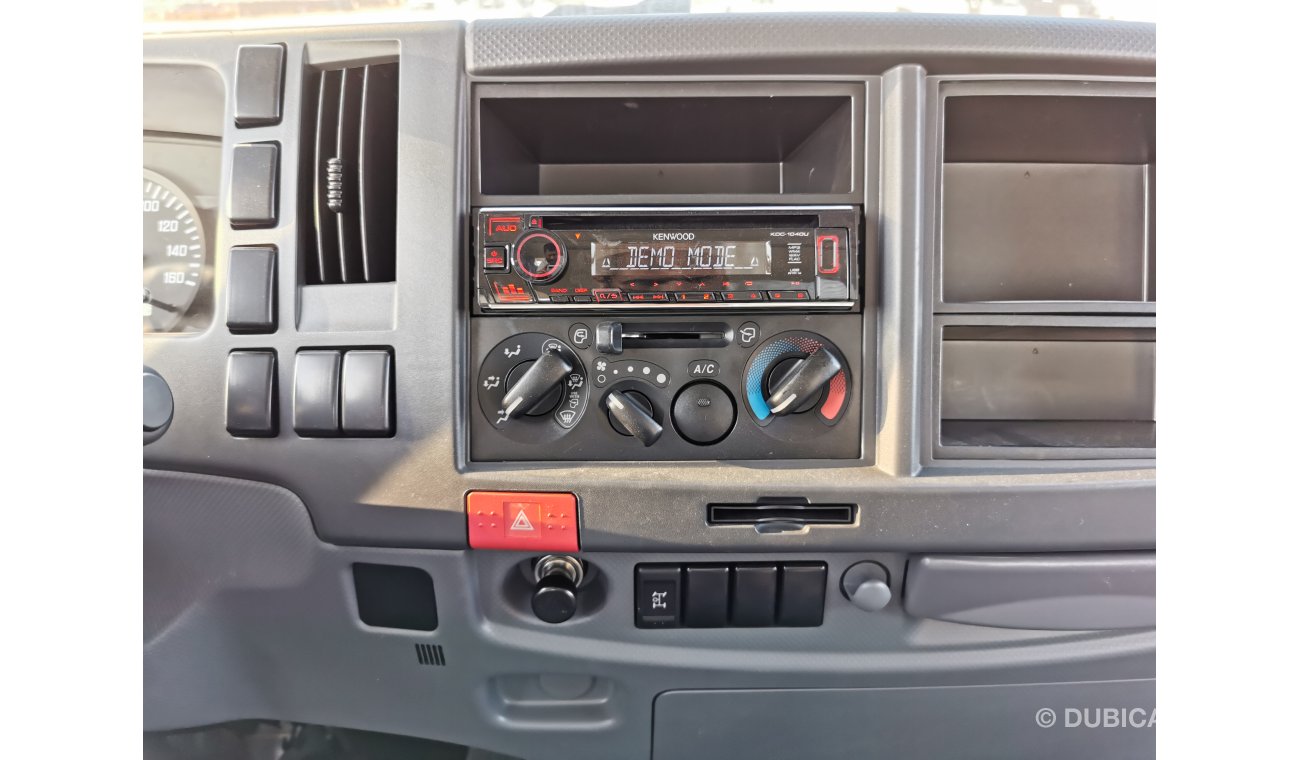

CABIN AIR CONDITIONER
CENTRAL DOOR LOCK & POWER WINDOW
FULL AIR WITH ABS & EXHAUST BRAKE
ROOF HEADER TRAY
TRANSMISSION SIDE
REVERSE WARNING BUZZER
