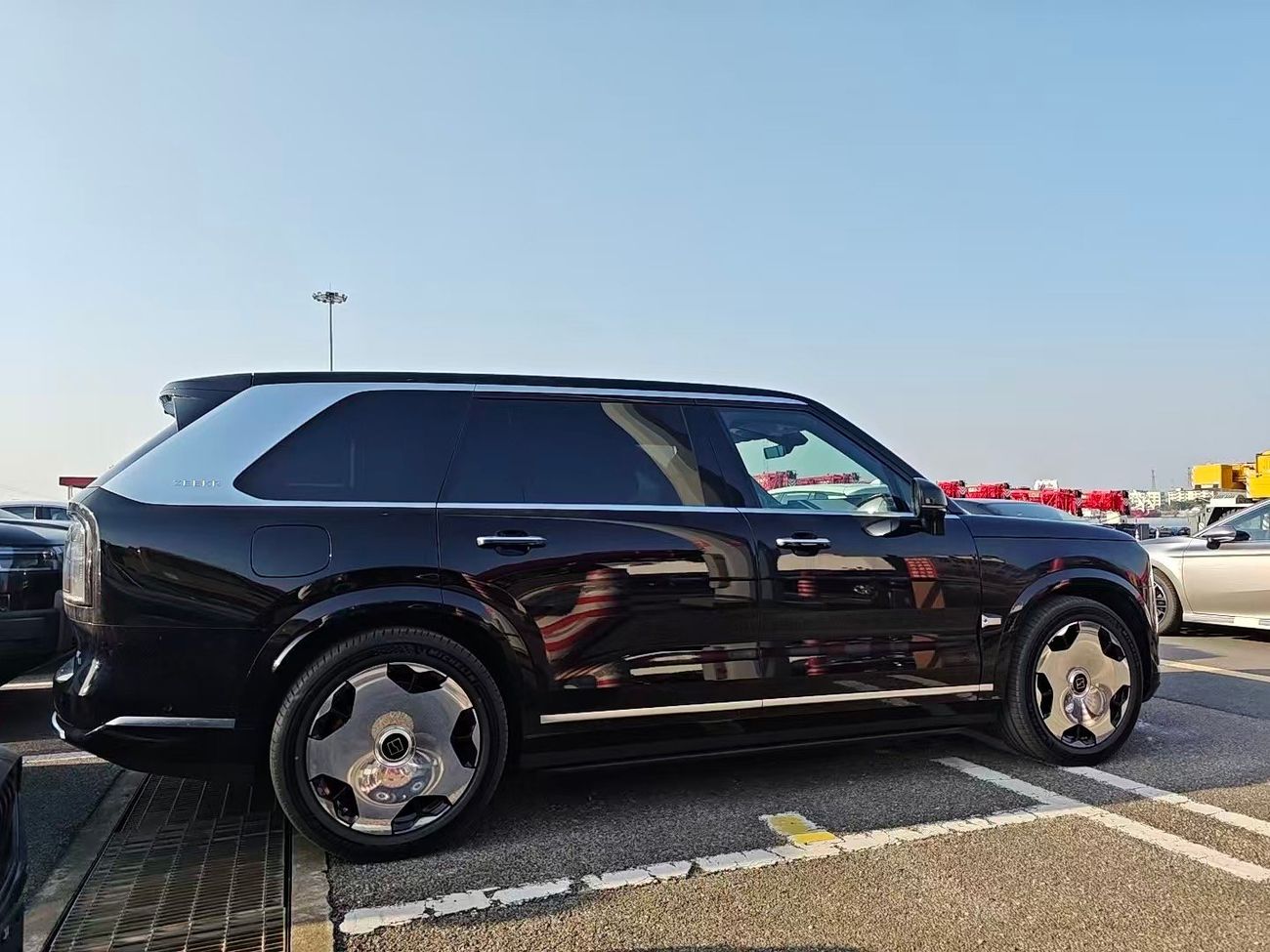

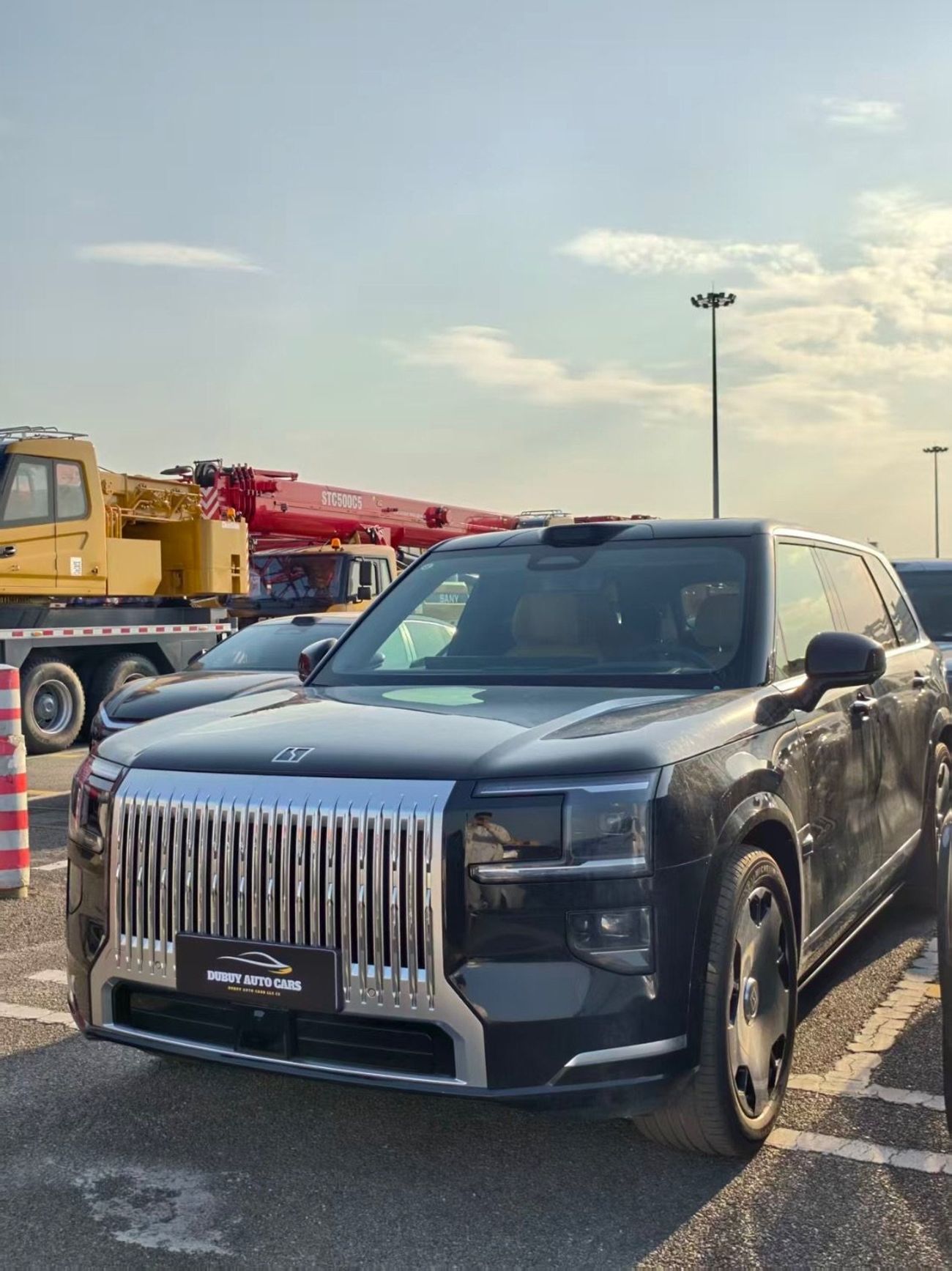

Zeekr 9X Zeekr 9x Ultra Edition 70kwh

Ultra Edition (70 kWh) – Full Configuration
General Information
• Seating Capacity: 6-seater (3 rows)
• Body Dimensions (mm): 5239 × 2029 × 1819
• Wheelbase: 3169 mm
• Drive System: All-Wheel Drive (AWD)
• Transmission: DHT Hybrid Transmission
⸻
Cargo & Capacity

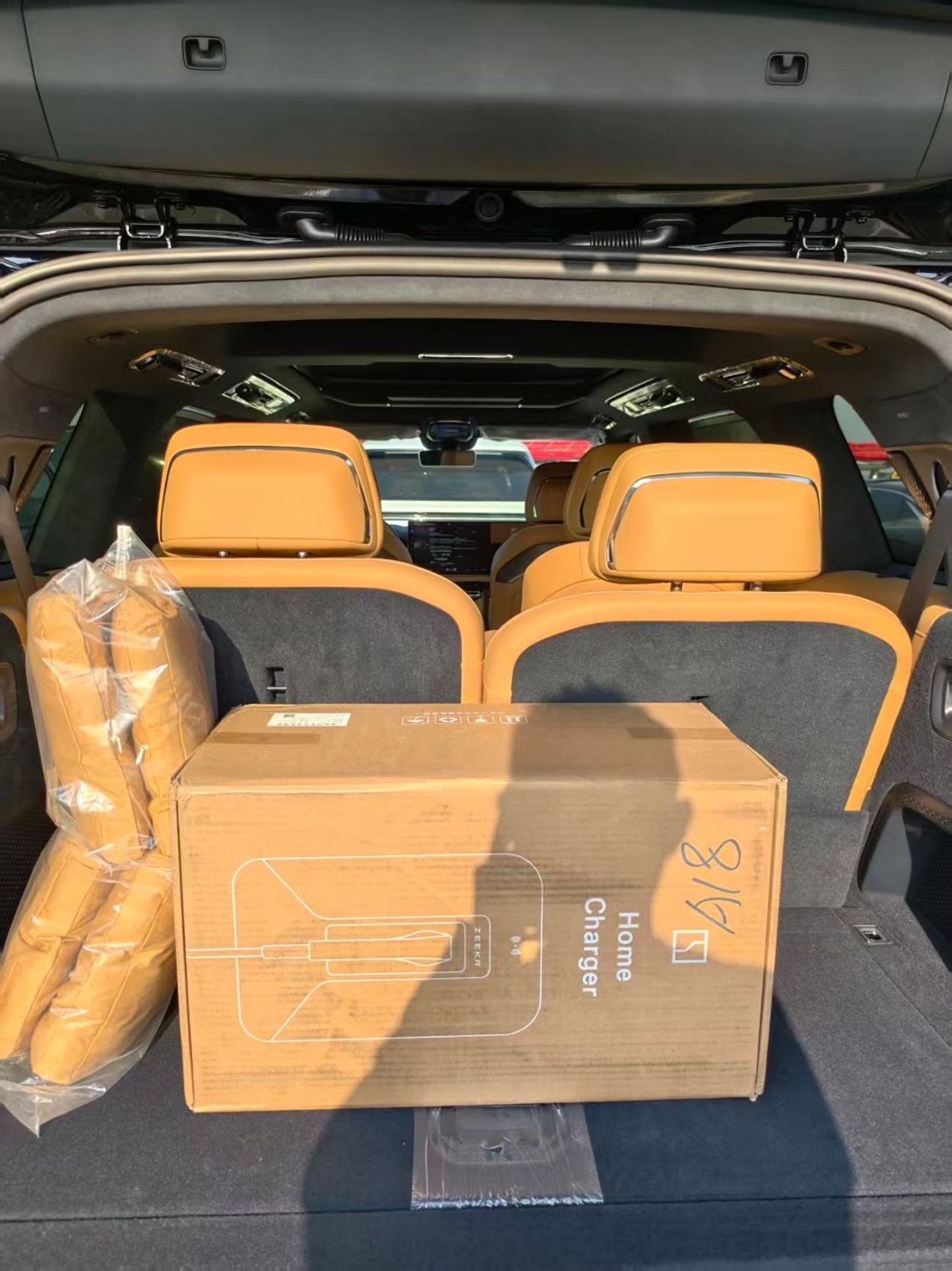

• Trunk Volume:
• 470 L (all seats up)
• 2148 L (3rd row folded)
• Fuel Tank Capacity: 65 L
⸻
Powertrain & Performance
• Power System: 2.0T PHEV + Dual Motors
• Engine Output: 205 kW / 278 hp
Electric Motors
• Front Motor: 290 kW
• Rear Motor: 370 kW
Total Output
• Total Power: 660 kW / 898 hp
• Total Torque: 935 Nm
Performance Figures
• 0–100 km/h: 4.2 seconds
• Top Speed: 240 km/h
⸻
Battery & Charging
• Battery Capacity: 70 kWh
• Battery Type: CATL Ternary Lithium
• Charging Capability: 6C Hyper-Charge
• Power Platform: 900V High-Voltage System
Electric Range
• CLTC Pure EV Range: 380 km
• WLTC Pure EV Range: 302 km
• CLTC Combined Range: 1250 km
Charging Time
• 20%–80%: 9 minutes
Generator Power
• 145 kW
⸻
Intelligent Driving & ADAS
• ADAS System: Qianli Haohan H9
Sensor Suite
• LiDAR:
• 5 units (1 × 520-line long-range + 4 × DToF)
• Cameras: 15 HD cameras
• Radar:
• 12 ultrasonic
• 5 millimeter-wave
• Total Sensors: 43
Computing
• Chipset: Dual NVIDIA Thor-U
• Computing Power: 1400 TOPS
Key Functions
• Full Autonomous Parking
• Highway NOA
⸻
Chassis & Suspension
• Suspension:
• Dual-chamber air suspension
• 48V active stabilizer
• Adjustability:
• Ride height (5 levels)
• Stiffness
• Active anti-roll control
• Maximum Ground Clearance: 288 mm
⸻
Wheels, Tires & Brakes
• Wheels: 22″ forged alloy
• Tires: 265/40 R22
• Brakes:
• Ventilated discs (front & rear)
• Electronic parking brake
⸻

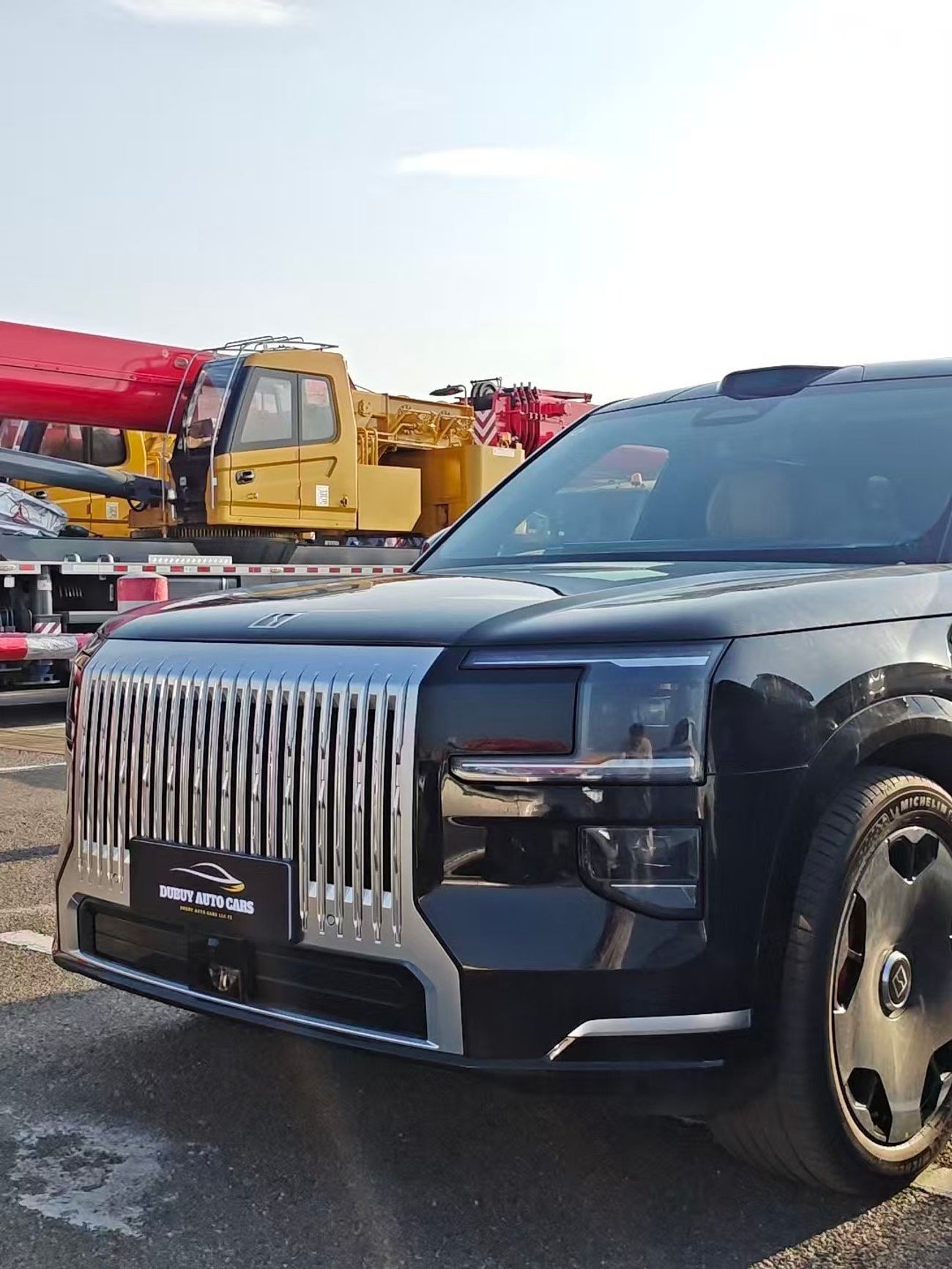

Exterior Design

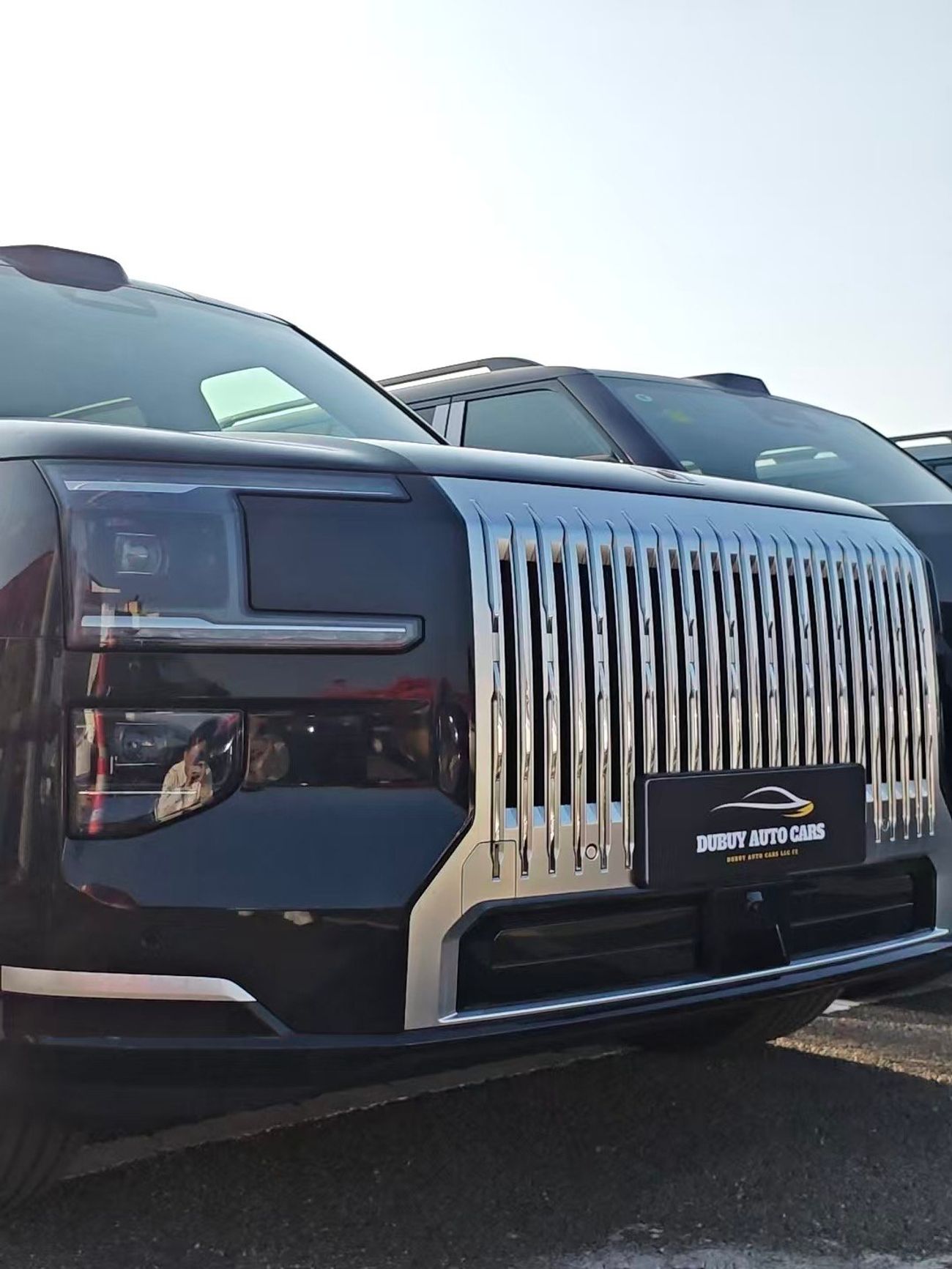

• Headlights: Dual-megapixel projection LED
• 1.3M pixels, 1800 lumens
• Exterior Trim: Chrome accents
• Roof: Body color

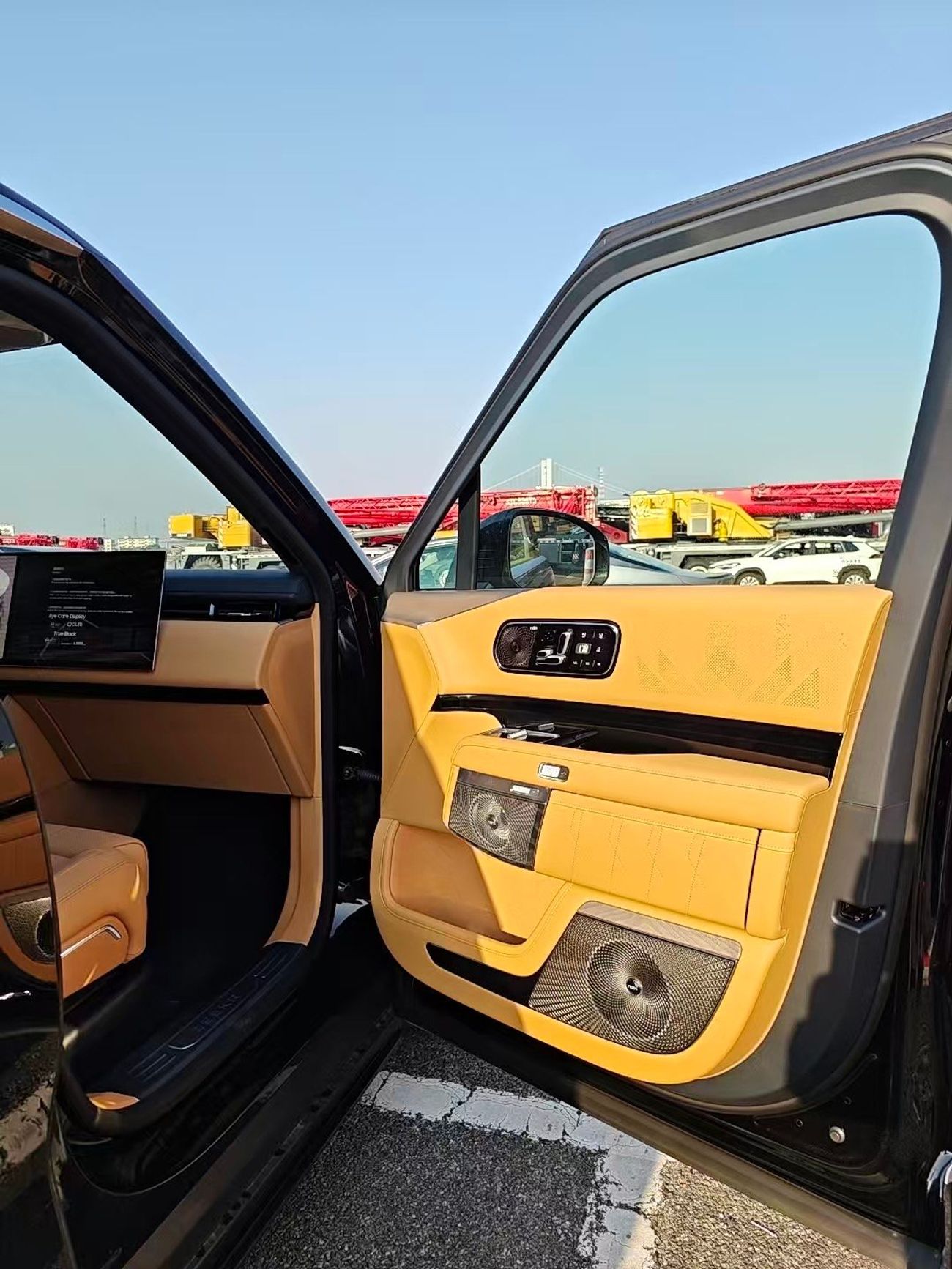

• Door Handles: Power-folding
• Available Colors: Multiple standard colors
⸻
Interior & Seating
• Seat Material: Soft Nappa leather
First Row
• 14-way power adjustment
• Heating, ventilation & massage

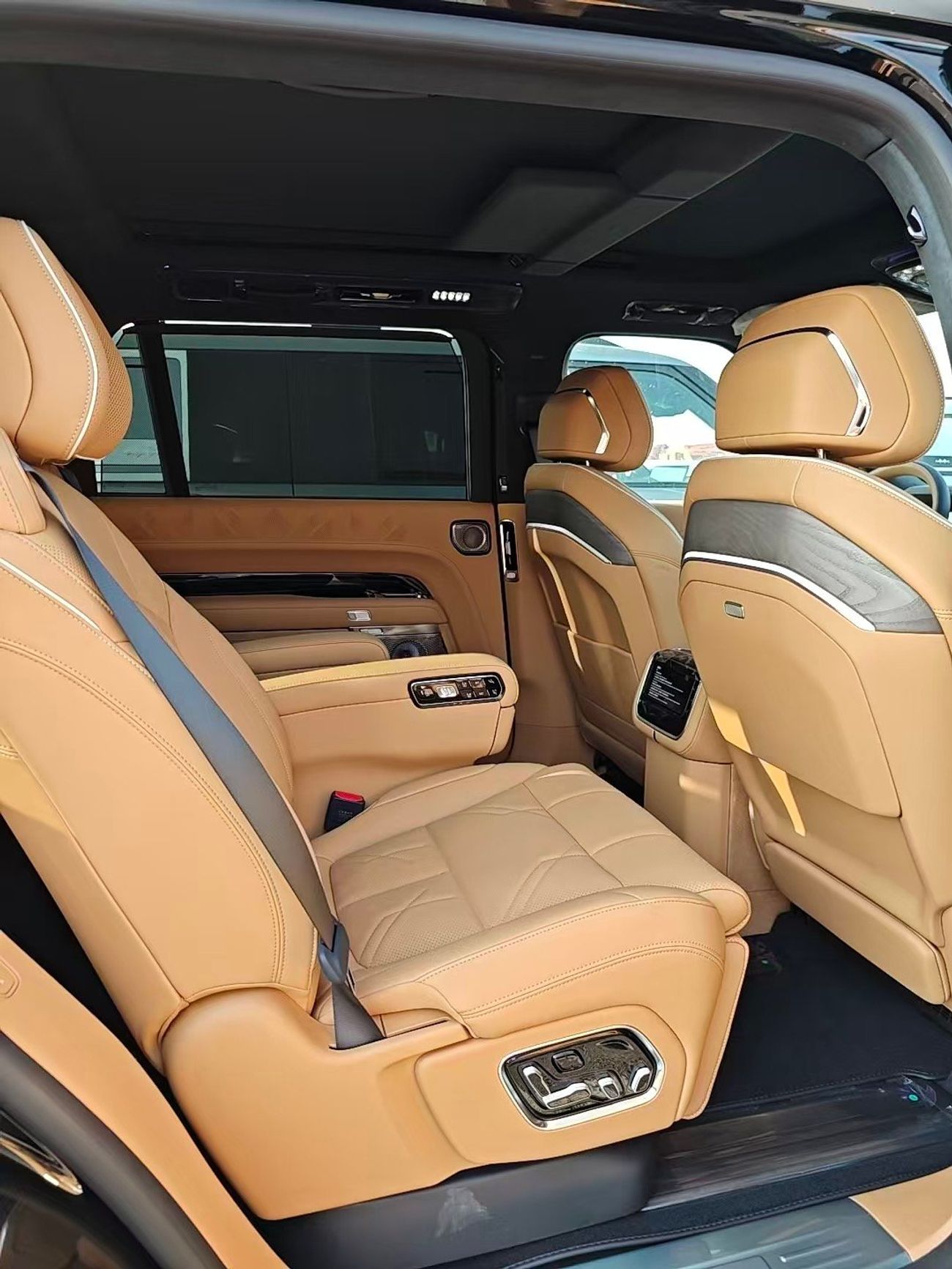

Second Row
• Zero-gravity seats (145° recline)
• 180° rotation
• Heating, ventilation & massage

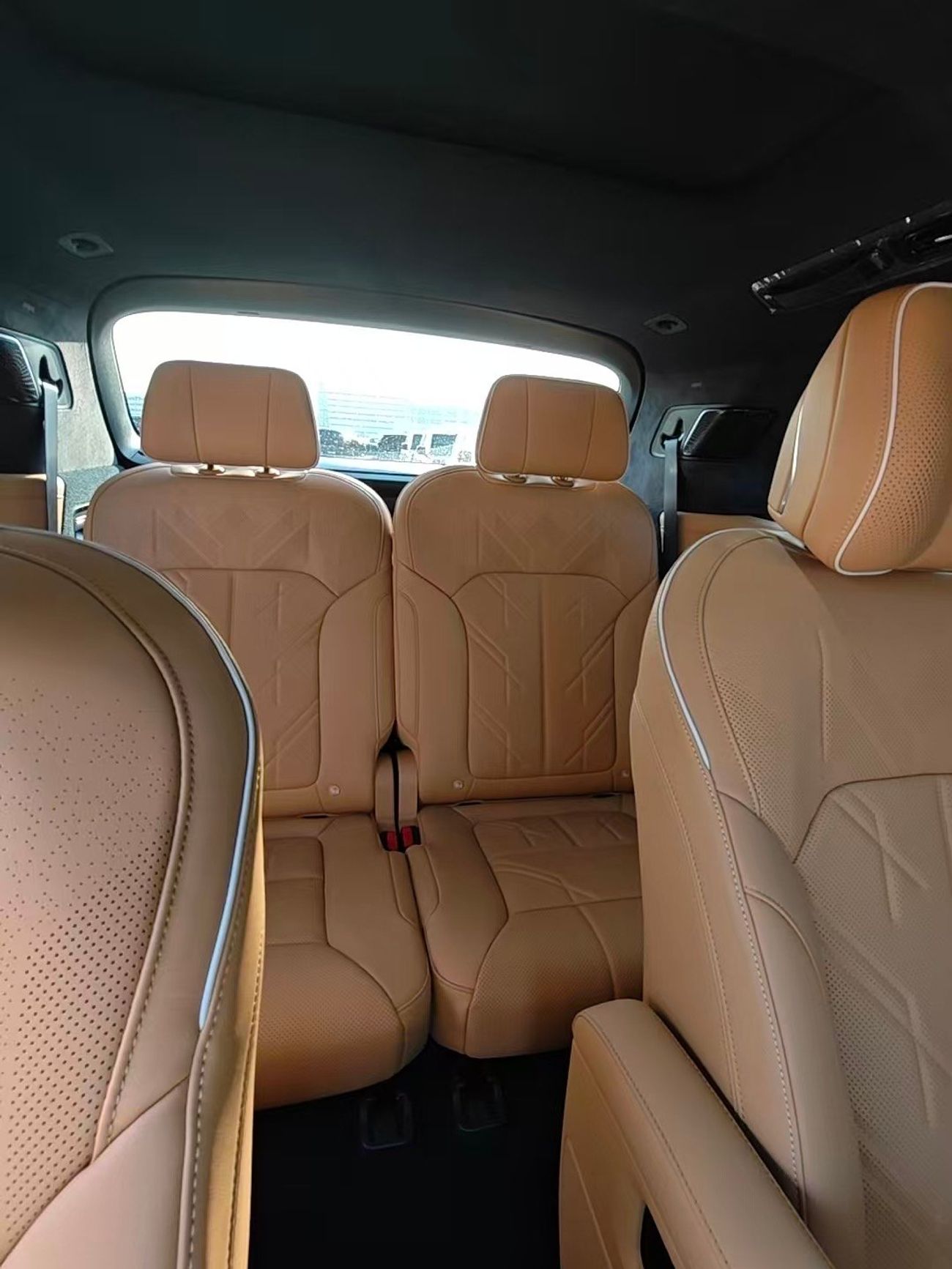

Third Row
• 135° recline
• 140 mm power slide
Steering Wheel
• Leather-wrapped
• Power adjustable
Interior Trim
• Wood / metal accents
⸻

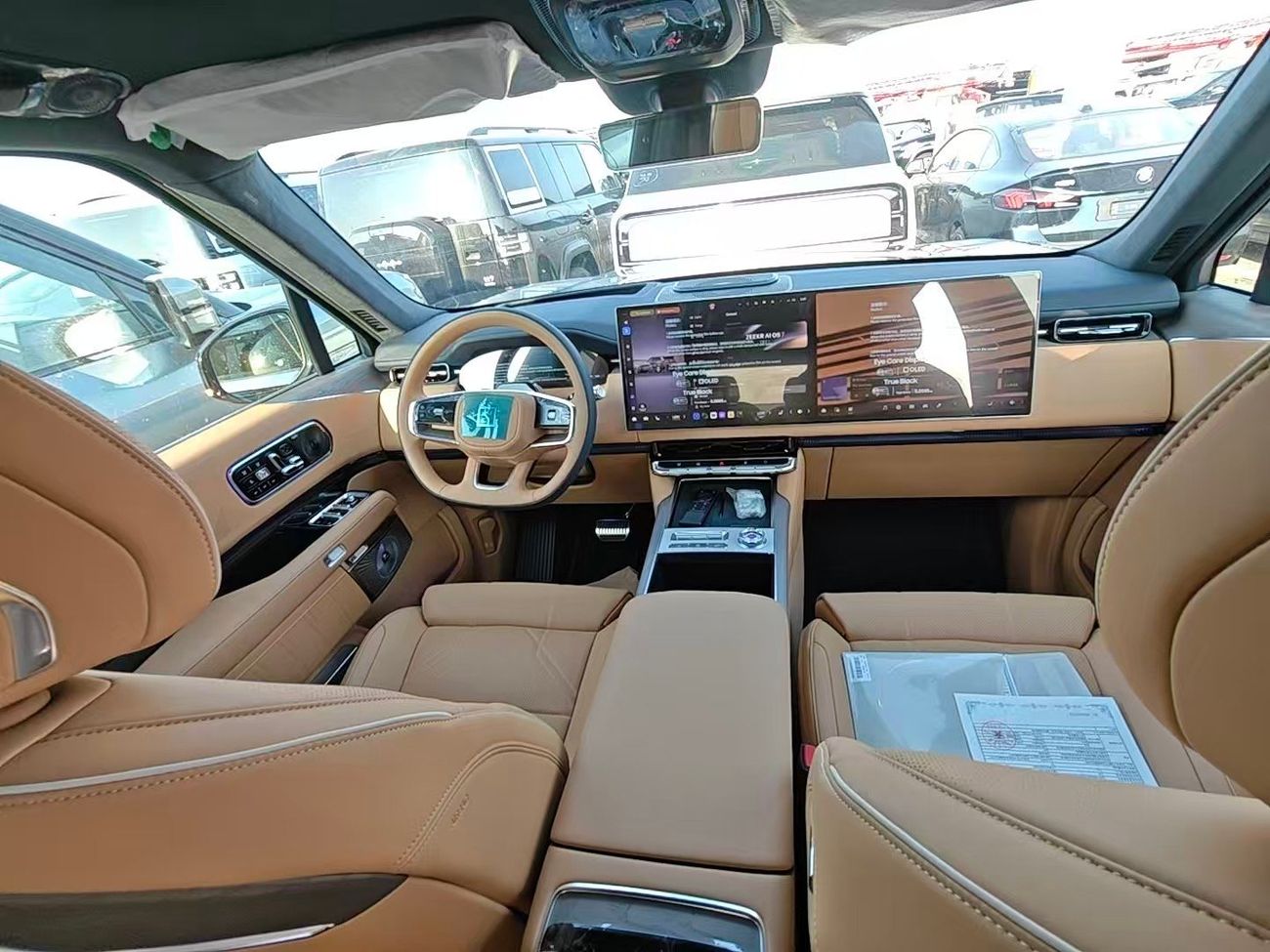

Infotainment & Cockpit
• AR-HUD: 47″ (20,000 nits)

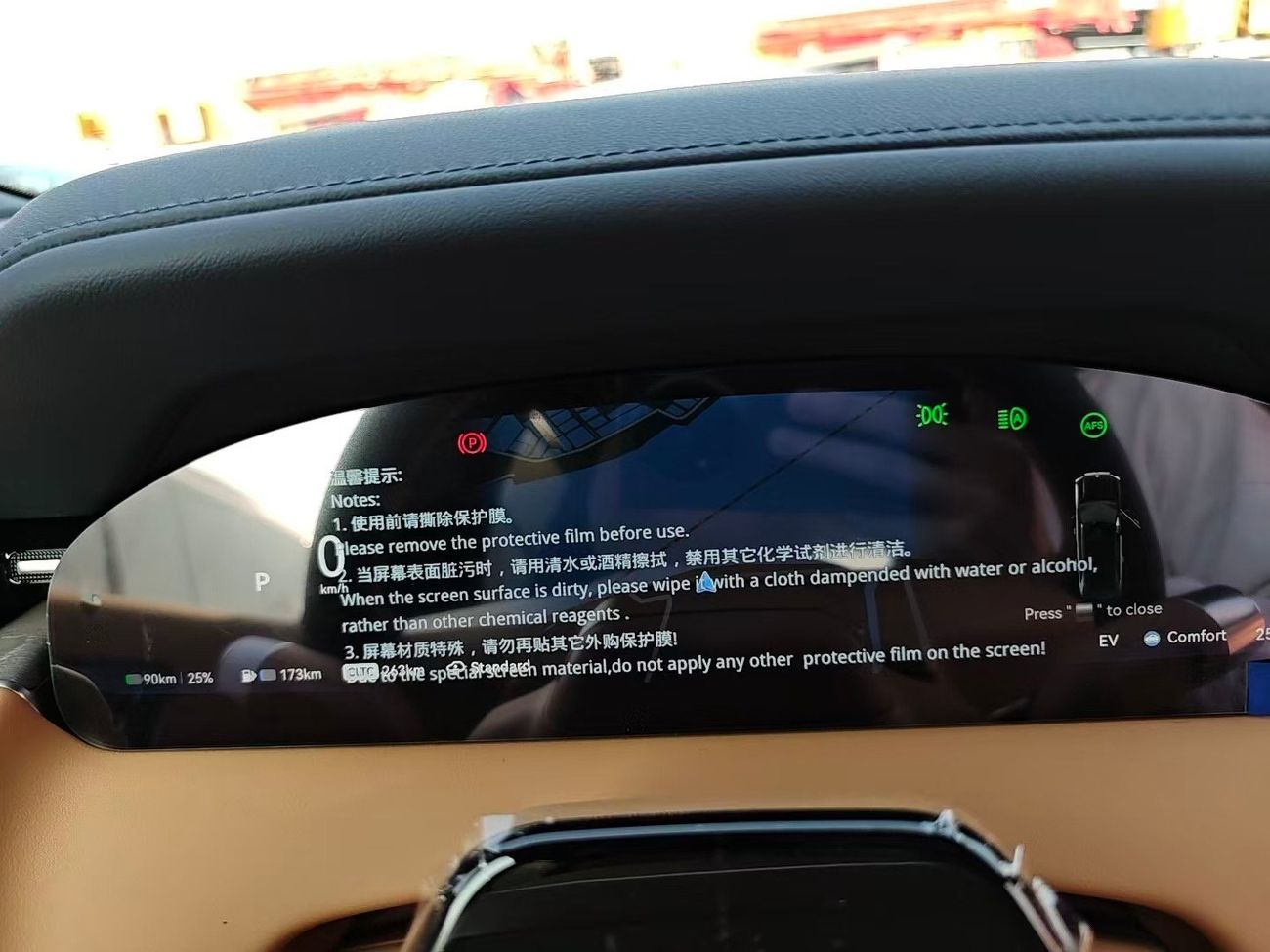

• Instrument Cluster: 13″ LCD
• Center Display: 16″ 3.5K OLED
• Passenger Display: 16″ 3.5K OLED
• Rear Entertainment:
• 17″ 3K OLED
• 880 mm slide
• 5-angle adjustment
• Center Console Screen: 6.3″ OLED
Operating System
• Zeekr AI OS 7
Sound System
• Naim Audio
• 32 speakers
• 3,868 W peak
• 9.2.4.8 layout
⸻
Comfort & Convenience
• Panoramic Sunroof: 1.03 m² (power)
• Refrigerator: 9 L dual-zone
• Climate Control: Tri-zone automatic
• Rear Window Shades: Power side + rear
• Ambient Lighting: 16.8 million colors
• Power Features:
• Power tailgate
• Power running boards
• Storage: 45 compartments
• Digital Key: UWB
⸻
Connectivity & Smart Features
• Dual Qualcomm 8295 chips
• 5G connectivity
• OTA updates
⸻
Safety & Security
• Airbags: 8 total
• Front, side, curtain, knee, far-side
• ADAS Safety:
• FCW
• AEB
• LKA
• BSD
• RCTA
• Cameras: 540° surround view + transparent chassis
• Security:
• Keyless entry & start
• Vehicle tracking
