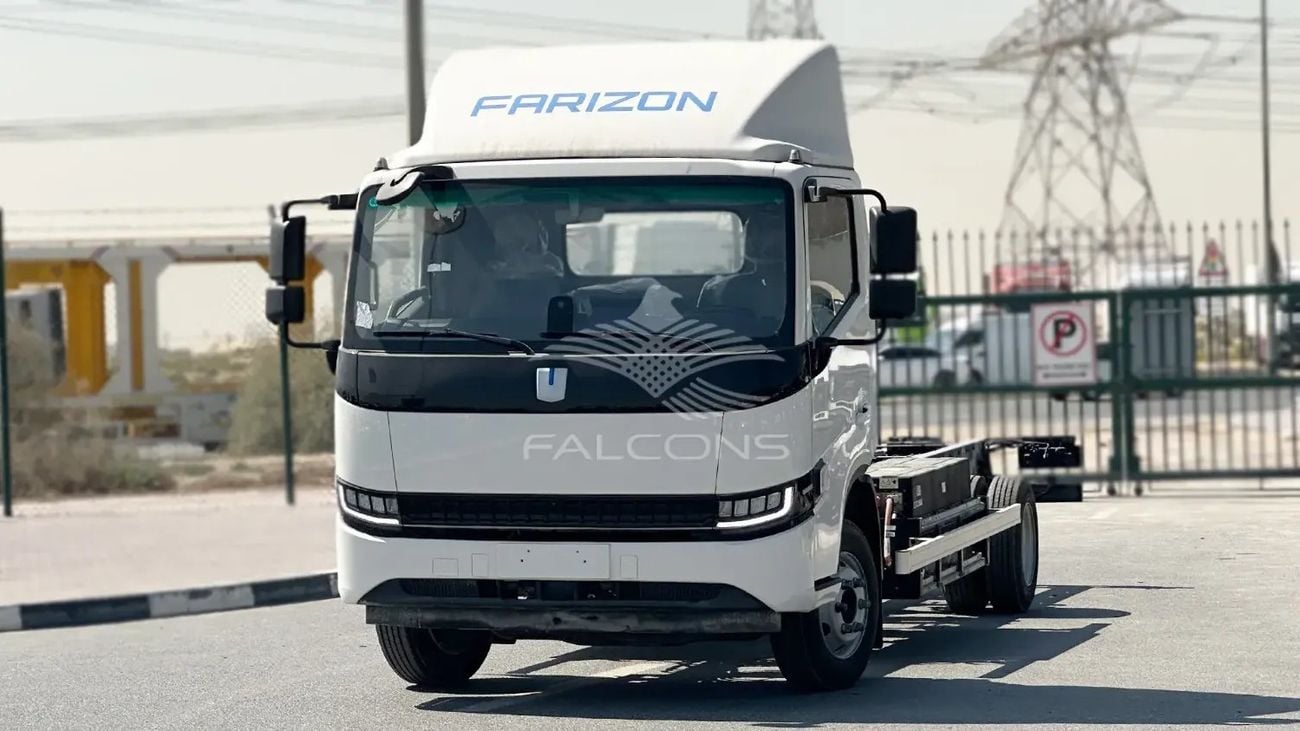

Farizon H9E FARIZON/H9E/4500WB 2WD TRUCK 162KW 8T

General Vehicle Data

Model: Farizon H9E 8T LWB (Long Wheelbase) EV Truck
Drive Layout: 2WD / Rear-wheel drive (RWD)
Gross Vehicle Mass (GVW): ~7,995 kg

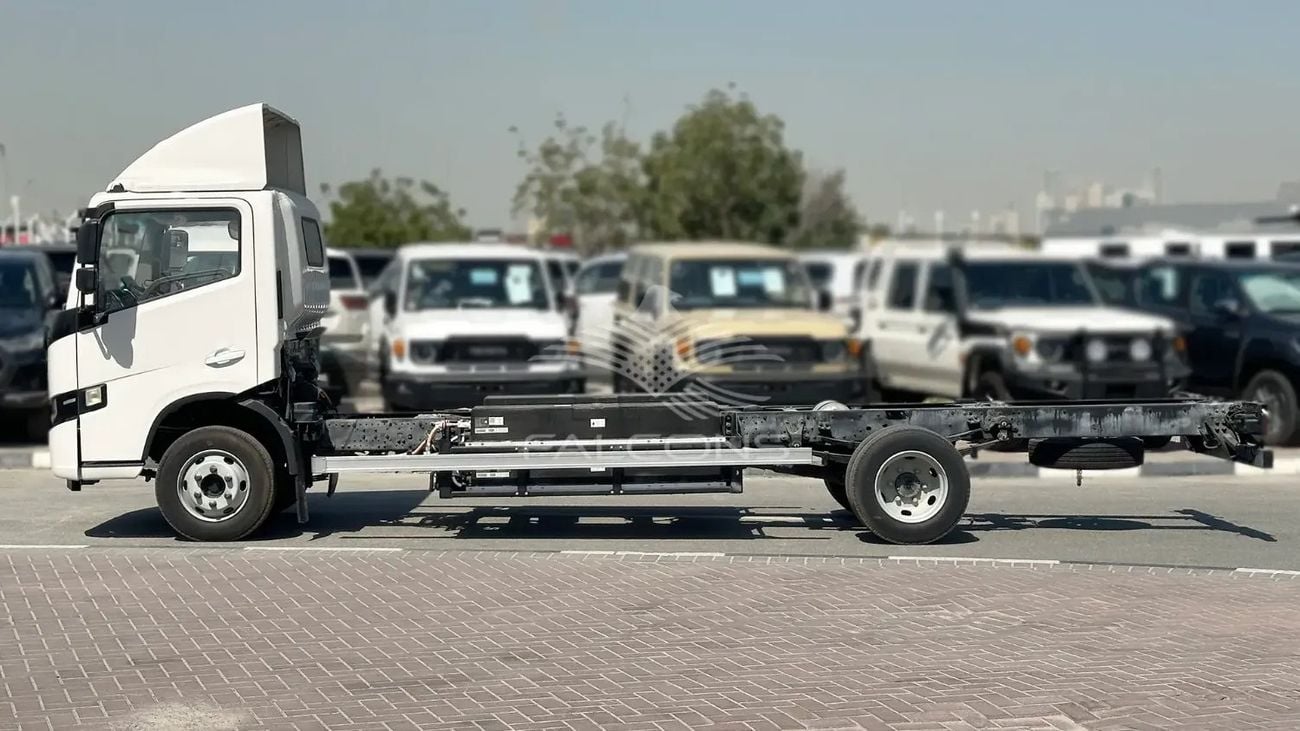

Wheelbase: 4,500 mm
Dimensions (L × W × H): ~7,995 × 2,245 × 2,875–3,300 mm
Cab Width: ~2,080 mm

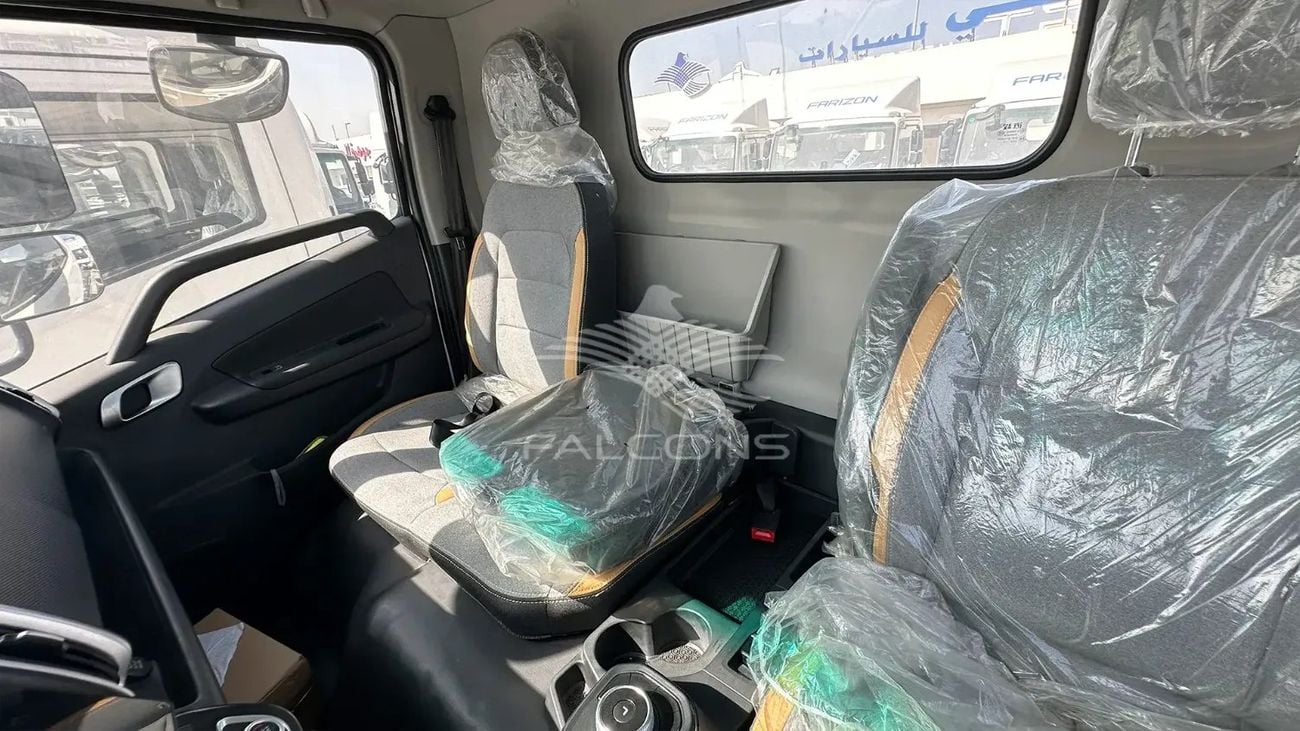

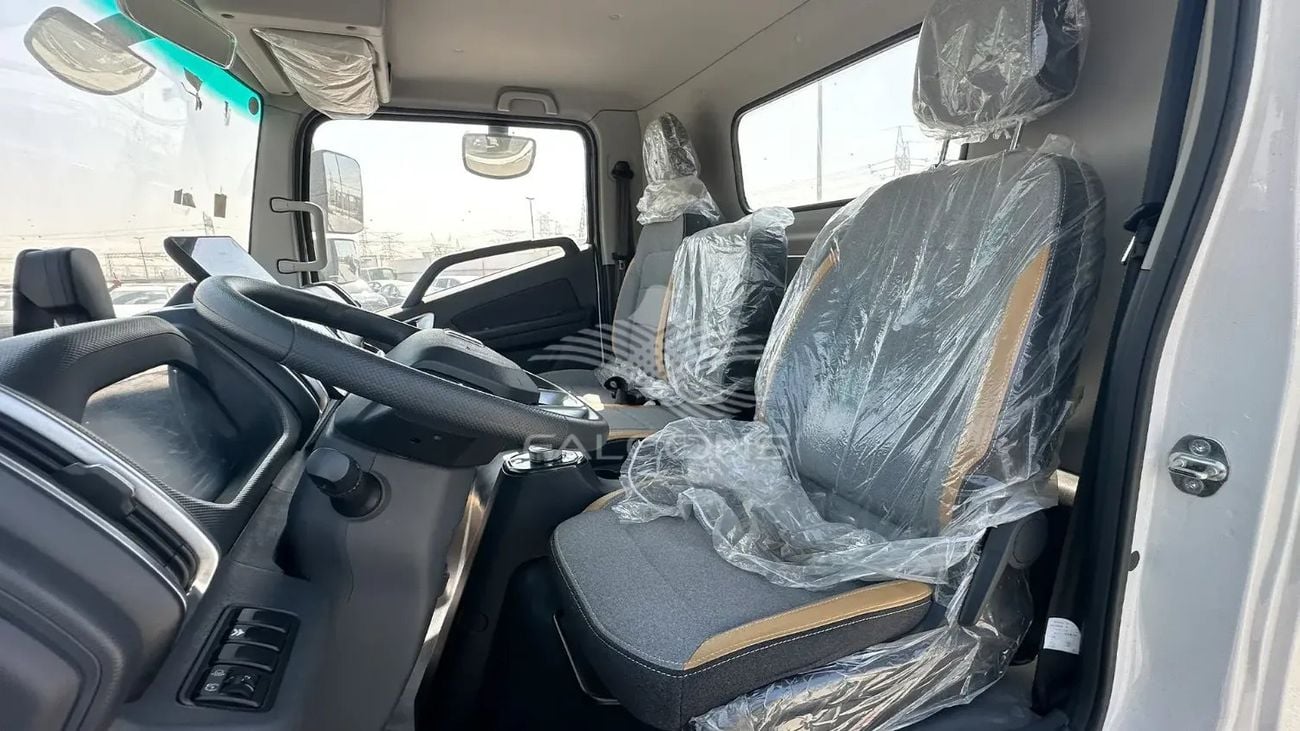

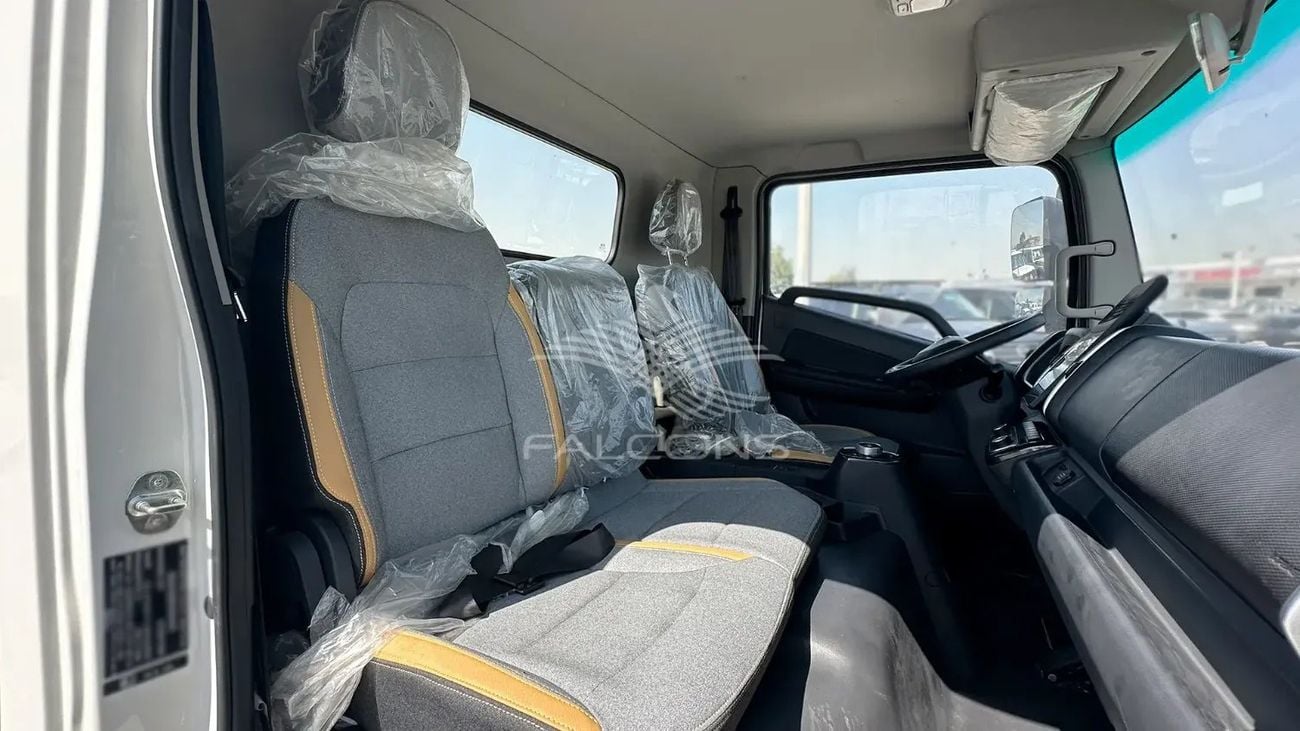

Seating Capacity: 3 persons

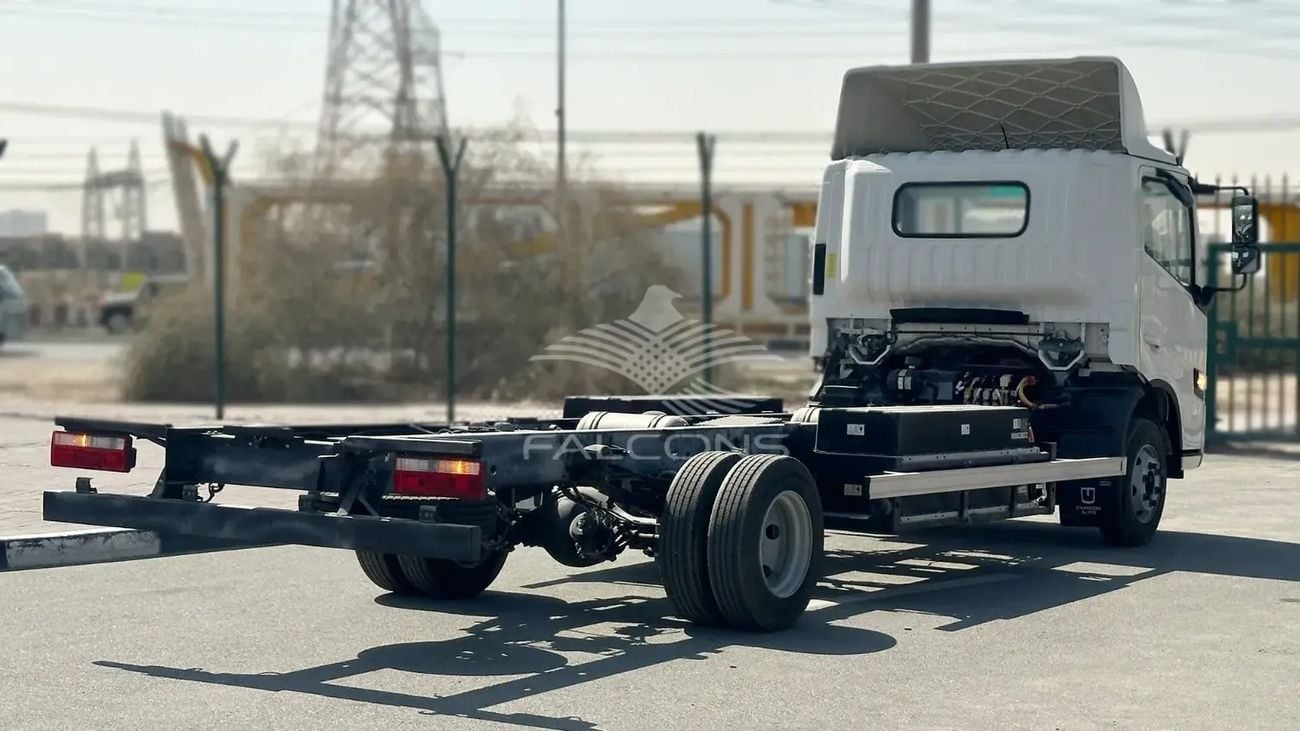

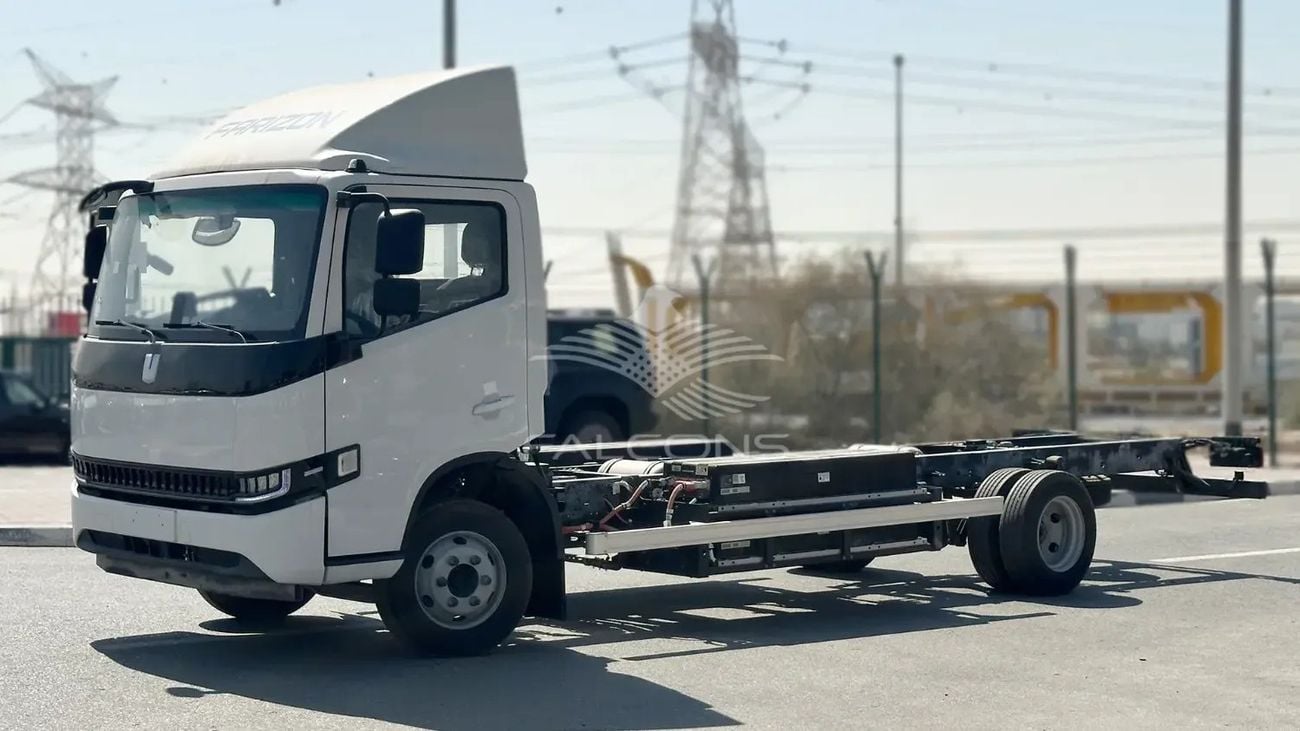

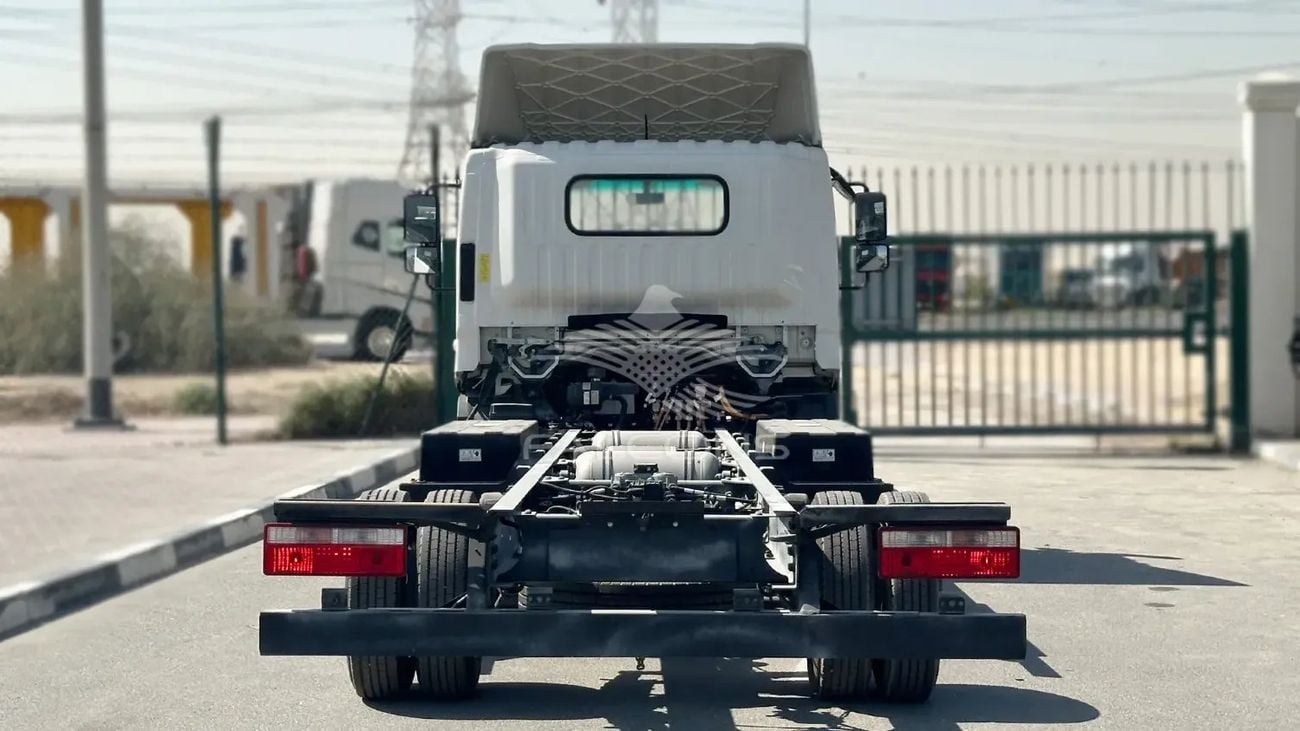

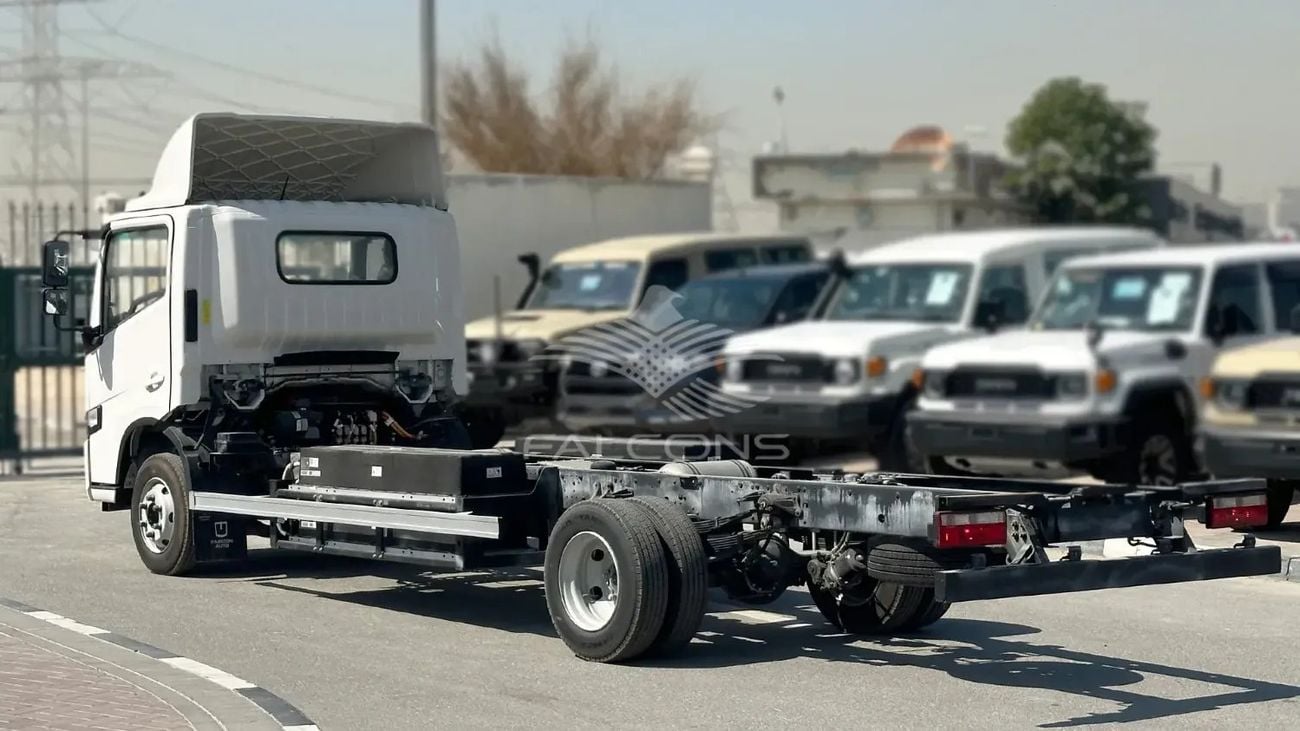

Body Style: Cab-chassis ready for custom body fitments

Powertrain & Performance

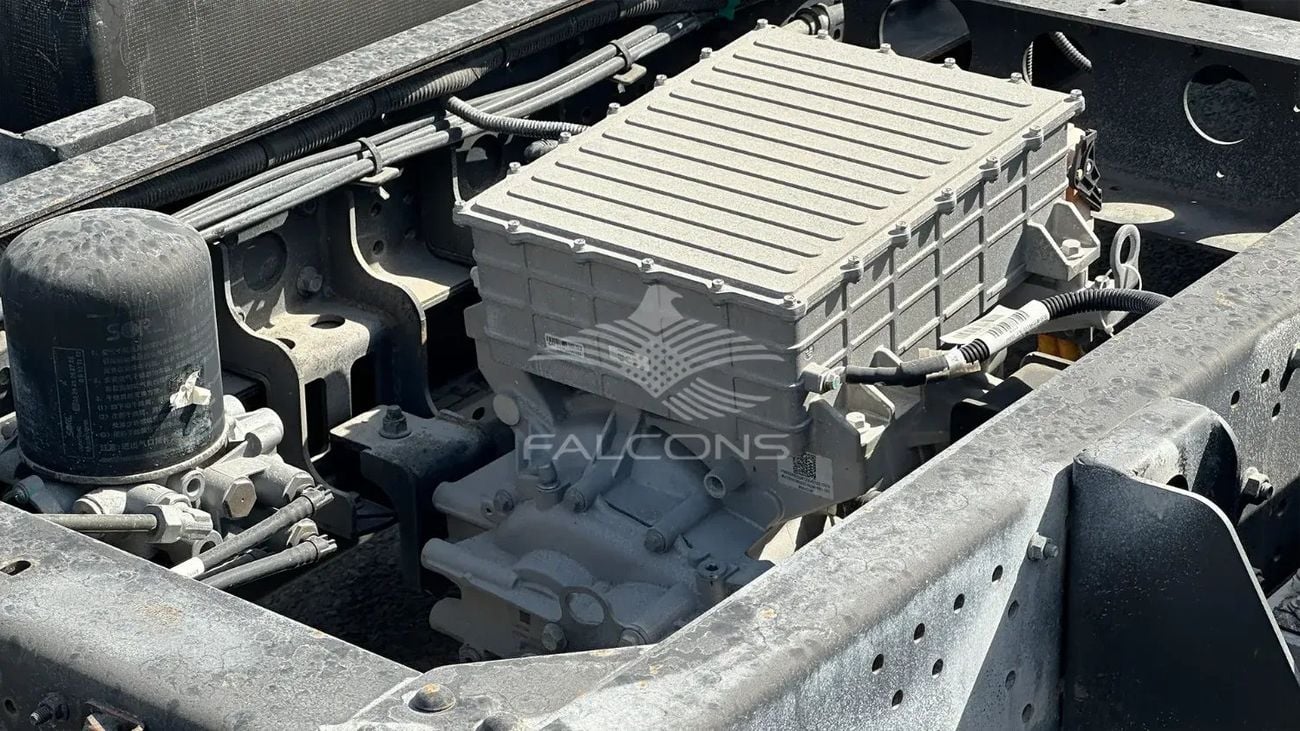

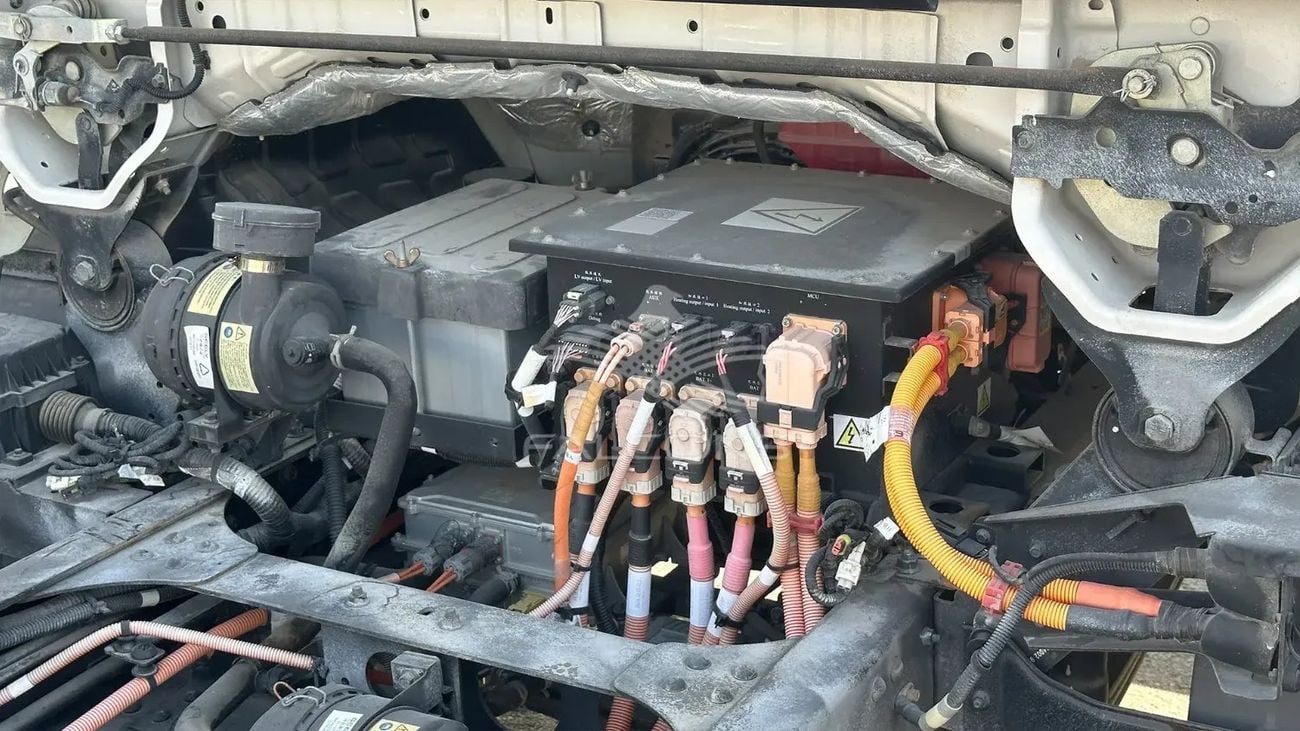

Motor Type: Permanent Magnet Synchronous Motor (PMSM)
Rated Power: ~70 kW (continuous) / 130 kW (peak) ~174 hp
Torque: ~1,500 Nm peak (8T SWB variant; LWB likely similar)
Battery: CATL LFP Lithium Iron Phosphate, ~162.28 kWh
Charging:
• DC Fast Charge ~100 kW CCS2 — ~40–60 min 20 – 80 %

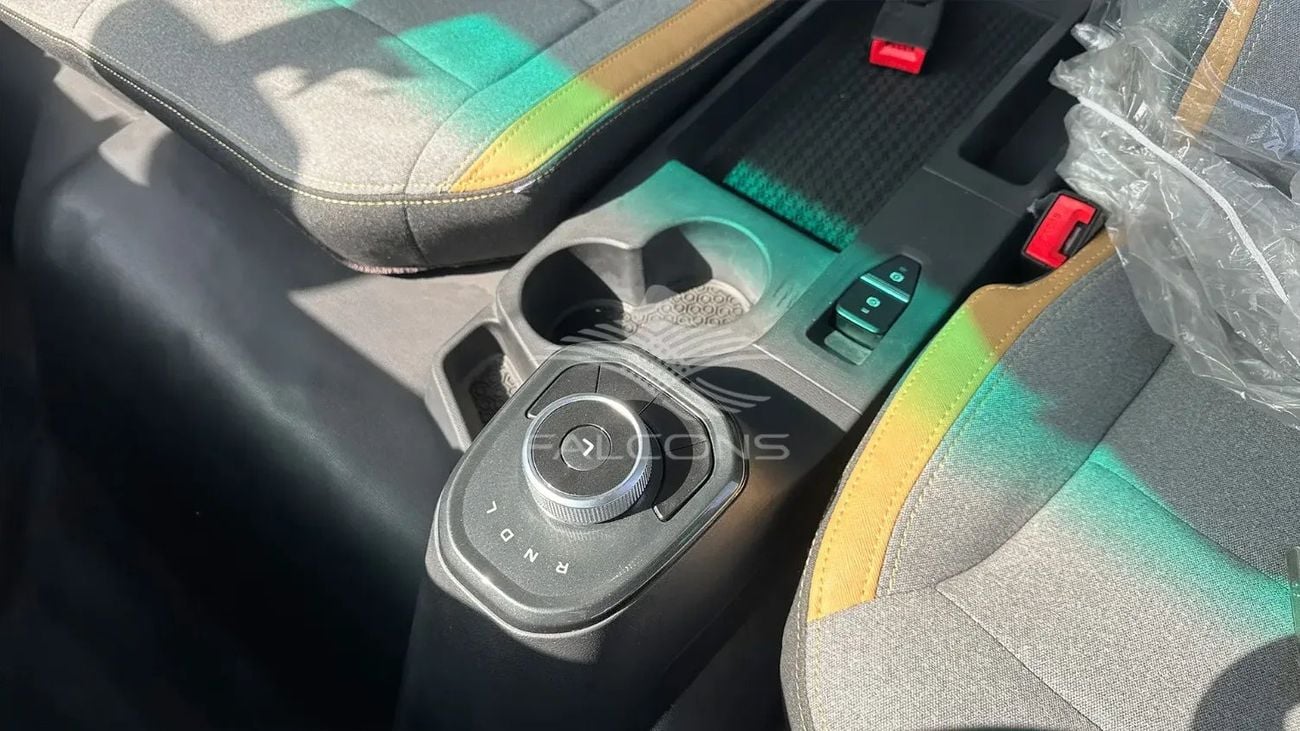

Transmission: Electric single speed / fixed gear

Range & Efficiency

All-Electric Range (WLTC/WLTP): ~324 km (varies by payload & conditions)
Estimated Range (WLTP upper bound): ~350 km+

Weights & Capacities

Curb Weight: ~3,910 kg
Payload Capacity: ~4,085 kg (LWB variant)
Gross Vehicle Weight: ~7,995 kg

Chassis, Suspension & Brakes

Suspension: Non-independent / leaf springs – robust truck setup
Brakes: Drum brakes front & rear
Parking Brake: Electronic parking brake
Steering: Power steering (rear-wheel drive)

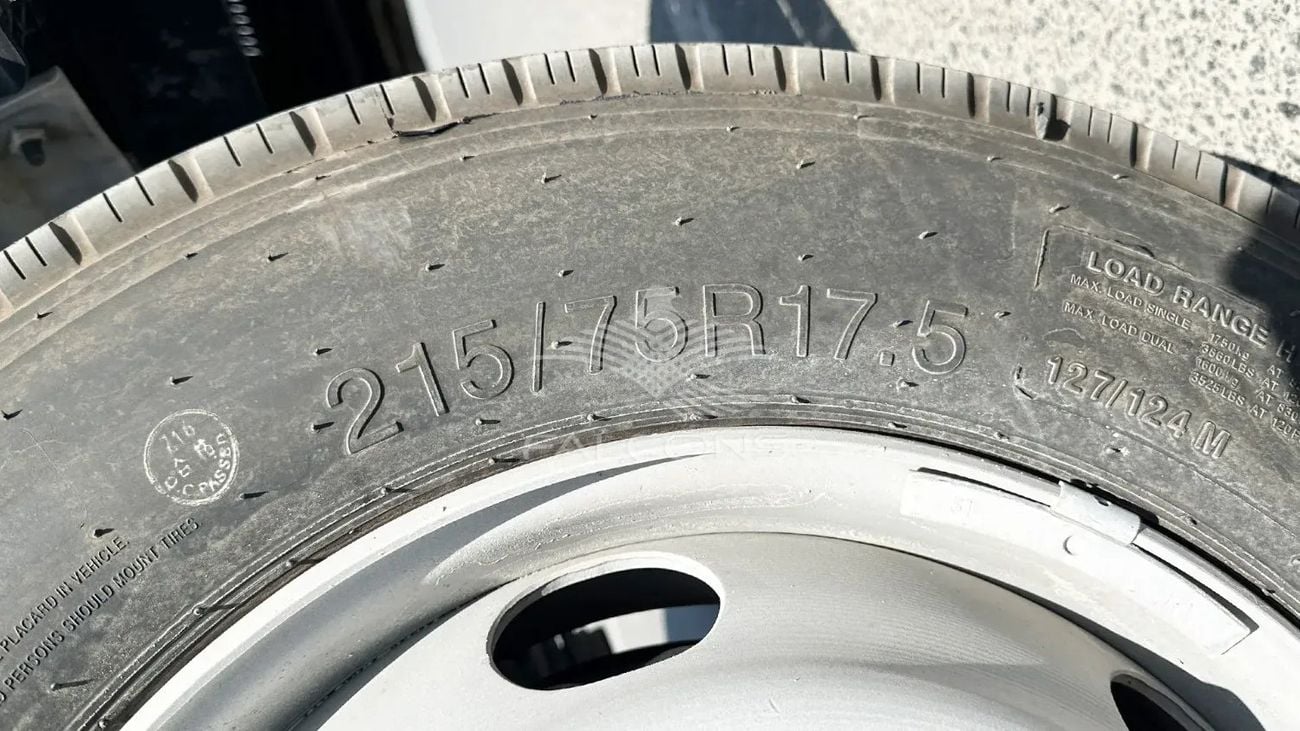

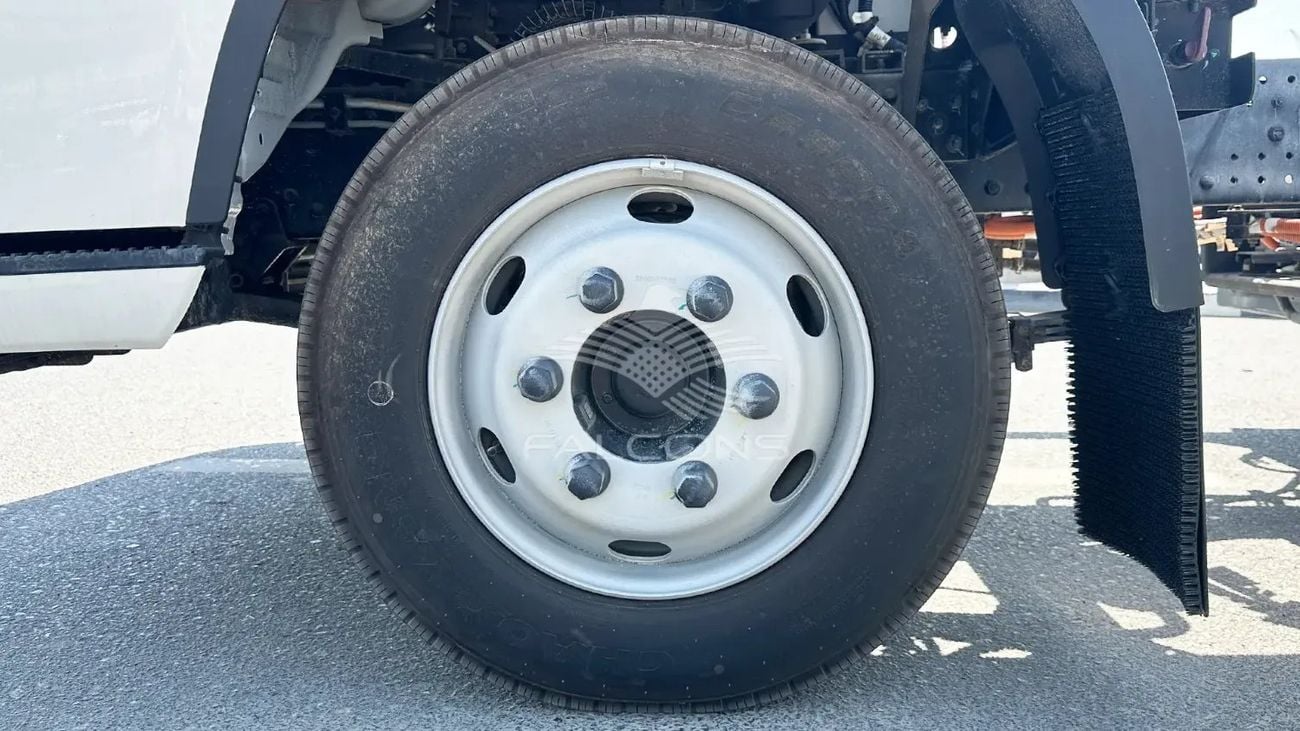

Wheels & Tyres: 215/75 R17.5

Performance & Operation

Top Speed: ~90 km/h (approx)
Braking & Safety Aids:
• ABS, EBD, traction & stability controls (varies by market)

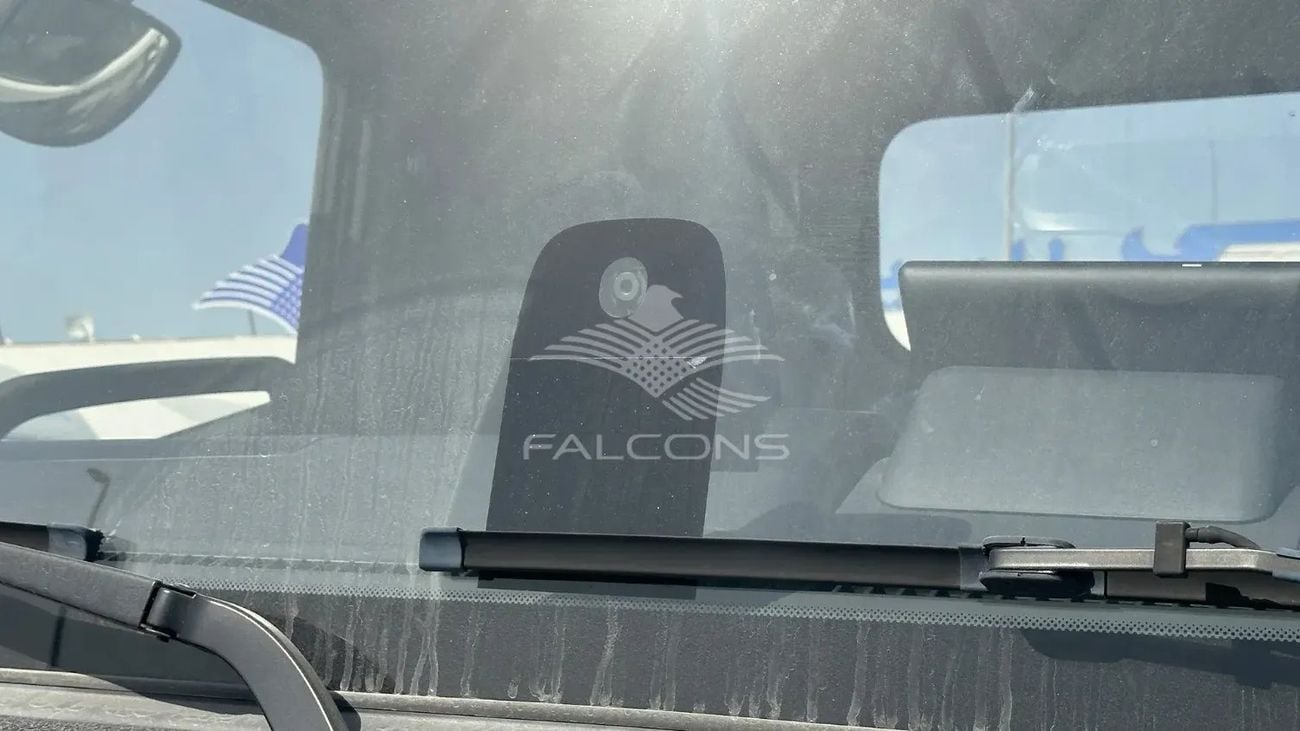

• sensors (on some markets)
