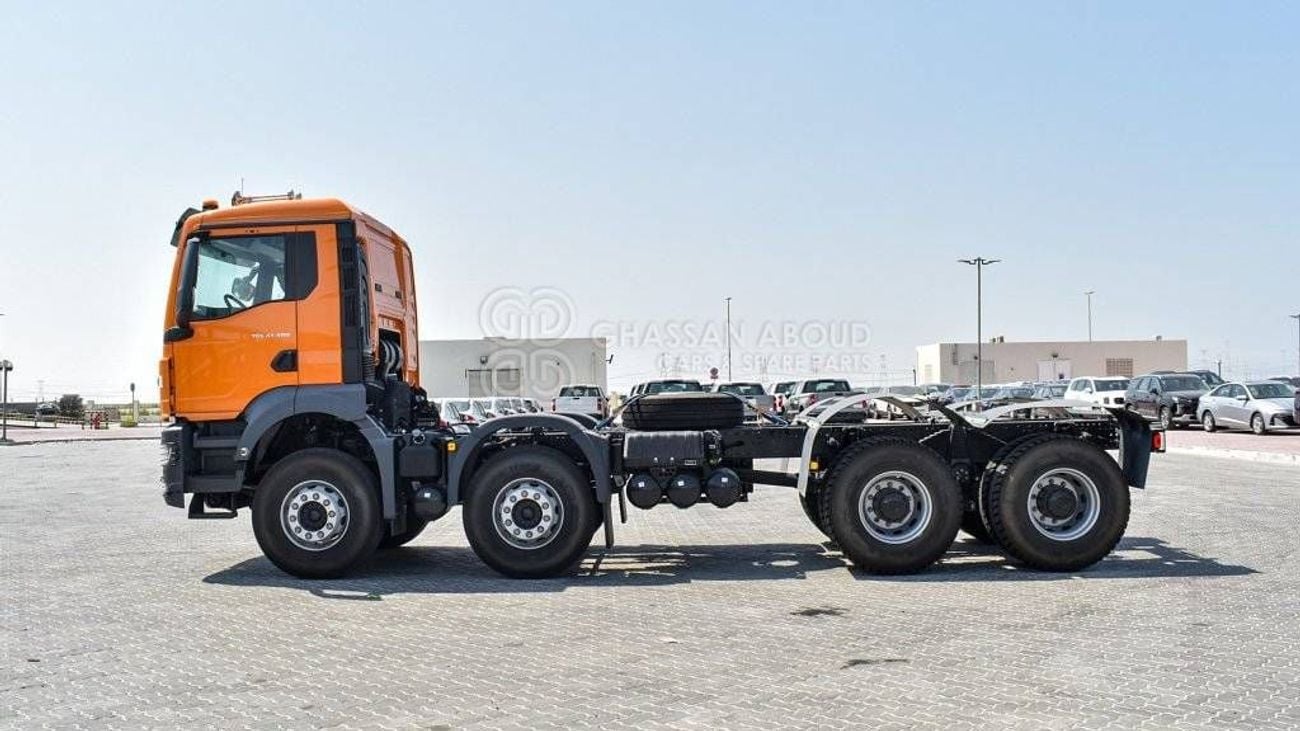

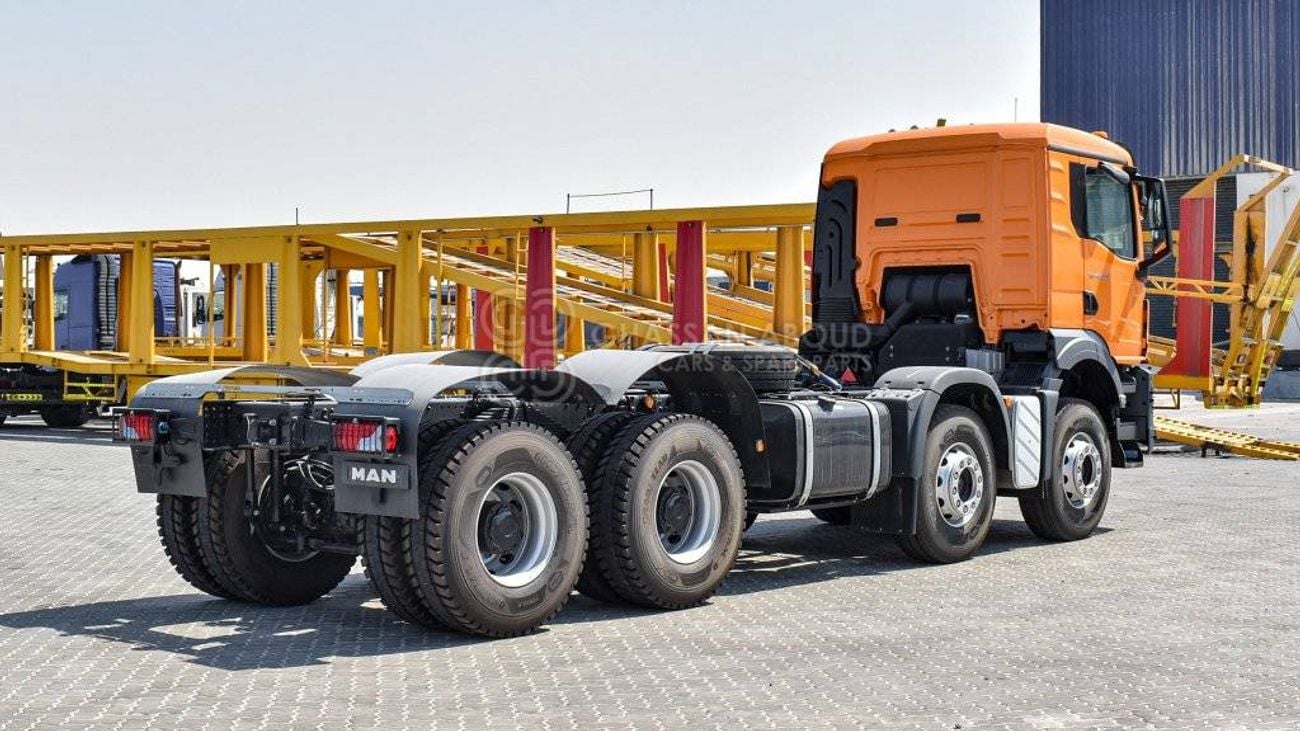

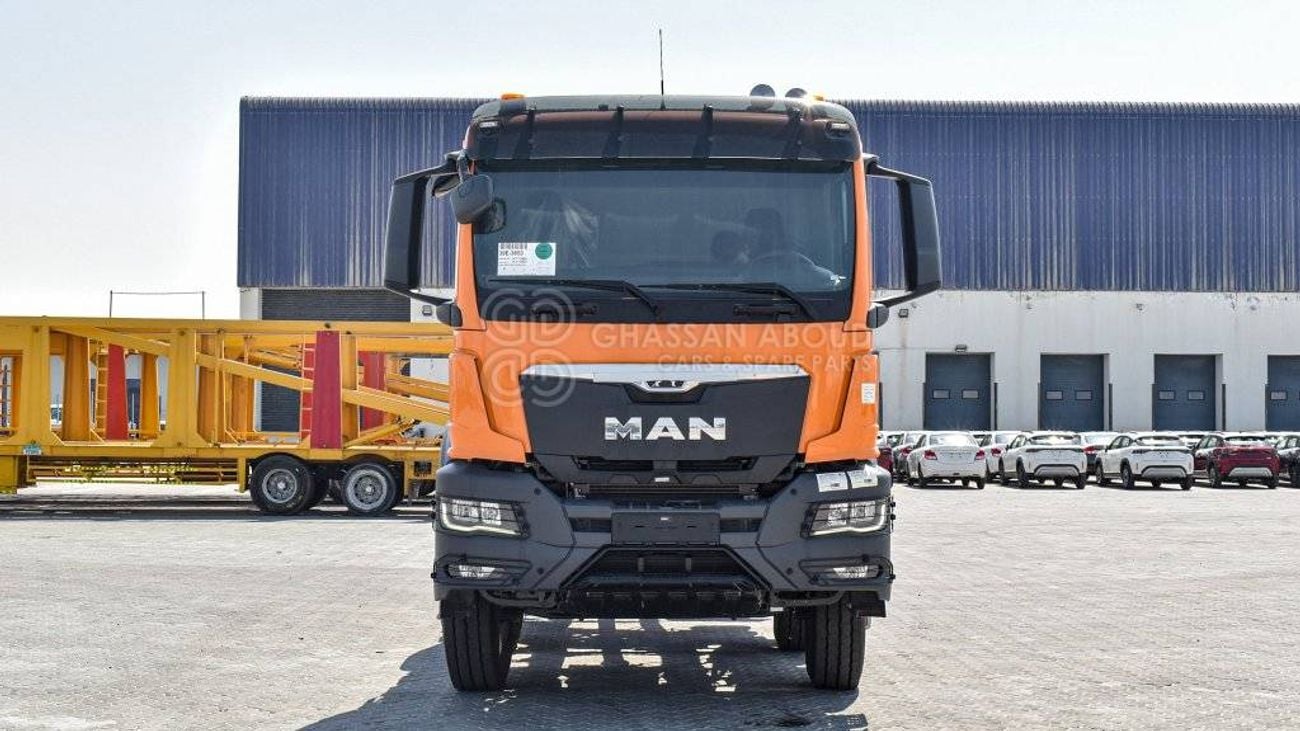

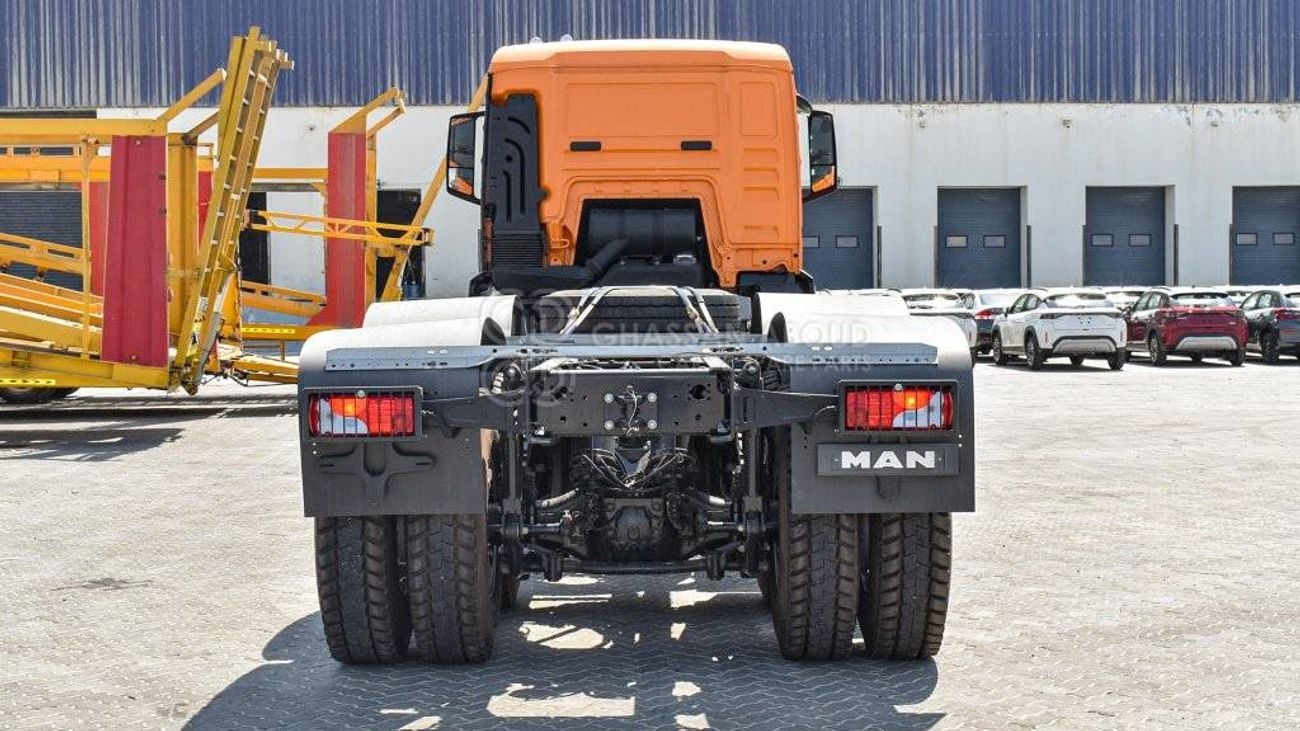

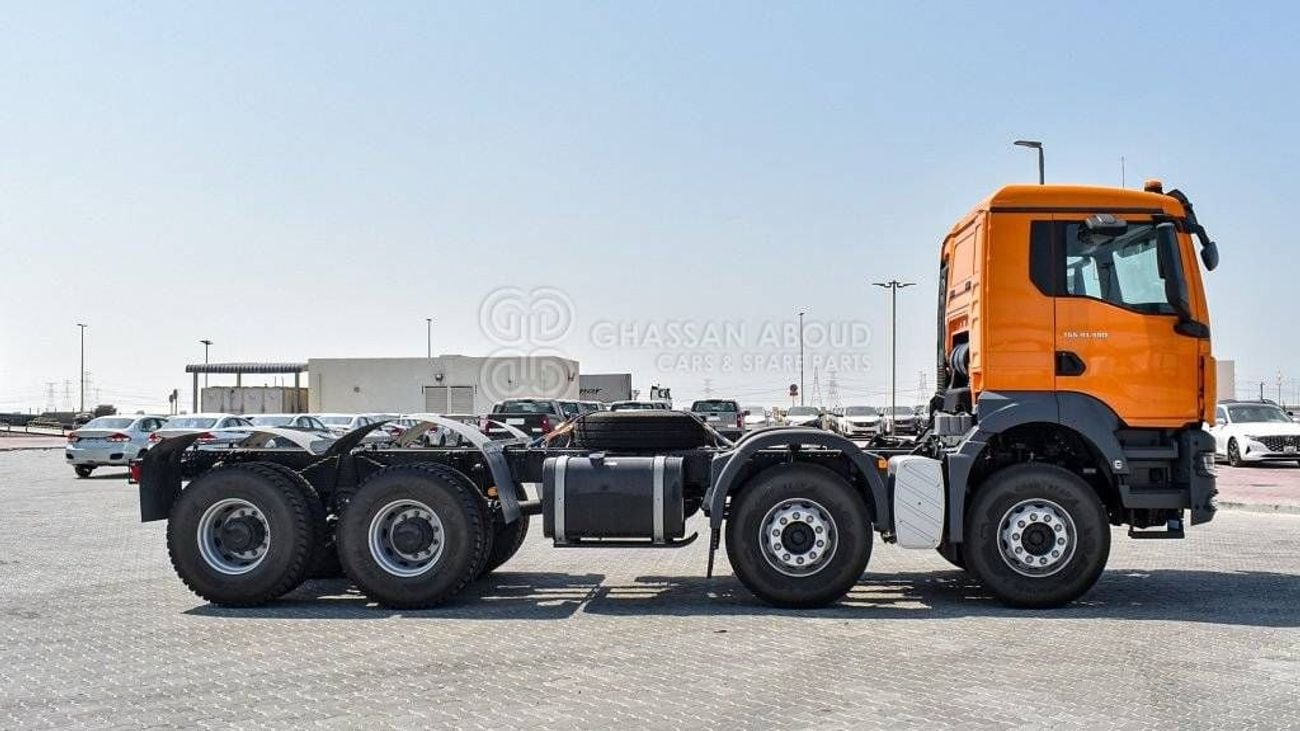

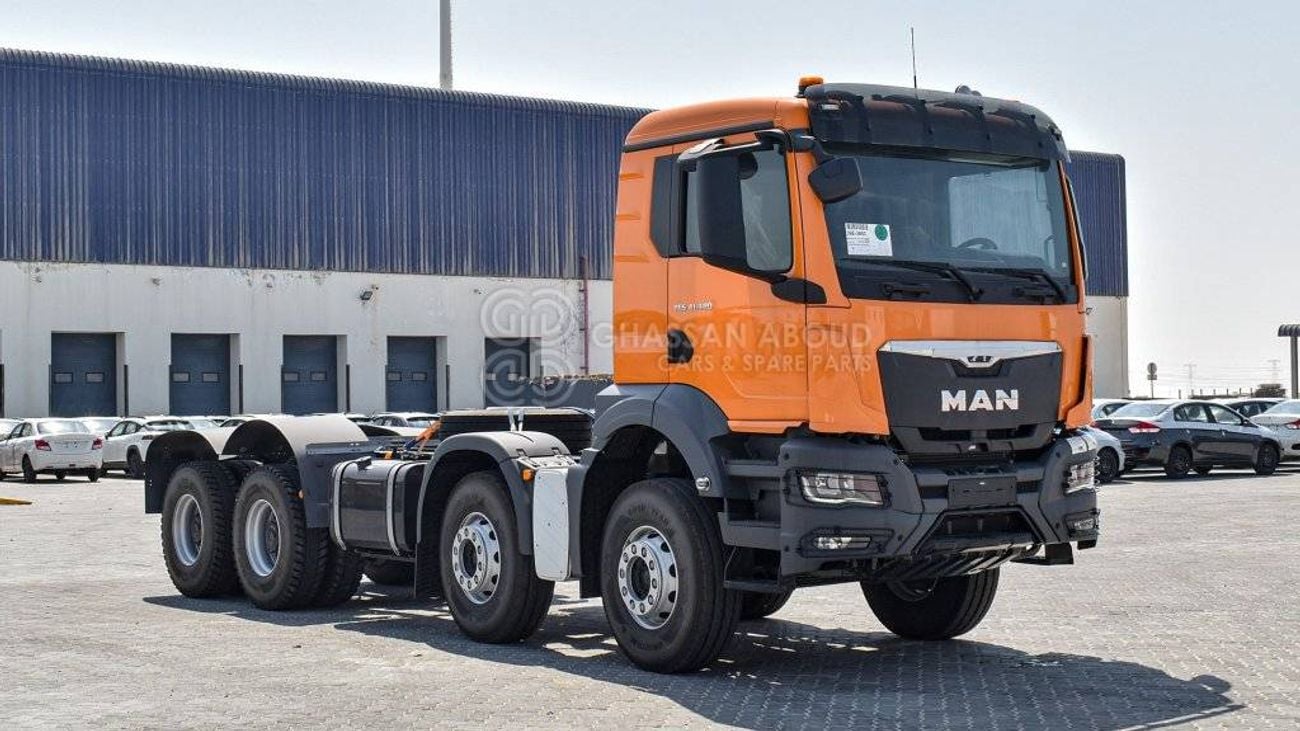

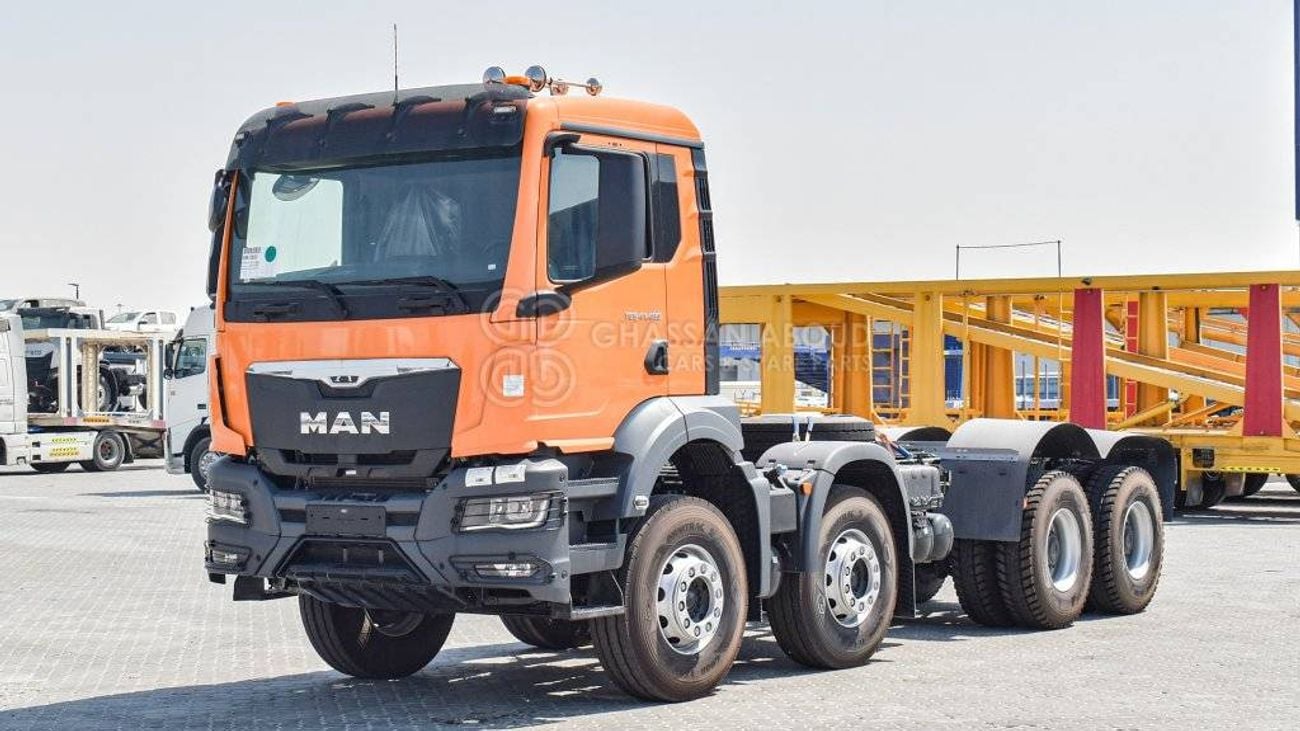

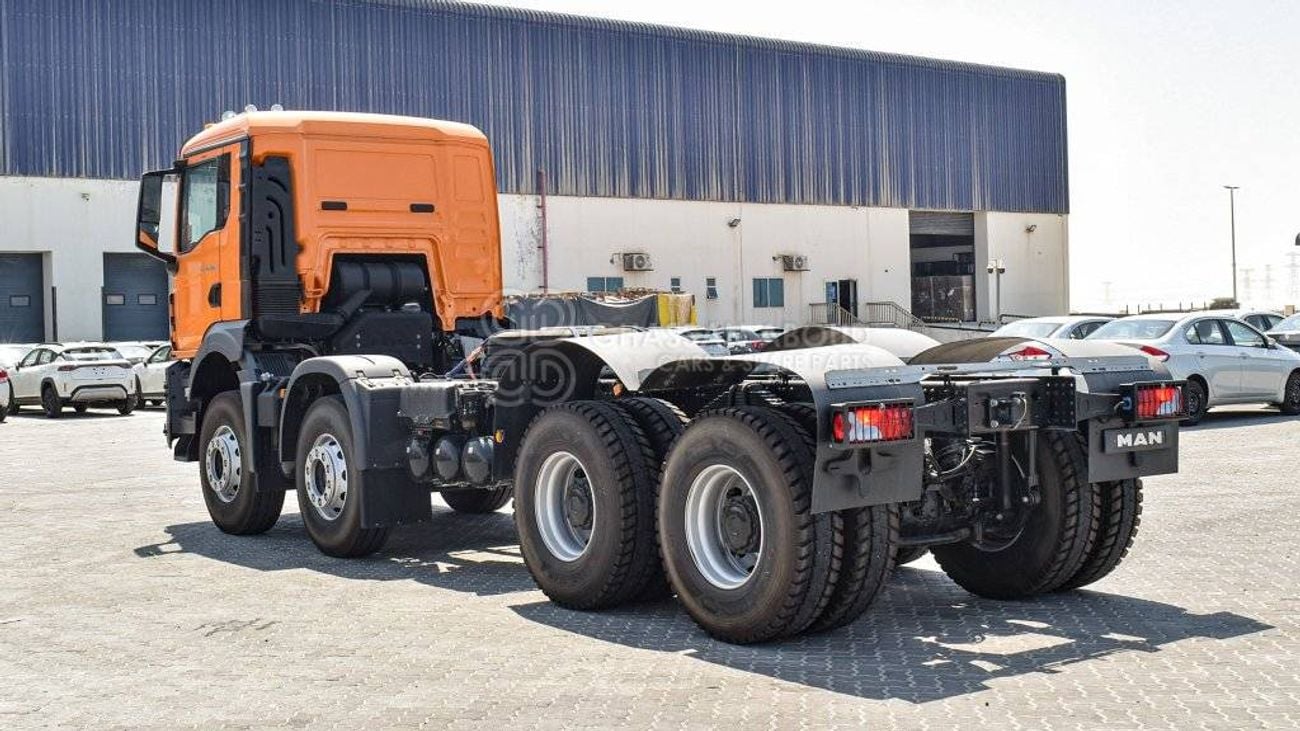

MAN TGA TRUCK CHASSIS – TGS 41.480 – 8X4 BB CH

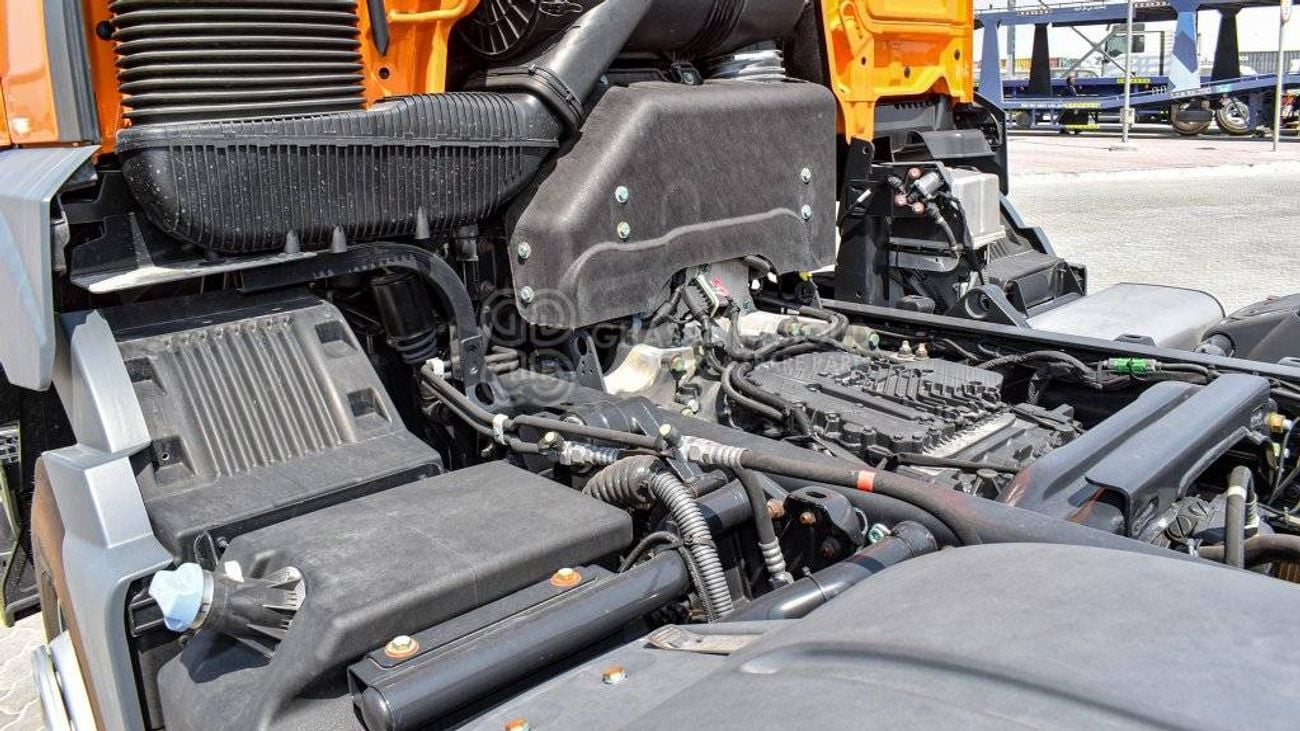

Engine & Transmission
TYPE:
TGS 41.480 - 8X4 BB CH
AXLE CONIGURATION:
8X4
GVW:
41 TON
ENGINE:
353KW (480HP), 230Nm TORQUE

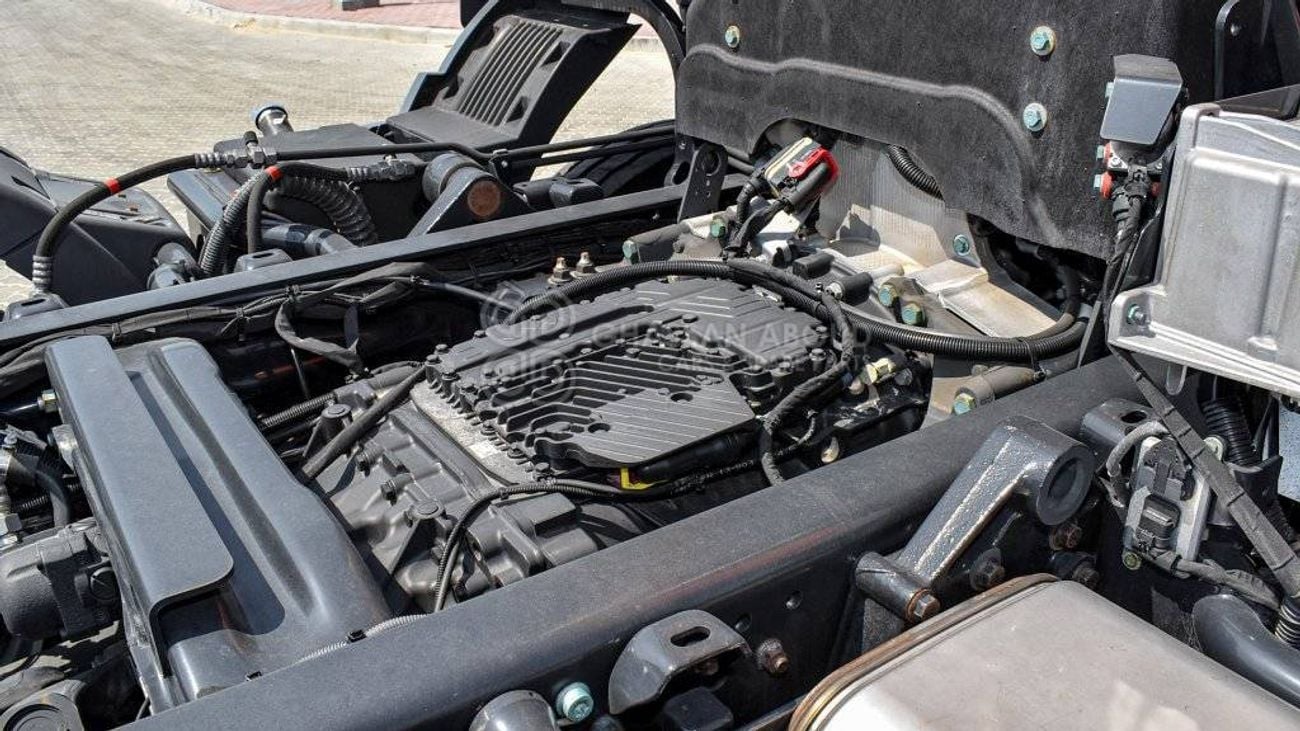

GEAR BOX TYPE:
TIPMATIC 12 28OD
Dimension, Capacities & Suspensions
WHEEL BASE:
MAIN 2980, Front 1795mm, Rear 1400mm
REAR OVERHANG :
800mm
VEHICLE SUSPENSION TYPE:
LEAF SPRING
BREAK TYPE:
DRUM BREAKER

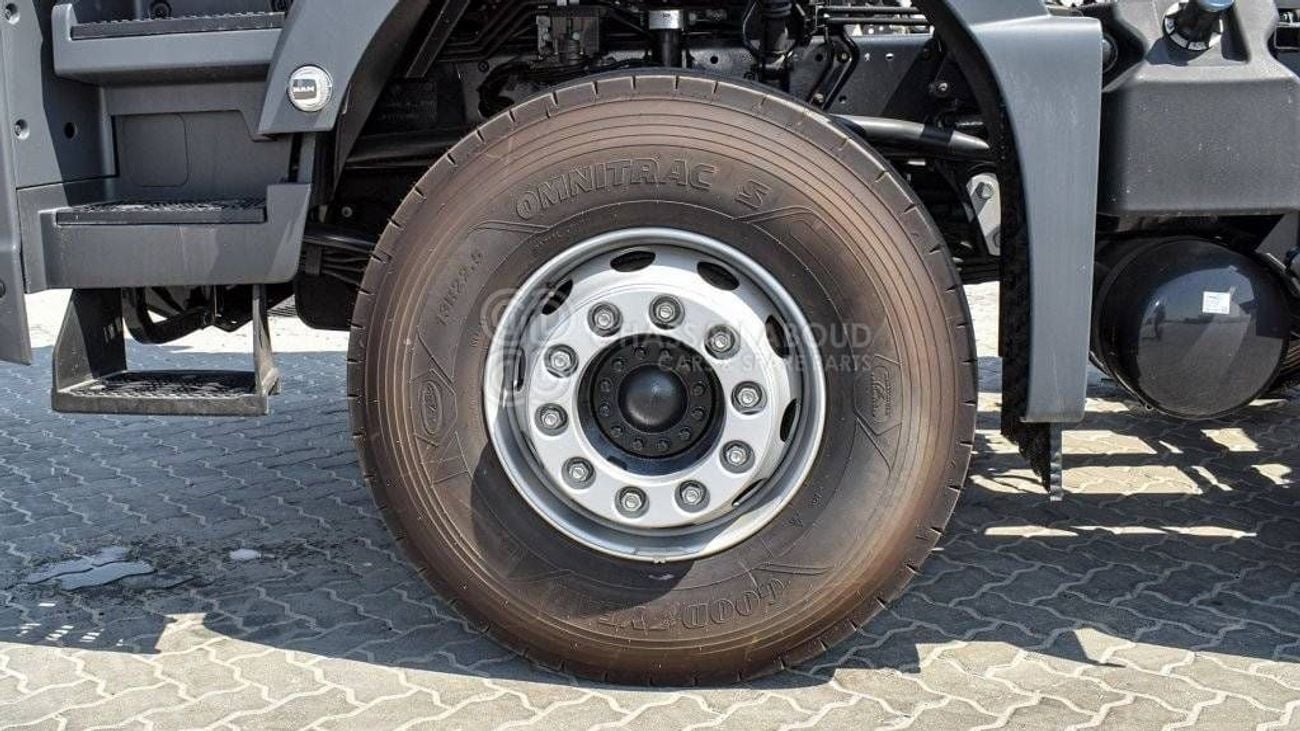

TYRES:
13R 22.5
DIMENSION:
L 9.44 x W 2.47 x H 3.15mm
COLOUR:
WHITE
DRIVE HAND:
LH DRIVE
CAPACITY LITERS:
400L
EMISSION:
EURO 5
Interior features & Safety
BATTERY, 12 V,175 Ah, 2 UNITS
MAIN BATTERY SWITCH ELECTRIC
SAFETY CUT-OUT
LOCKABLE BATTEY BIX, WITH PADLOCK
GUARD PLATE FOR TANKS
FUEL TANK, RIGHT STEEL
ADBLUE TANK CAPACITY 35L, LEFT
FULL TANK CAP, LOCKABLE FOR MASTER KEY SYSTEM
SPARE WHEEL, PROVISIONALLY MOUNTED

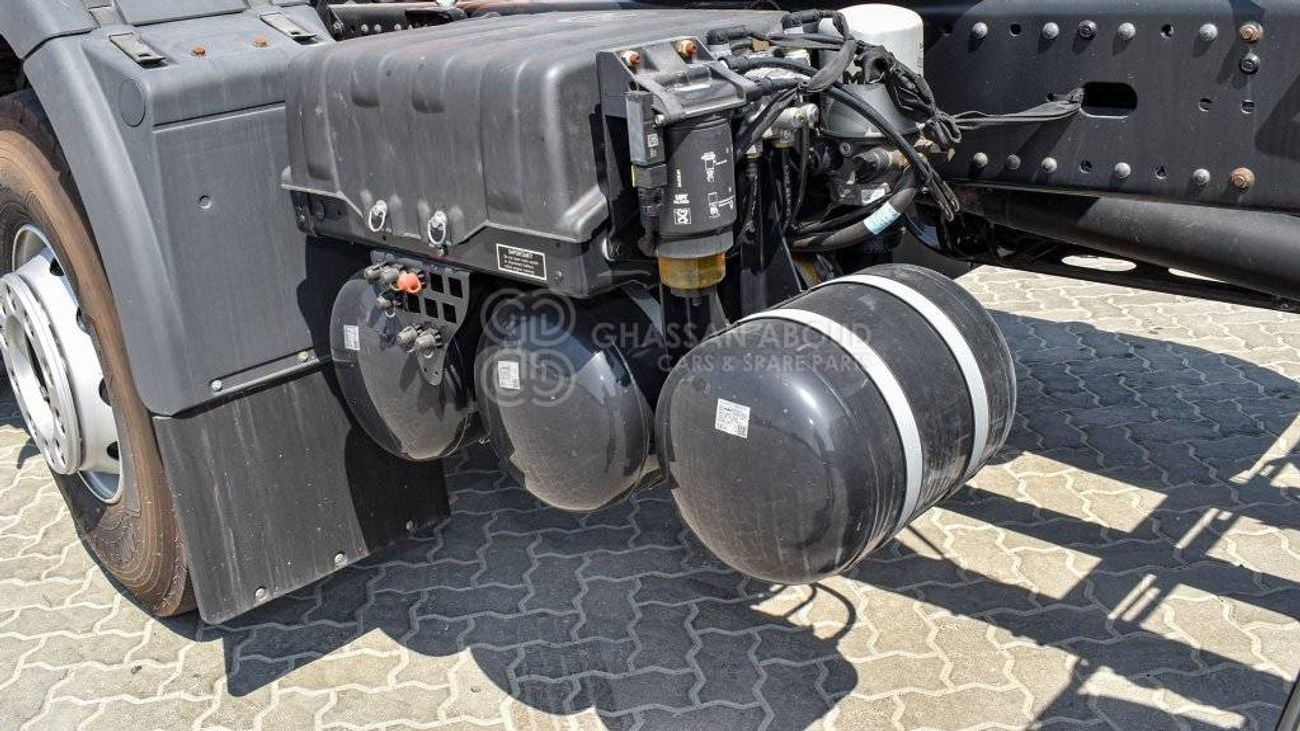

AIR COMPRESSOR, 1-CYLINDER 360ccm
COMPRESSED-AIR TREATMENT, PNEUMATICALLY CONROLLED
ELECTRONIC BRAKE SYSTEM (EBS)
ANTI-LOCK BREAKING SYSTEM(ABS)
FULL BREAK ASSISTANT
MAN EASY START IMMOBILISER
REAR LIGHTS
STONE PROTECTION, FOR REAR LIGHTS, GUARD, WIDE MESH
REVERSING WARNING SYSTEM
SIDE MARKER LIGHTS, LED
ANTI-NOISE SKIRT, ENGINE
RADIATION PROTECTION, LOWER
ENGINE OIL DIPSTICK AND DIGITAL OIL LEVEL GUAGE
ANTI FREEZE, DOWN TO -32c
SINGLE-DISC CLUTCH, 430mm , DRY , REINFORCED (LONG LIFE)
DRIVELINE PROPSHAFT,REINFORCED
PROPSHAFT, 2nd REAR AXLE, REINFORCED
STEERING OIL TANK WITH ELECTRICAL MEASURING SENSOR
AXLE RATIO, I = 4.00
DIFFERENTIAL LOCKS ON DRIVEN REAR AXLES
EMERGENCY STEERING PUMP
VEHICLE TOOL KIT
FIRST AID KIT
WARNING TRIANGLE, 1 UNITS
COMPRESSED-AIR CONNECTION, CAB
JACK, 12,000 KG
ELECTRONIC STABILITY PROGRAM ( ESP)
ANTI-SLIP CONTROL (ASR)
TEMPOMAT (CRUISE CONTTROL, CC)
IDLE SHUT DOWN

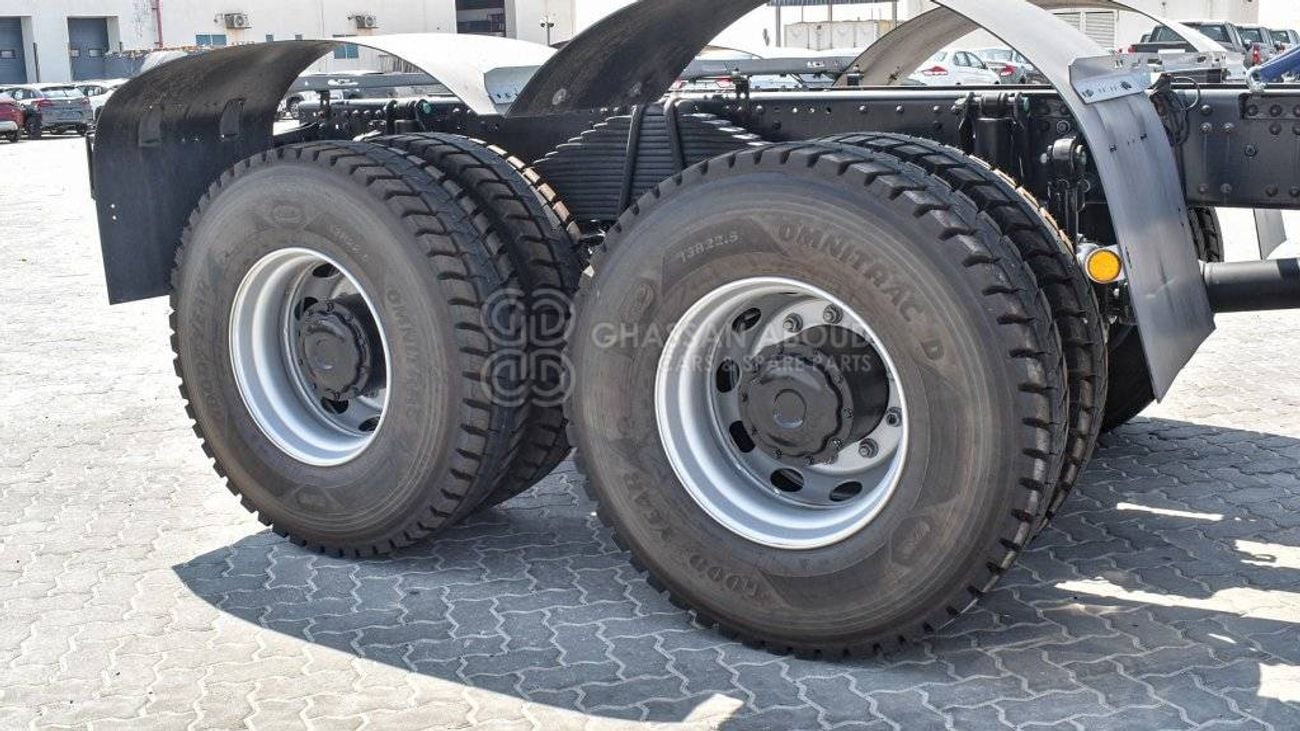

SUSPENSION TYPE FOR FRONT AXLES AND DRIVEN REAR AXLES, LEAF/LEAF (BB)
LEAF-SPRING SUSPENSION ON FRONT AXLE, PARABOLIC 4-LEAF, STEEL
LEAF-SPRING SUSPENSION ON 2ND FRONT AXLE, PARABOLIC 4-LEAF, STEEL
LEAF-SPRING SUSPENSION ON REAR AXLE, TRAPEZOIDAL, STEEL
LEAF-SPRING SUSPENSION ON 2ND REAR AXLE, TRAPEZOIDAL, STEEL
SPRING LOAD-BEARING CAPACITY FRONT AXLE 9,500 KG
SPRING LOAD-BEARING CAPACITY OF 2ND FRONT AXLE 9,500 KG
SPRING LOAD-BEARING CAPACITY OF REAR AXLE 16,000 KG
SPRING LOAD-BEARING CAPACITY OF 2ND REAR AXLE 16,000 KG
STABILISER FRONT AXLE, STABILISER 2ND FRONT AXLE
STABILISER REAR AXLE, STABILISER 2ND REAR AXLE
CAB TILT MECHANISM, MANUAL
WINDSCREEN, COMPOSITE SAFETY GLASS, TINTED
SUNBLIND, IN FRONT OF WINDSCREEN
WIPER SYSTEM FOR WINDSCREEN
CENTRAL LOCKING, WITH REMOTE CONTROL
DOOR WINDOWS, TINTED
STONE PROTECTION, FOR FRONT HEADLIGHTS
DAYTIME DRIVING LIGHTS, LED
FOG LIGHTS H7, CORNERING LIGHTS H7, TURN SIGNAL LIGHTS, SIDES, LED
HEADLIGHT BEAM REGULATOR
COMPRESSED-AIR HORN, 2UNITS, CAB ROOF
2 REVOLVING BEACONS ON CAB ROOF, 1 RIGHT AND 1 LEFT
PREPARATION FOR LOADING AREA LIGHTNING
EXTERIOR REAR-VIEW MIRROR, ELECTRICALLY ADJUSTABLE

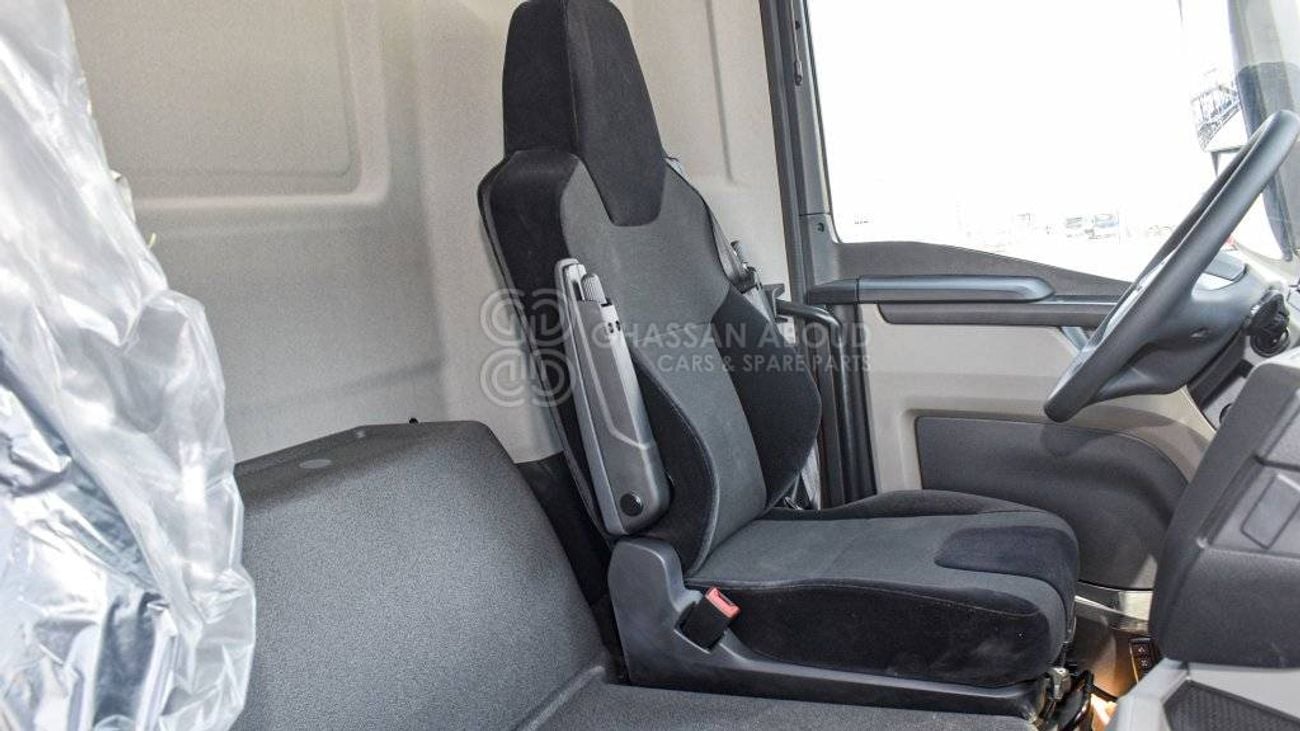

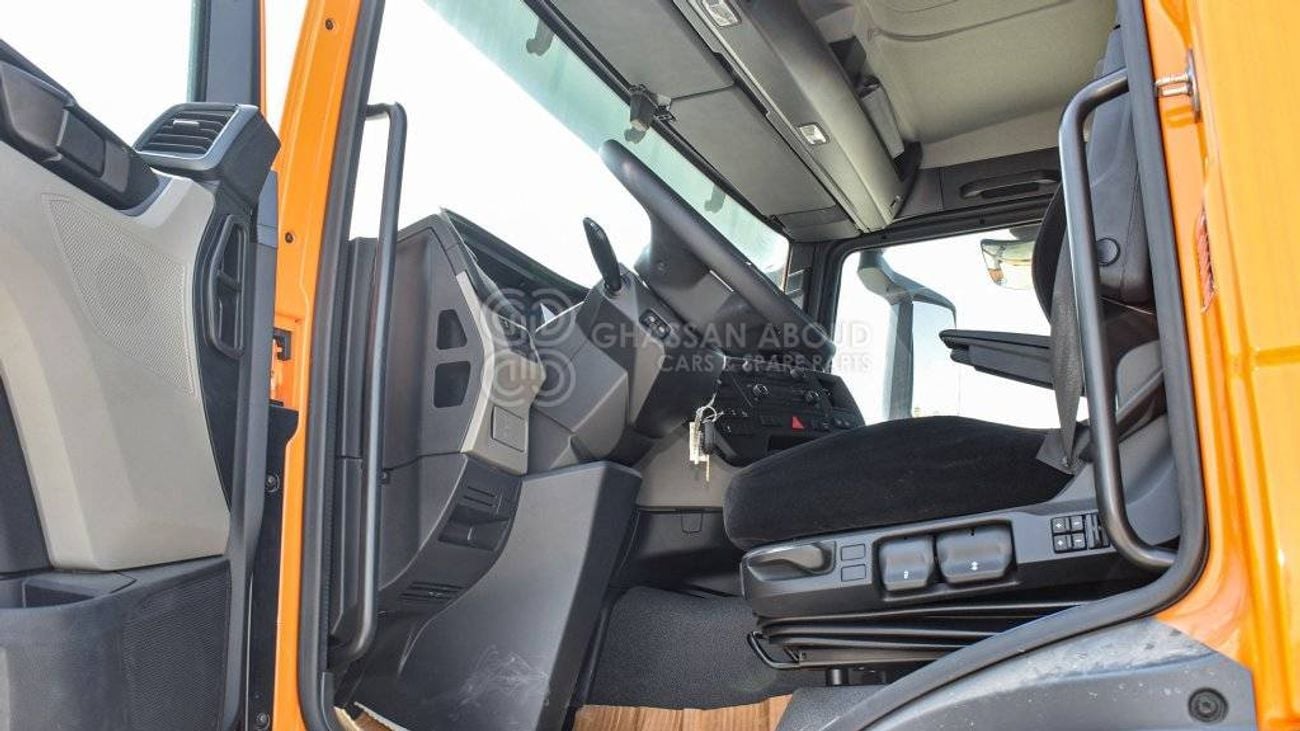

SEAT COVERS, FABRIC, COMFORT
DRIVER'S SEAT ARM RESTS
STORAGE SPACE, IN SEAT BRACKET OF CO DRIVER'S SEAT
MULTI-FUCTION STEERING WHEEL, ADJUSTABLE HEIGHT AND ANGLE
STERRING WHEEL WITH PARKING POSITION
STEERING LOCK
ANALOGUE TACHOGRAPH, CONTINENTAL
SOCKET CAB CENTRE, 2 UNITS, 12 V & 24 V
AIR CONDITIONING SYSTEM, MANUAL
WINDSCREEN ROLLER BLIND, INTERNAL
HAZARD WARNING LIGHT, 1 UNITS WITH CONTINOUS LIGHT FUNCTION
ROAD SPEED LIMITER, ADJUSTABLE LIMITER (ENGINE SPEED REGULATION)
MAN LOUD SPEAKER SYSTEM
STORAGE BOX, CAB REAR WALL, 2 UNITS
