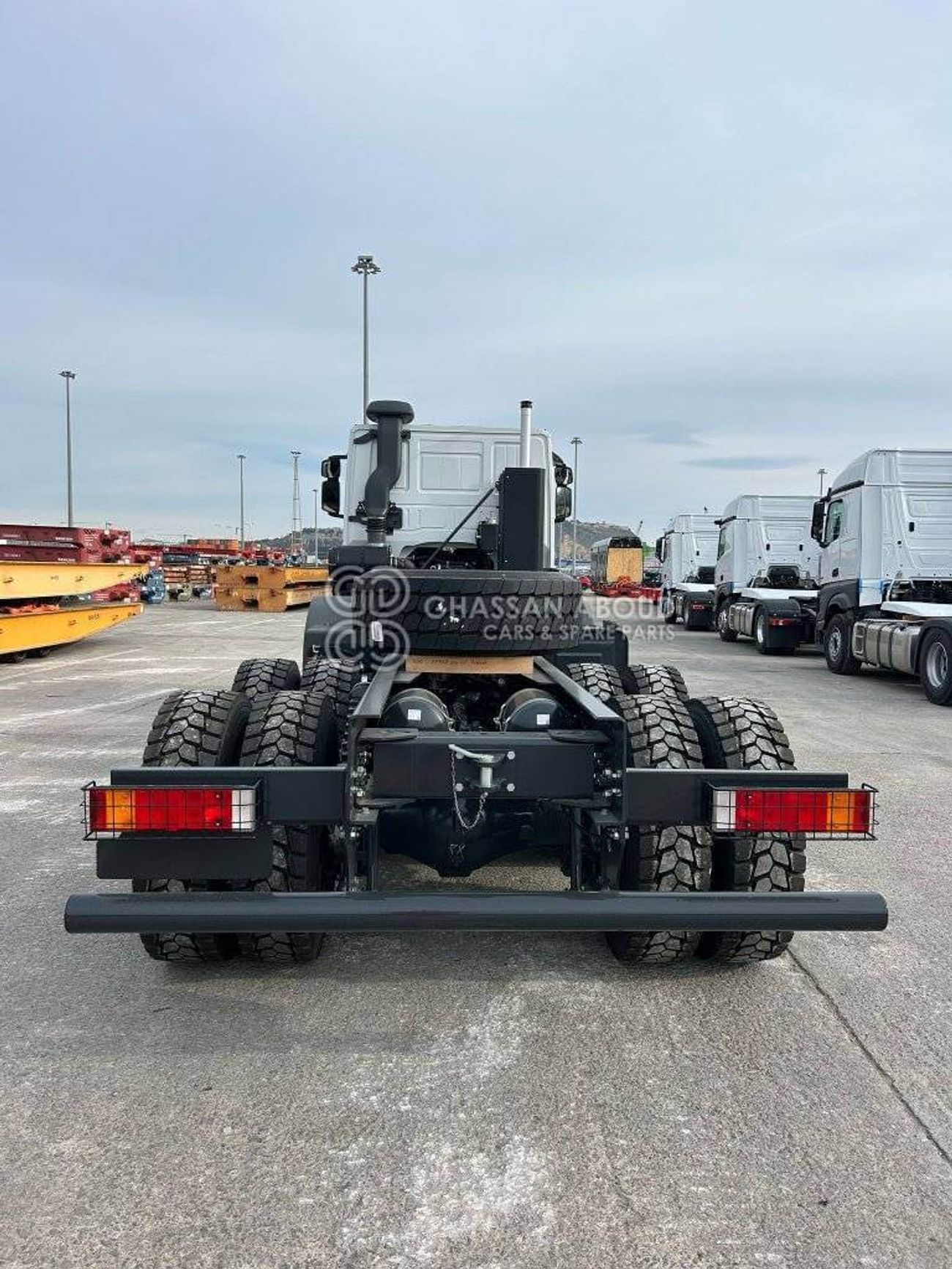

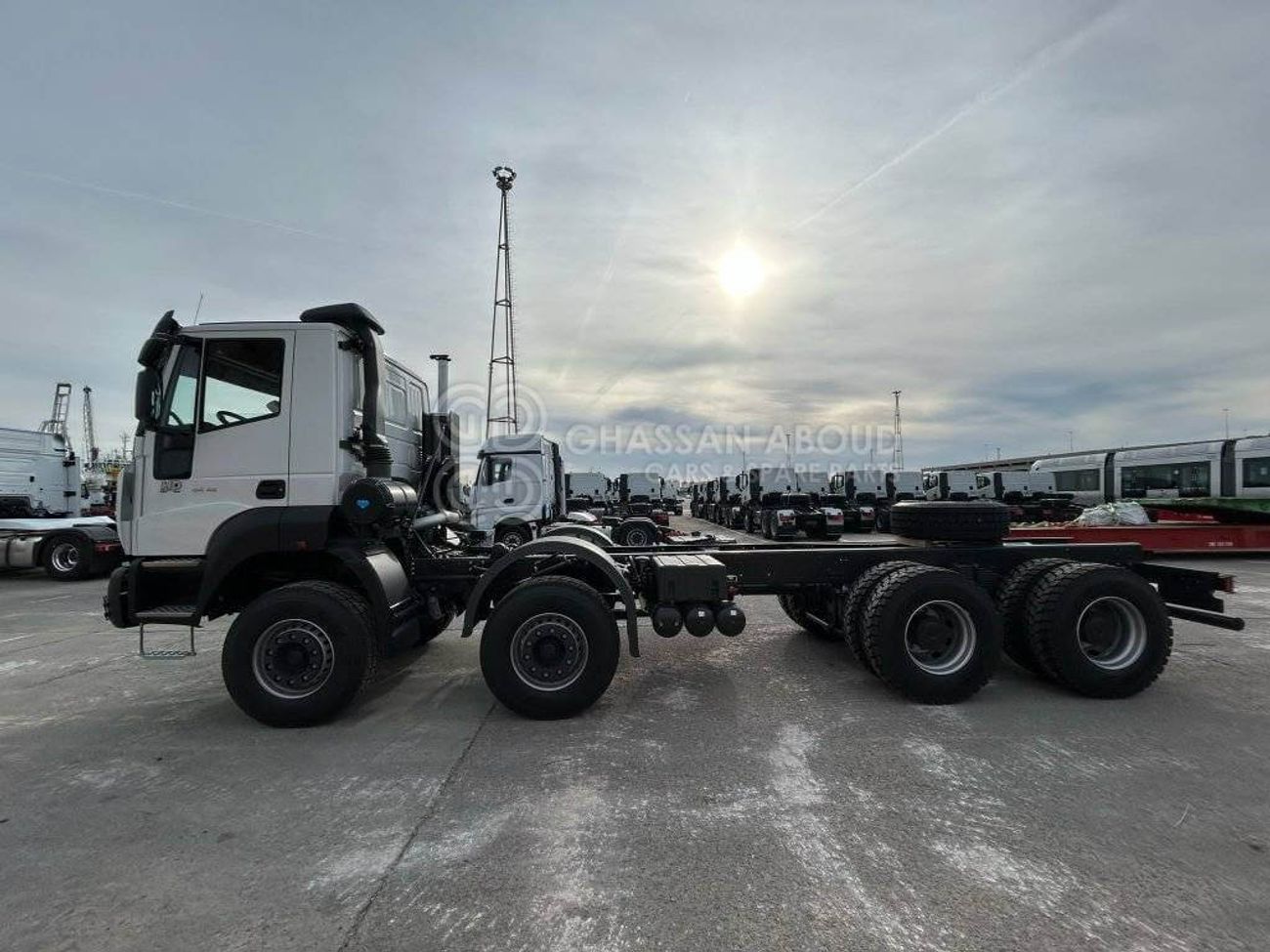

Astra Chassis BARCELONA ASTRA CHASSIS 8×4 (HD9 84.42) MY24

Specifications
Type:
HD9 84.42
Axle Configuration:
8X4
GVW:
50 Tons @ 70km/h (max axles load 9 +9+ 16 + 16 Tons)
GCW:
104 Tons
Horse Power:
420HP
Cab Type:
AD
Rear Axle Rate:
5009
Chassis Length:
6850 mm
Shipping Dimension:
9175 x 2550 x 3450 mm
Shipping Weight:
11.2 Ton
Engine:
Diesel Engine Cursor 13 , Ecosplit
Gear Box Type:
Manual Gearbox ZF, 16 forward and 2 reverse gears
Wheelbase:
1900 + 3100 + 1450 mm
Rear Overhang:
1200 mm
Vehicle Suspension Type:
Mechanical Suspensions
Brake Type:
Drum Brakes with ABS and EBL
Tyres:
385/65 R22.5 + 315/80 R22.5 (twins at rear)
Colour:
White
Drive Hand:
LH Drive
Capacity Liters:
300L Steel Fuel Tank with lockable cap
Emission:
Euro III
Rear Differential Lock:
Available
Standard Options
Reinforced Air Filter double stage, with air intake on the cab roof
Heated Fuel Filter
Standard Parabolic Suspensions (Leaf-Spring type), with stabilizer bar on the 1st axle
Drum Brakes on all axles with ABS and EBL (Electronic Brake force Limitation) Systems
Standard Batteries Qty2 (180Ah each) with manual cut-off
Standard Alternator 90Ah x 28V (2520 W)
Air Suspended Driver Seat (adjustable) and Standard Passenger Seat (adjustable)
Electric Doors' Windows with tinted glass
Standard Manual Rear View Mirrors CE compliant
Radio pre-arrangement
Front Lights protection grids
Front Manouvering Hook (at center of front bumper)
Standard Tool Kit and Hydraulic Jack
Spare Wheel with tyre
Air Conditioning
External Sun Visor
Reverse Gear Buzzer
Anti-Roll Bar On 2Nd Rear Axle
Anti-Roll Bar On 3Rd Rear Axle
Reinforced Rear Suspensions
Auxiliary Air Intakes On Left Side Close To Batteries
Provision For PTO Control
Reinforced Front Parabolic Suspension 9 Tons
Fuel Pre-Filter
Front Mirror
English Plate
Standard Front Hood (Same Color Of Cab With Logo In Black)
Rear Lights Protection Grids
Inflation Kit For Tyres: Hose + Air Gun + Manomenter
Wheel Chocks (Qty 2)
