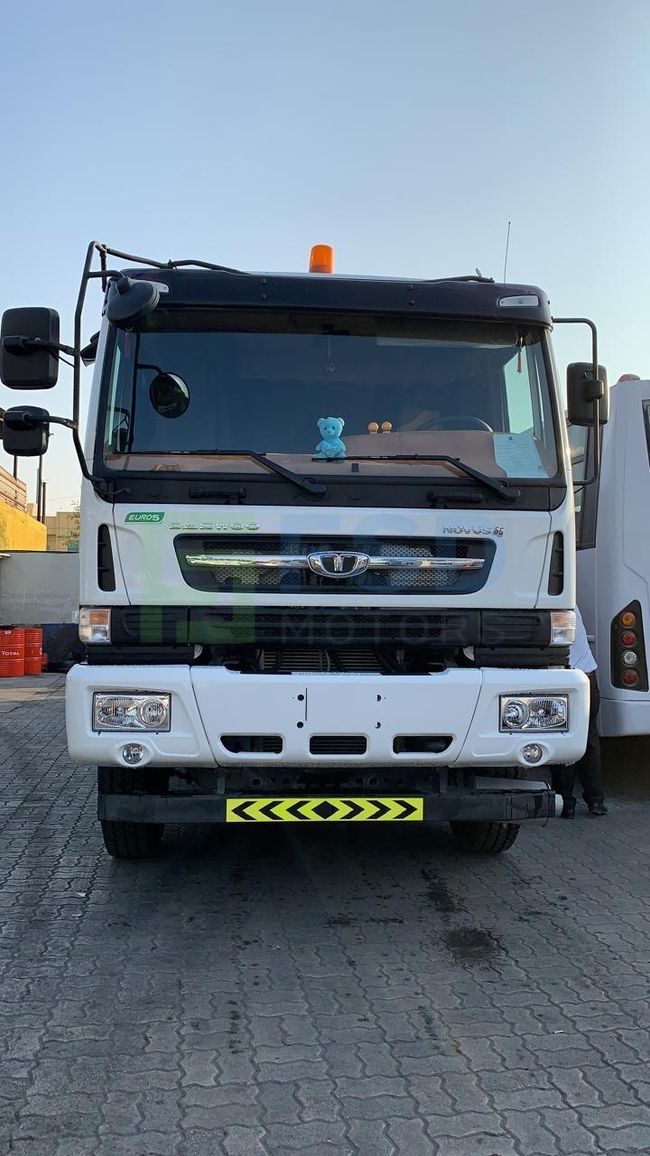

Daewoo Novus Daewoo CL4TC Novus Euro V 6x4 Tractor (450PS,16S,HUB) MY-2025

Export Only.
Worldwide Shipping Services Available.
Vehicle Specifications:-
Full Product Description - Daewoo CL4TC Novus Euro V 6x4 Tractor (450PS,16S,HUB) MY-2025
Make - Daewoo
Model - Novus
Year - 2025
Body Type - Truck
Curb Weight Front & Rear (kg) - Front 4510 Kg, Rear 4730 Kg
Fuel Type - Diesel
Emission Standard - Euro 5
SWP - LHD
Condition - New
Engine & Transmission -
Engine Type - Turbo intercooler, diesel
Max Power (hp/rpm) - 450ps (330kw) / 1,900rpm
Max Torque (Nm/rpm) - 215kg.m ( 1,100rpm
Transmission Type - Manual
Drive Type - 6x4
Chassis & Suspension -
Clutch Type - Hydraulic control with air assisted Dry single plate with diaphragm
Tyre Size - Front : 12.00R24-18PR, 8.5V×24, Rear : 12.00R24-18PR, 8.5V×24
Fuel Tank Capacity (L) - 400 L
Engine -
Type - Turbo intercooler, diesel
Max. Power - 450ps (330kw) / 1,900rpm
Max. Torque - 215kg.m ( 1,100rpm
No. of cylinder - V-6 cylinder
Bore x Stroke - 128×142(mm)
Displacement - 10,964cc
Controller type - Electronic
Air cleaner - Dry paper elements
Transmission
Model ZF16S2230TO
Type Manual F16/R2
9th/10th - 3.02 / 2.53
11th/12th - 2.08 / 1.74
13th/14th - 1.43 / 1.20
15th/16th - 1.00 / 0.84
Reverse - 12.92/10.80
Brakes
Service : Full air brake. dual circuit
Drum diameter : 410 mm
Lining width Front : 190mm, Rear : 203mm
Material : Non-Asbestos
Parking : Acting on spring actuator at rear wheels
Auxiliary : Engine brake
(option : ABS&ASR)
Axles
Front - Reverse elliot “I” beam, Capacity : 7,500 kg
Rear - Hub reduction Final drive ratio : 5.26, Capacity : 32,000 kg
Fuel Tank
Mounted on right-hand
side of the frame
Capacity – 400 liter
Material : Steel
(option : Aluminum 400 liter Aluminum 400 + 300 liter Steel 400 + 200 liter)
Steering
Driving position - Left-hand drive
Type - Recirculating ball with integral Power assisted by oil
Steering column - Tilt & telescopic
Steering wheel - 2-spoke wheel with horn button
Clutch
Type - Hydraulic control with air assisted Dry single plate with diaphragm
Plate diameter - Out side diameter : 430mm
Suspension
Front suspension - Type : Semi-elliptical leaf spring Size(LxW) : 1,500 x 90 (mm)
Rear suspension - Type : Semi-elliptical leaf spring Size(LxW) : 1,350 x 90 (mm)
Electrical System
Batteries - 12 volt-170Ahx2
Alternator - 24 volt / 80 amp
Starter - 24 volt / 6.0kW
Coupler
Make and Type - Rollingless 3.5”
Loading capacity - 26ton
Dimensions (mm)
Overall length - 7010
Overall width - 2580
Overall height - 3220
Tread– front - 2080
Tread– rear - 1905
Wheelbase - 4650
Rear axle to frame - 685
Ground to roof - 3135
Frame-ground above bogie - 1100
Usable cab to axle - 3195
Deck offset - 350
Coupler height - 1470
Min. ground clearance - 300
Swing radius Forward - 2480
Rearward - 2120
Weights (kg)
Curb weight Front & Rear - Front 4510 Kg , Rear 4730 Kg
Axle load Front & Rear - Front 7500, Rear 32000
Permissible - 100000
Calculated Performance (@Permissible
Max. speed(km/h) - 96
Max. gradeability(%) - 23.5
Min. turning radius (m) - 8
Frame
Type - Ladder type, single channel
Size (HxVxt) - 286 x 90 x 7(mm)
