SDLG L958F SDLG Wheeled Loader L958F MY-2025

Export Only.
Worldwide Shipping Services Available.
Vehicle Specifications:-
Full Product Description-SDLG Wheeled Loader L958F MY-2025
Make-SDLG
Model-L958F
Year: -2025
Engine-Weichai WD10G220E21
Condition-New

Engine & Transmission
Operating weight-17 130 kg
Standard bucket capacity-3.2 m3
Lift capacity (rated load)-5 400 kg
Maximum breakout force-175 kN

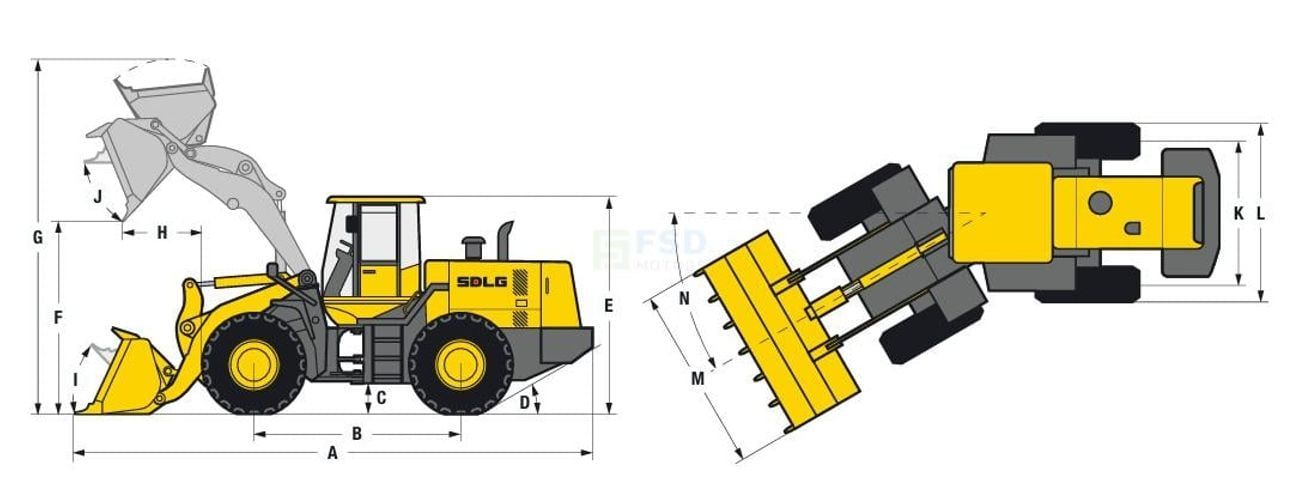

Dimensions
Overall length-8 280 mm
Wheel base-3 300 mm
Ground clearance-420 mm
Approach angle back-30°
Overall height-3 410 mm
Dump height-3 100 mm
Overall operating height-5 600 mm
Dump reach-1 120 mm
Roll back angle ground level-46°
Roll back level full height-45°
Track width-2 190 mm
Machine width-2 785 mm
Bucket width-3 024 mm
Steering angle-38°

Engine
Model-1) Weichai WD10G220E21, 2) Dalian Deutz BF6M1013
Type-Watercooled, 4 stroke,6 cylinders in line, direct injection, turbo charged
Rated power (SAE J1349)-1) 162 kW @ 2 200 rpm, 2) 165 kW @ 2 000 rpm
Maximum torque-1) 980 Nm 2) 925 Nm
Cylinder bore stroke-126/130 mm

Transmission
Type-SDLG VRT200, fixed shaft electric-hydraulic shift
Number of gears-4 forward, 4 reverse
Maximum travel speed-38 km/h, 38 km/h, Forward, Reverse
Drive type-4 wheel drive
Tyre dimension-23.5-25
Tyre pressure-Front,Rear,55 - 58 psi,46 - 49 psi
Service brake type-Air over hydraulic,dry disc brake
Parking brake-Electric pneumatic,caliper
Service fill capacities-
Fuel-300 L
Hydraulic oil-240 L
Axles (main and final drives)-2 × 30 L
Engine-20 L
Transmission-21.8 L
Brake system-4L

Hydraulics
Type-Gear pump
Boom lift time-5.7 sec
Total cycle time-10 sec
