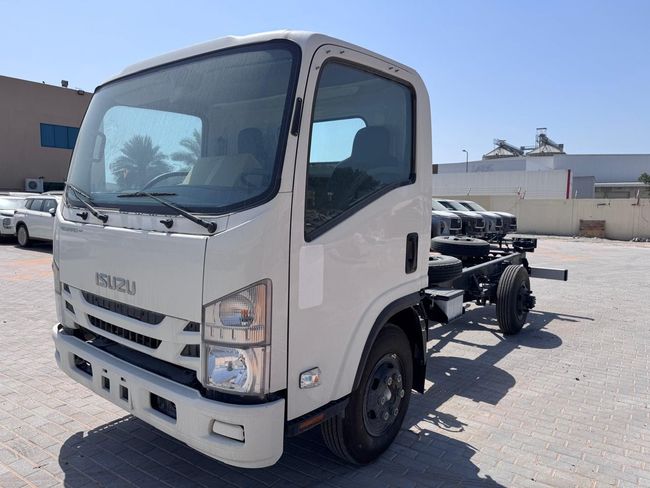

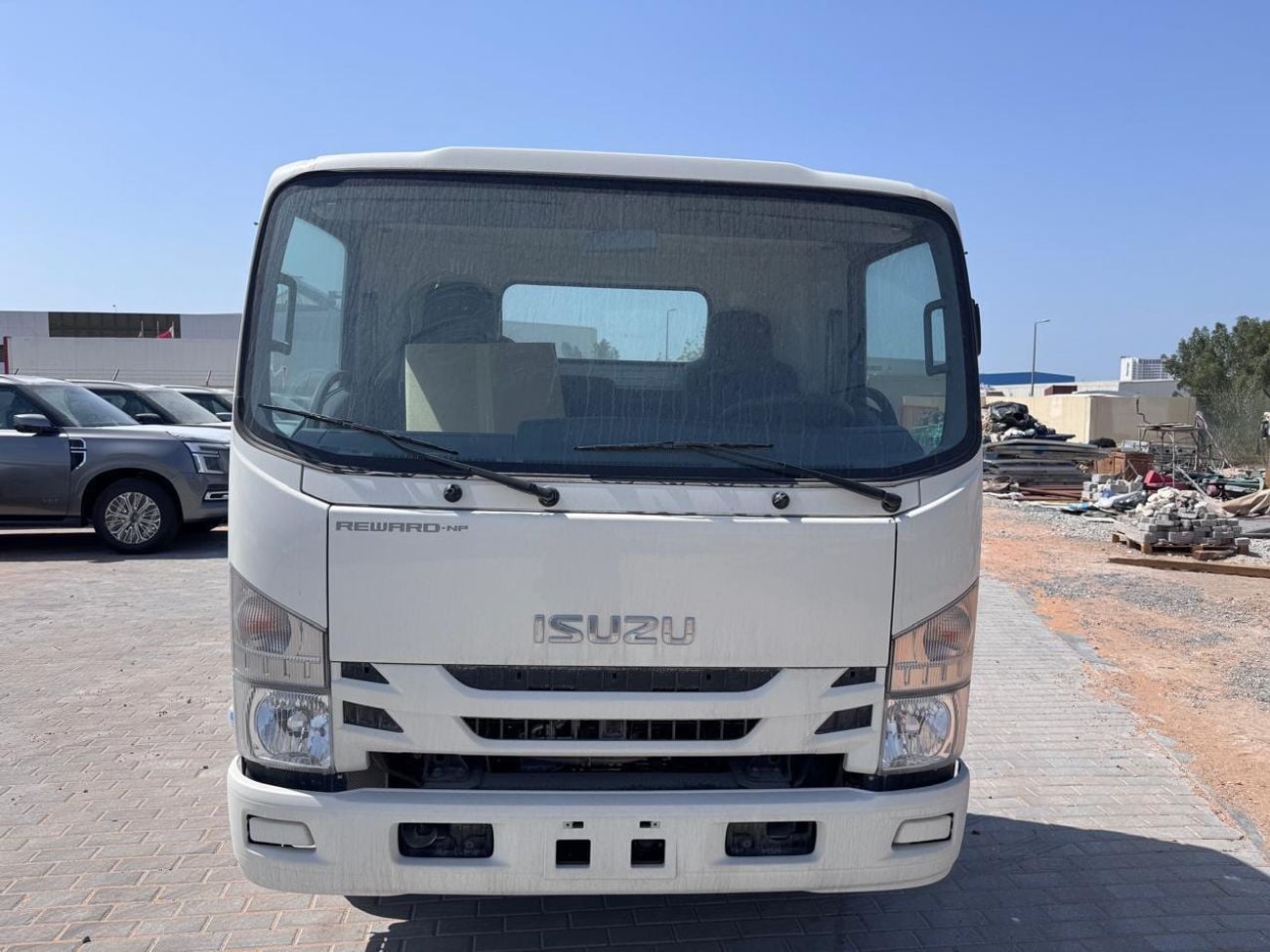

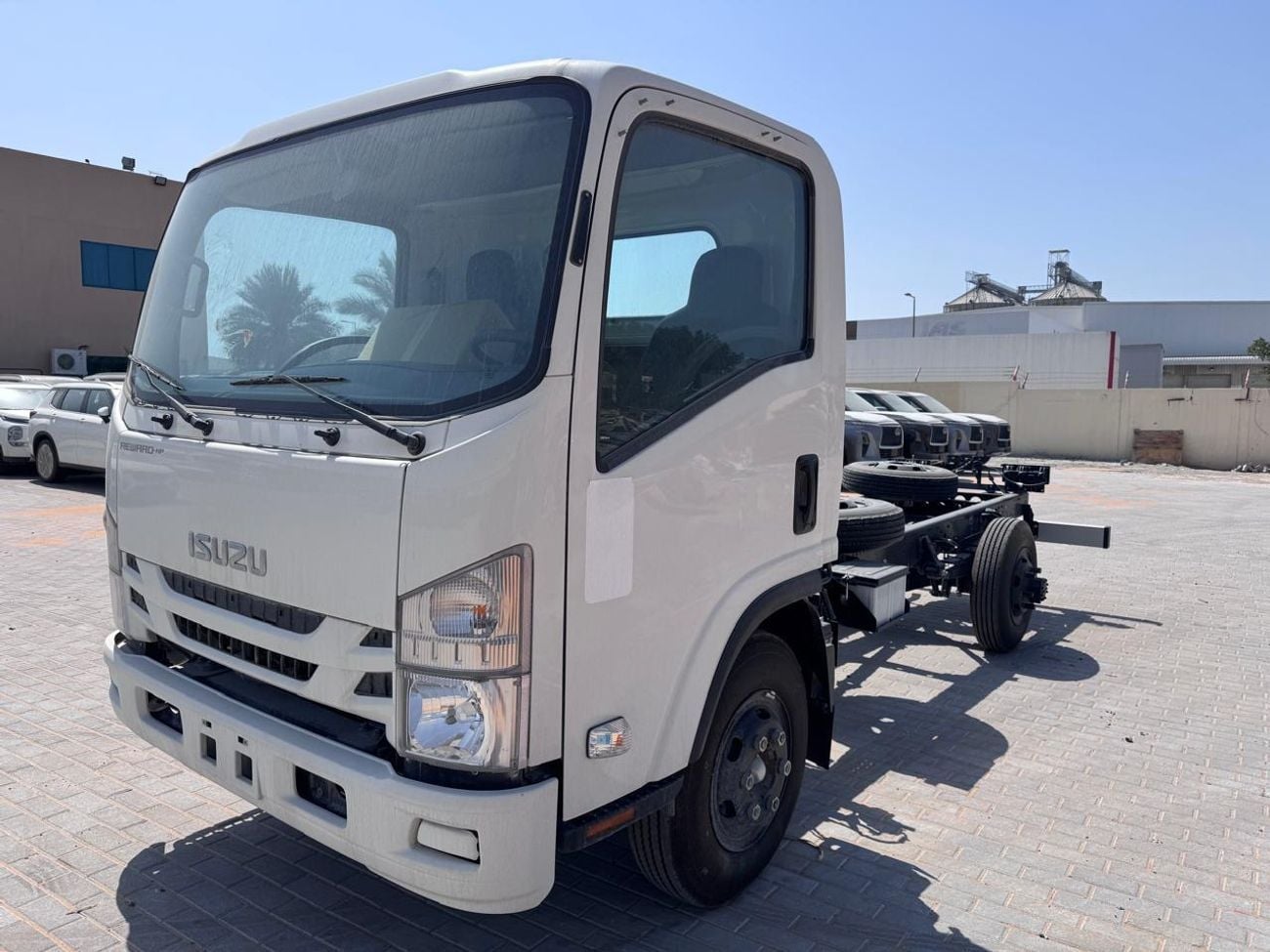

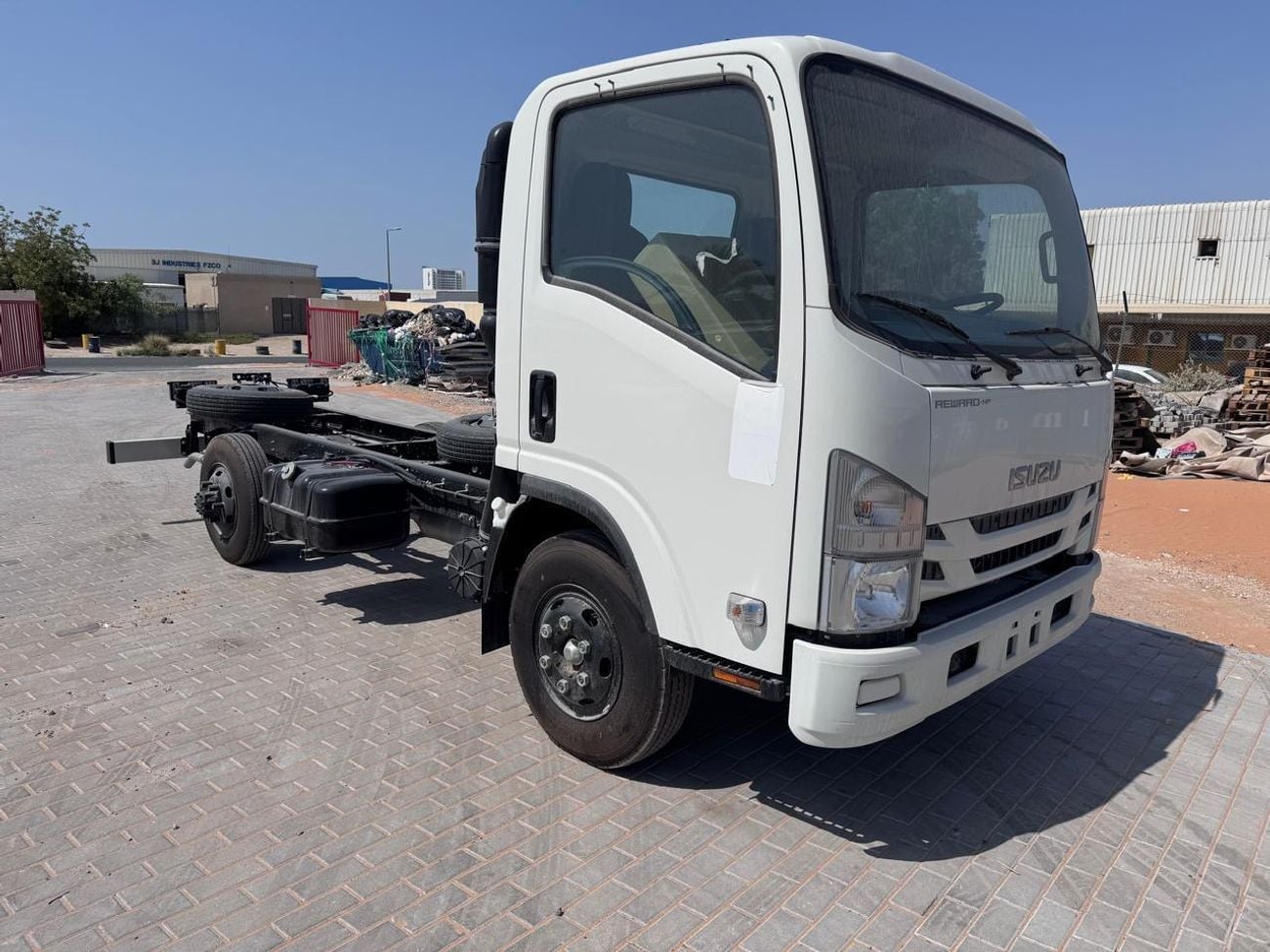

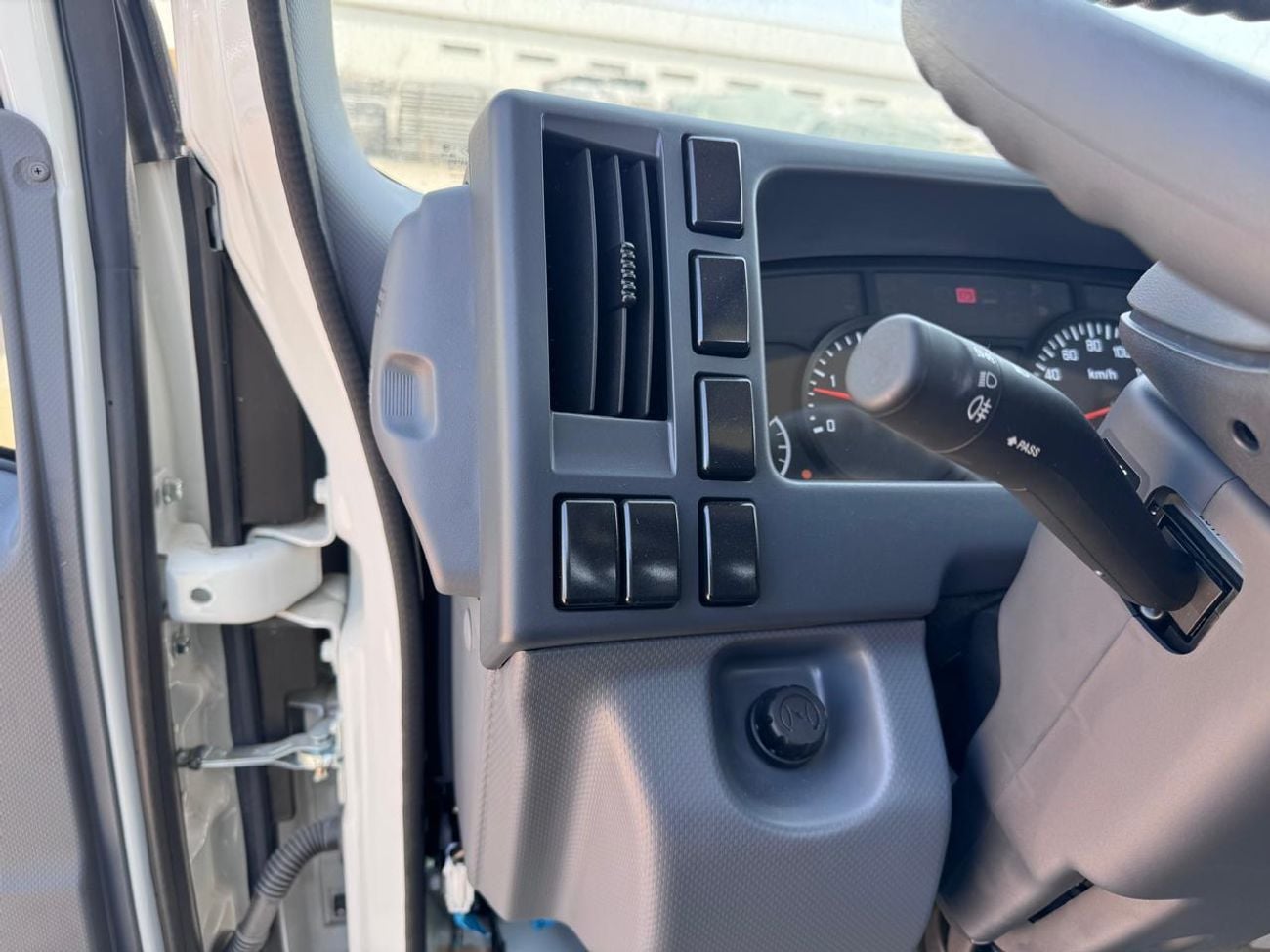

Isuzu NPR ISUZU NPR85H22 Cab Chassis Truck 2024

ISUZU N-Series Light Duty Truck – Specifications

Model Code: NPR85H22
Grade: Light Duty
Brand / Model: Isuzu N-Series

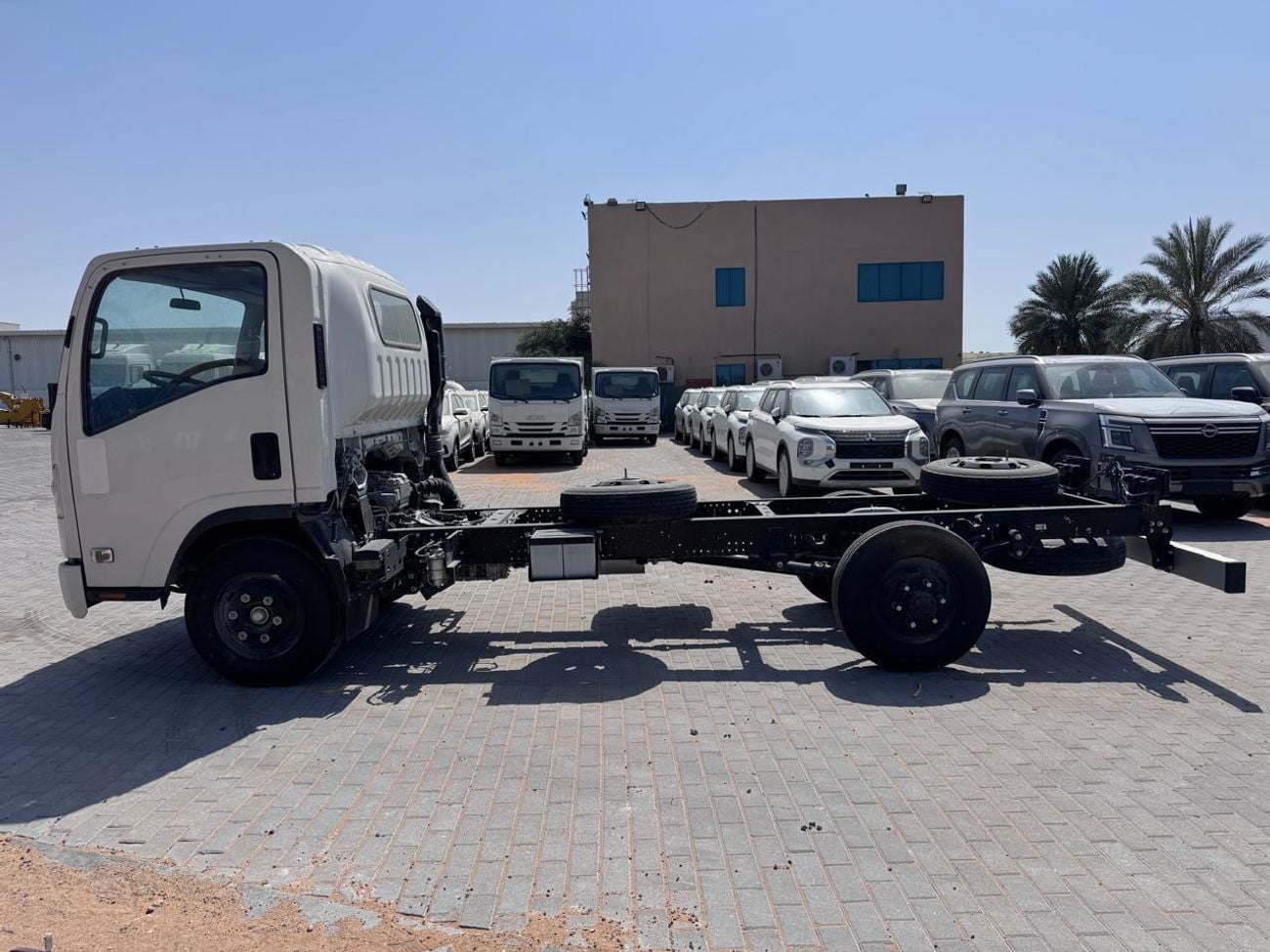

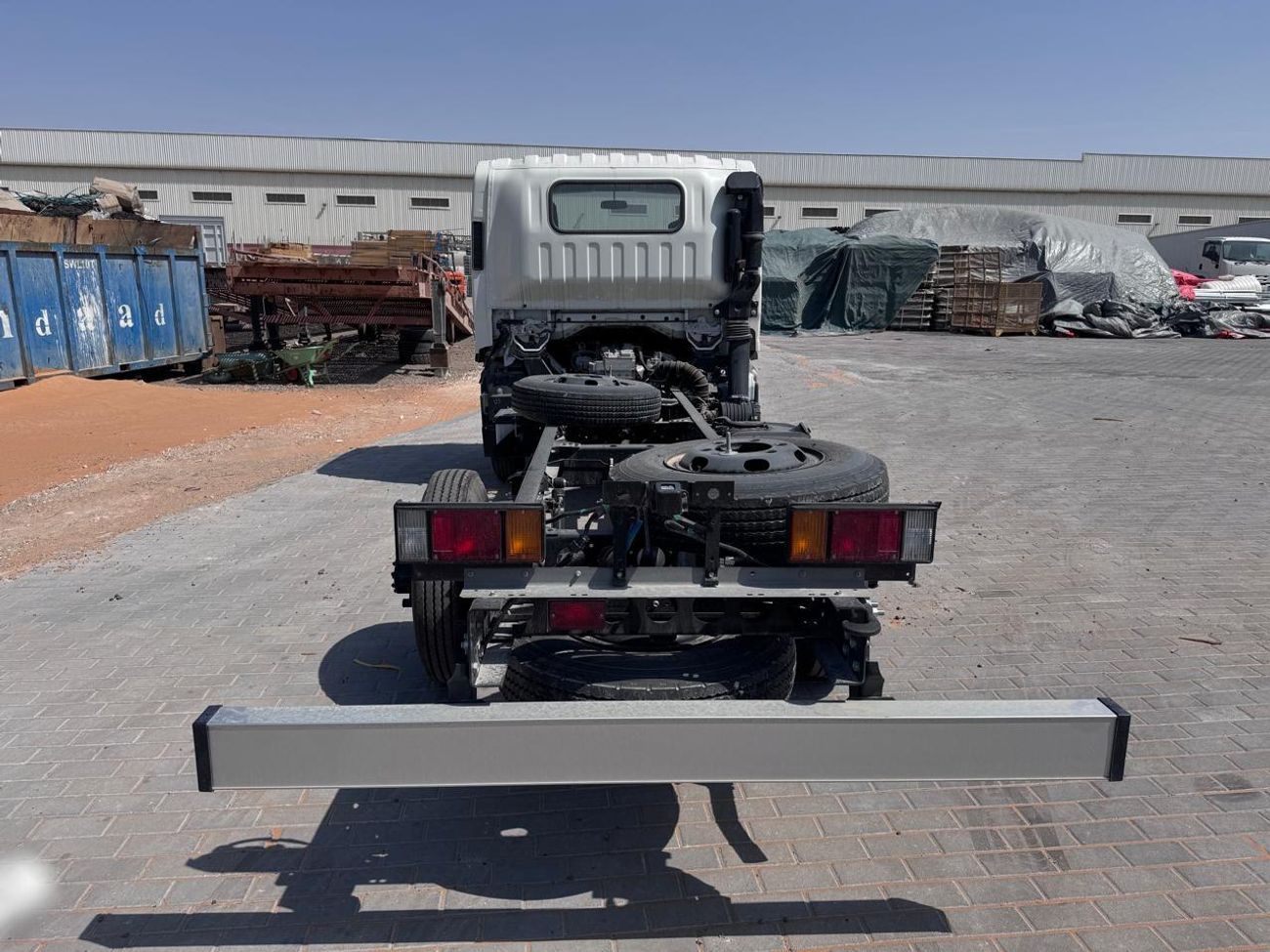

Cabin / Body Type: Wide Single Cabin / Long Wheel Base Cab Chassis Truck
Drive Handle: Left Hand Drive
Drive System: 4x2
Production Country: Japan

Engine: 4JJ1-TC Diesel
Cylinders: In-line, 4 Cylinders
Displacement: 2,999 cc (3.0 L)
Max Power: 96 kW (130 HP) / 2,800 rpm
Max Torque: 330 Nm / 1,600–2,600 rpm
Fuel Tank Capacity: 100 L

Transmission: Manual, MYY-5T 5-Speed

Axle Capacity
Front: 3,100 kg
Rear: 5,000 kg

Suspension
Front & Rear: Semi-Elliptical Alloy Steel Leaf Spring with Hydraulic Double Action Telescopic Shock Absorbers

Brakes
Front & Rear: Hydraulic vacuum assisted dual circuit with ABS

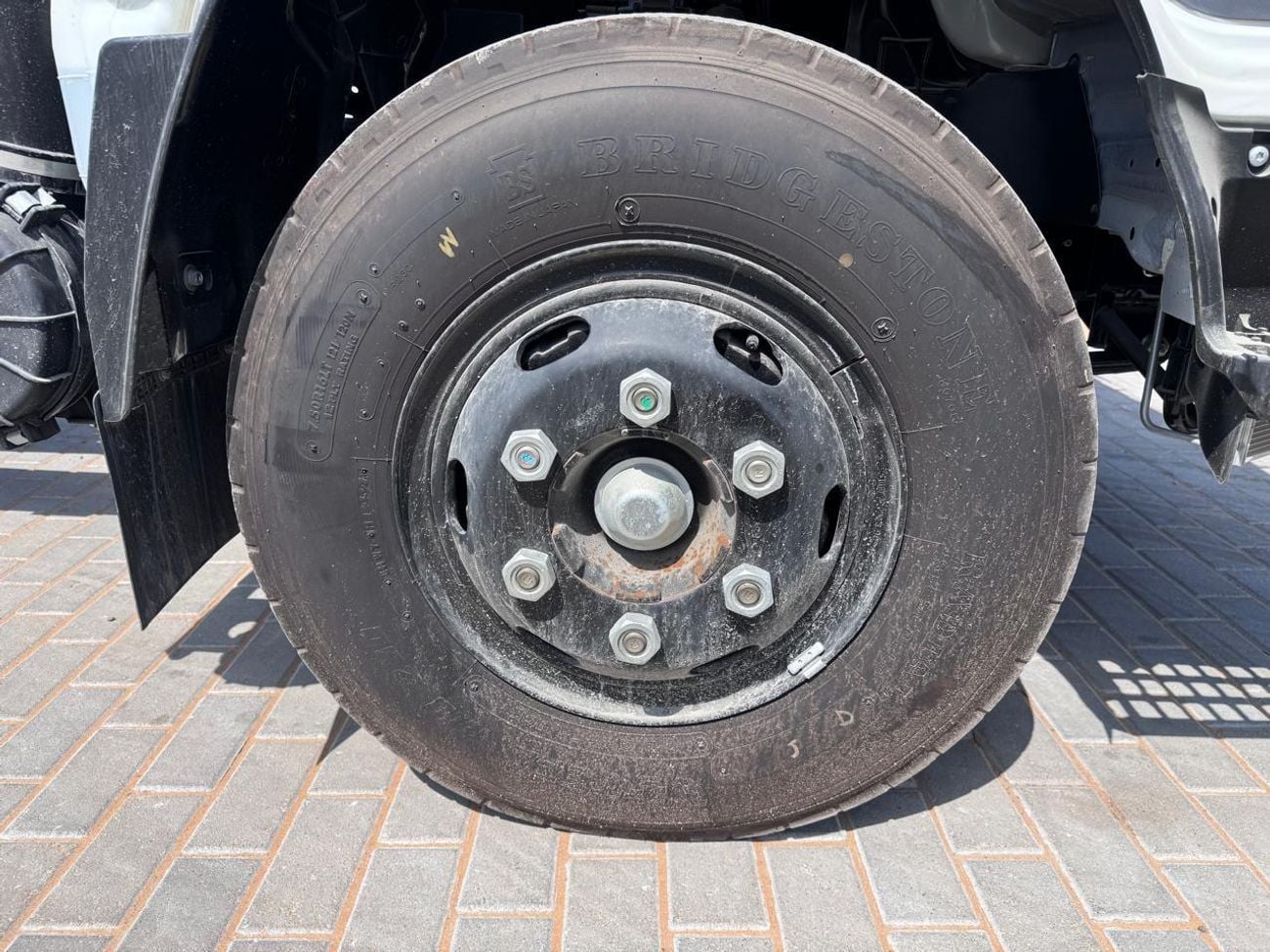

Tyres
Front / Rear / Spare: 7.5R16-12

Weight & Dimensions
Gross Vehicle Weight (GVW): 6,500 kg (6.5 Ton)
Chassis Mass: 2,310 kg
Wheelbase: 3,395 mm

Overall Dimensions (L x W x H):
6,100 x 2,040 x 2,275 mm

Front Overhang: 1,110 mm
Rear Overhang: 1,595 mm
Cab to Axle: 2,822 mm
Cab to End of Frame: 4,417 mm

Other Features

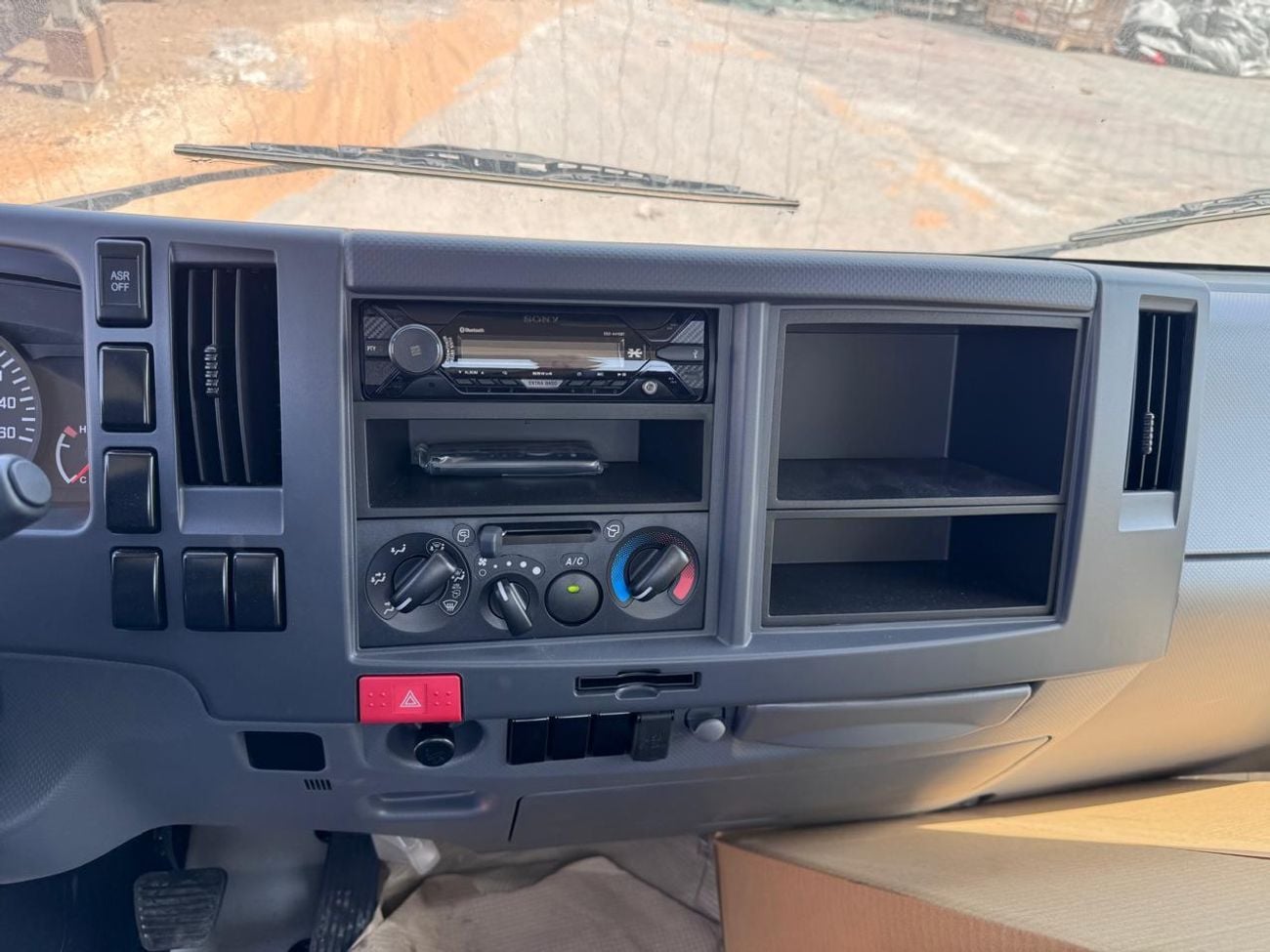

Air Conditioning: Factory fitted A/C
Audio: AM/FM with CD Player
