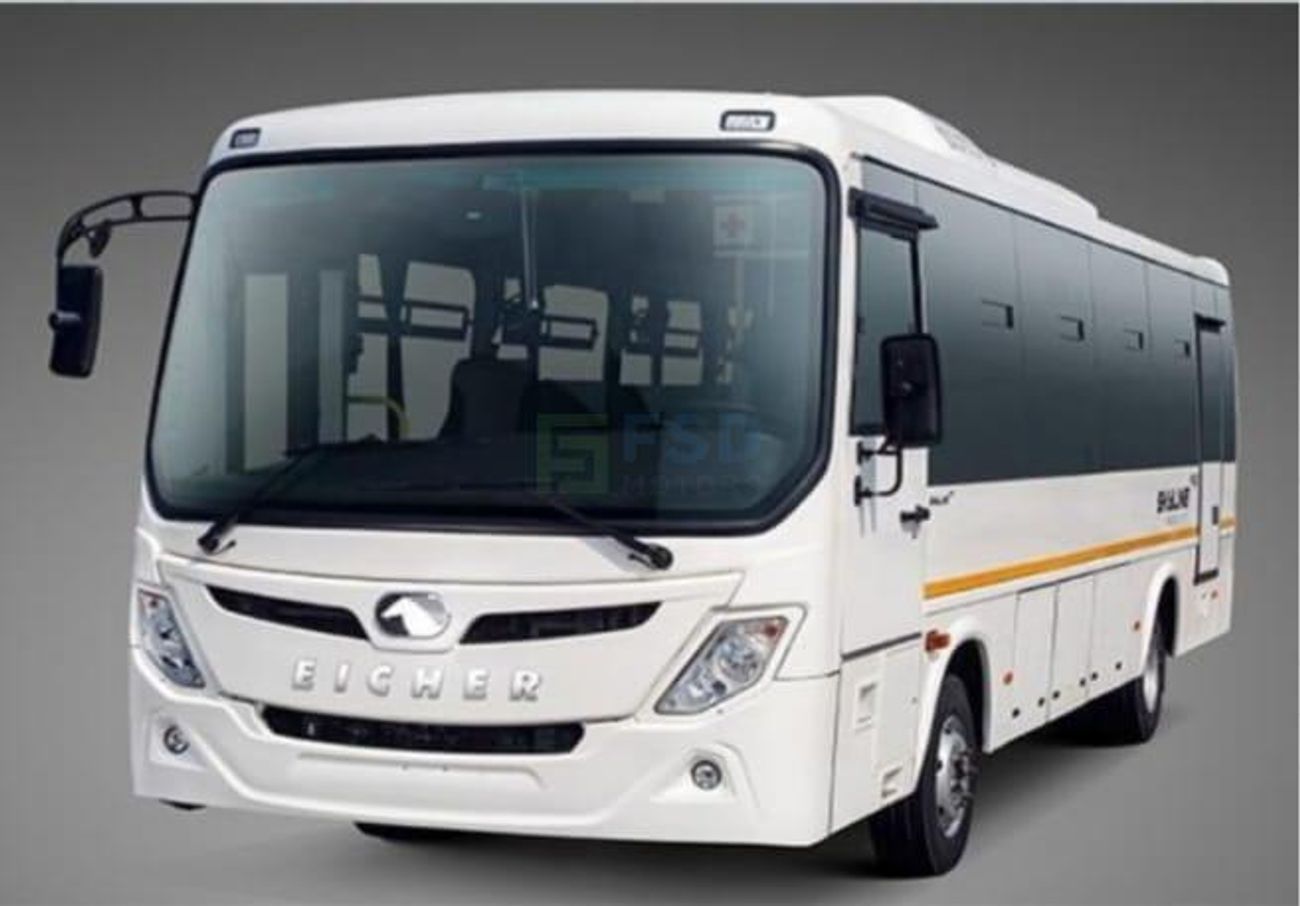

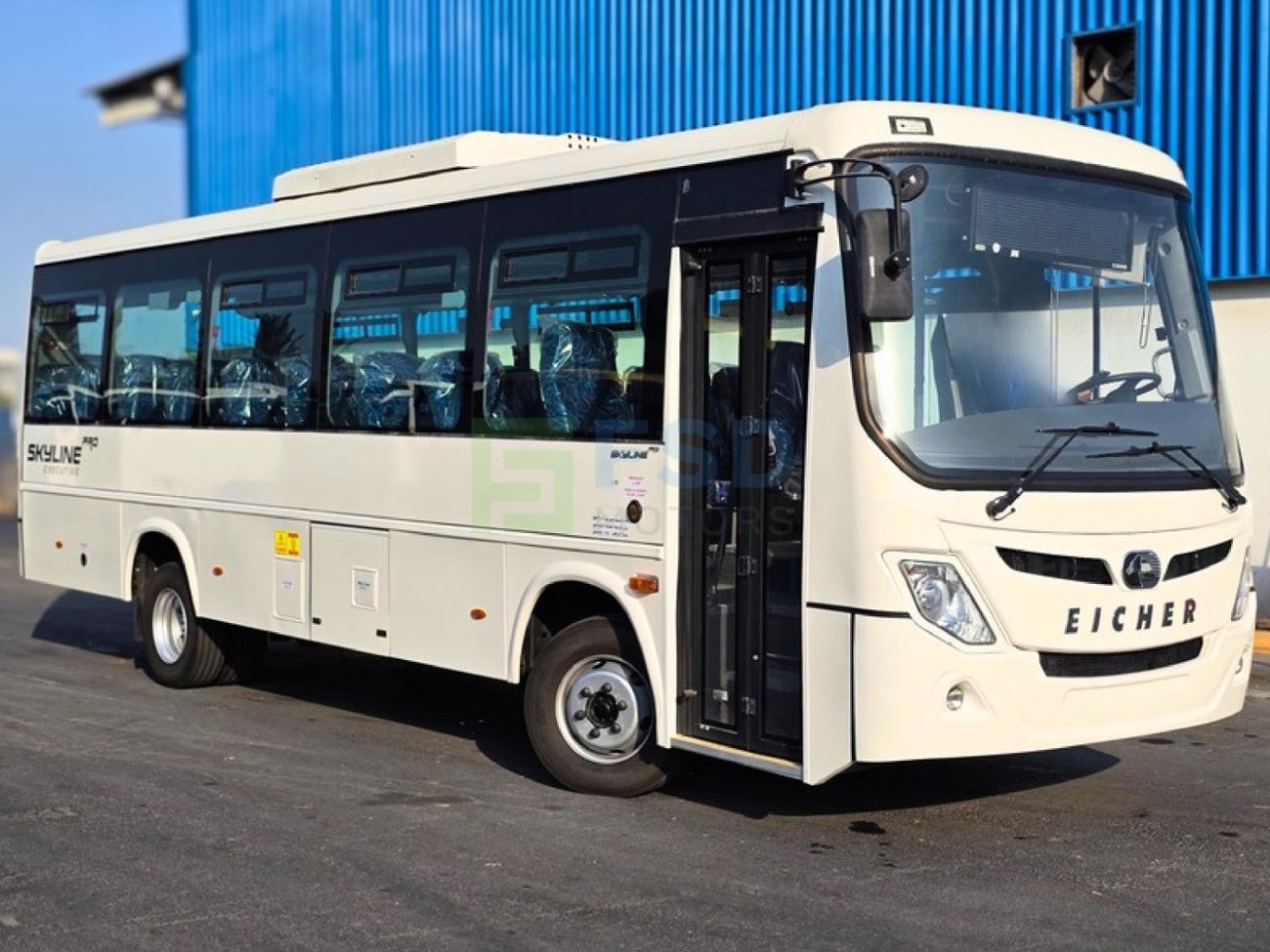

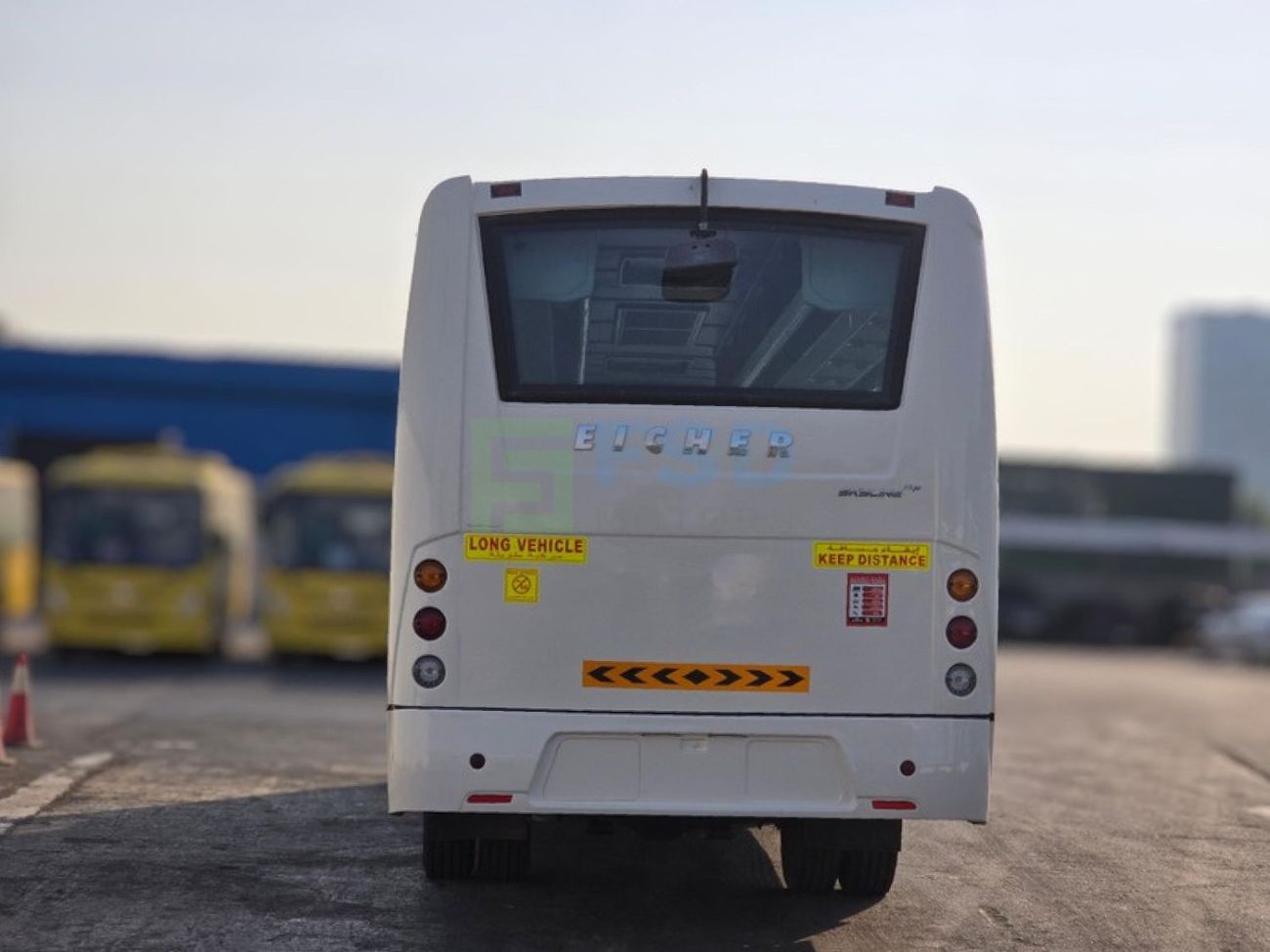

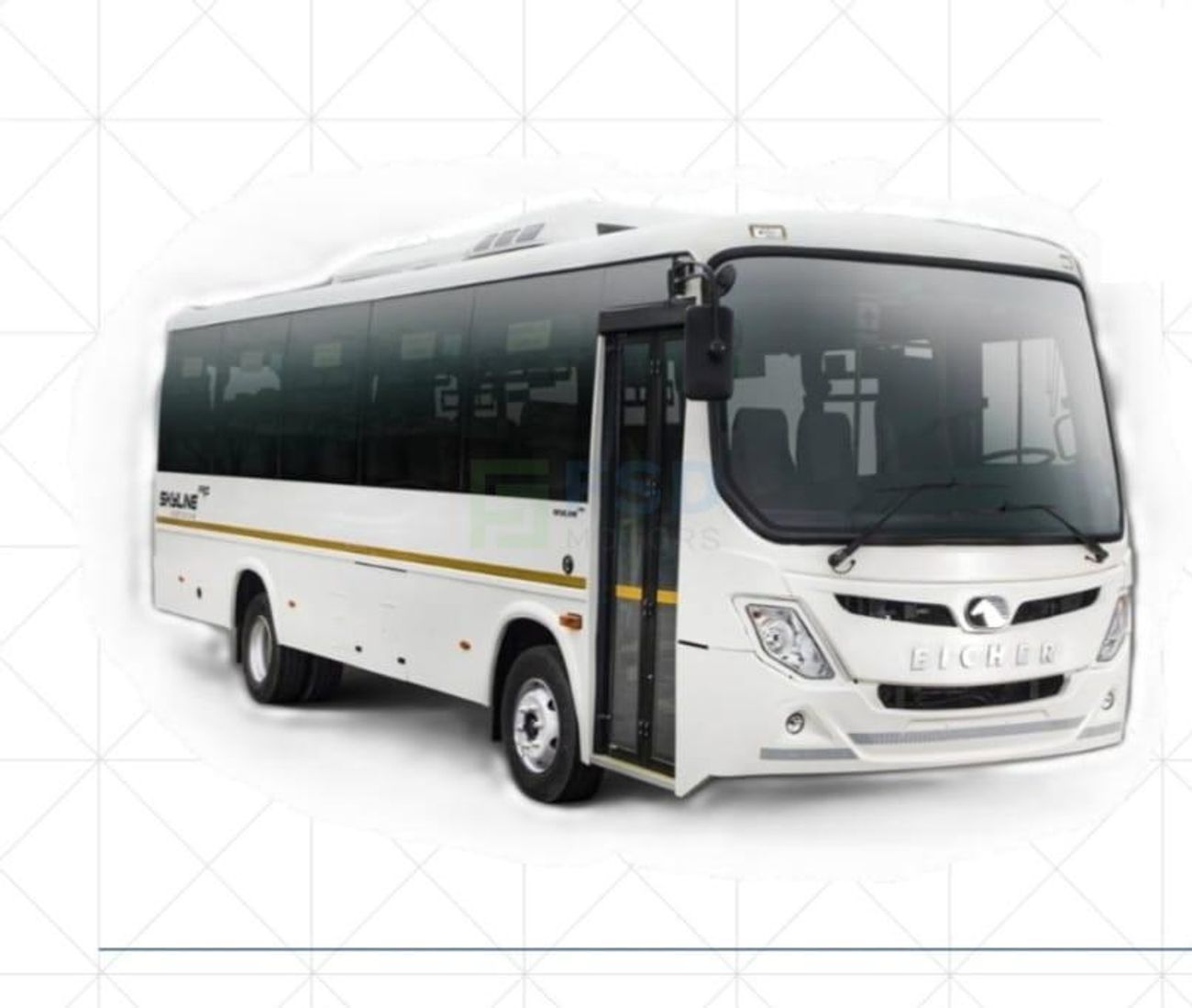

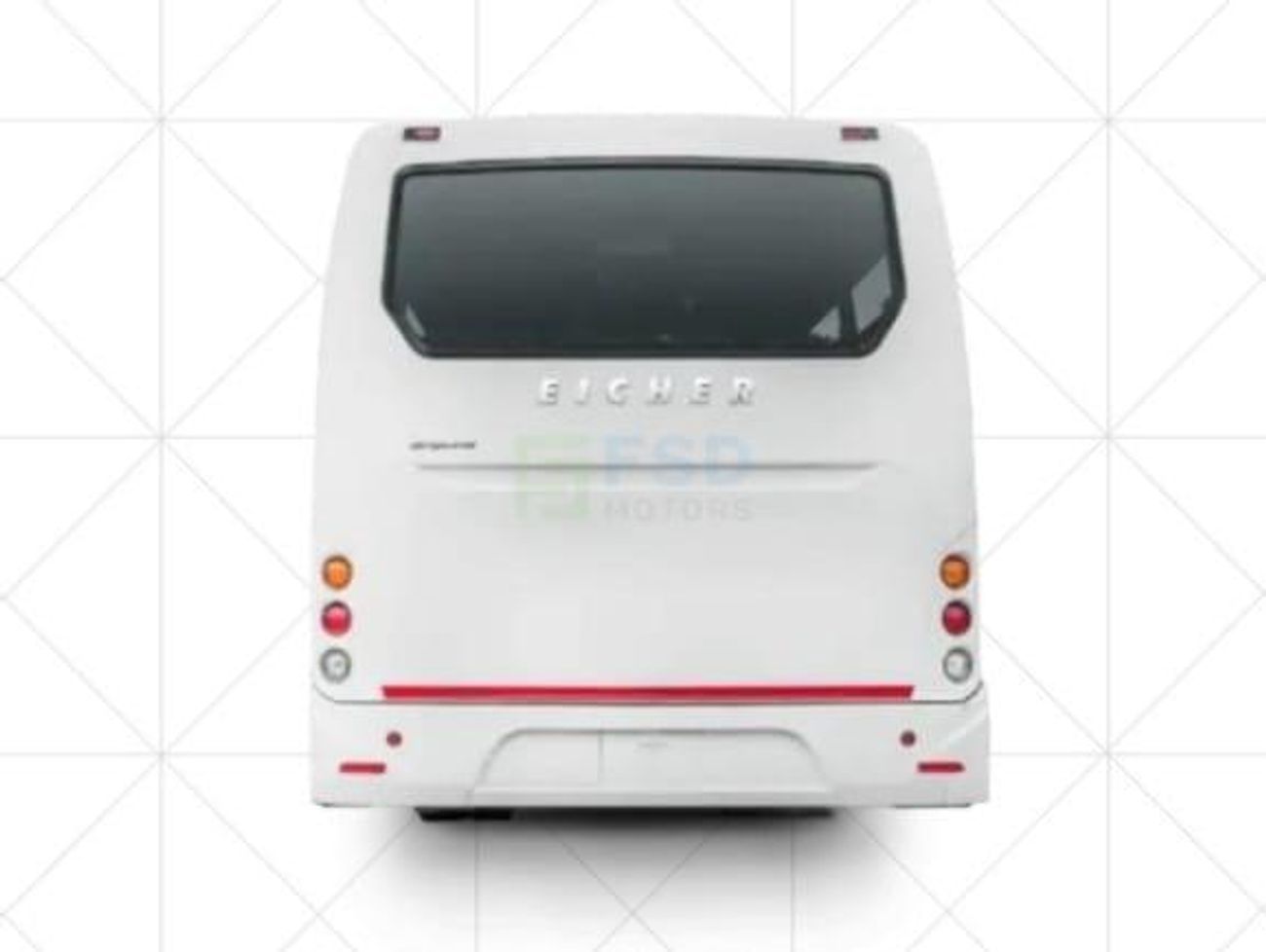

Eicher Skyline Eicher Skyline Pro MY-2025

Export Only.
Worldwide Shipping Services Available.
Vehicle Specifications:-

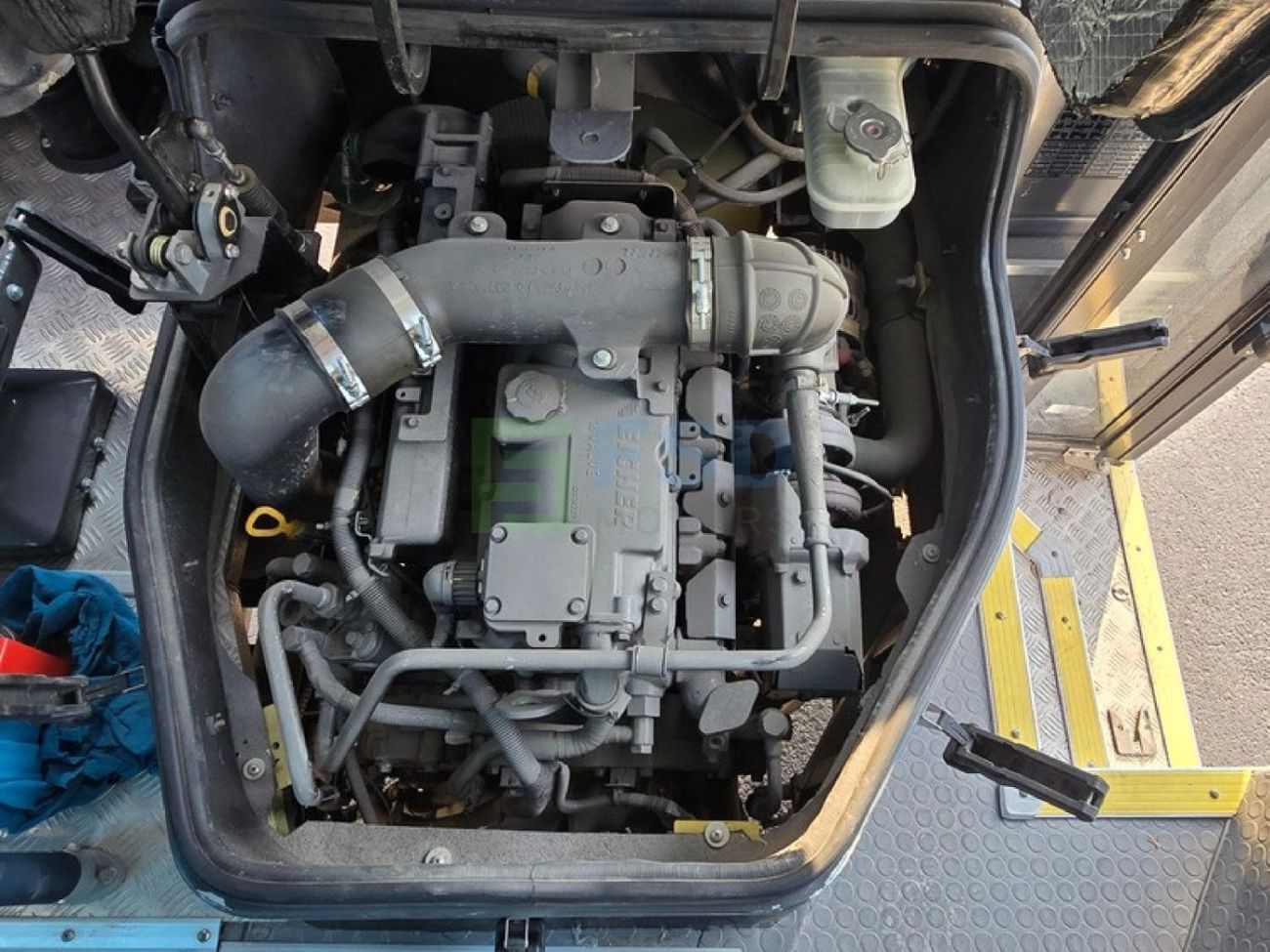

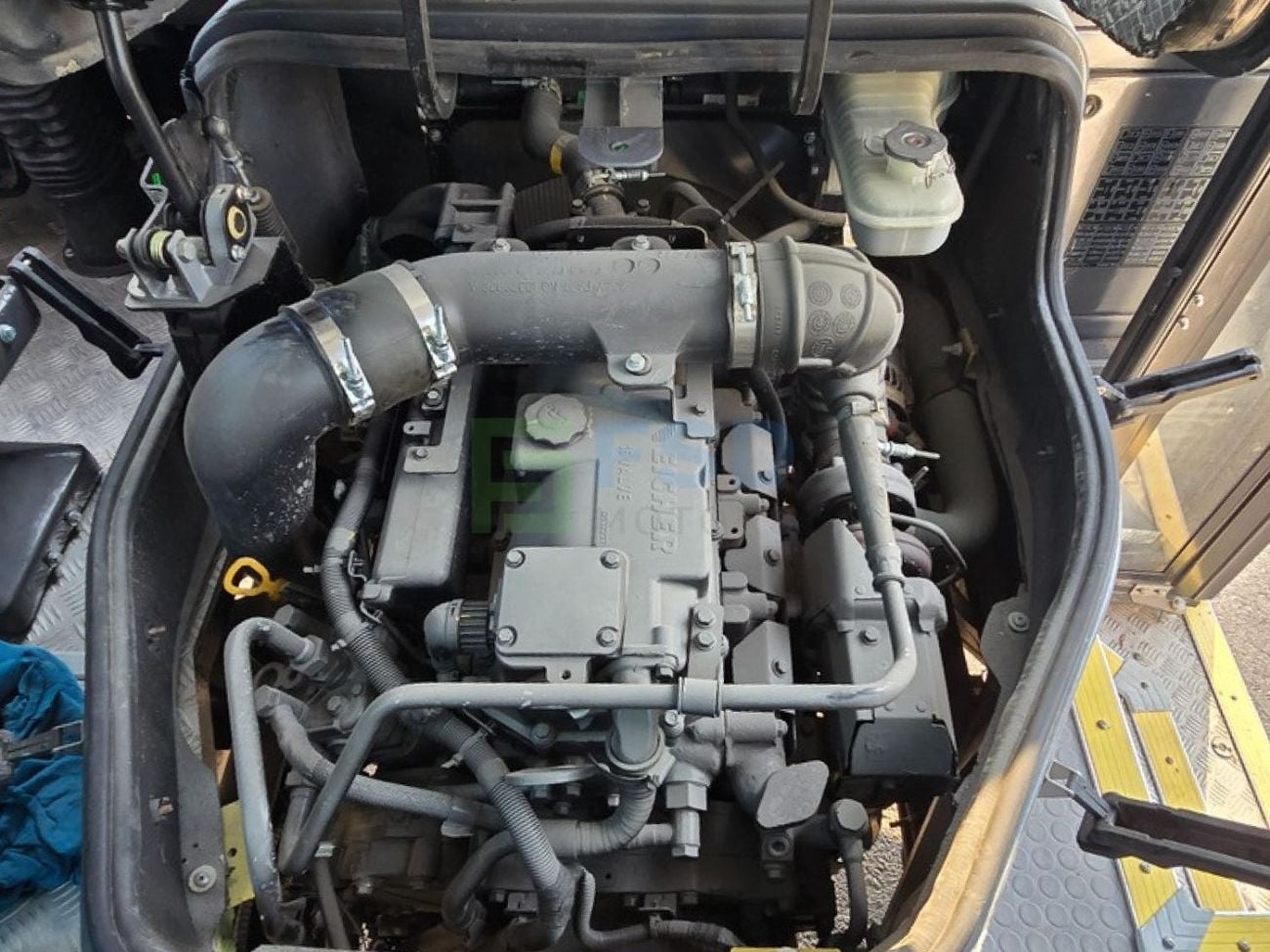

Eicher 4-cylinder E494, common rail engine, Euro-3, 190 HP
ET 40S6 (6 Speed)
Body width 2350mm
Eberspaecher (31 kW) with heater(As per GSO standard)
Roll Over Test Compliant
Wheelbase-4320 mm
Overall Length-8970 mm
Overall Width-2350 mm
Overall Height-3195 mm
Front Overhang-2050mm
Rear Overhang-2600 mm
GVW-9.5 Ton

Engine and Engine Rating
Engine Make-E494
Displacement-3770
Power-150 HP@ 2800 rpm
Torque-Max. Torque 490 Nm @ 1400-1800rpm


Transmission
Transmission Make-ET40S6

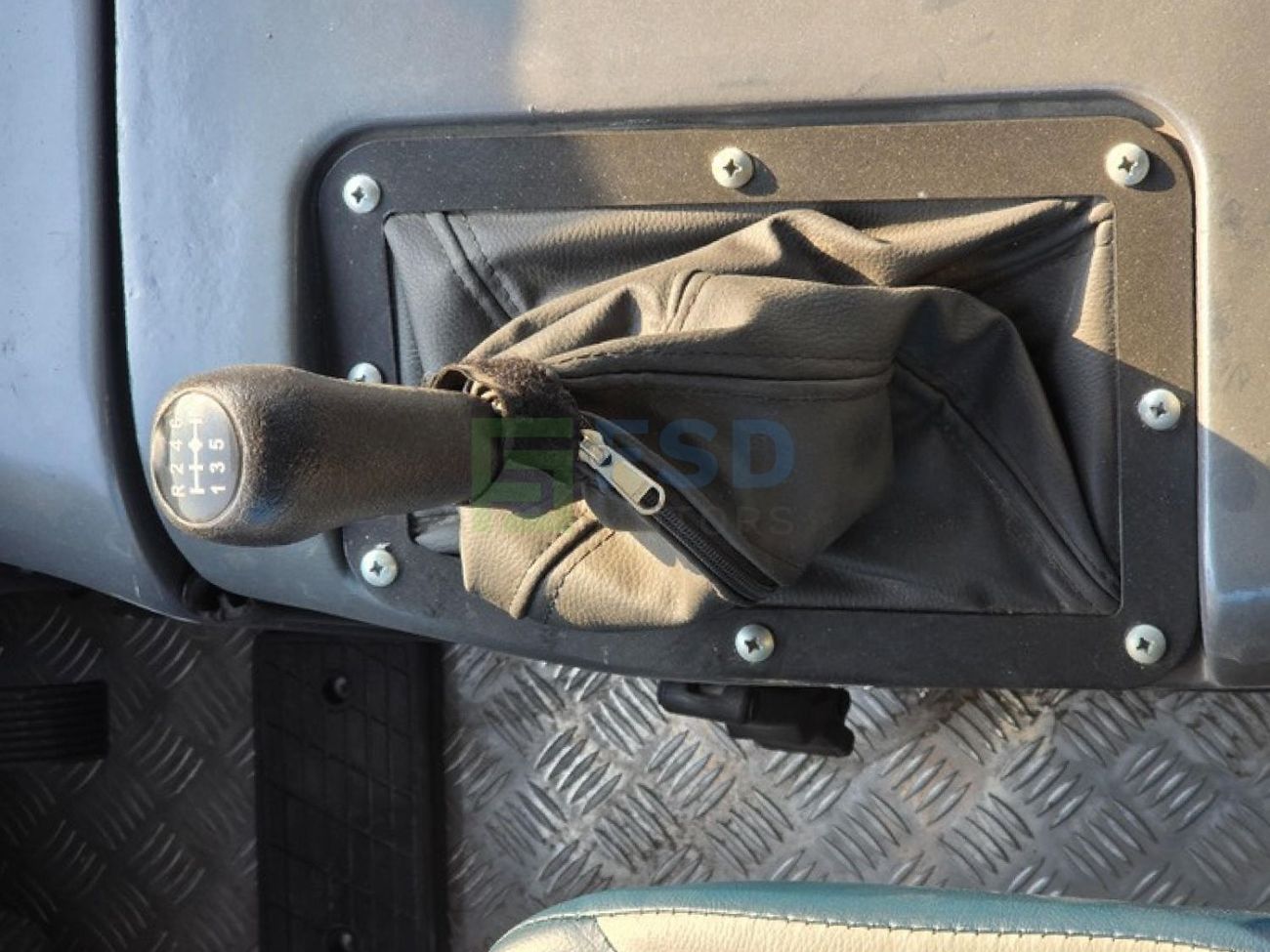

Transmission Type Clutch (mm)-"Synchromesh 6 speed +1 reverse" 330 Dia. With Clutch Booster

Tank Capacity
Fuel Tank Capacity (Litres)-100
Ad Blue tank capacity (Litres)-27

Tyres and Brakes
Tyers-235/75 R17.5 - 14PR
Brakes-Air Operated Dual Circuit

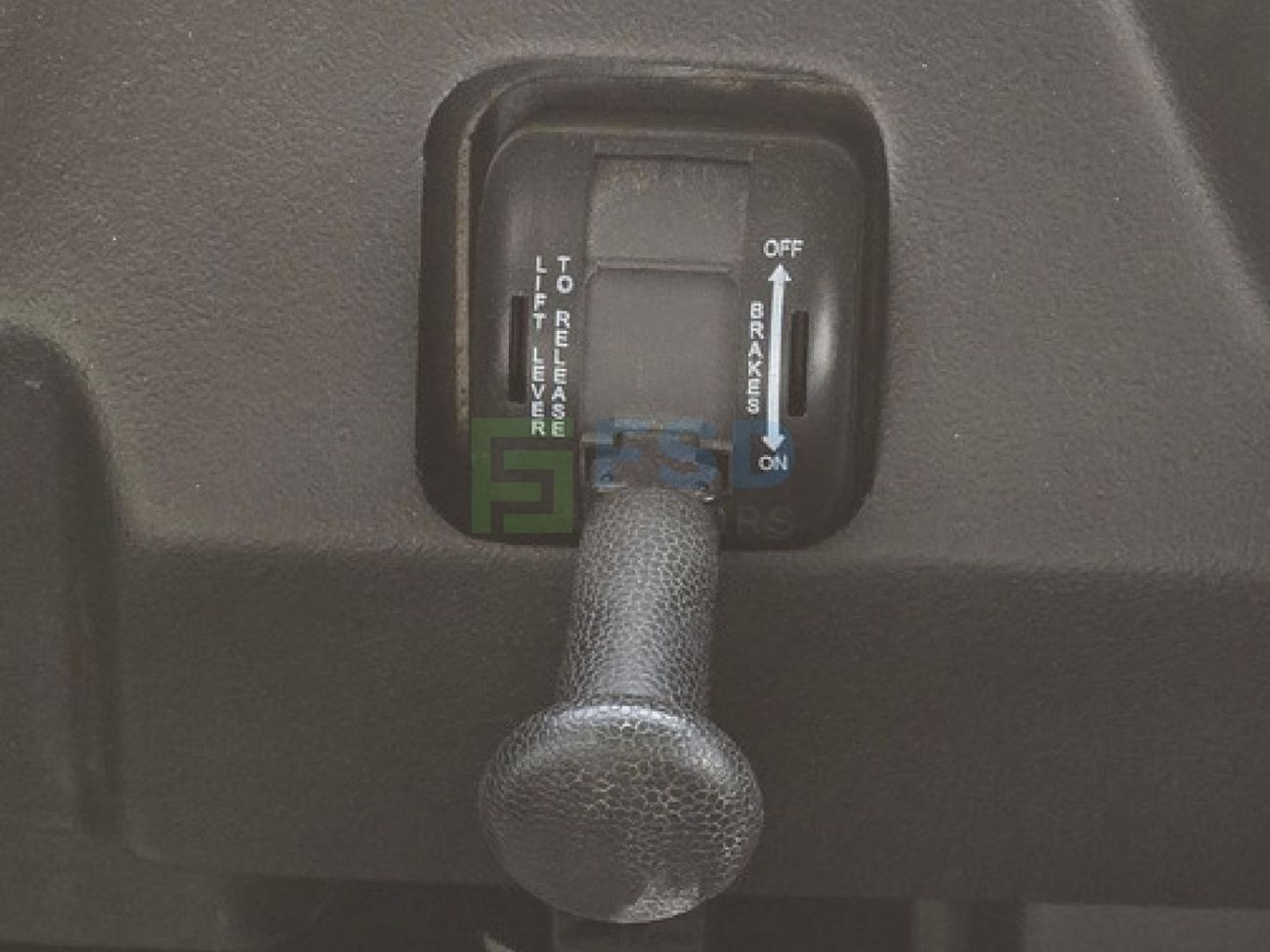

Parking Brake-Inbuilt with Rear Brake,
ABS system-Pneumatic controlled, Spring Brake Yes with APDA

Alternator & Battery
Battery-2 X 12 Volt
Alternator-24V 120Amps (2 Nos)
System Voltage-24Volt

Passenger Capacity

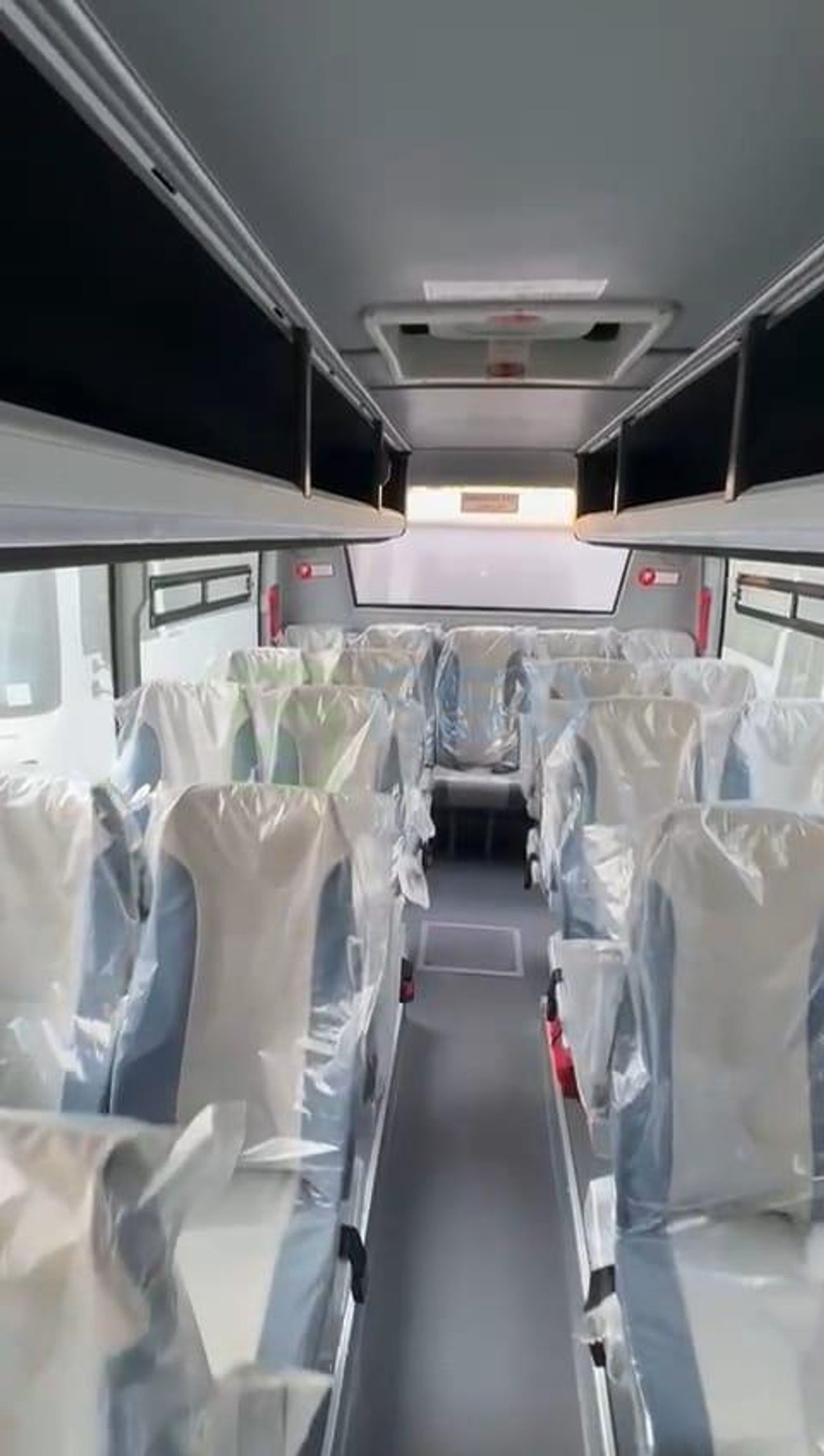

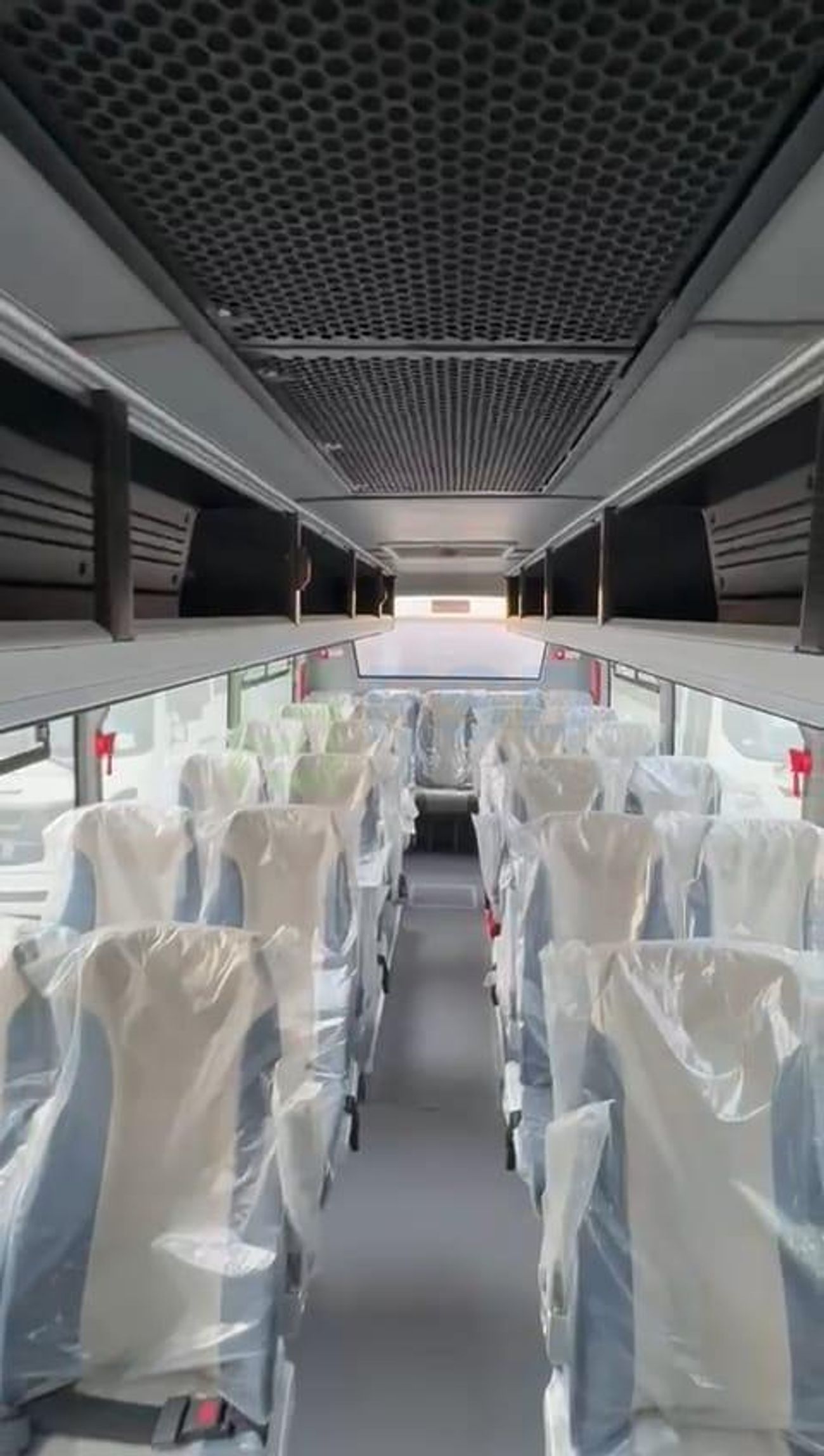

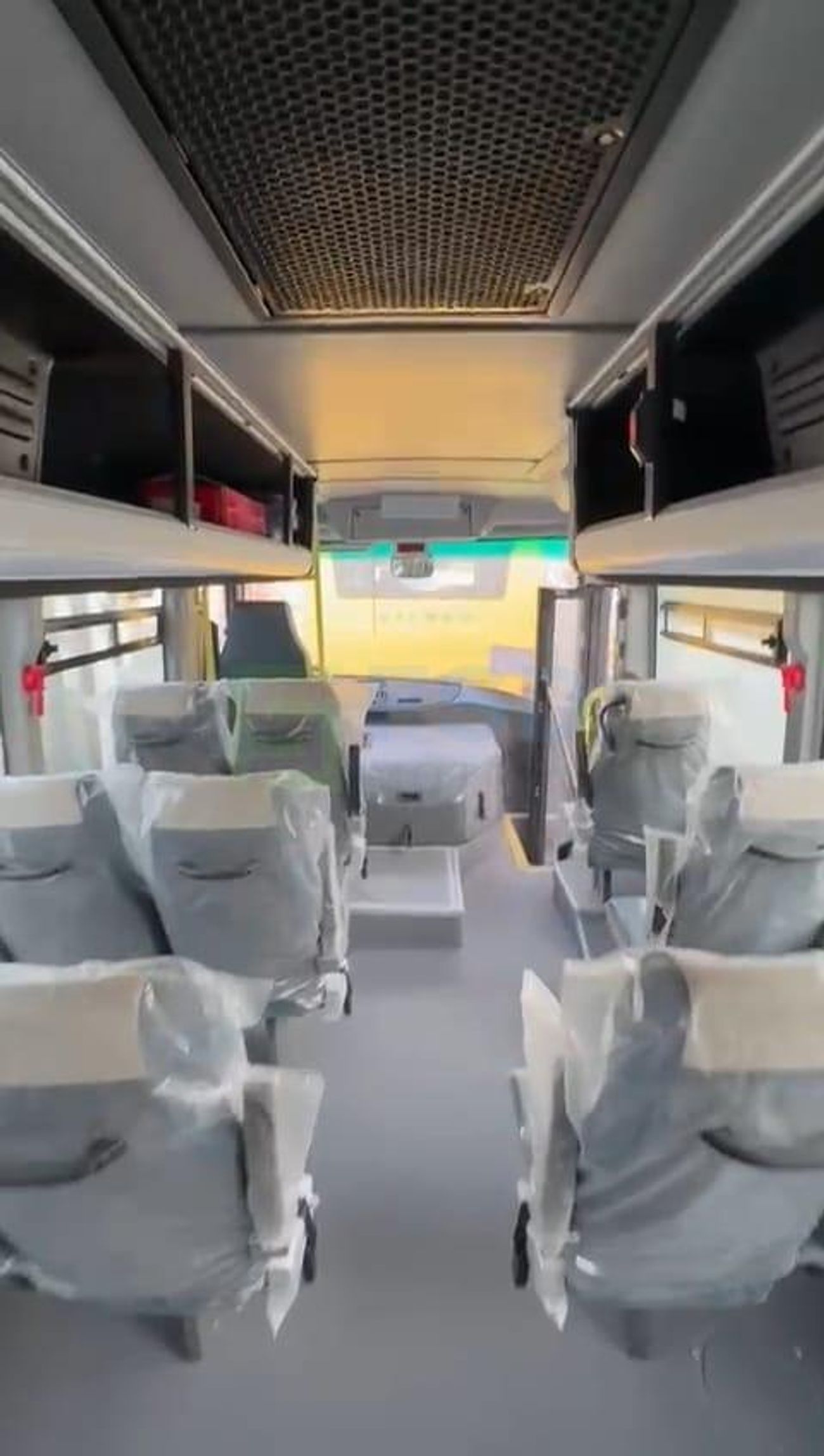

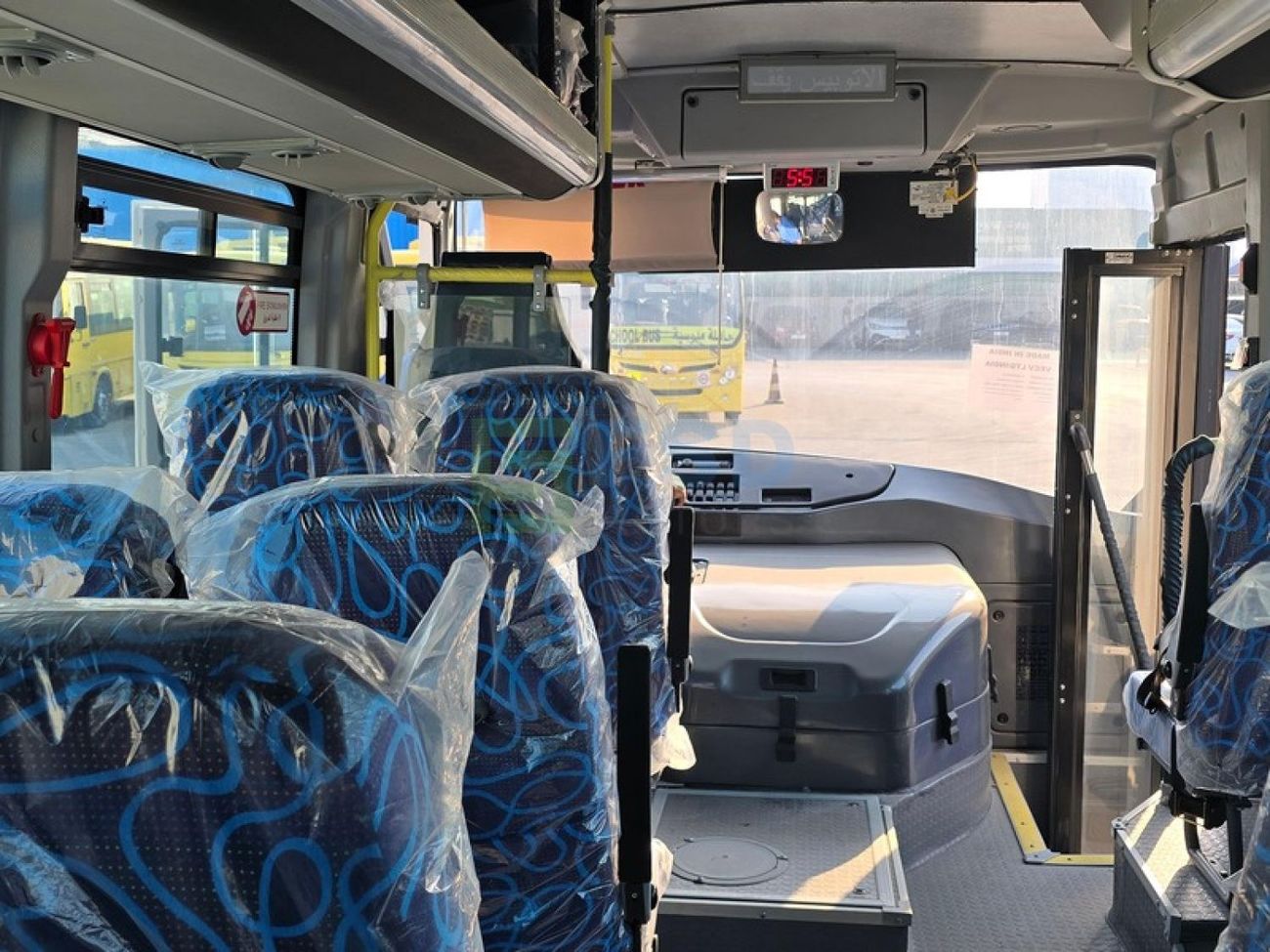

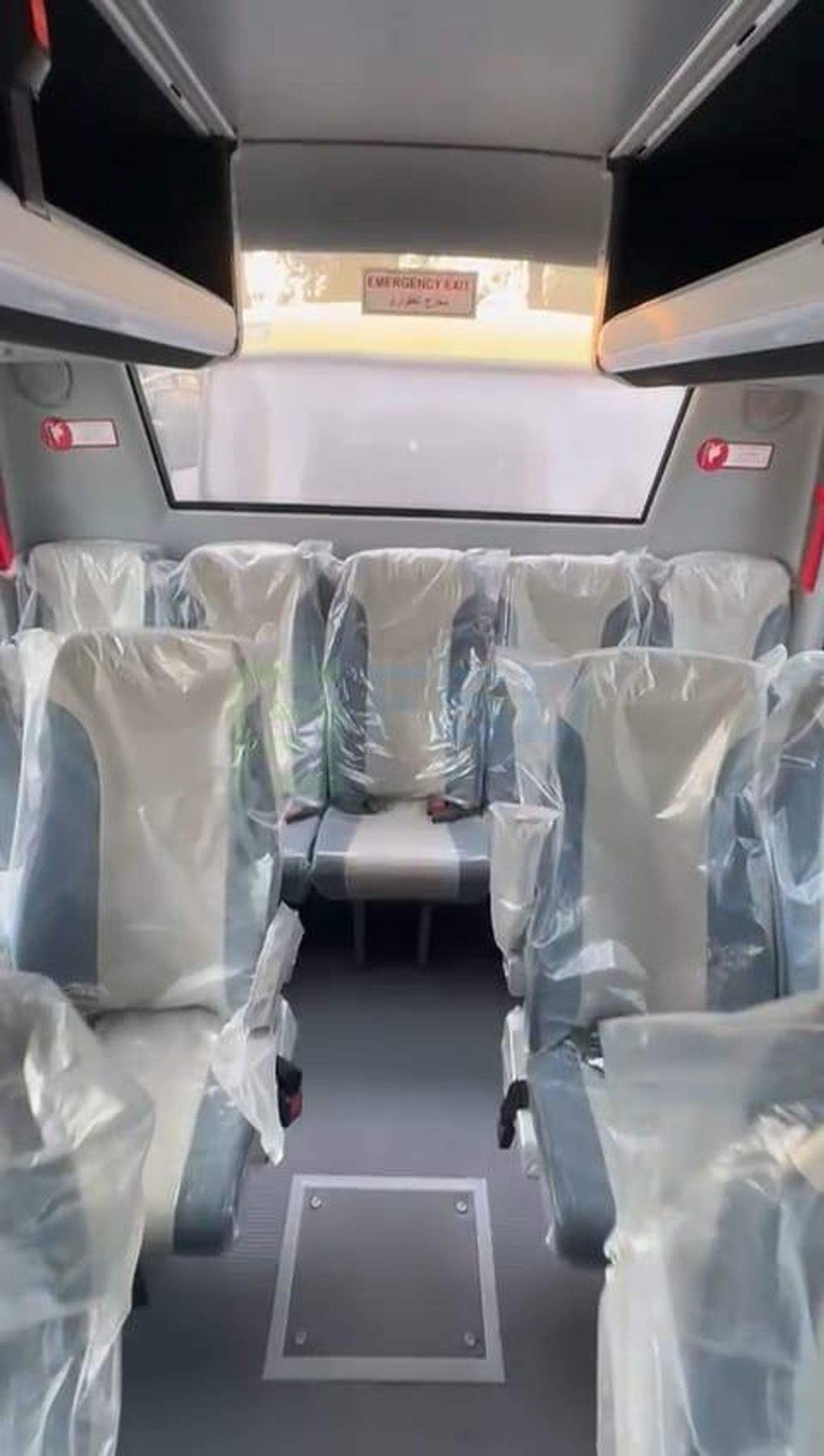

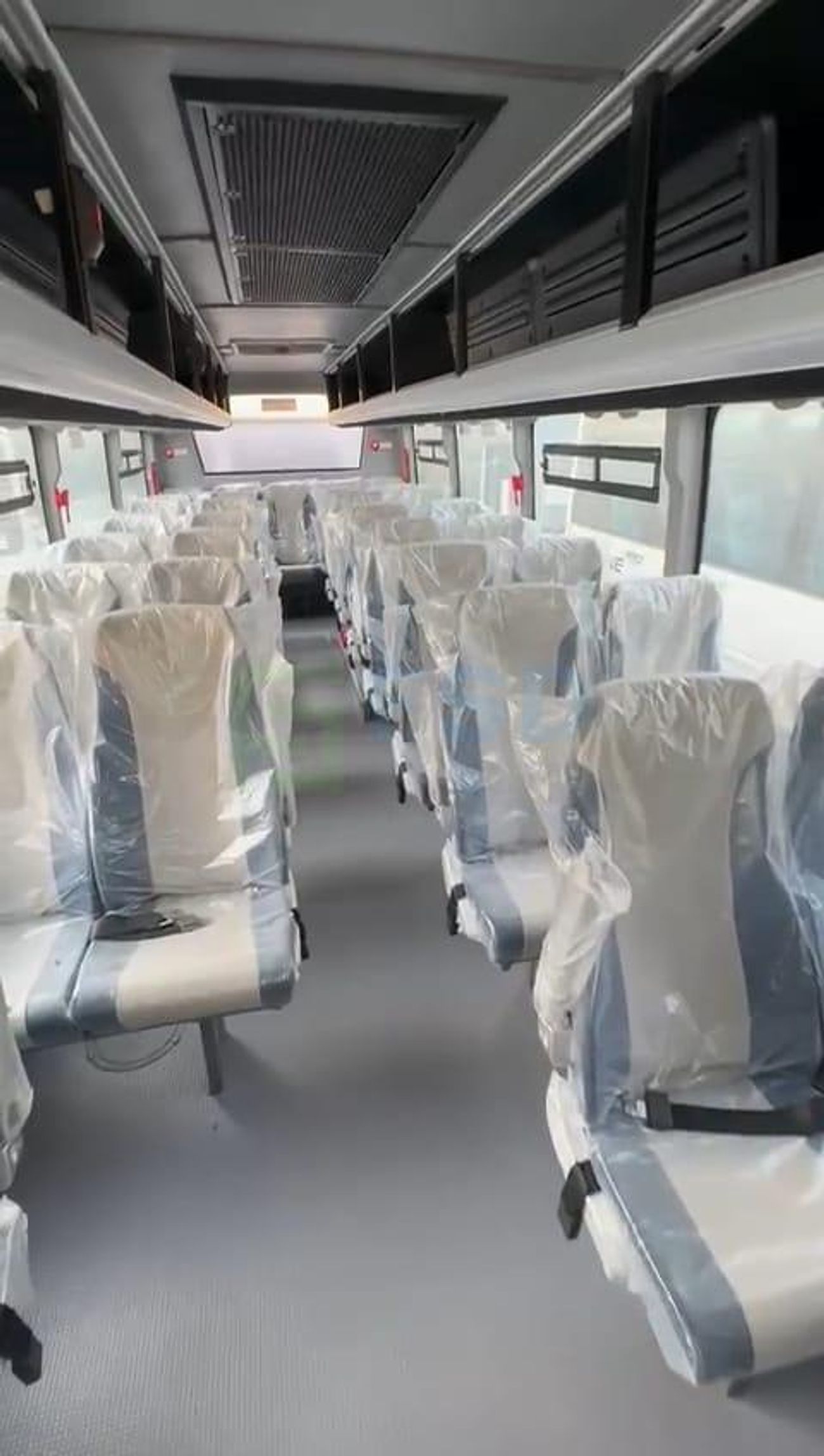

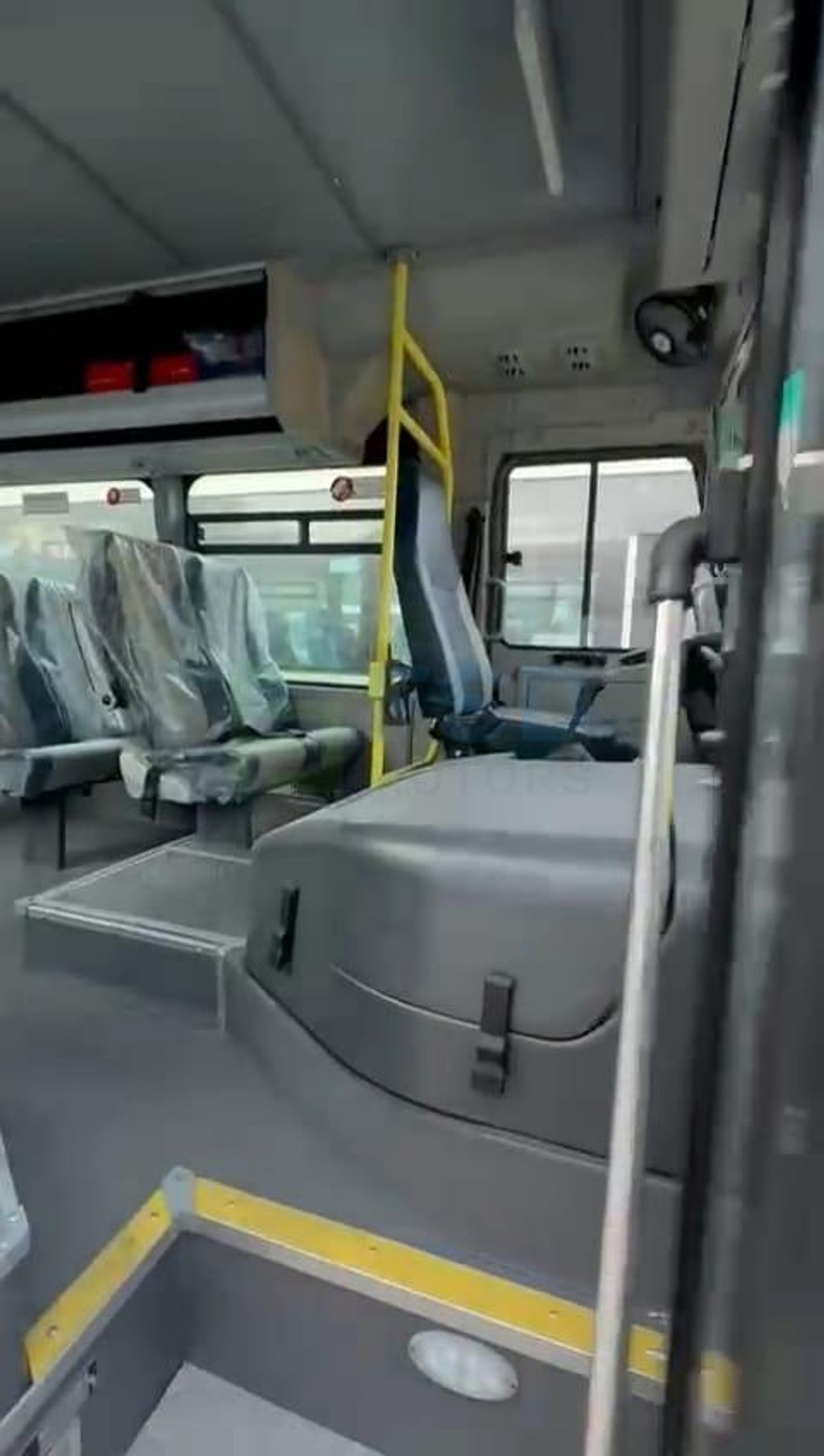

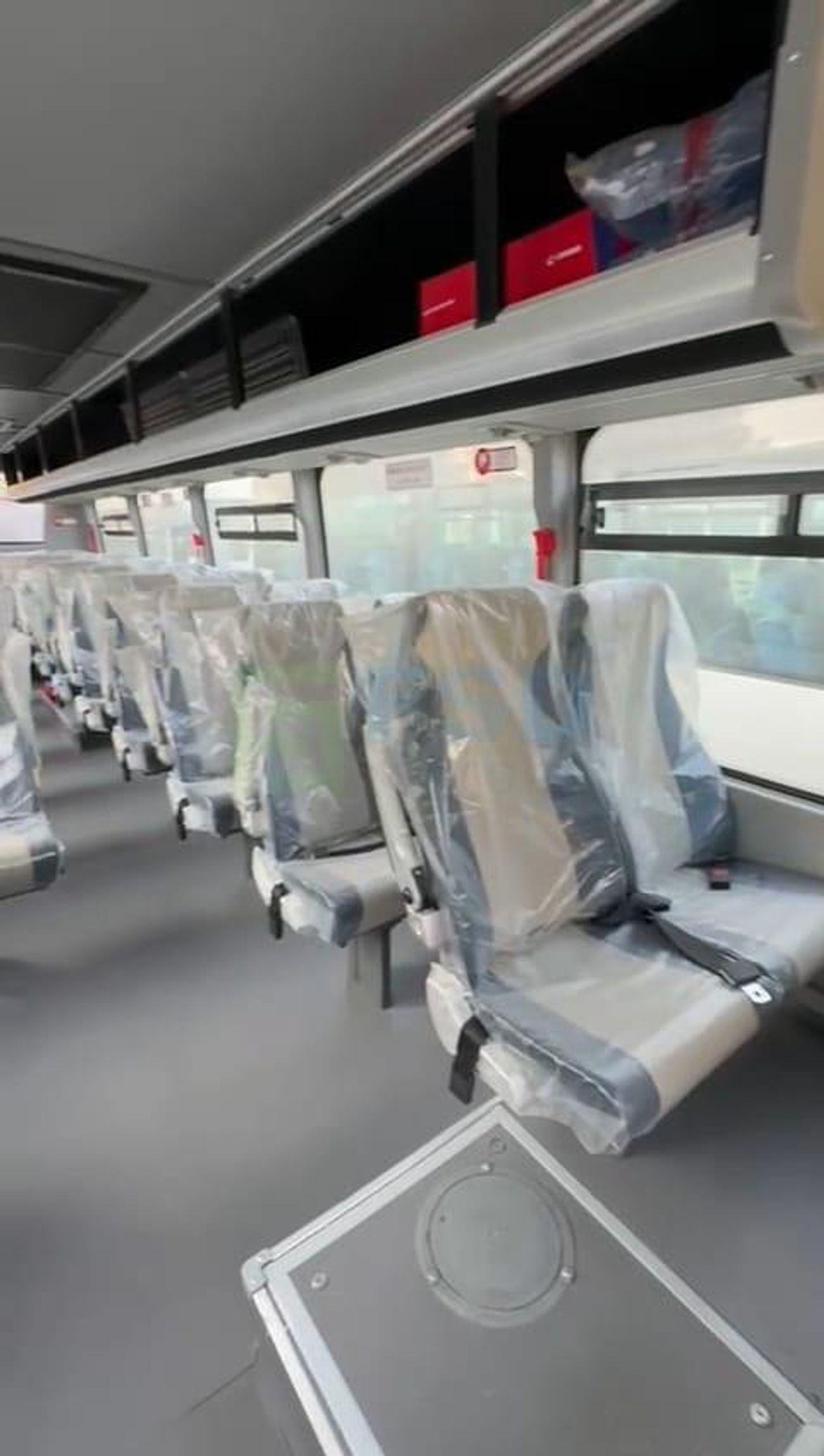

Seating Capacity-35 +D

Additional Features
Turning circle diameter (m)-17
Chassis Type-Domex

Suspension
Front suspension-Weveller
Rear Suspension-Parabolic
Shock Absorber-Hydraulic double acting telescope shock absorber at front and rear
