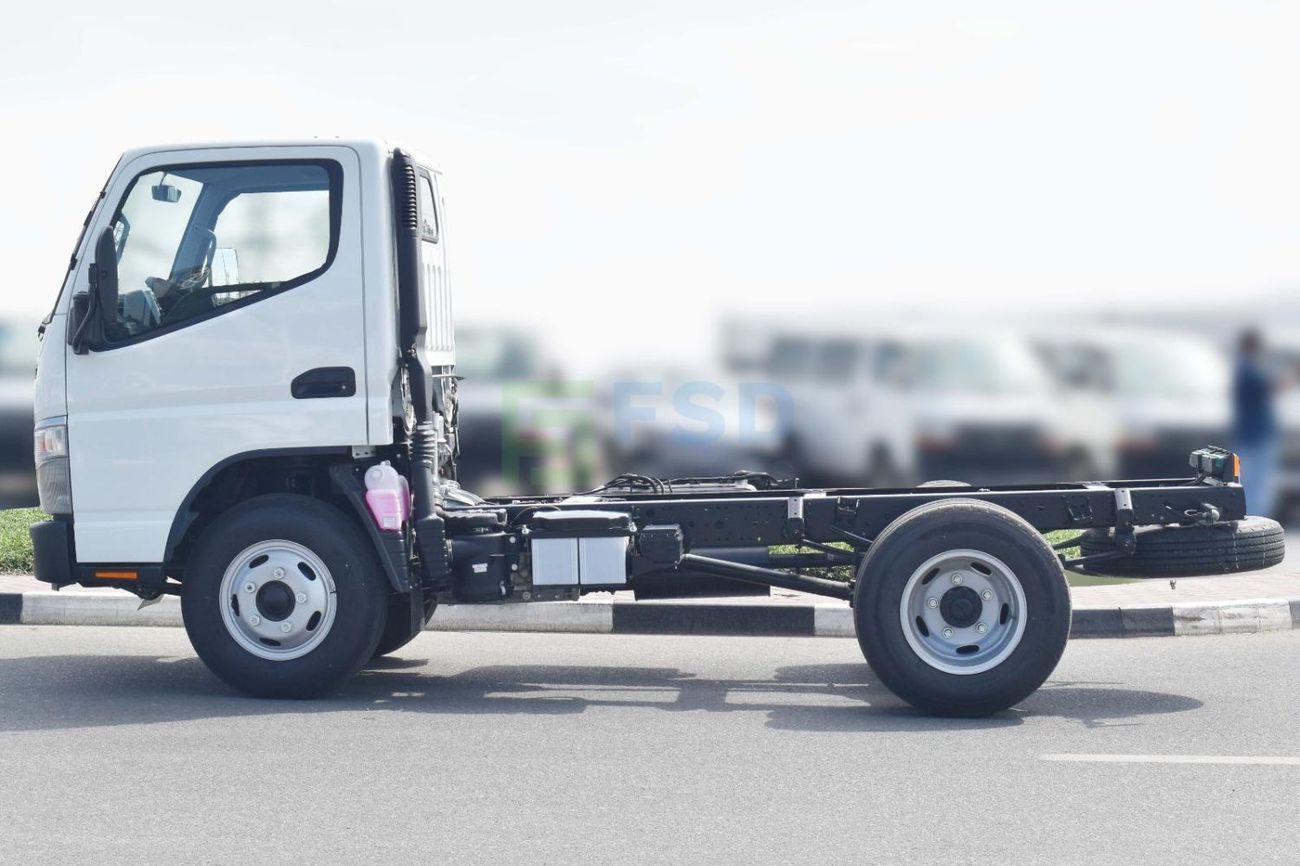

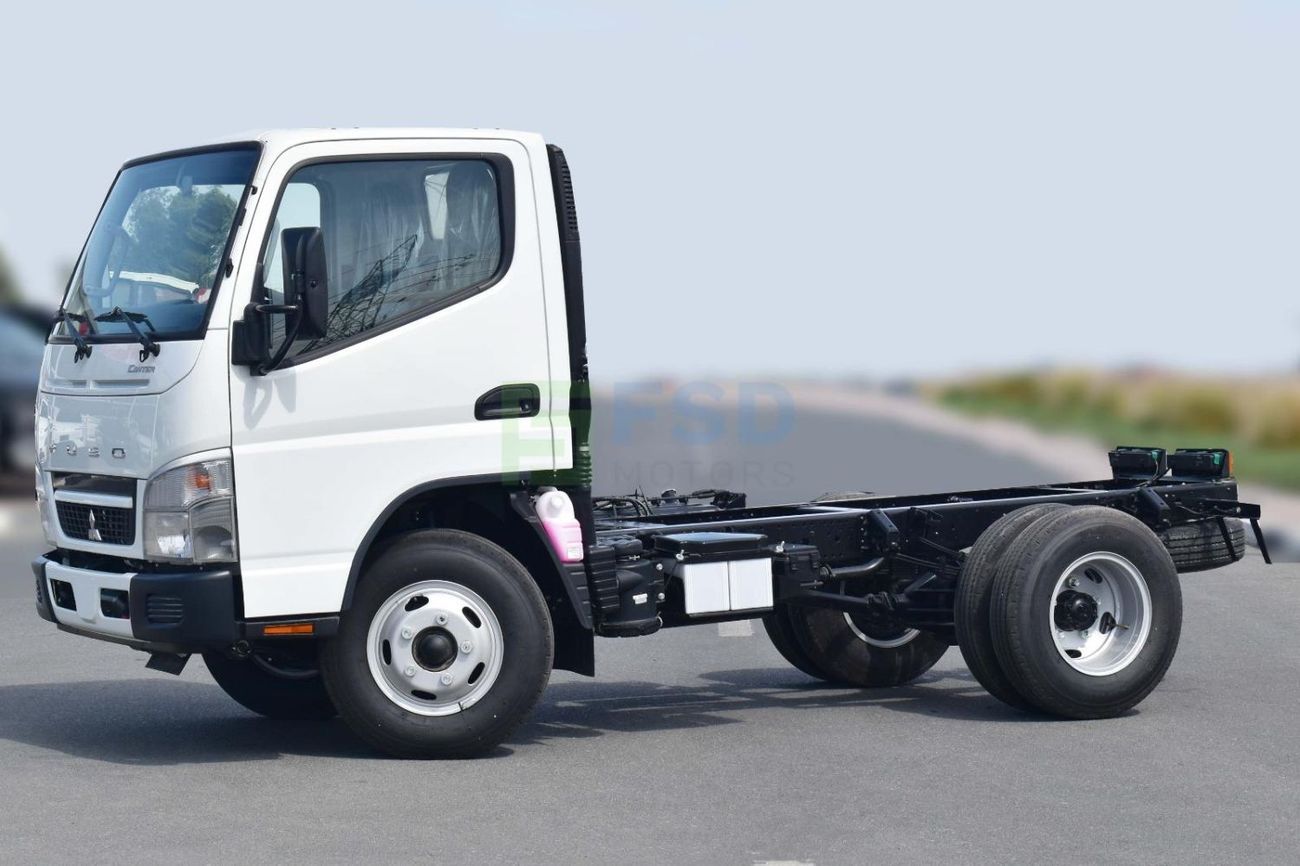

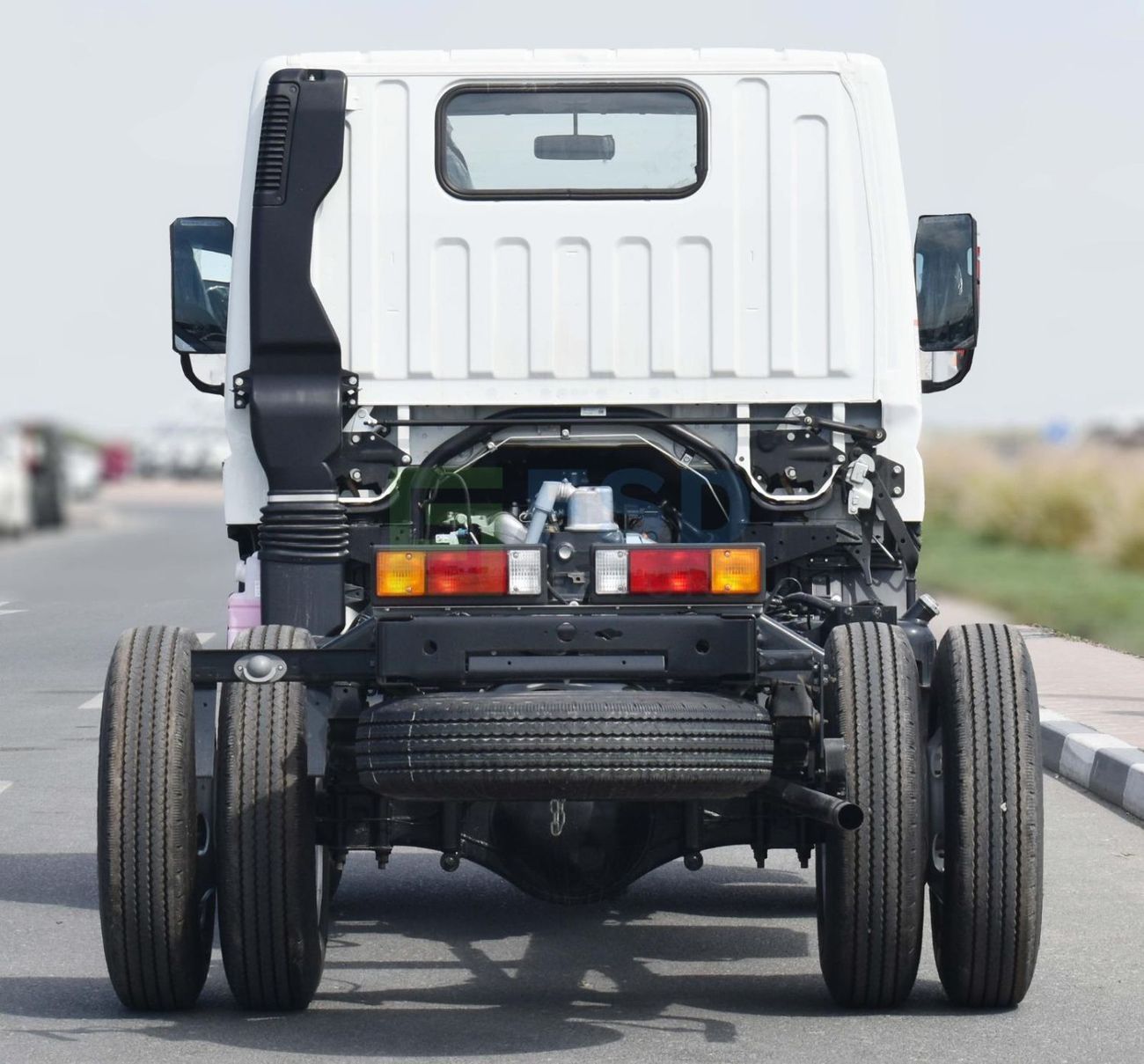

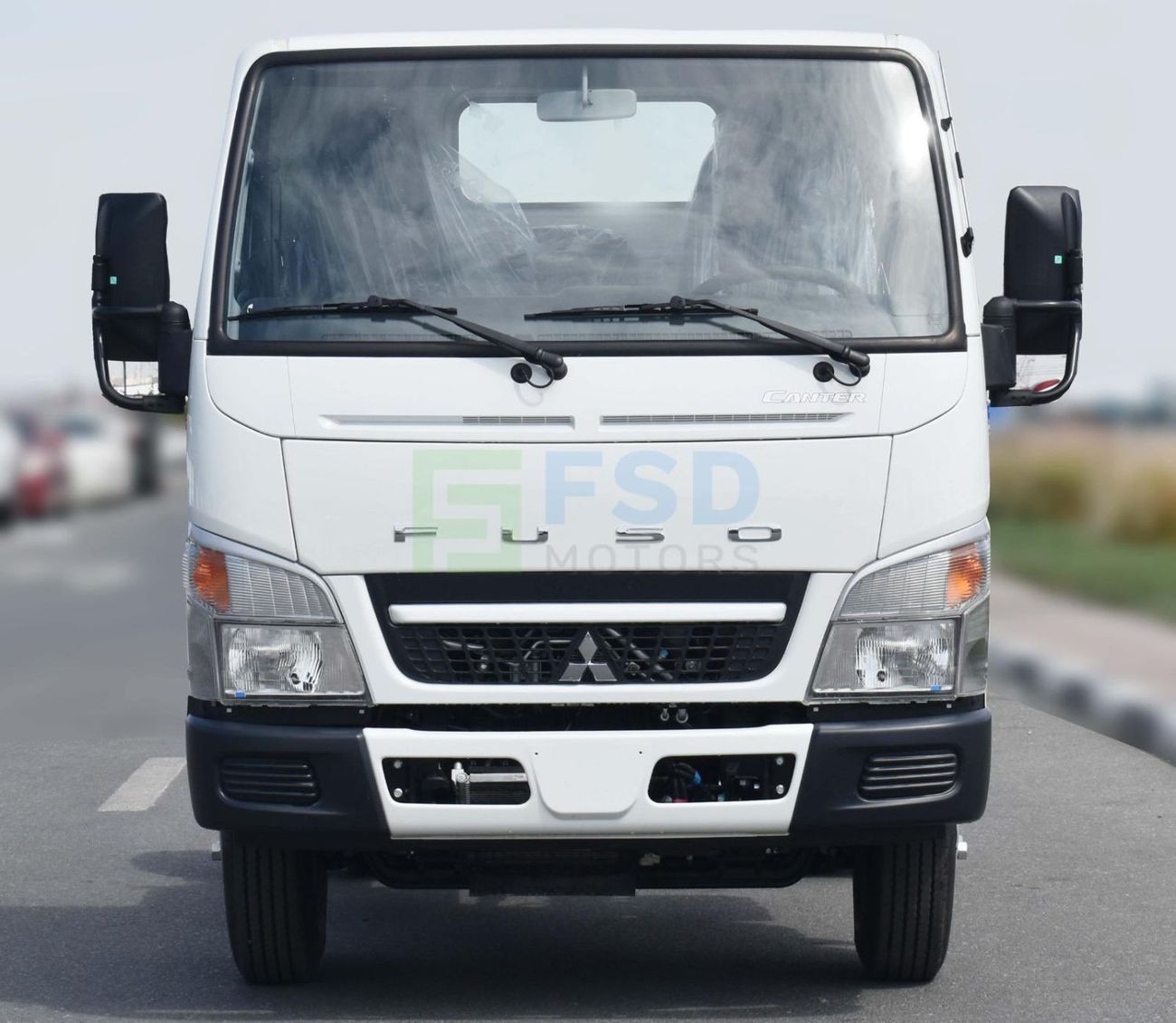

Mitsubishi Fuso Canter MITSUBISHI FUSO CANTER TRUCK CHASSIS WITH CAB MY-2025

Export Only.
Worldwide Shipping Services Available.
Vehicle Specifications:-
Wheelbase-2,500 mm
Overall length-4,655 mm
Overall width-1,870 mm
Overall height, approx.-2,105 mm
Shipping space, approx.-18.5 cu.m
Tread front-1,390 mm
rear-1,435 mm
Kerb weight-2,005 kg
front-1,395 kg
rear-610 kg
Max. 5,700 kg
front-2,260 kg
rear-4,300 kg
Max. speed-107 km/h
Max. gradeability (with Max. .= 5,700 kg)-47.5 % (tan 0)
Min. turning radius-5.1 m
CLUTCH-Hydraulic control, single dry plate
Model-C4W30
Disc material & diameter-Woven, 300 mm
Model-M035S5
Type-5 forward and 1 reverse speed
Ratio-2nd to 5th : Synchromesh gears, 1st and Rev .: Constantmesh gears , Rev. 5.380
Model-P3
FRONT AXLE-Reverse Elliot, "I" beam type
REAR AXLE-Full floating type
Final reduction-Single reduction, hypoid gear
Model-D34H
Ratio-6.166
Tire size-7.00R16 113/111L
Tread pattern-Rib
Wheel size-16× 5.50F-115-8t, 5 studs, 2 pieces
type-Disc type
Spare tire & disc wheel-Provided
Spare tire carrier & bracket-Wheelbase B : Not provided-Wheelbase E : Provided
-

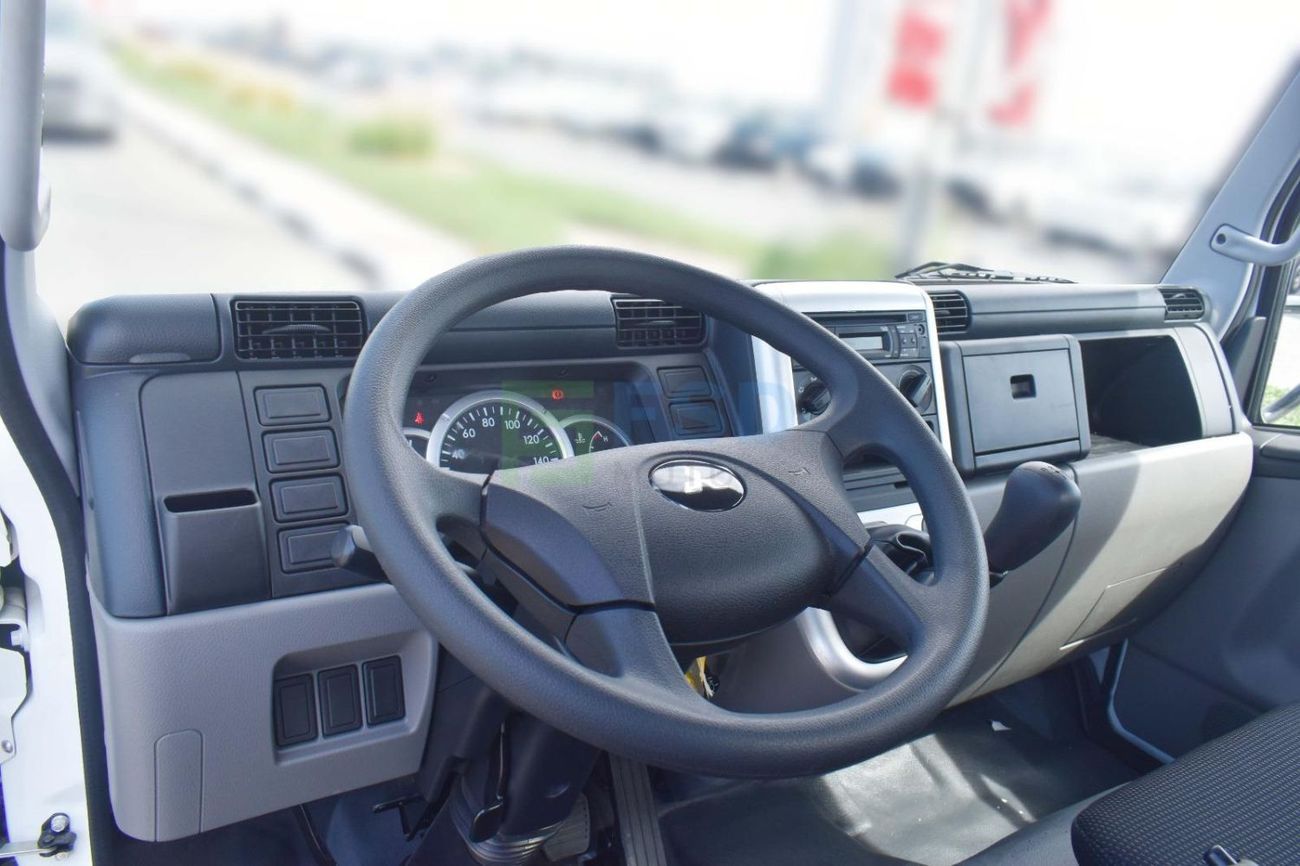

STEERING-Left hand steering Ball nut type with integral type hydraulic power booster Telescopic and tilt steering column with steering lock
SUSPENSIONS Front-Laminated leaf springs with shock absorbers
SUSPENSIONS Rear-Laminated leaf springs with shock absorbers
BRAKES Service-Hydraulic with vacuum servo assistance, dual circuit
BRAKES Parking-with antilock brake system
BRAKES Auxiliary-Internal expanding type on propeller shaft Exhaust brake
FRAME-Parallel, tapered channel section with reinforcement and crossmembers
ELECTRICAL SYSTEM-24 Volt
Batteries-65D23L x 2
FUEL TANK-Wheelbase B : 70 liters with lockable cap -Wheelbase E : 100 liters with lockable cap

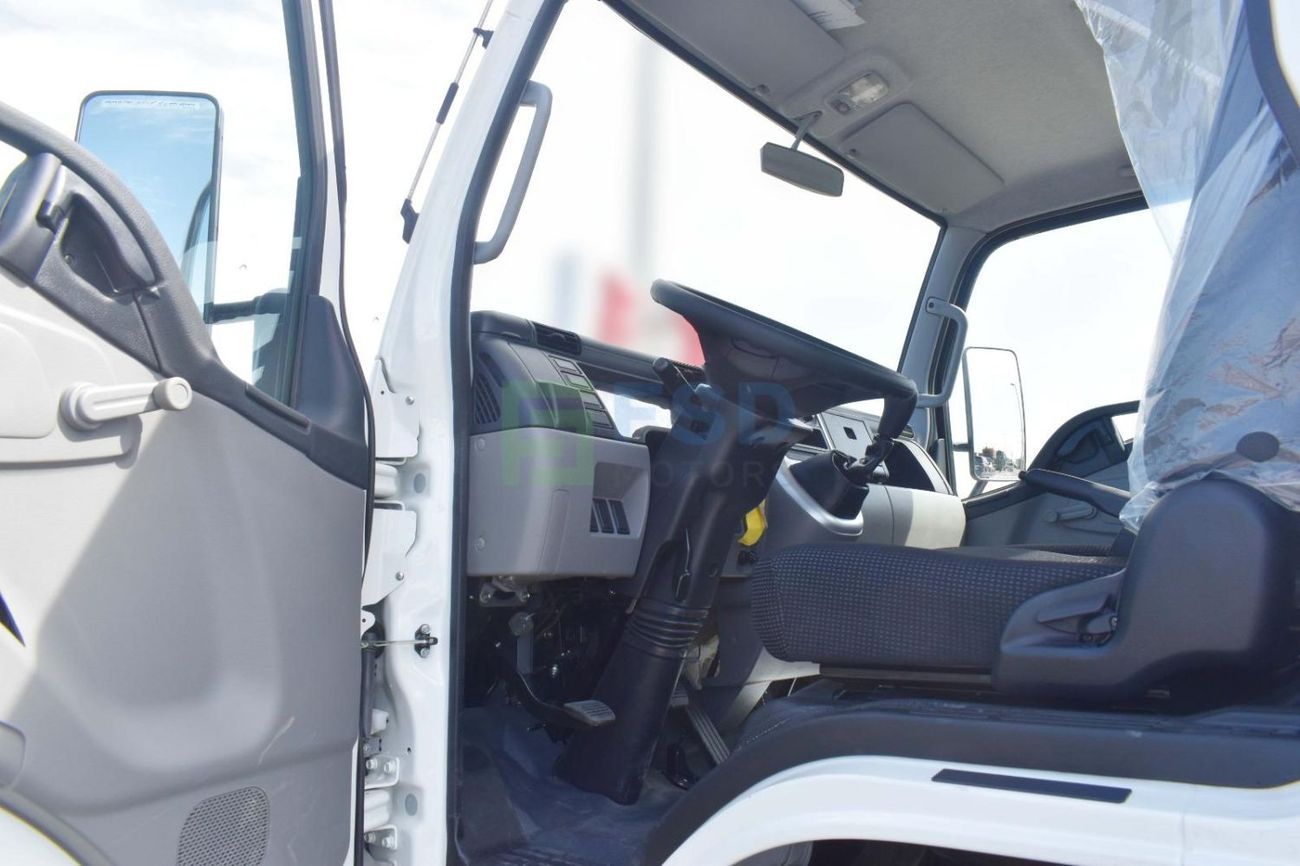

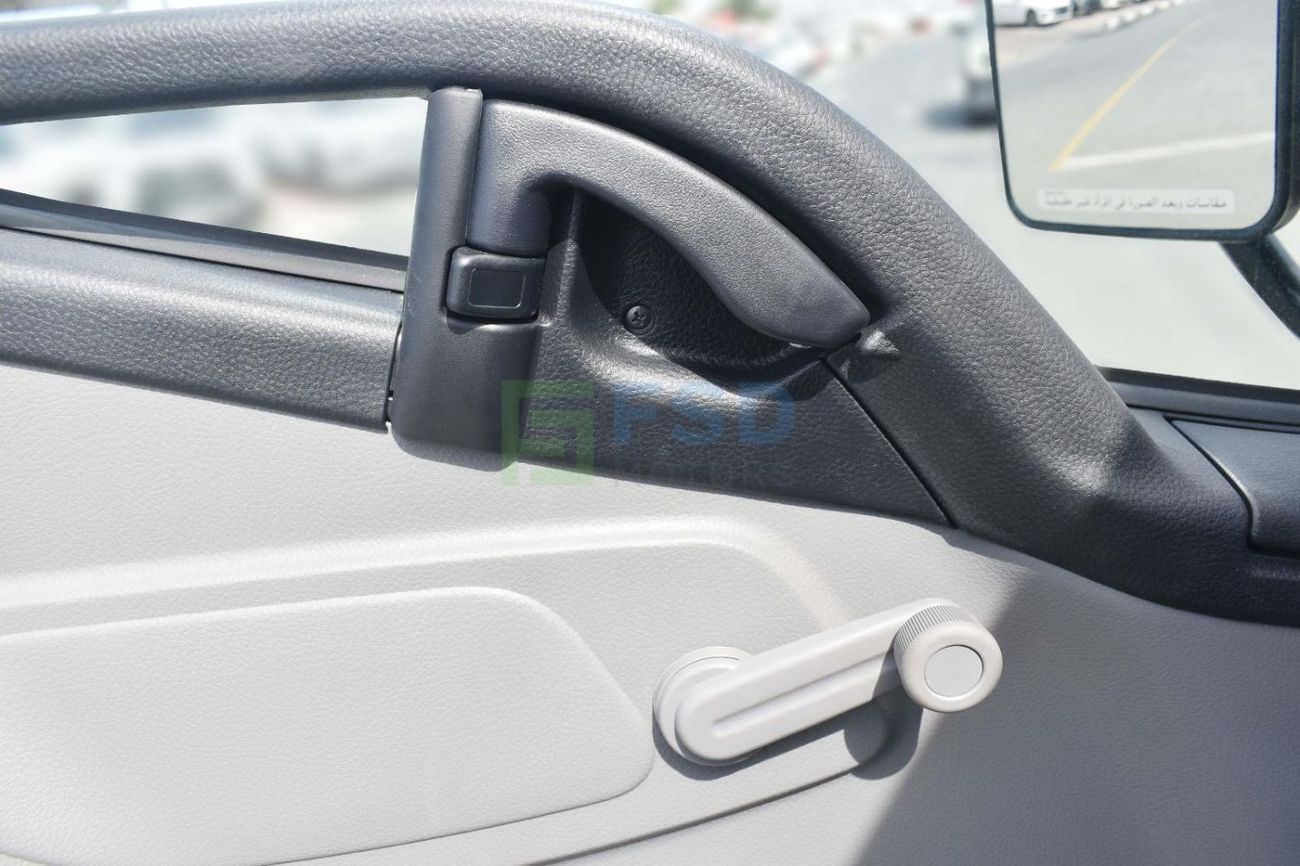

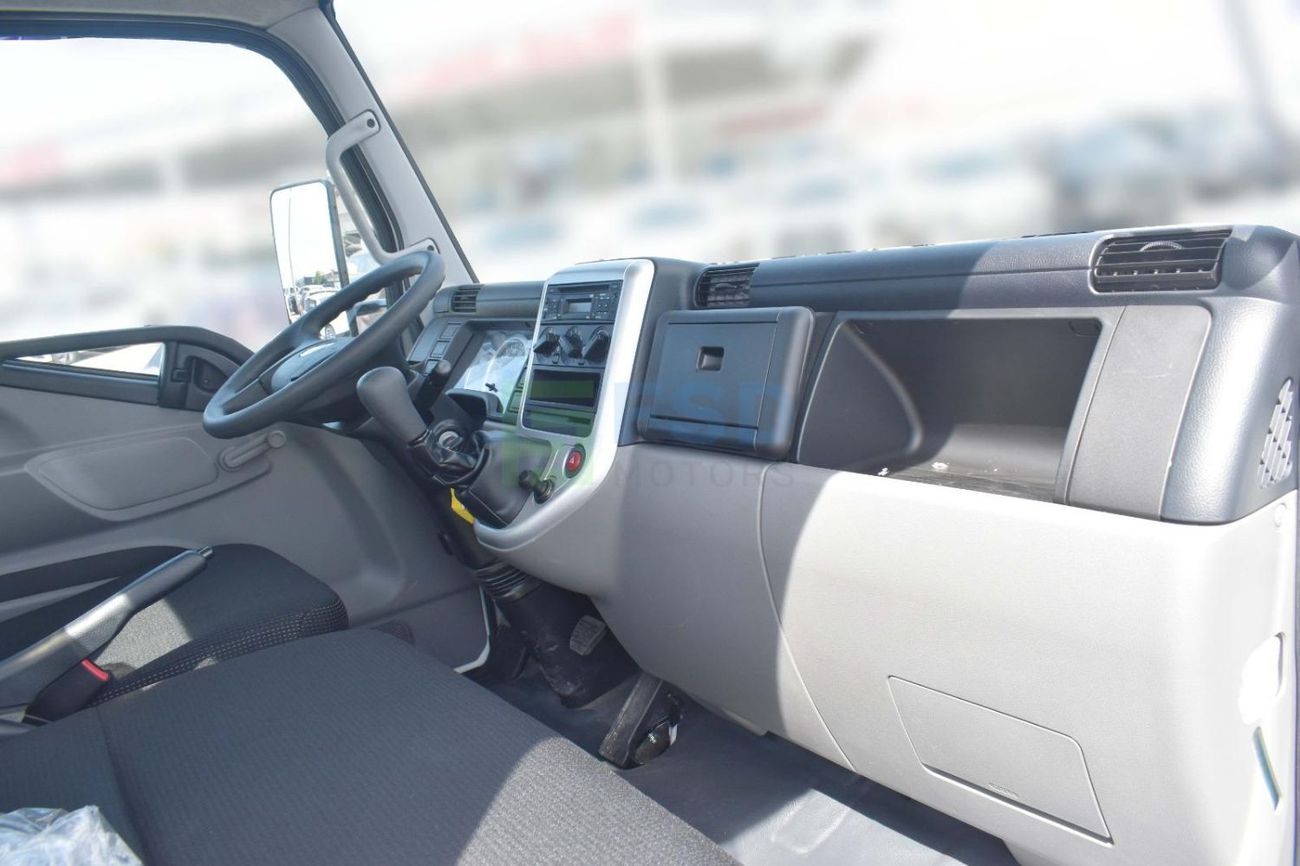

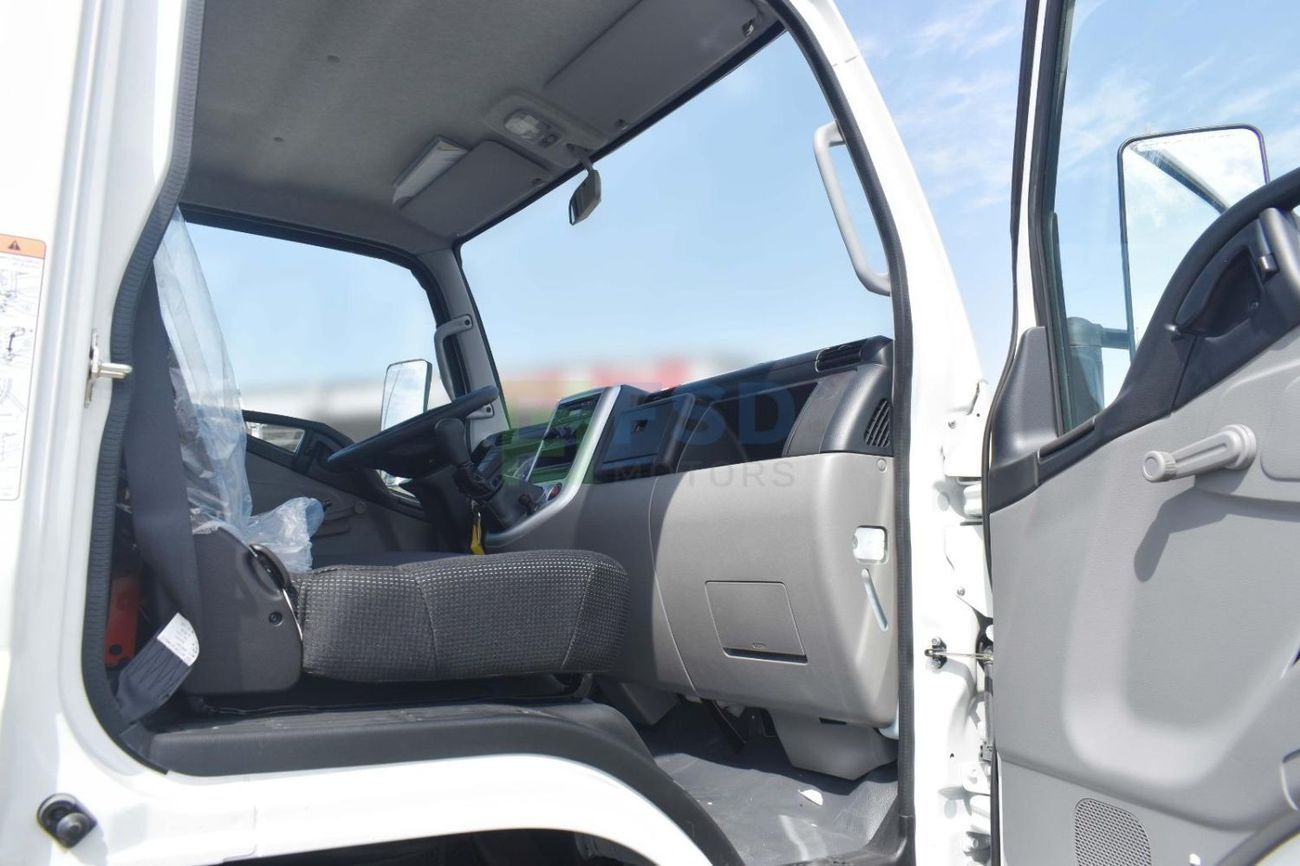

DRIVER'S CAB-All steel, tilt cab
PAINT Cab color-Natural White (W31)Sonic blue (B00), Shannon blue (T89),Forest green (G58), Active yellow (Y13),-Bright orange (O24), Mars red (R23)-Finish coat
CAUTION PLATE-English, Arabic
