Foton Auman

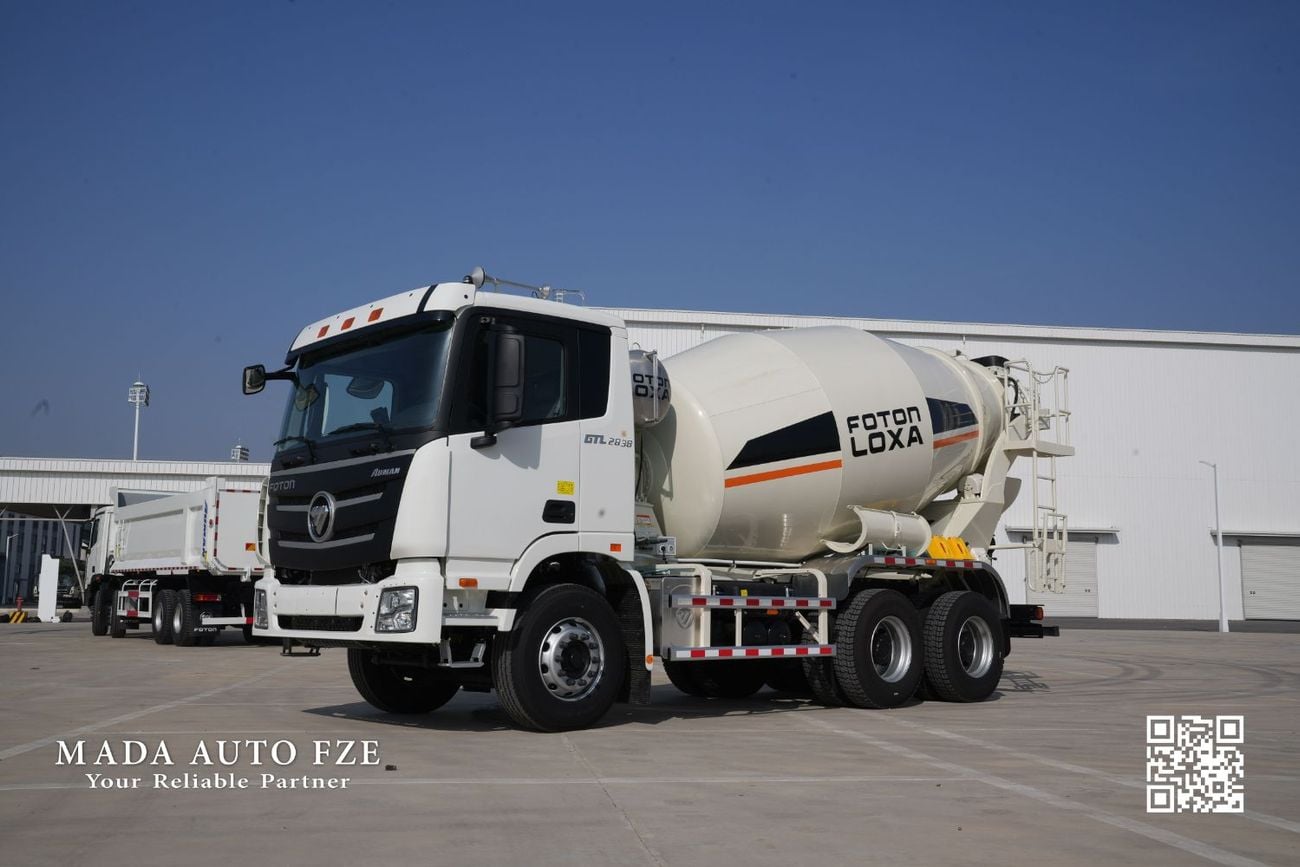

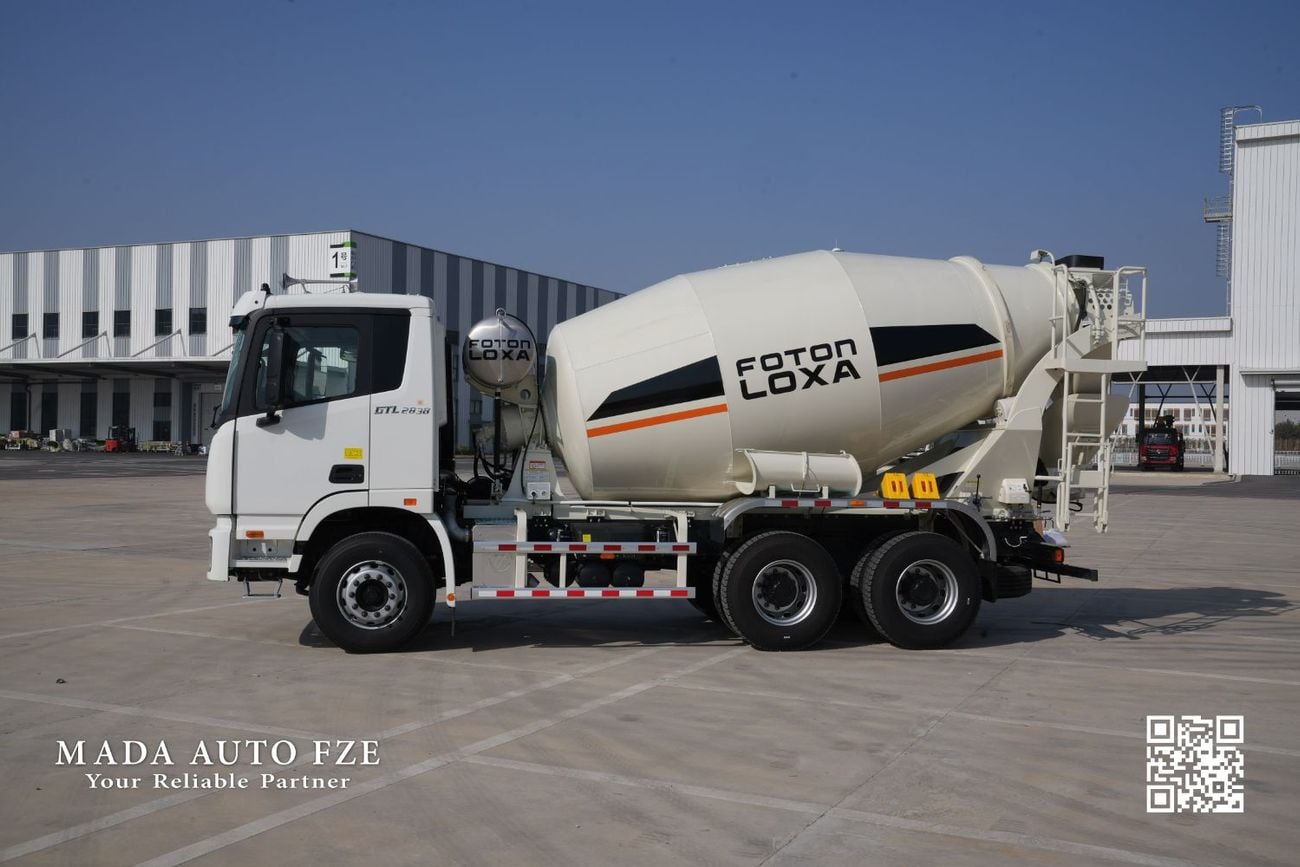

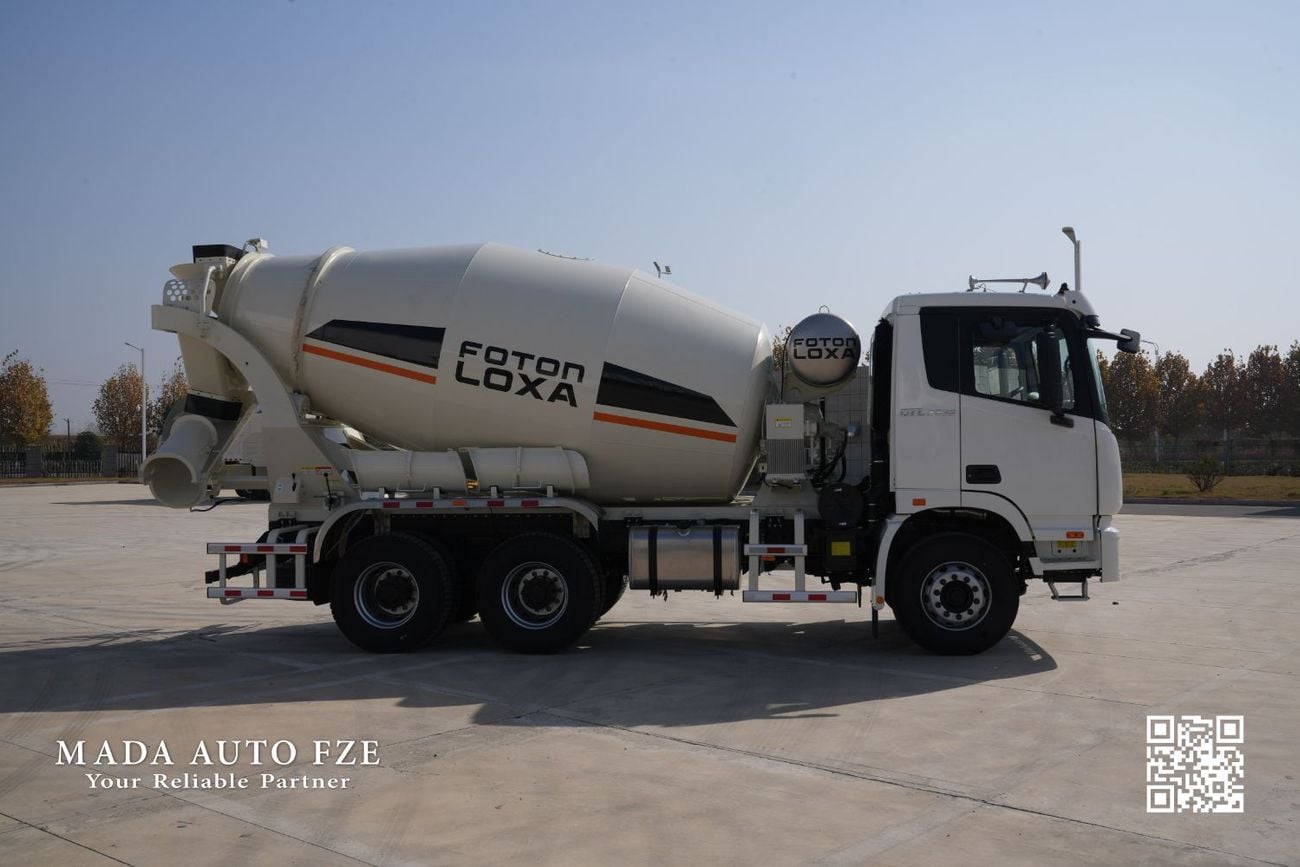

The Auman C 8x4 Concrete Mixer is engineered for high-demand construction environments, combining robust German chassis technology with the reliability of a Cummins ISGe5 powertrain. Designed for maximum uptime, this vehicle features a premium 12m³ LOXA mixing drum and a driver-centric cabin, ensuring superior performance in heavy-duty applications.

1. Powertrain & Performance

Engine: Cummins ISGe5-400 (Euro V), In-line 6-cylinder Turbocharged Diesel.

Output: 400 HP with a peak torque of 2300 N.m at 1100 rpm.

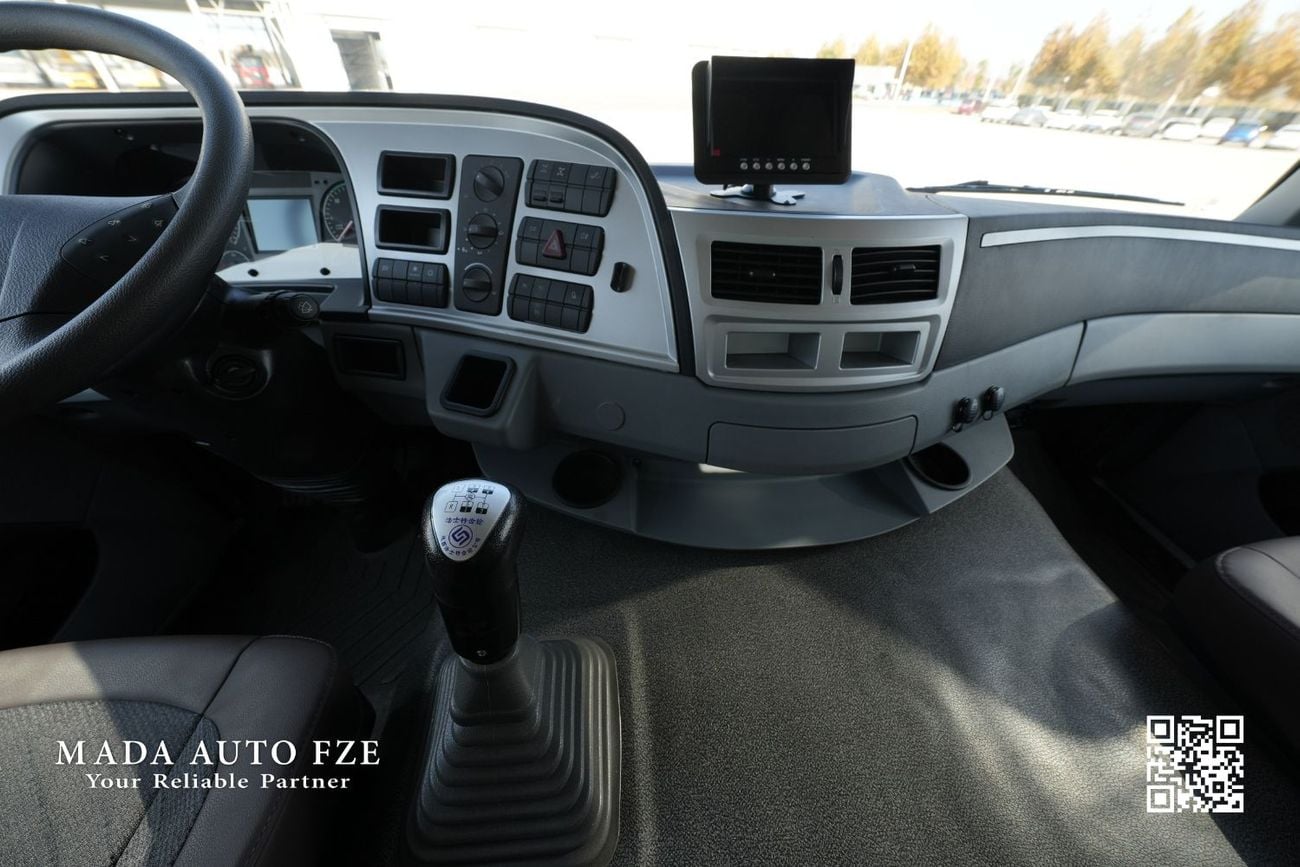

Transmission: 12-Speed Manual Gearbox (Model: 12JSDX240TA) – 12 Forward / 2 Reverse.

Fuel System: 350L Aluminium Alloy Fuel Tank.

2. Mixer Unit Specifications

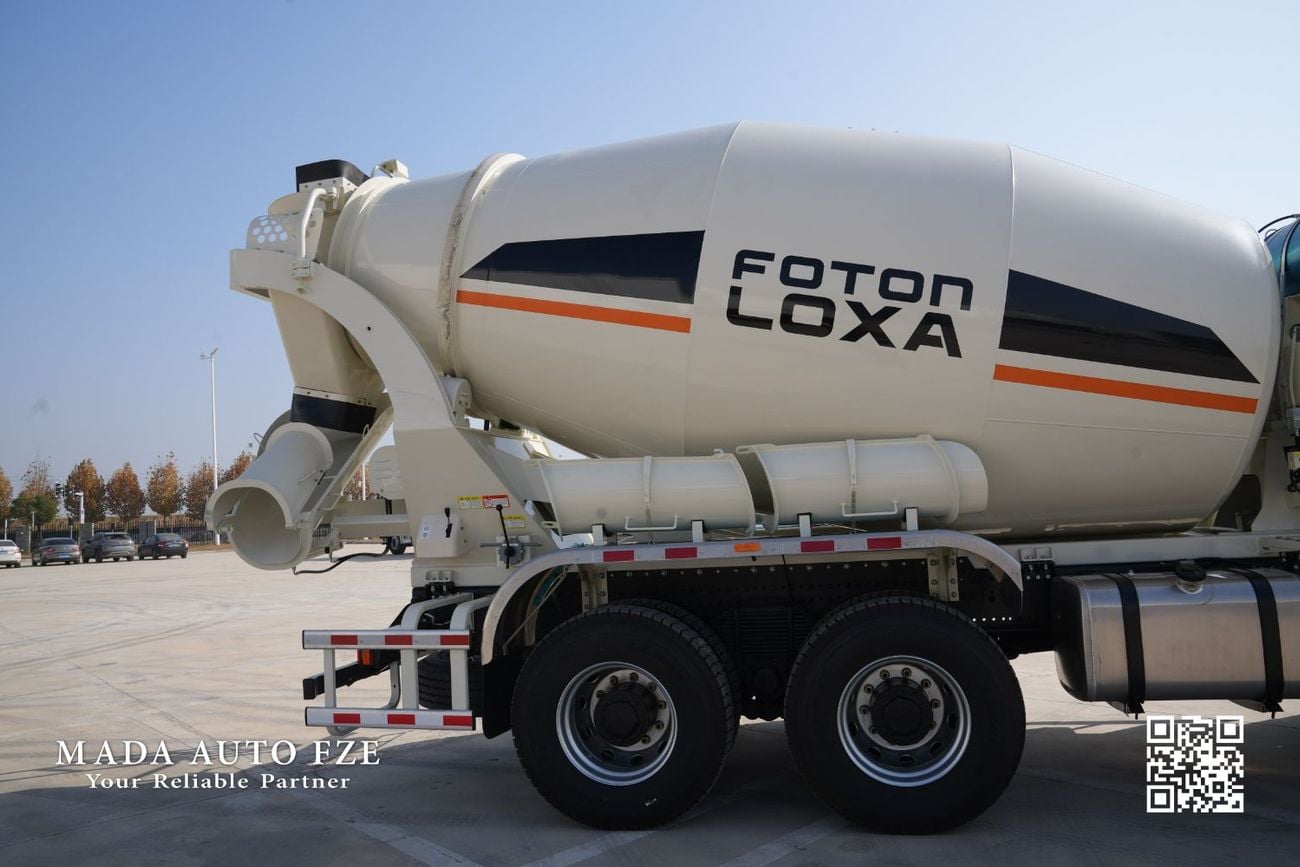

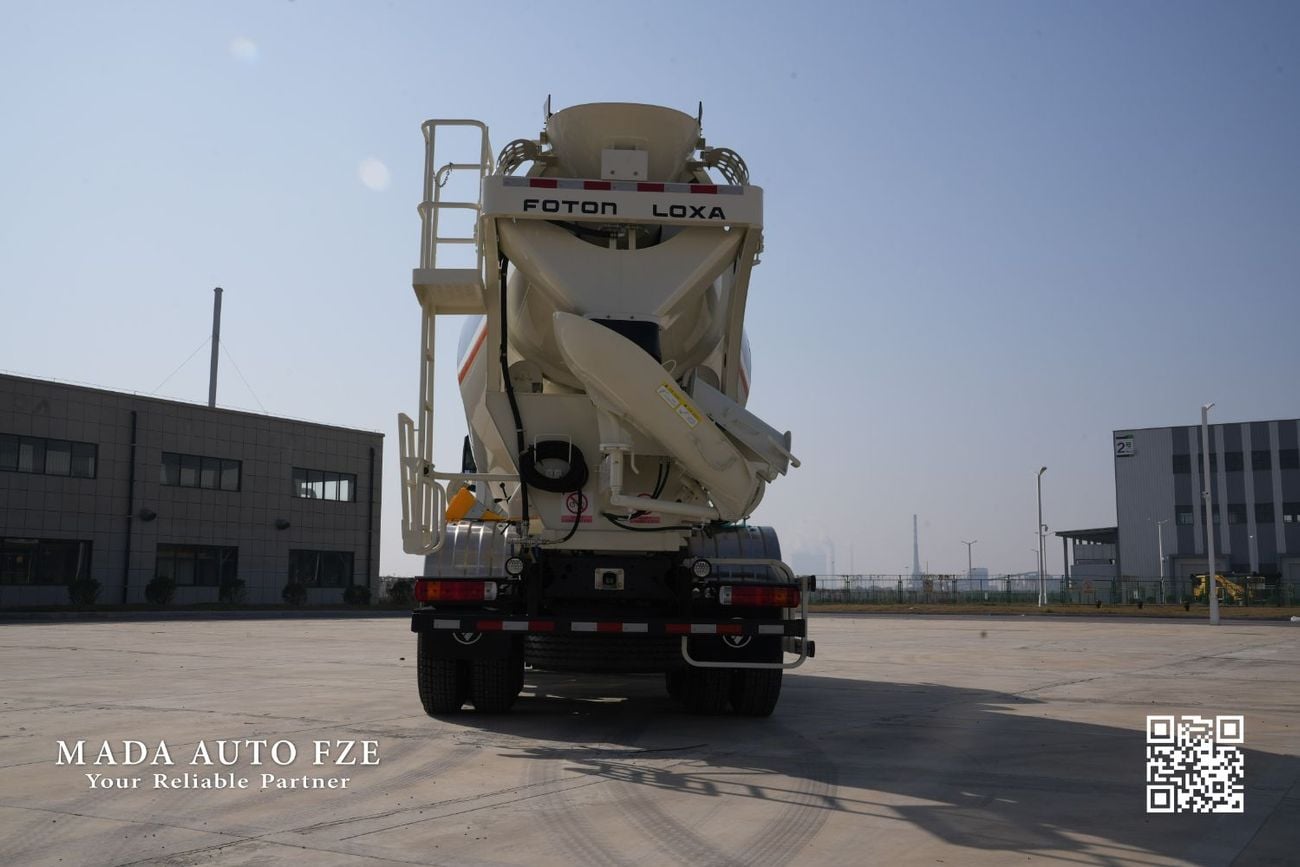

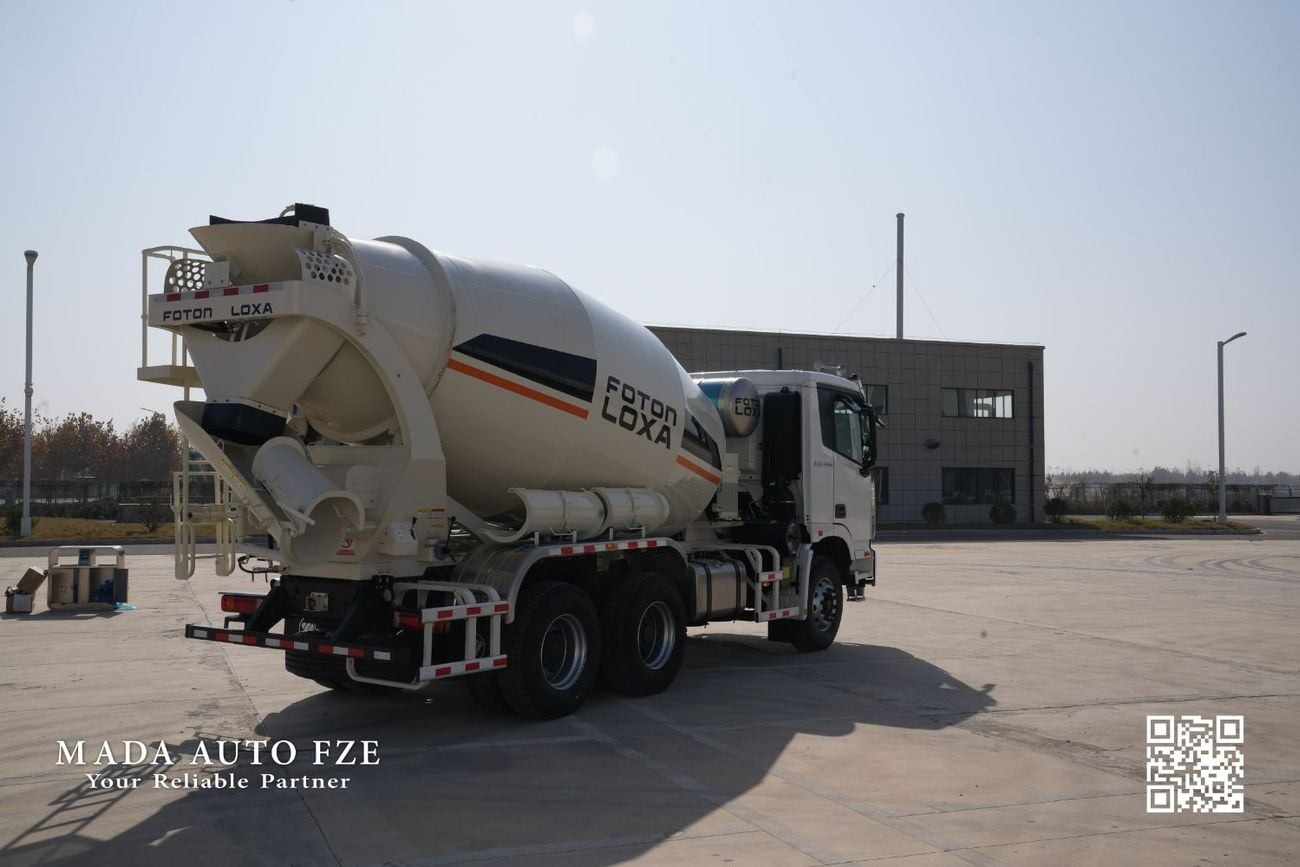

Drum Capacity: 12 m³ (Manufacturer: LOXA).

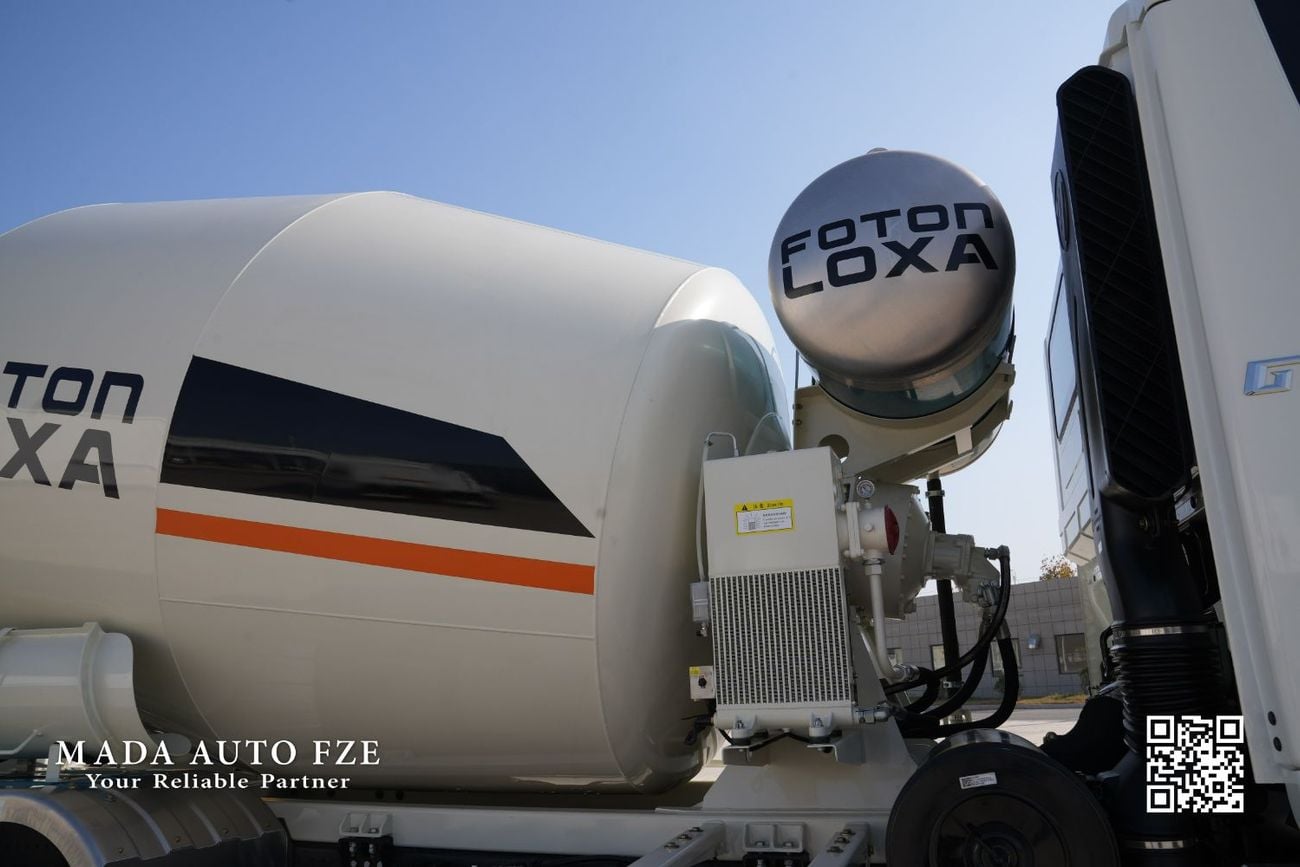

Hydraulics: Premium Rexroth Hydraulic Pump & Kit for consistent rotation control.

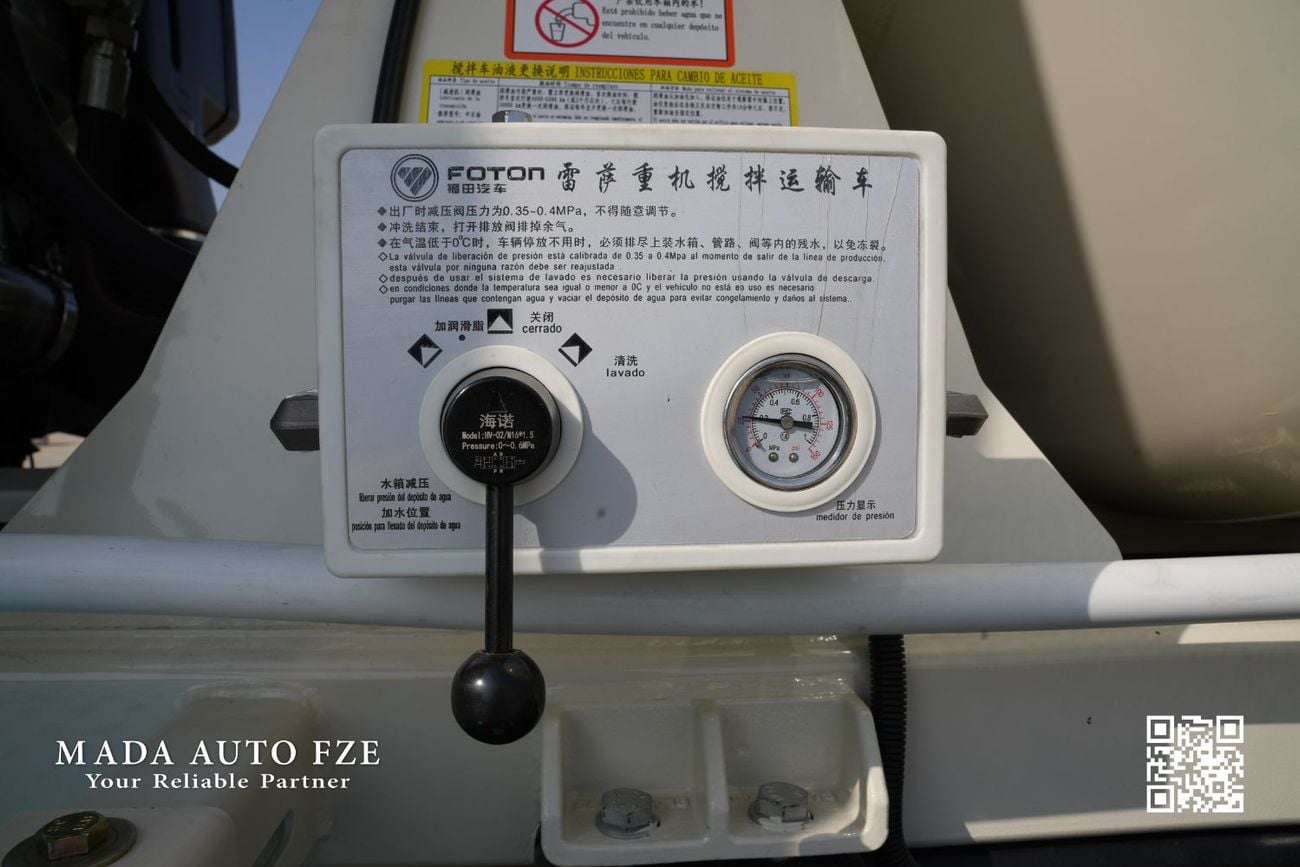

Water System: 1000L high-capacity water tank for efficient onsite cleaning.

3. Chassis & Structural Integrity

Configuration: 8x4 Drive with Reinforced German Technology Chassis.

Axle Load: Front (2x 7,000 kg) / Rear (2x 16,000 kg) with 4.8 speed ratio.

Suspension: Heavy-duty Mechanical Suspension.

Tires: 12+1 Configuration (Front: 385/65R22.5 | Rear: 315/80R22.5).

GVW: 41,000 kg.

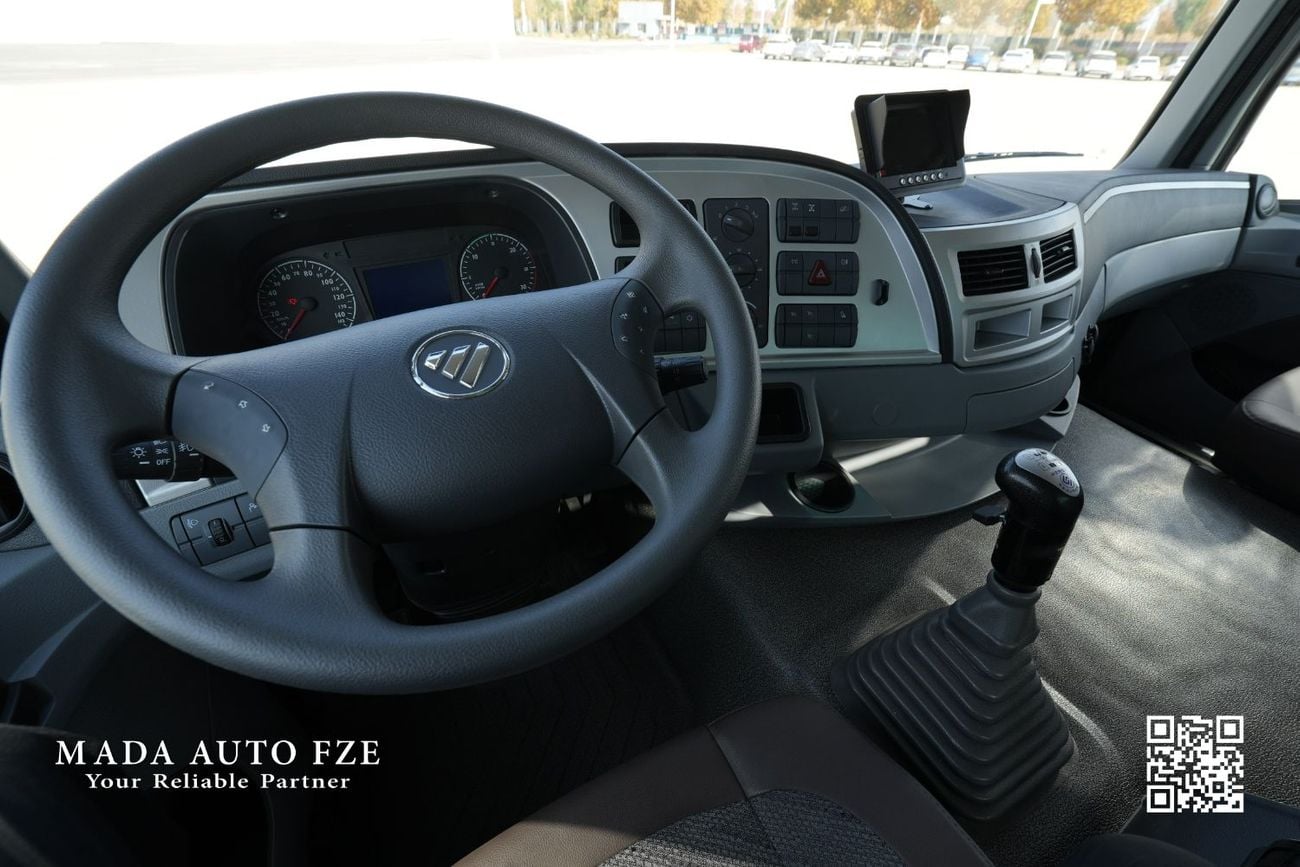

4. Safety & Cabin Features

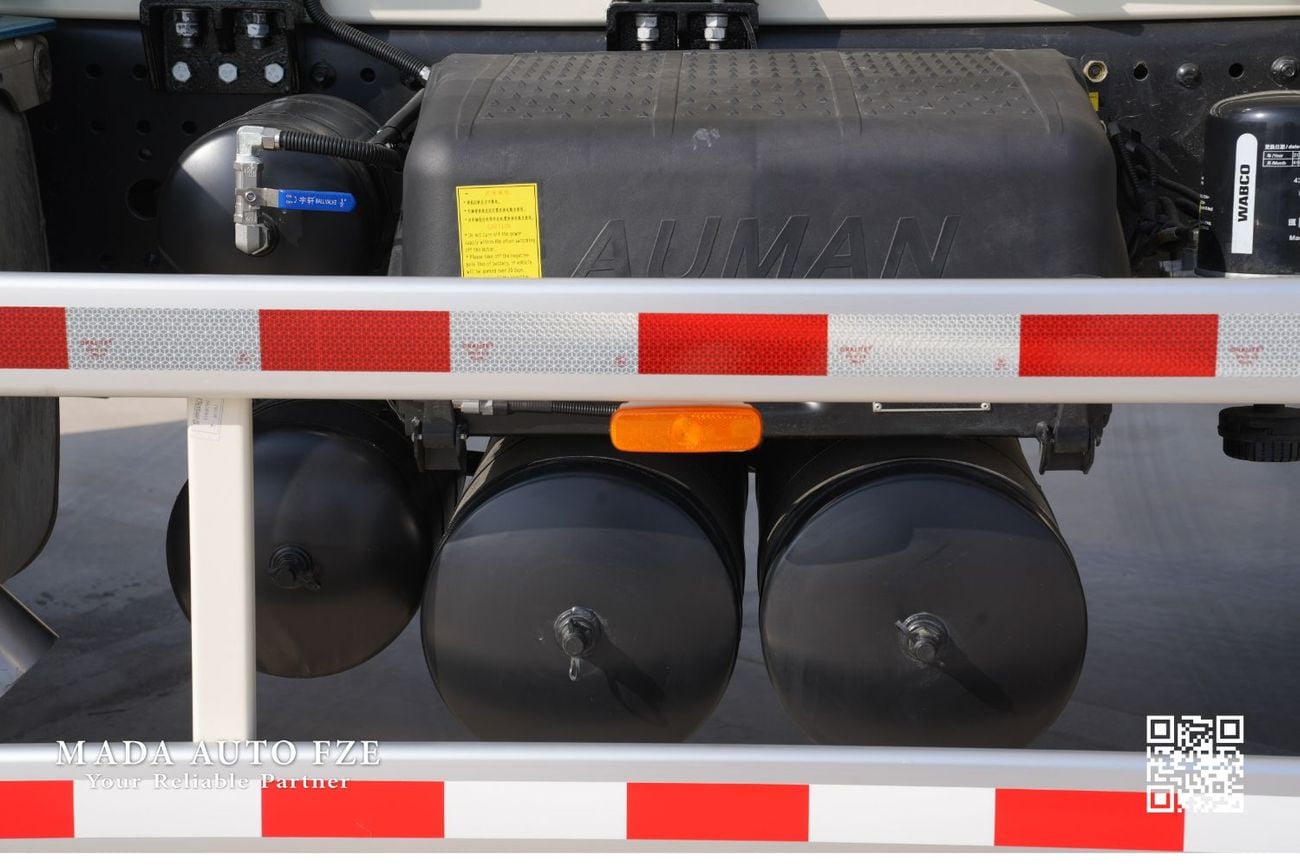

Braking System: Dual-circuit Air Brakes with KNORR ABS and Engine Braking Assist.

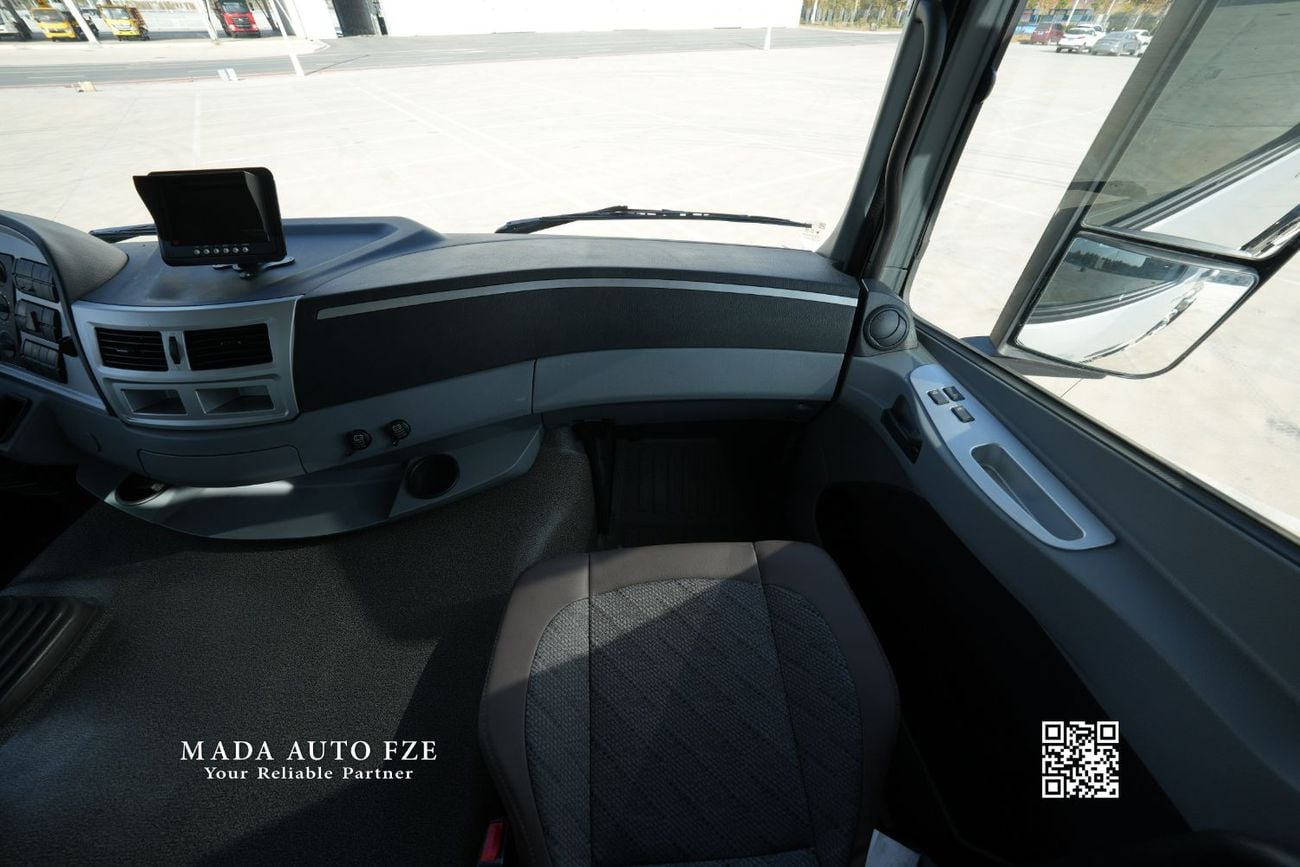

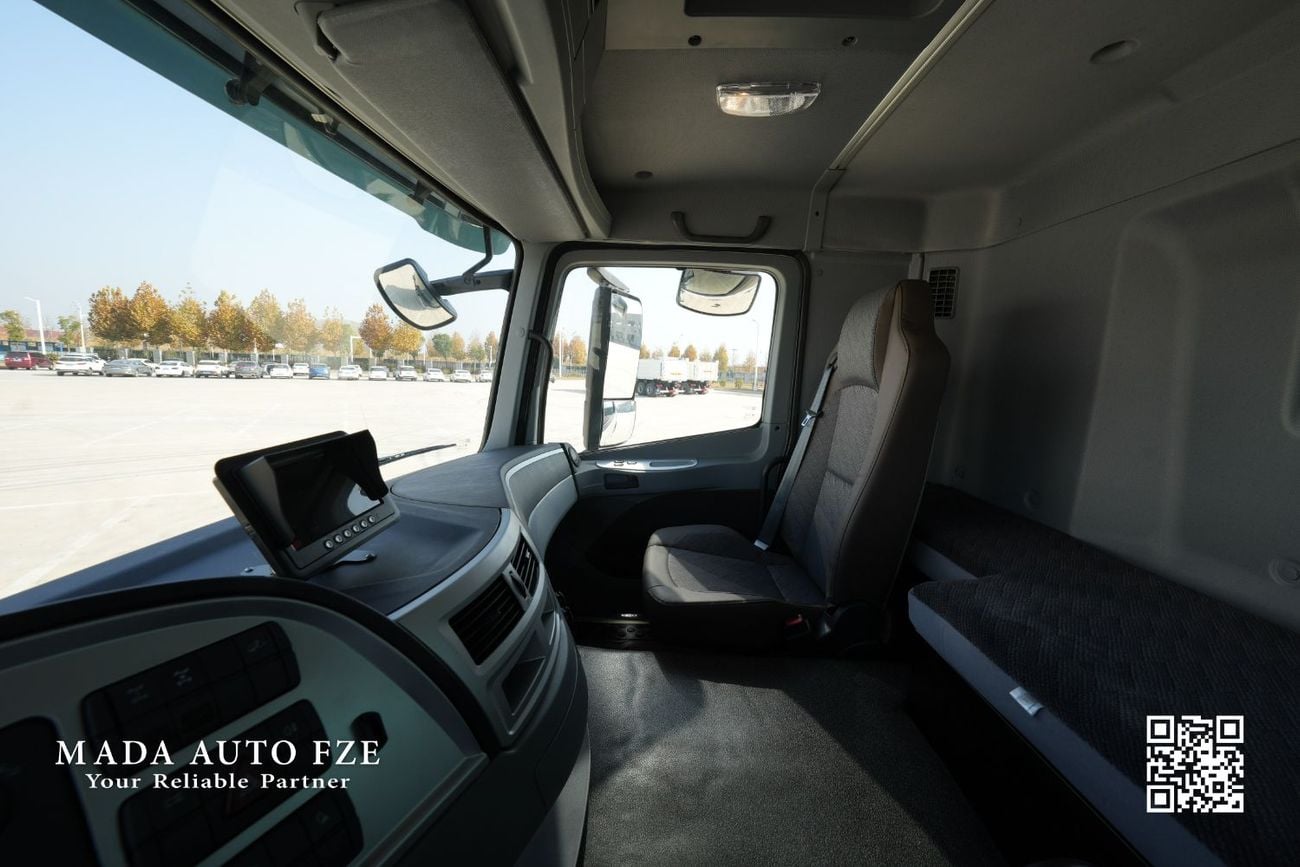

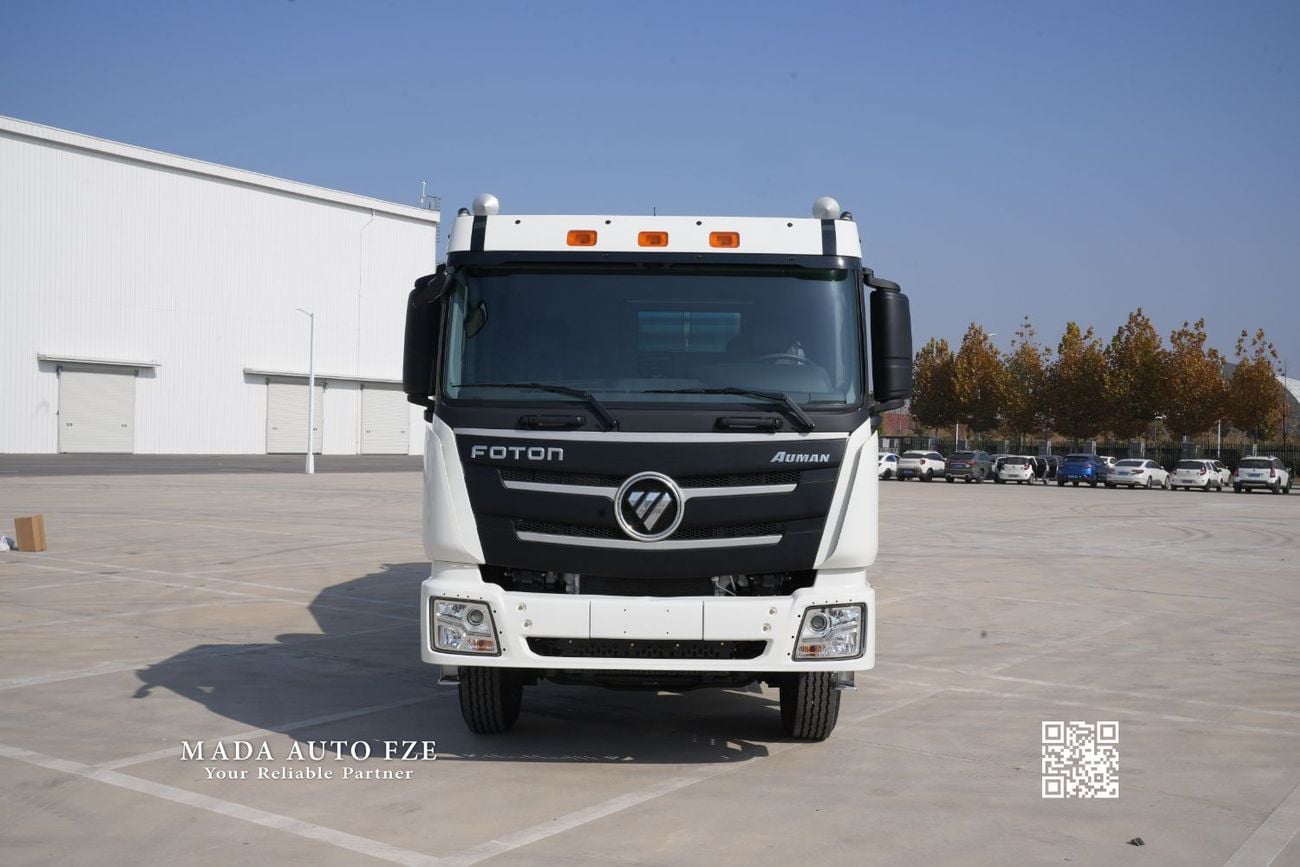

Cabin: Flat Roof Cab (German Tech) with Full Air Suspension and Sleeper.

Comfort: Air-suspension driver seat, Automatic A/C, Electric Windows, and Central Locking.
