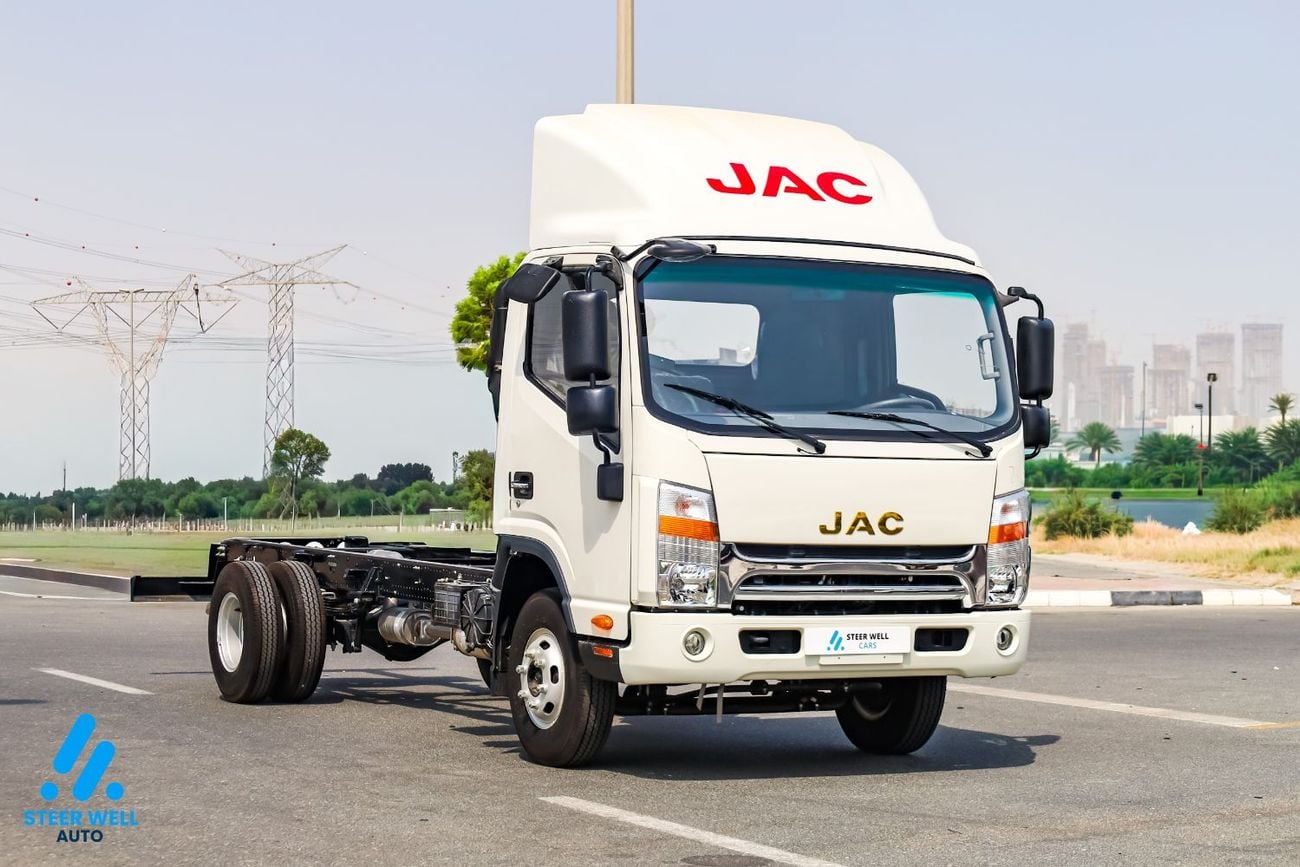

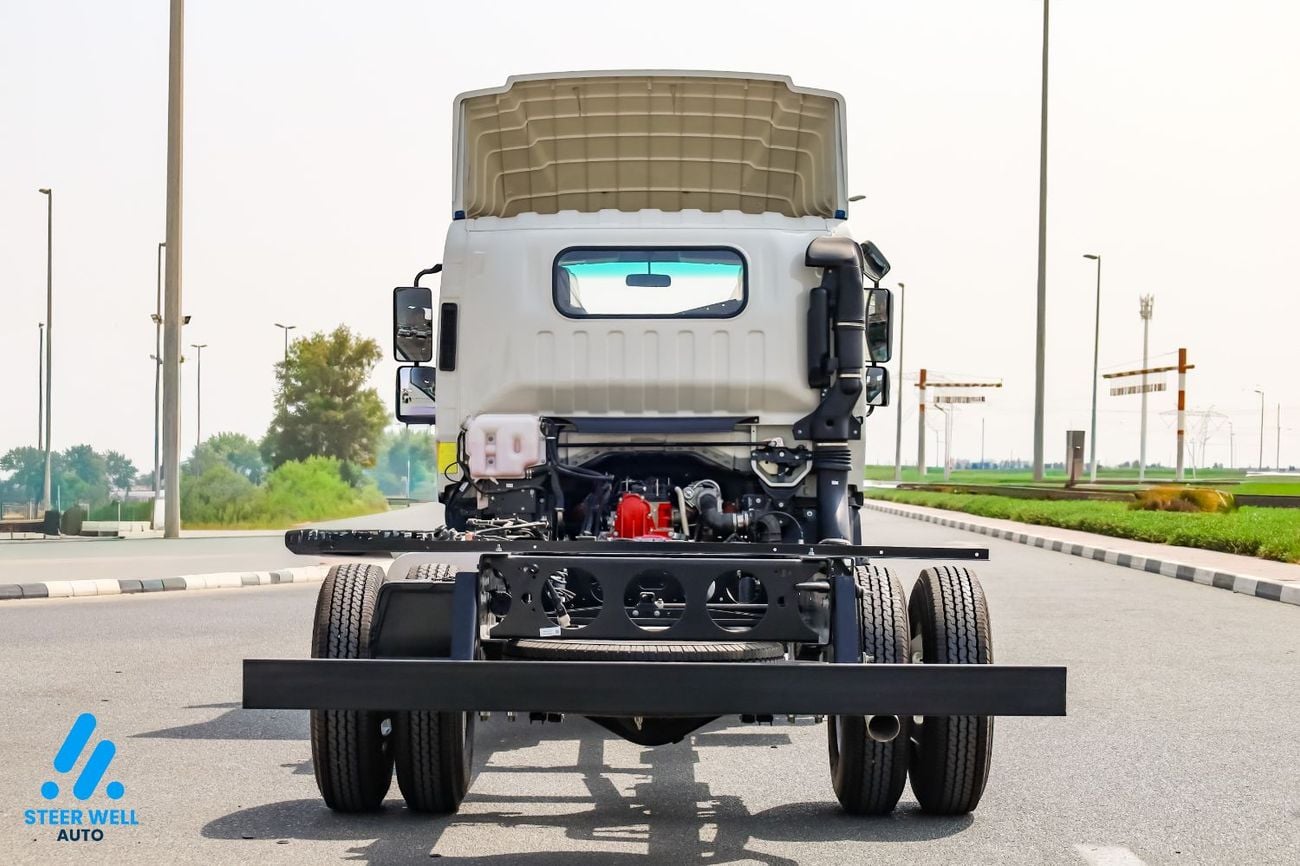

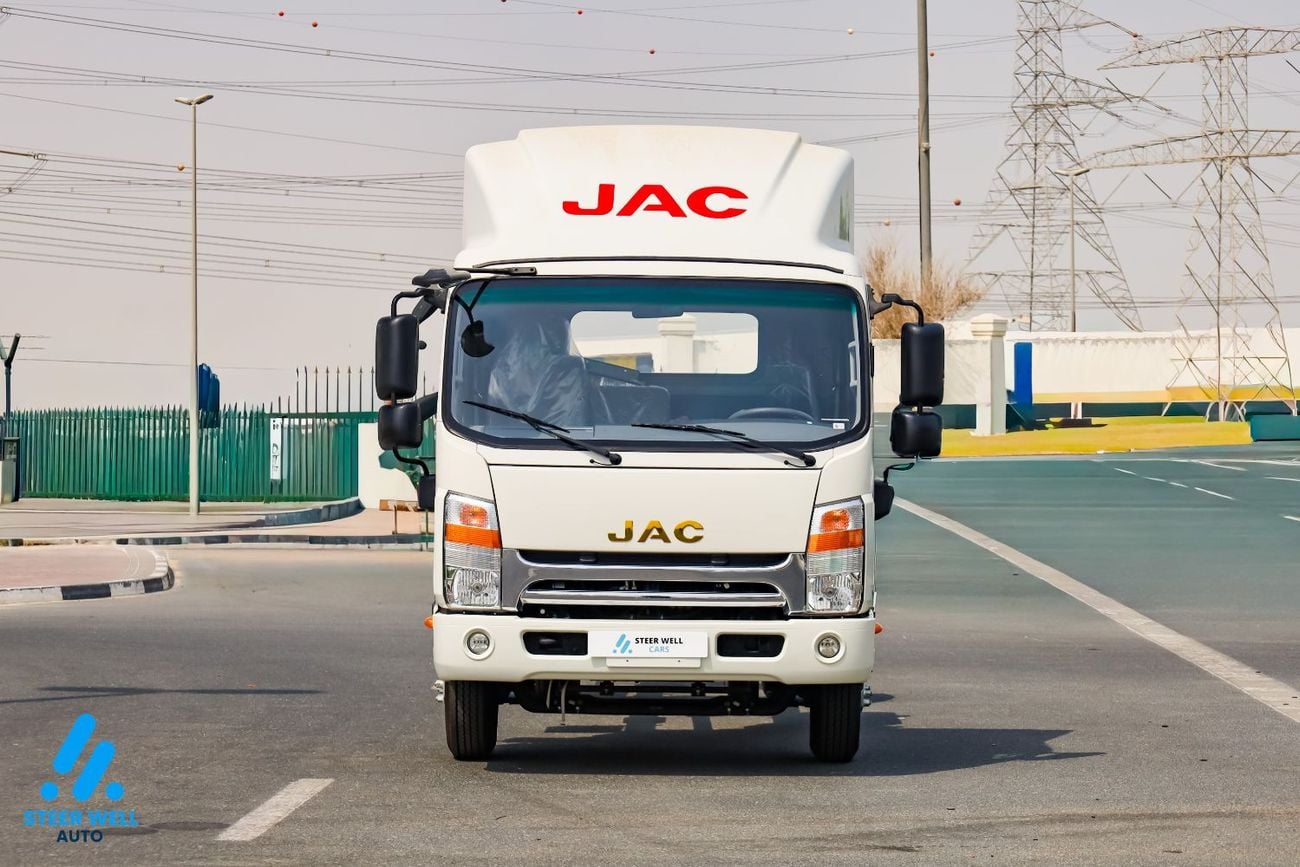

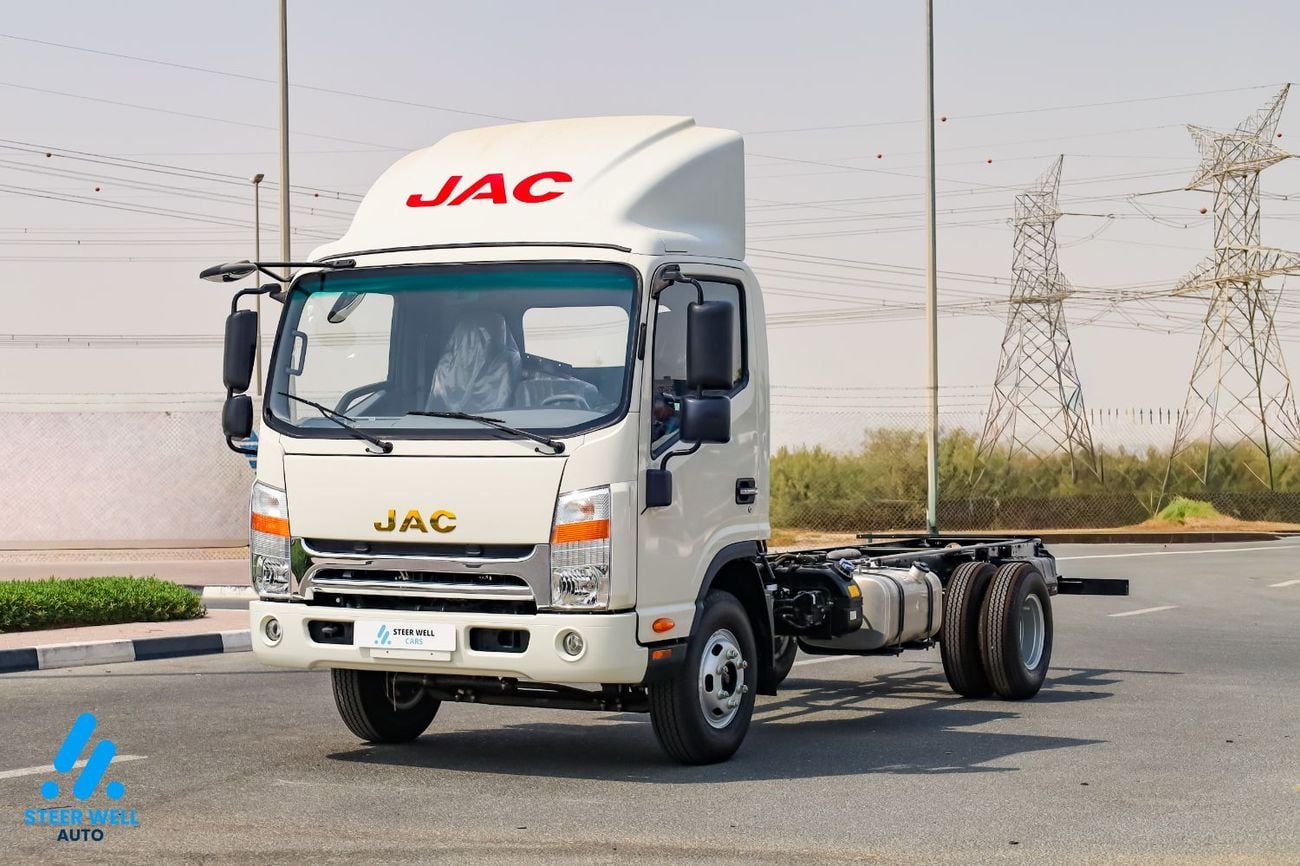

2026 JAC N65 LWB Chassis Cab (Single Cab) – Complete Specifications
General Information
• Model Year: 2026
• Brand: JAC Motors
• Model: N65 LWB
• Vehicle Type: Light Duty Chassis Cab
• Cab Configuration: Single Cab
• Drive Type: 4×2 Rear Wheel Drive
• Steering: Left-Hand Drive (LHD)
• Fuel Type: Diesel
• Gross Vehicle Weight (GVW): 6,500 kg
• Front Axle Capacity: 3,100 kg
• Rear Axle Capacity: 5,000 kg
• Rear Wheels: Dual Rear Wheels (DRW)
• Country of Manufacture: China
----------------------------------------------
Dimensions
• Overall Dimensions (L × W × H): 7065 × 2400 × 2380 mm
• Cab Dimensions: 7065 × 1995 × 2222 mm
• Body Mounting Dimensions: 5135 × 2240 × 550 mm
• Wheelbase: 3845 mm
• Front Track: 1110 mm
• Rear Track: 2110 mm
• Ground Clearance: 190 mm
• Vehicle Width: 1995 mm
• Front Axle Rating: 3170 kg
• Rear Axle Rating: 4050 kg
• Payload Capacity: 2450 kg

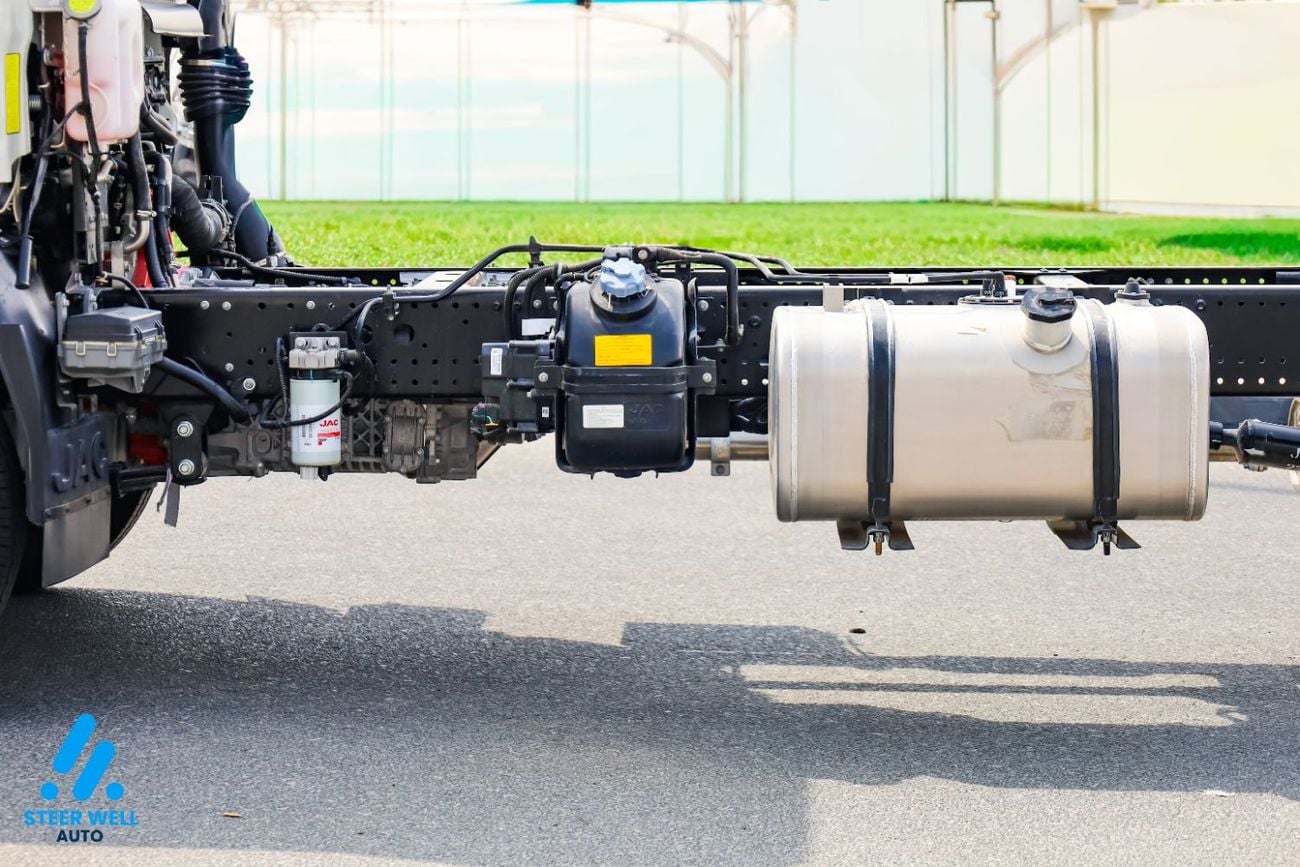

• Fuel Tank Capacity: 110 Litres
• AdBlue (DEF) Tank Capacity: 30 Litres
• Minimum Turning Radius: 7.5 m
----------------------------------------------

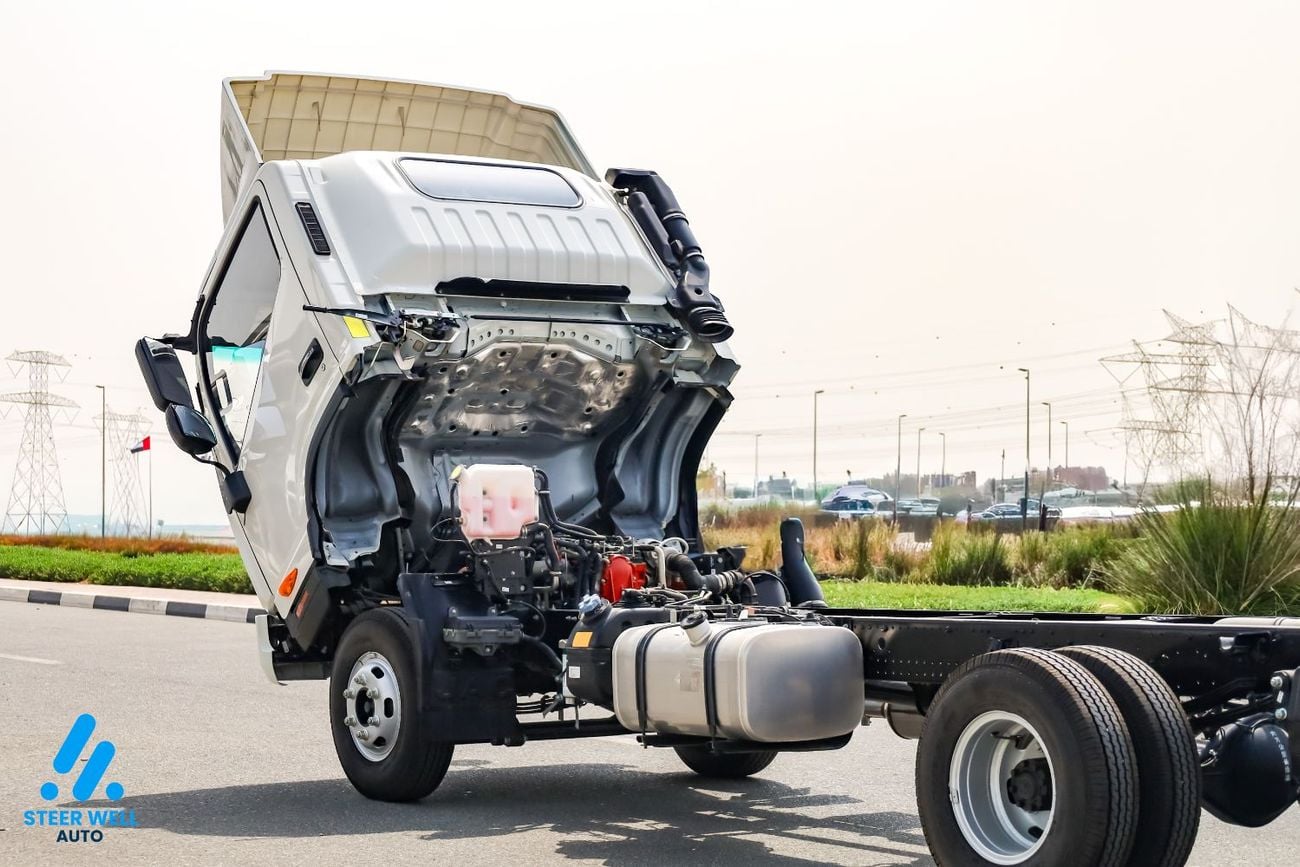

Engine
• Engine Model: HFC4DE1-1D
• Engine Type: 4-Cylinder Turbo Diesel
• Engine Displacement: 2746 cc
• Emission Standard: Euro V
• Fuel System: Common Rail Direct Injection
• Emission Control: SCR + DOC
• Maximum Power: 152 HP @ 3200 rpm
• Maximum Power: 112 kW @ 3200 rpm
• Maximum Torque: 355 Nm @ 1800–2600 rpm
-------------------------------------------------
Clutch
• Type: Dry Single Plate with Diaphragm Spring
• Clutch Diameter: Ø308 mm
• Clutch Assistance: Yes
---------------------------------------------
Transmission
• Gearbox Model: ML642A

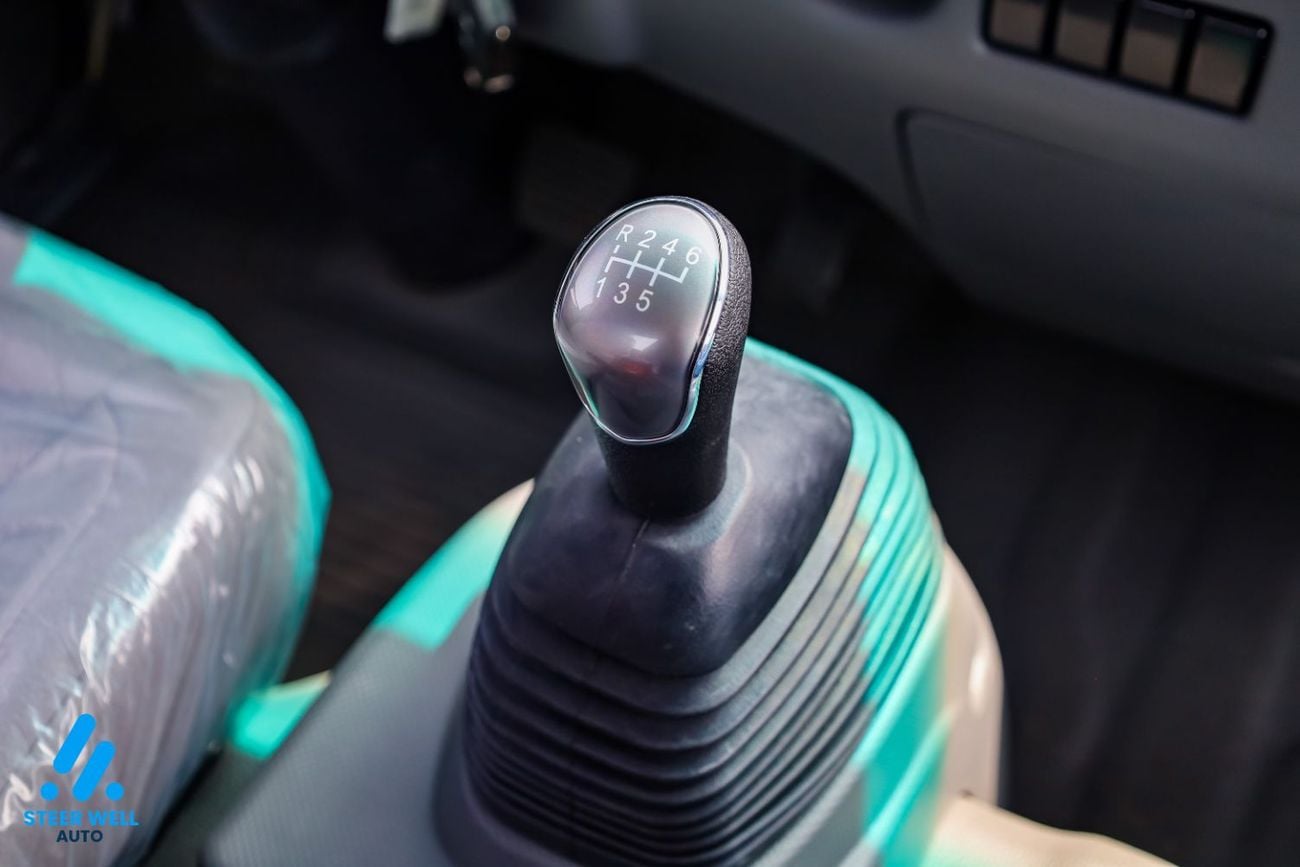

• Transmission Type: 6-Speed Manual
-----------------------------------------------
Axles
• Front Axle Capacity: 3100 kg
• Rear Axle Capacity: 5000 kg
• Final Drive Ratio: 4.875
-----------------------------------------

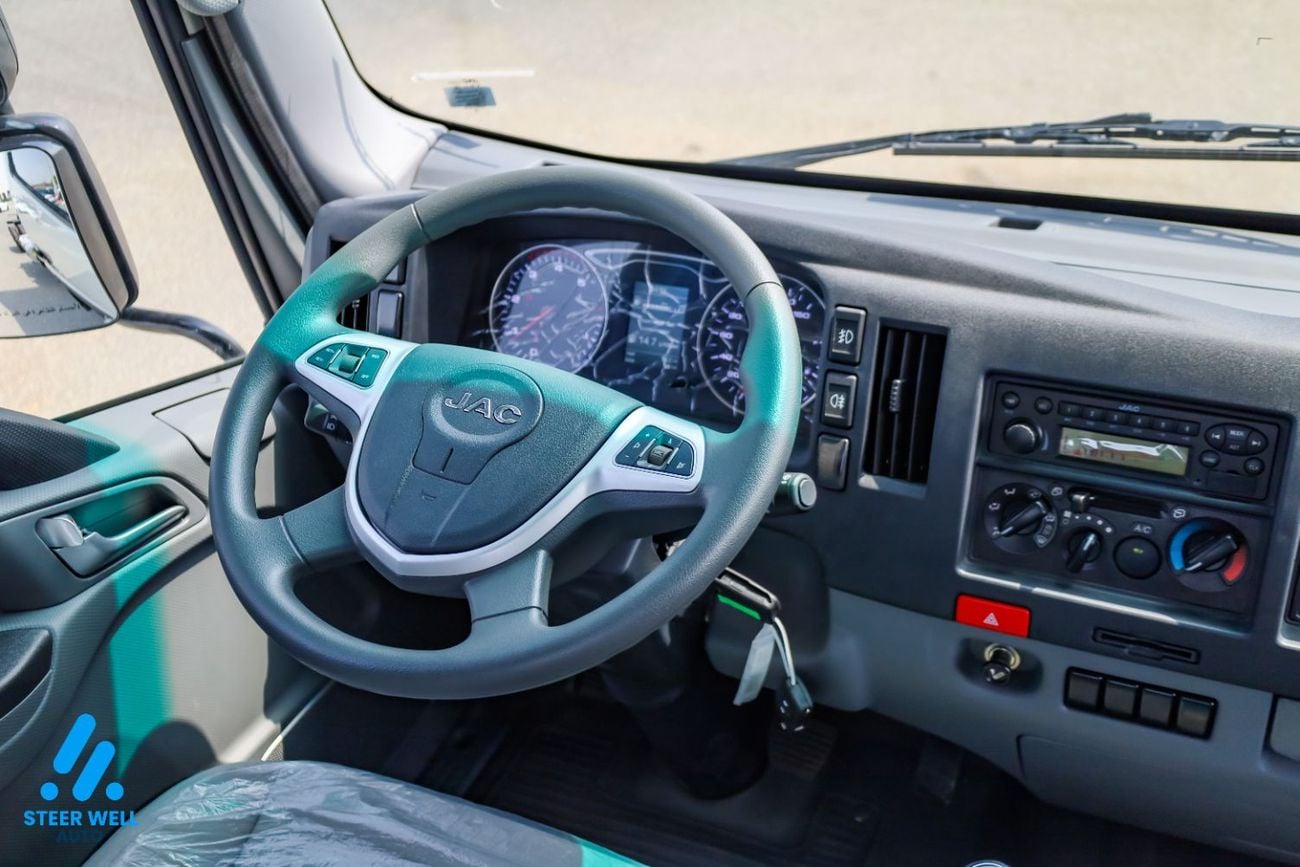

Steering
• Type: Recirculating Ball-Type Power Steering
---------------------------------------
Suspension
• Front Suspension: Leaf Spring (3/4 + 3)
• Rear Suspension: Heavy-Duty Leaf Spring
------------------------------------------

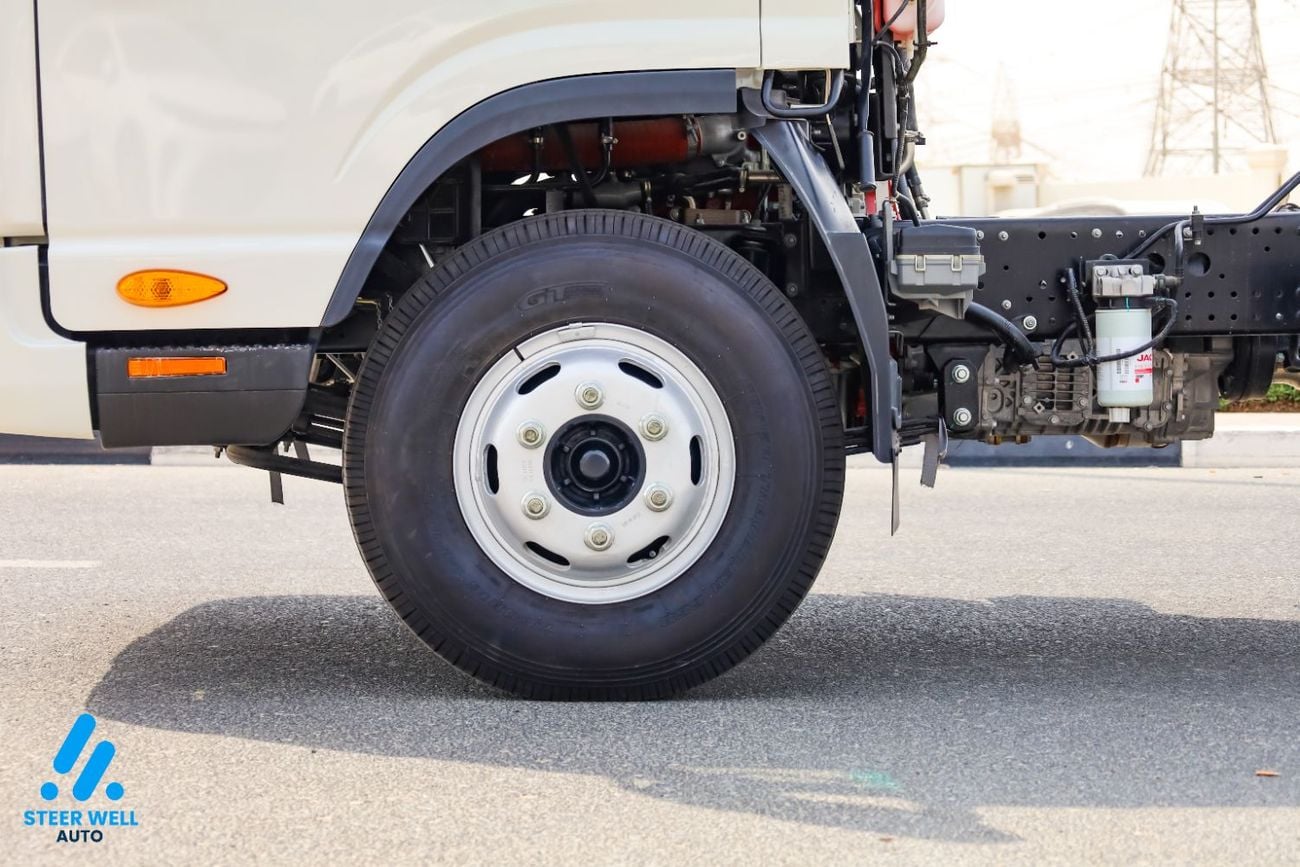

Wheels & Tyres
• Wheel Material: Aluminium Alloy
• Rim Size: 214 × 70 × 5 mm
• Front / Rear Track: 935 / 850 mm
• Tyre Size: 7.50R16 14PR
---------------------------------------------
Braking System
• Brake Type: Hydraulic Brake
• Front Brake Disc Diameter: Ø320 mm
• Rear Brake Disc Diameter: Ø320 mm
------------------------------------------
Electrical System
• Battery: 12V, 2 × 80Ah
• Alternator: 14.5V, 120A
• Starter Motor: 12V, 2.6 kW
---------------------------------------

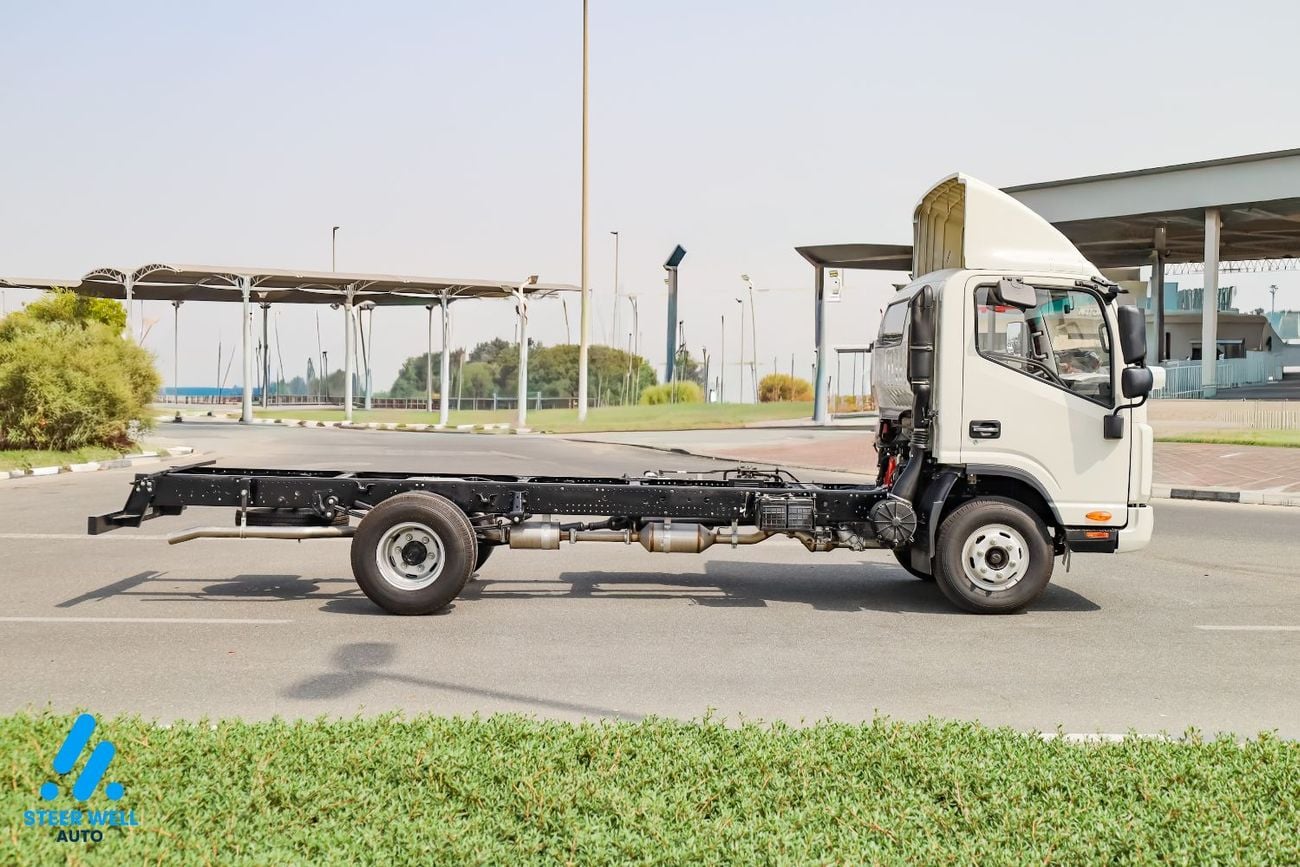

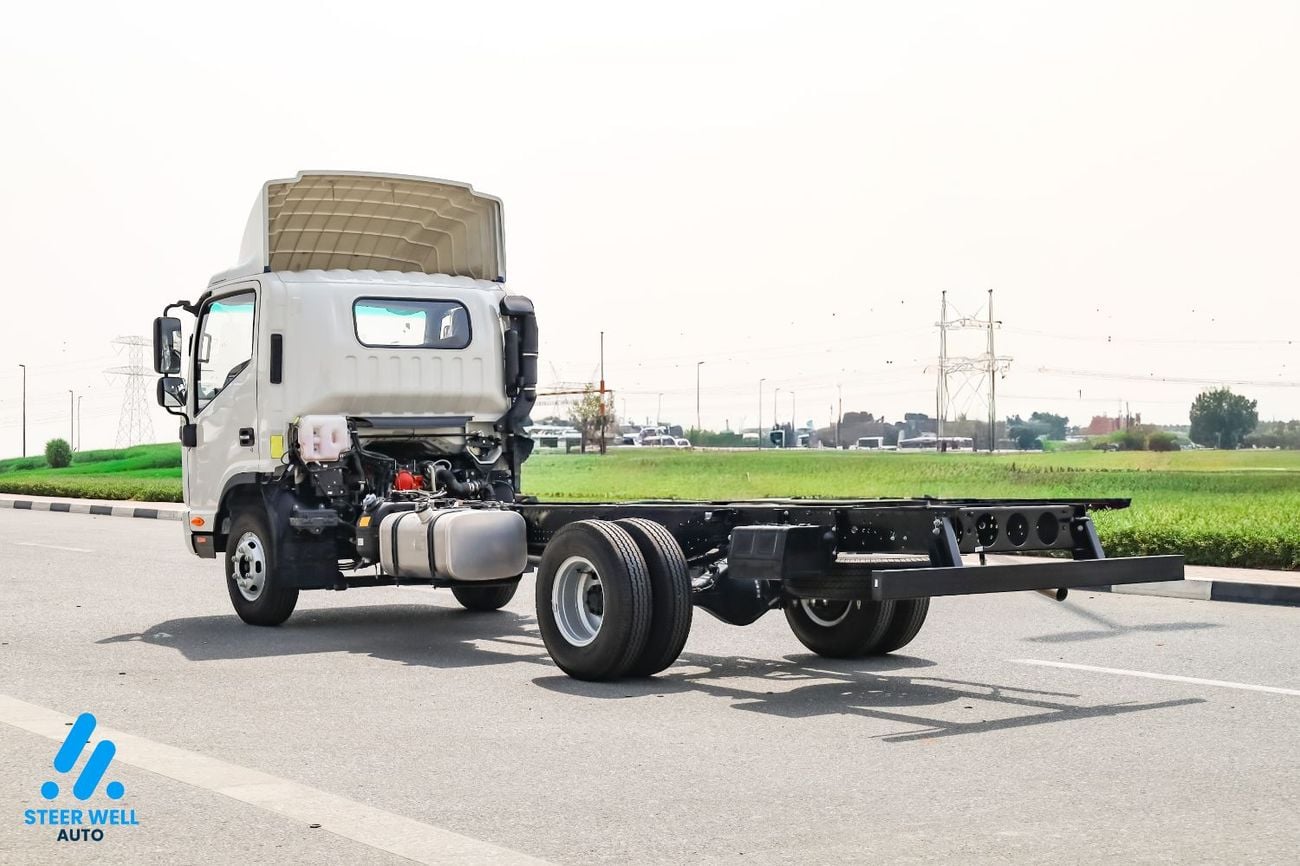

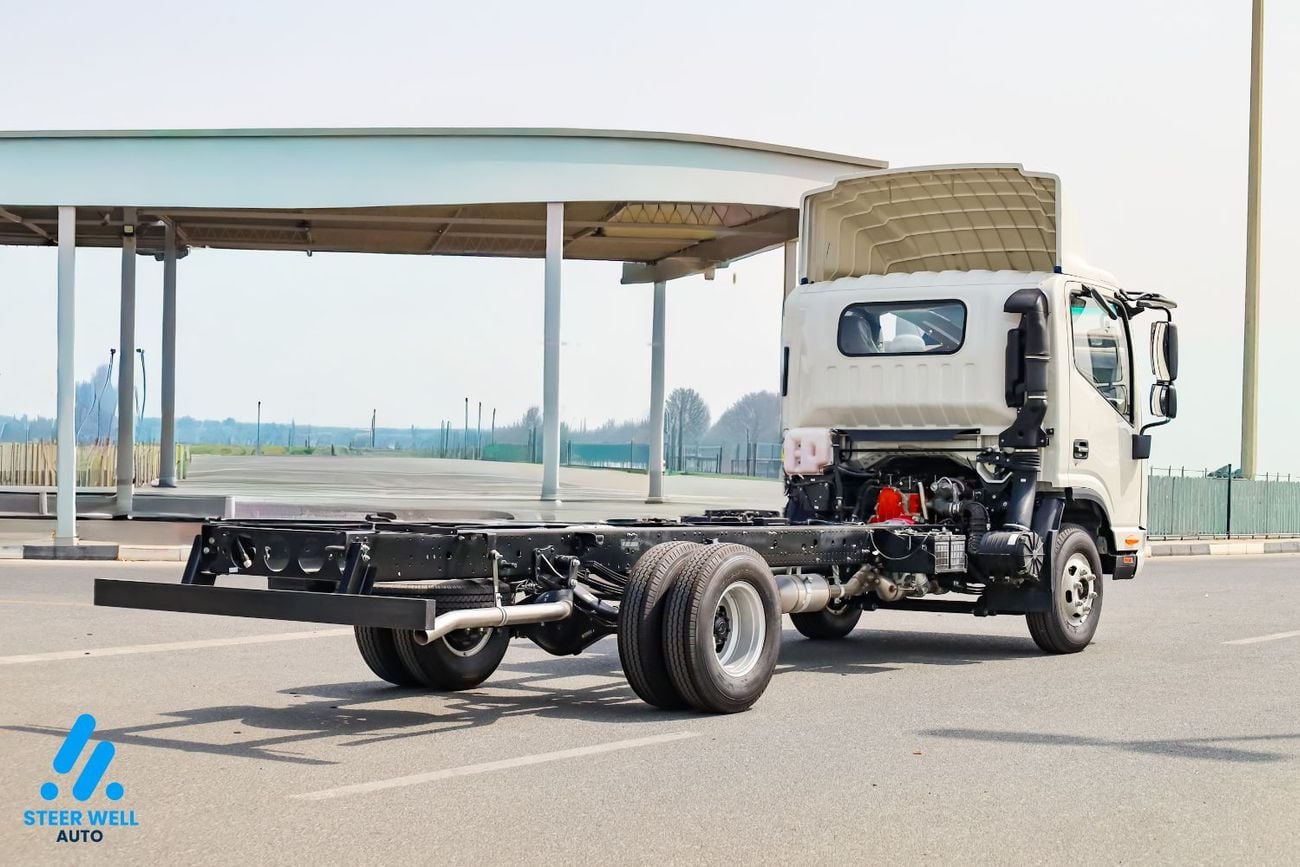

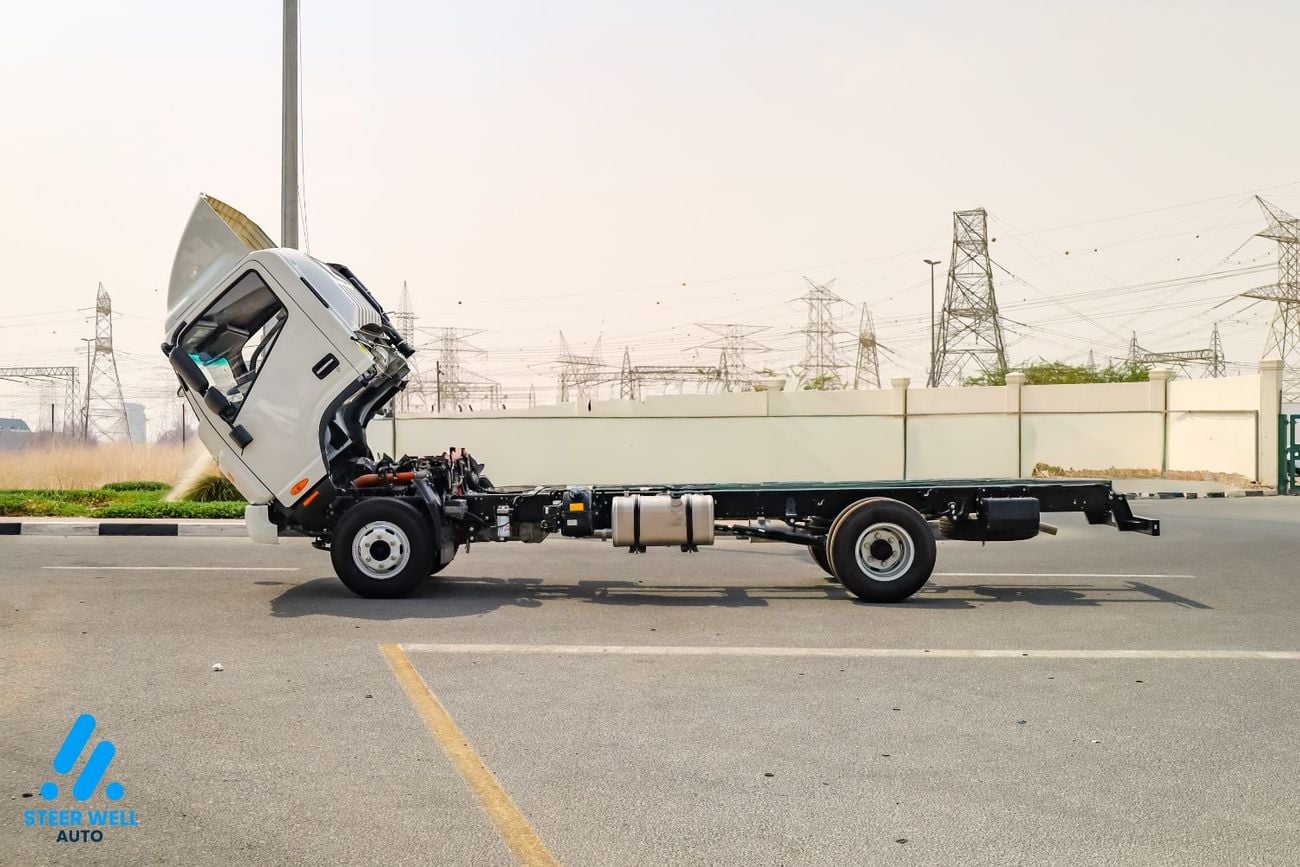

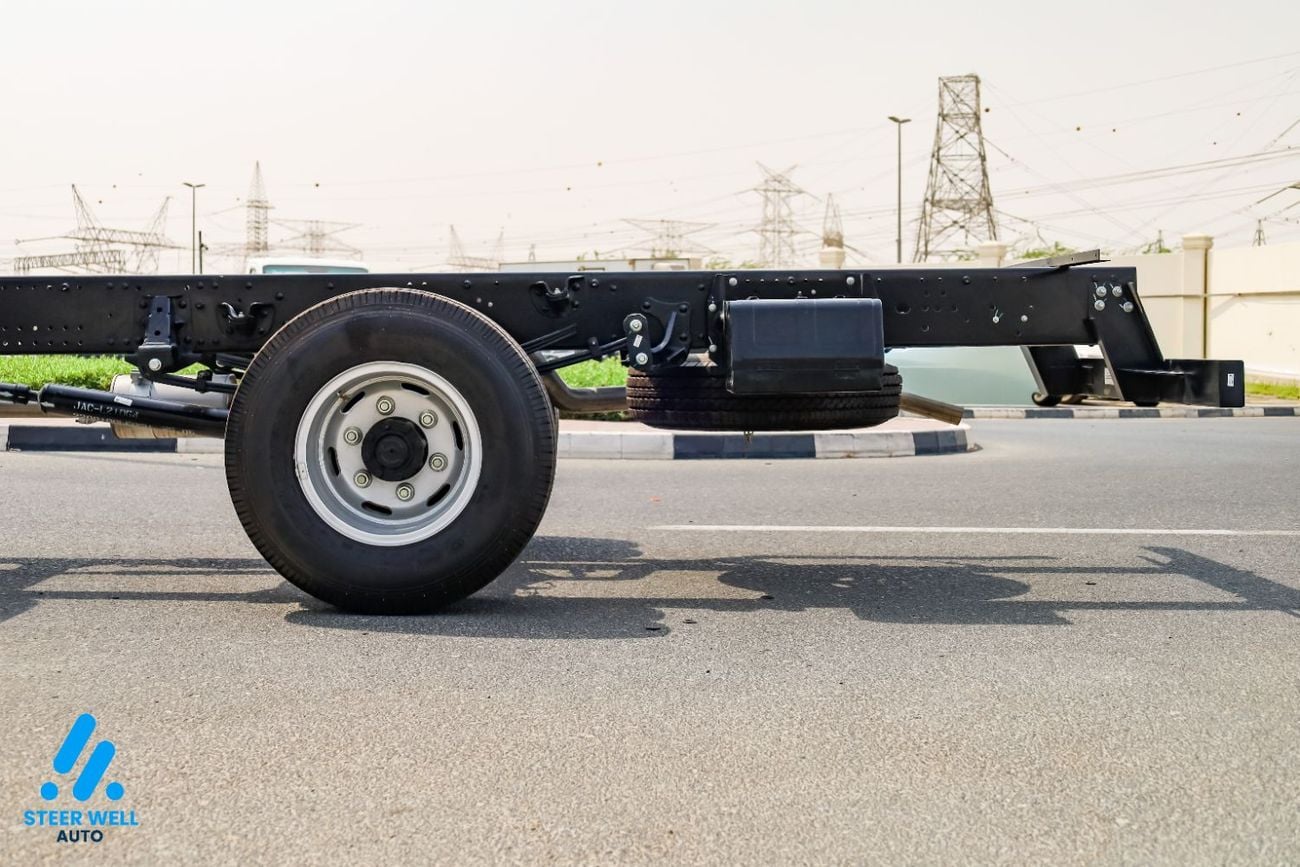

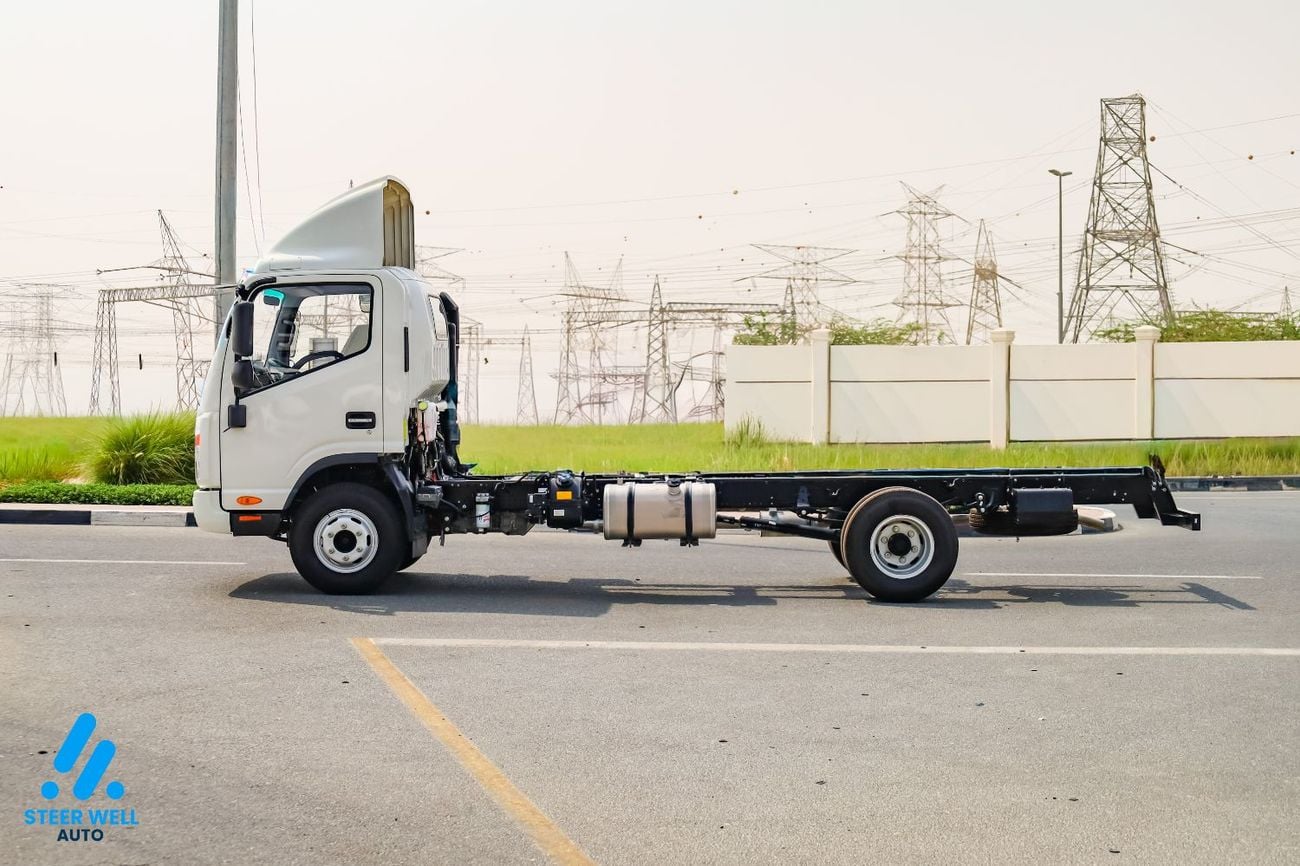

Chassis Features
• Heavy-duty Ladder Frame Chassis
• Dual Rear Wheel Configuration
• Suitable for High Payload Applications
• Long Wheelbase (LWB)
• Left-Hand Drive
• Diesel Engine
• Euro V Compliant
---------------------------------------
Suitable Body Applications
• Cargo Box
• Curtain Side Body
• Flatbed
• Dropside
• Refrigerated Truck
• Recovery/Tow Truck
• Water Tanker
• Tipper
• Mobile Workshop
• Municipal Vehicle
• Utility Body
• Specialized Commercial Bodies
-------------------------------------------
