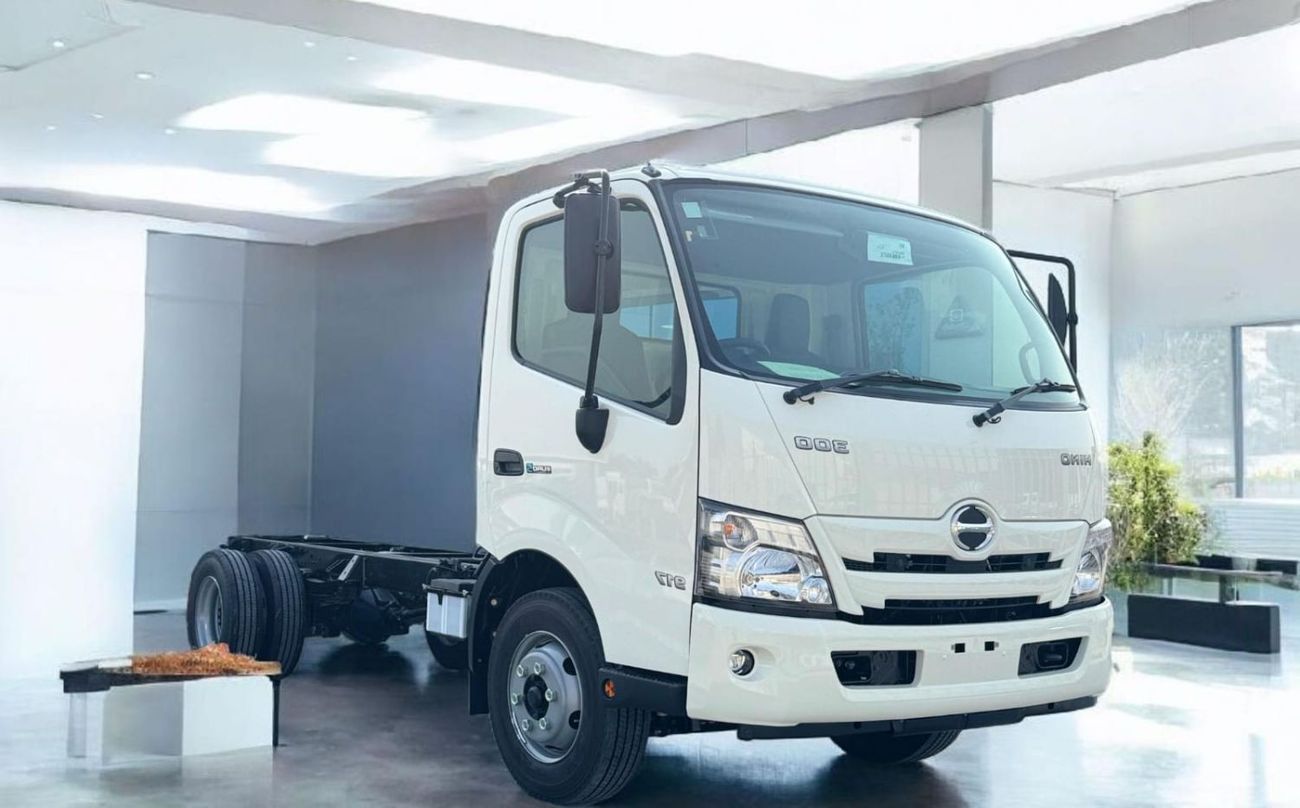

Hino 300 Spec Hino 300 Series 917 XLWB Euro 5 - 2026

Export Only.
Worldwide Shipping Services Available.
Vehicle Specifications:-
Model N04C-WM
Air Intake Turbo
Euro Emissions Euro 5
Displacement CC 4009
No Cylinders 4
Engine Power ps 165 PS @ 2,500 rpm
Engine Torque 464 N.m @ 1,300 - 2,500 rpm
Max. Speed km/h 115
Gradeability deg. 52.4
Turning Radius
Curb to Curb 7.4
Wall to Wall 8.1
Fuel Tank Capacity 150
Wheelbase 4,200
Overall Length 7,250
Cabin Width 1,995
Overall Height 2,235
Ground Clearance 200
Front Tread 1,655
Rear Tread 1,590
Rear Chassis Height 790
Rear Overhang 1,935
Rear Axle Width 2,055
Cab to Frame end 5,565
Audio wtih Bluetooth Yes
Power Windows Yes
Central Lock Yes
SRS Airbag (Driver+Passenger) Yes
Fog lamp Yes
Factory fitted Air conditioner Yes(Denso)
Kerb Weight
Total 2,470
Front 1,570
Rear 900
Gross Vehicle Mass
Total 8,500
Front Axle 3,020
Rear Axle 5,760
Payload on Chassis 6,030
Frame Width 750
Frame Section 192.8 x 65 x5.9
Service Brakes
Type Vacuum - Hydraulic
Front Drum
Rear Drum
Anti Lock Brakes (ABS) Yes
Parking Brake Mechanical
Exhaust Brake Yes
Alternator 24V - 80A
Number of Axles 2
Traction Type 4 × 2
Number of Wheels 6 + 1 Spare
Tire Size 215/75R17.5-126/124
Tube/Tubeless Tubeless
