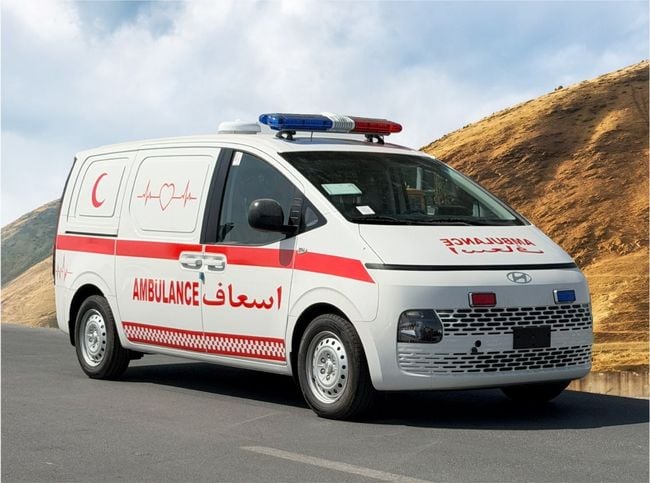

Hyundai Staria HYUNDIA STARIA AT 3P 3.5L FWD 5DOOR 2026 AMBULANCE

AMBULANCE SPECIFICATION

Floor:

• 18mm water proof plywood coated with vinyl floor, antistatic, anti-slippery and easy to clean.

Partition:

• Bulkhead PVC intecel sheet partition between driver and patient compartment with a Sliding window

Cabinets:

• Made of PVC intecel sheet which is antibacterial water proof and heat resistance
• Main cabinet for medical equipment and material storage at the left side wall and oxygen Storage compartment integrated in the same cabinet near to partition wall left side
• Acrylic sliding doors with aluminum sliding channels at the necessary places
• Additional storage space attached to the partition with drawers and storage space for stair chair
• Inside cabinet SS sheet

Windows:

• All windows are tinted with frosted film

Seats:

• Squad bench or attendant seat at the right side with back rest and 2 point safety belts
• Integrated underneath storage box with hydraulic gas spring open top

Grab handle:

• One small handle mounted on the rear entrance door at the right side

IV Hook:

• Installed above the left side cabinet with movable IV holder near to patient



Central Oxygen System:

• Heat resistance Oxygen hoses connection from oxygen cylinder to quick connects
• 2 no’s 10L Oxygen cylinders
• 2 no’s Flowmeter with humidifier
• 2 no’s Regulator with pressure gauge
• 2 no’s of Oxygen outlets or quick connect

Air condition and ventilation:

• Separate AC unit With controller mounted at the front side partition in patient compartment
• 12V ventilation fan with integrated light installed at the rear side roof.

Electrical equipment:

• LED Rocker Switch Panel
• 12V Control panel box with fuses and relay
• Marking signs for switches and cables
• 12V socket 2 no’s and 220V sockets 2 no’s in patient compartment

Interior lighting:

• LED ceiling light installed in a row
• LED cabinet lights

Exterior Lighting:

• LED Light bar with inbuilt dual siren and speaker 200W mounted at the front roof top
• Siren control unit with microphone installed on the driver compartment
• 2 no’s roof f LED beacon lights mounted in the rear area
• LED lights at loading entrance rear side
• Small LED lights for the cabinet
• Side Lights
Lettering & Livery design:

• Ambulance front and rear mirror image in Arabic and English
• Logo as per customer requirement



MEDICAL EQUIPMENT

• Automatic Loading stretcher
• PVC Stretcher Platform
• folding stretcher
• Stare chair
• Oxygen Cylinder with valve
• Medical Regulator with flow meter and humidifier
• Oxygen Mask
• Oxygen outlet with piping and tubing
• First AID Box
• Portable suction unit
• Stethoscope
• Sphygmomanometer
• Syringes 10 mm,5 mm,3 mm
• Neck Collar
• Face Masks
• Roof Mounted IV Hook
• Sharp Container
• Doctor seat
