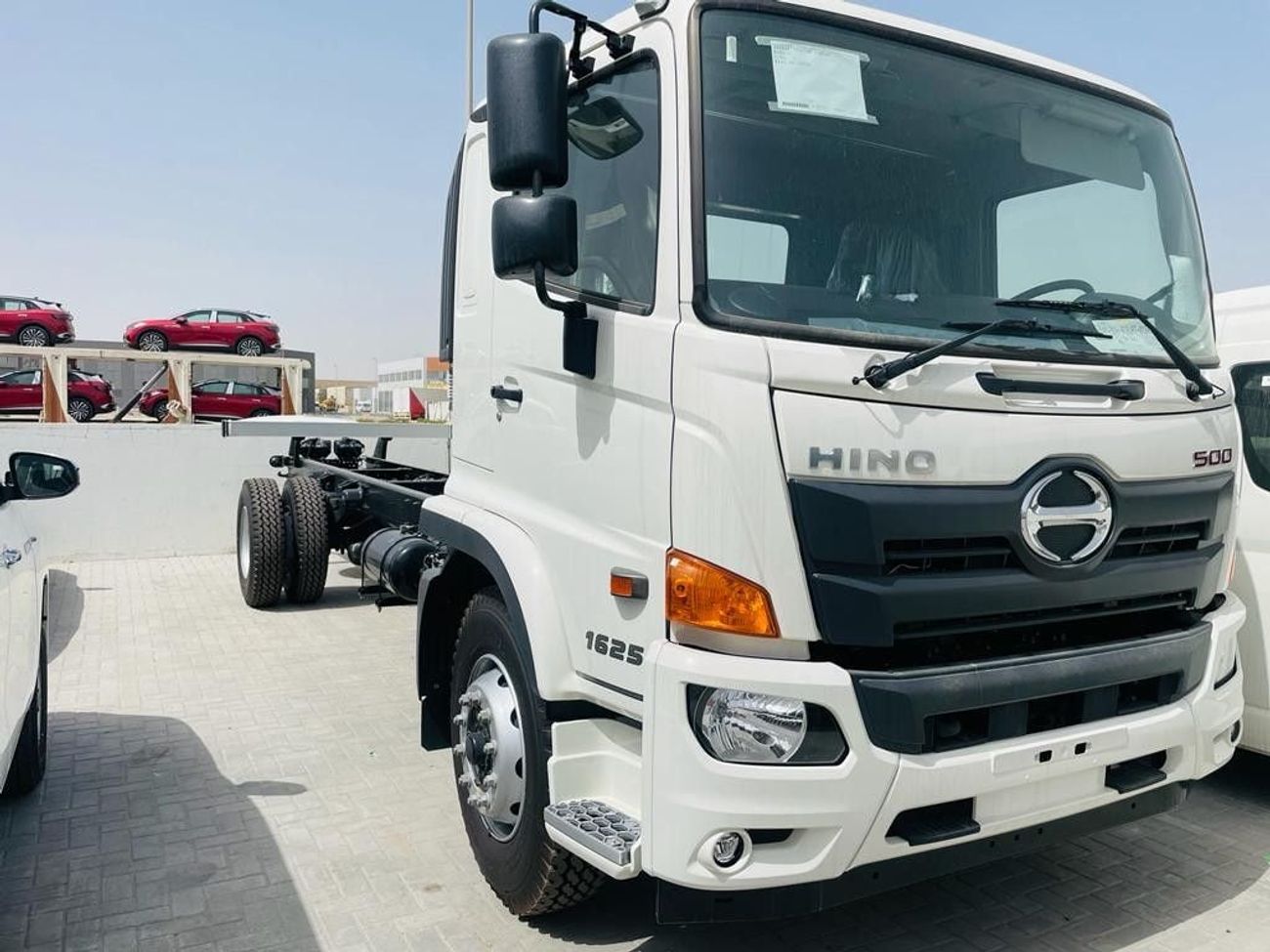

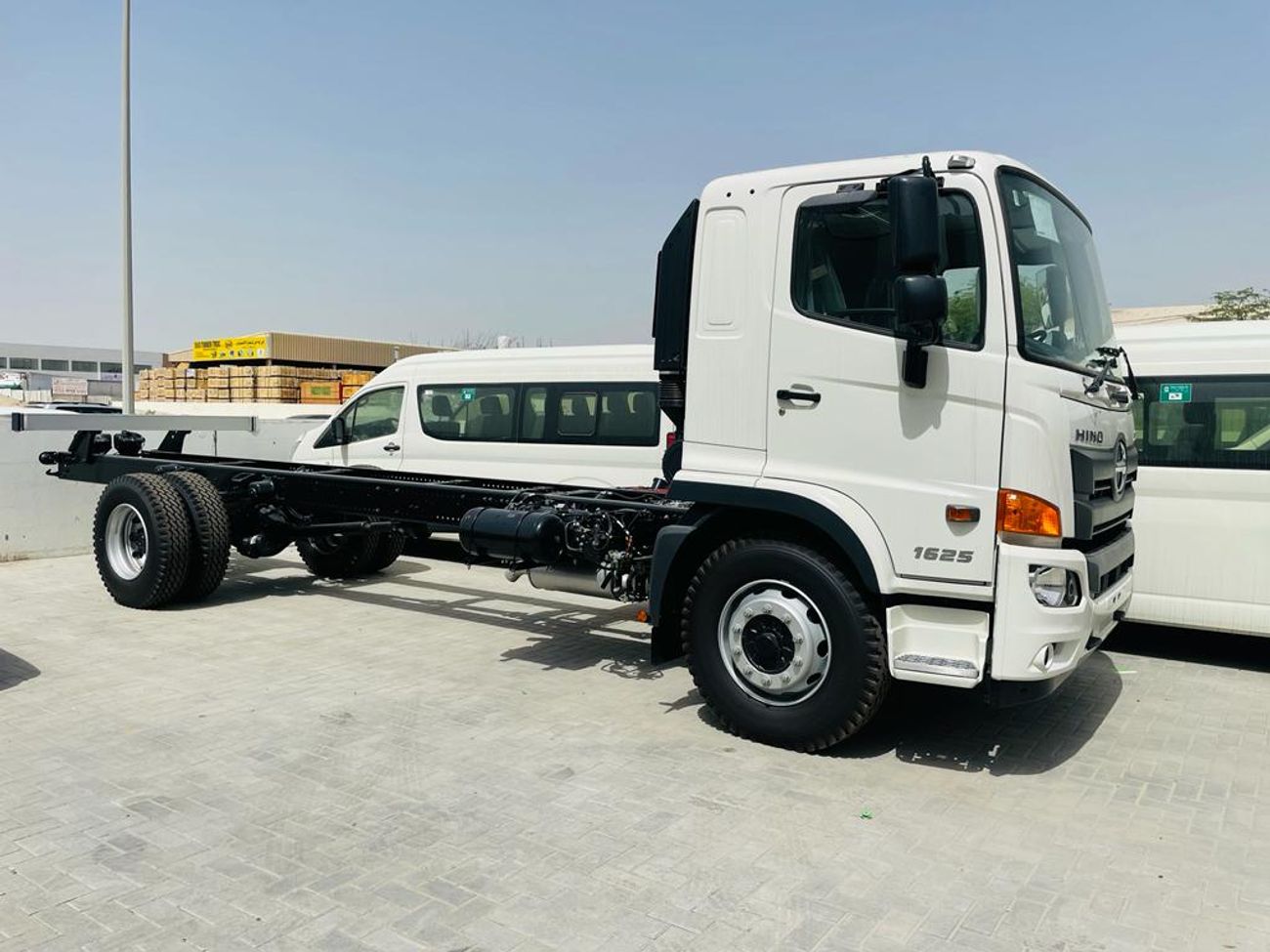

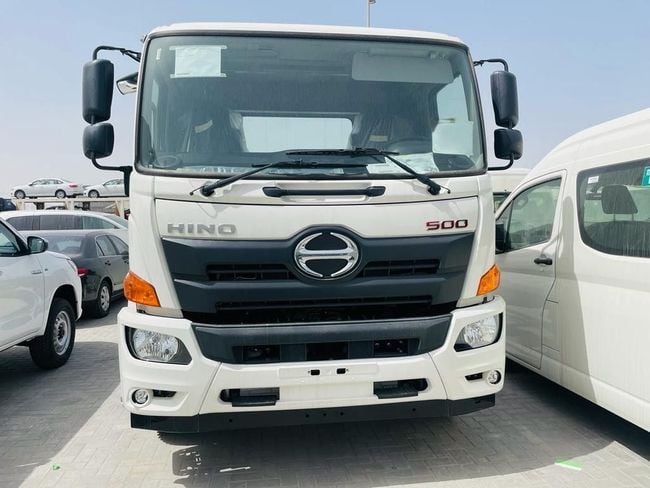

Hino 500 Hino 1625 FG8JP7A CAB CHASSIS TRUCK (16T GVW )

Model Code No. FG8 JP7A - 1625
Grade Medium Duty
Brand / Model Hino / 500 Series
Cabin / Body Type Single Cabin Chassis Truck
Application
Drive Handle Left Hand Drive
Drive Sysytem 4x2
Production Country Japan
Engine Hino J08E-WJ
Emission Euro-3
Fuel System Diesel Engine with Turbo Charger & Intercooler
Cylinders In-line, 6-Cylinders
Displacement (cc) 7,684 cc
Max. Power (HP) / rpm 240 HP / 2,500 rpm
Max. Torque Nm / rpm 716 Nm / 1,500 rpm
Fuel Tank Capacity (Ltr) 200 Ltr
Clutch Type Dry Single plate - 380 mm Dia

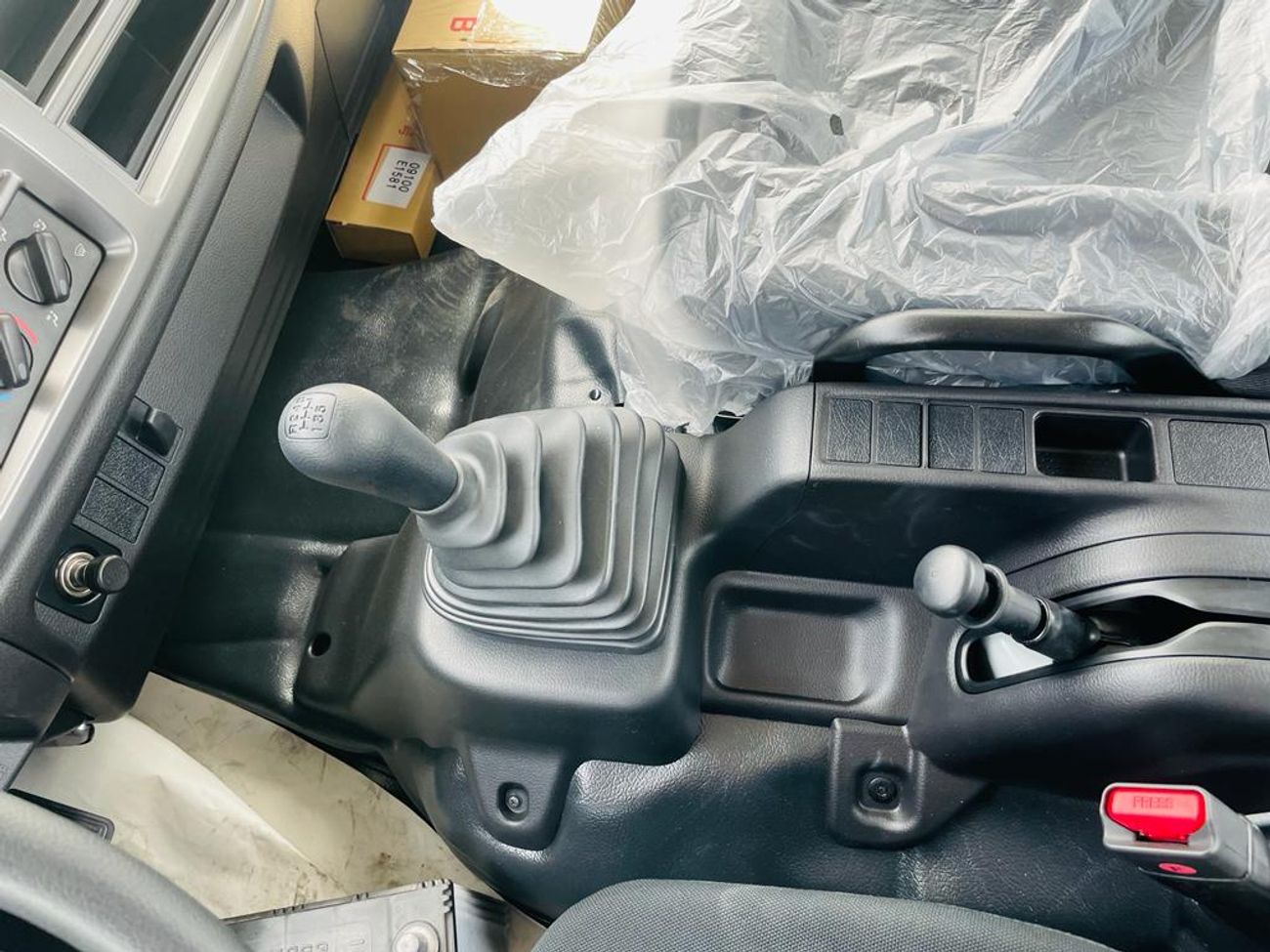

Gearbox 6+1 speed, manual transmission with overdrive
4. Suspension Semi-Elliptic leaf springs with shock absorders
5. Brake Service Brakes Full Air, Dual Circuit, S-cam Air with ABS
6. Tyre & Wheel Tyre & Wheel (with spare) 10.00 R20-16
7. Steering Power, Telescopic & Tilt Steering Colum with Reciculating Ball Type
Gross Vehicle Weight GVW (kg) 16,000 kg
Kerb Weight (kg) 5,345 kg
Chassis Payload (kg) 10,655 kg
Front Axle Capacity (kg) 7,500 kg
Wheel Base (mm) 5,530 mm
Overall Length x Width x Height (mm) 9485x2490x2755
Available Chassis Length (mm) 7,375 mm
A/C Factory fitted A/C
Audio AM/FM and CD player
Additional Features Air suspension Driver Seat
Sleeping Bed
Front Air Spoiler
Fog Lamp
Tachograph
Power Window & Power Door

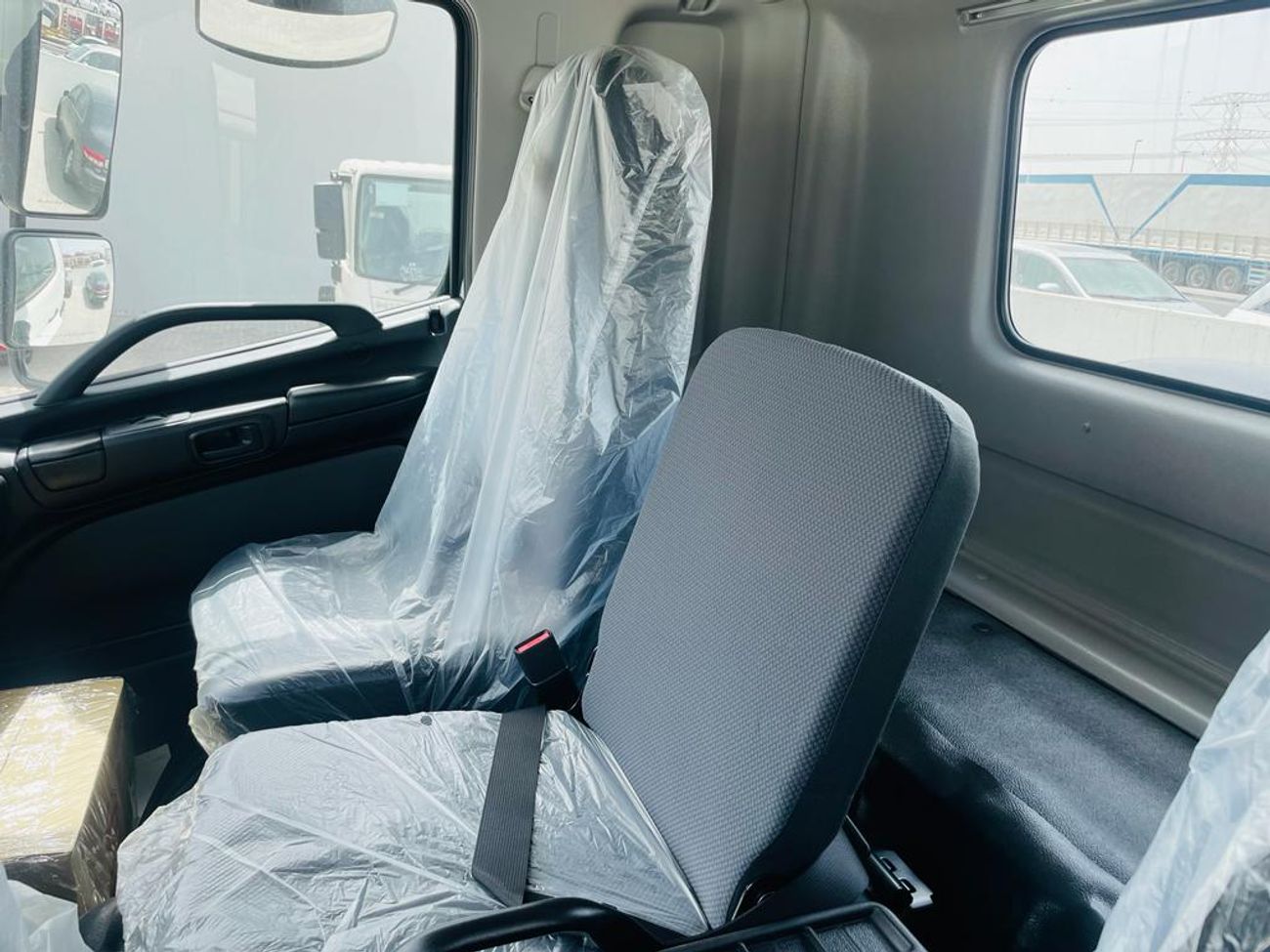

Centre Seat
Note: Above Specification Are Preliminary And Are Subject To Final Revision By Manufacturer.
Specifications & Features
1. General / Body
2. Engine
3. Transmission
8. Weight &
Dimensions
9. Comfort
features
