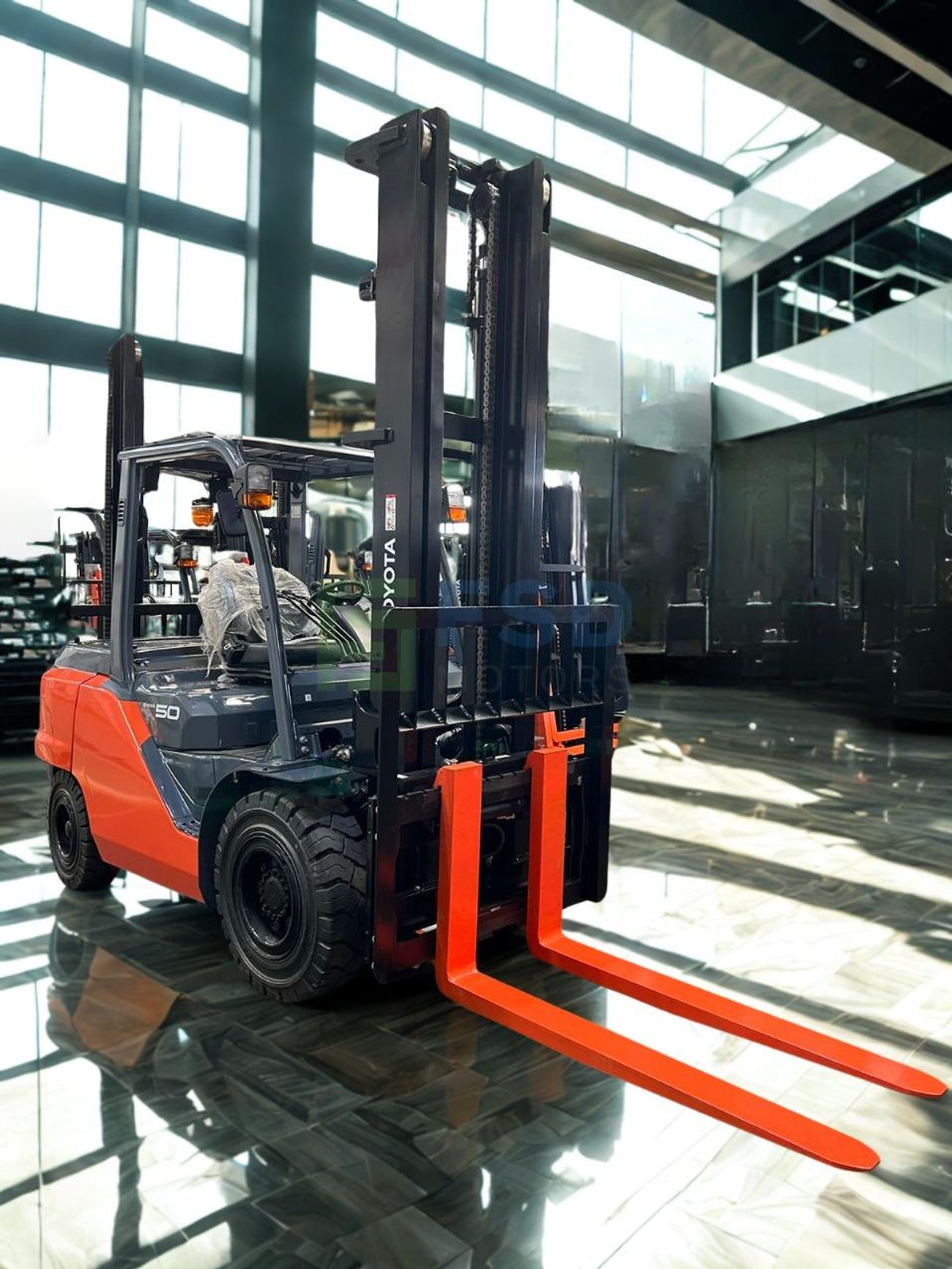

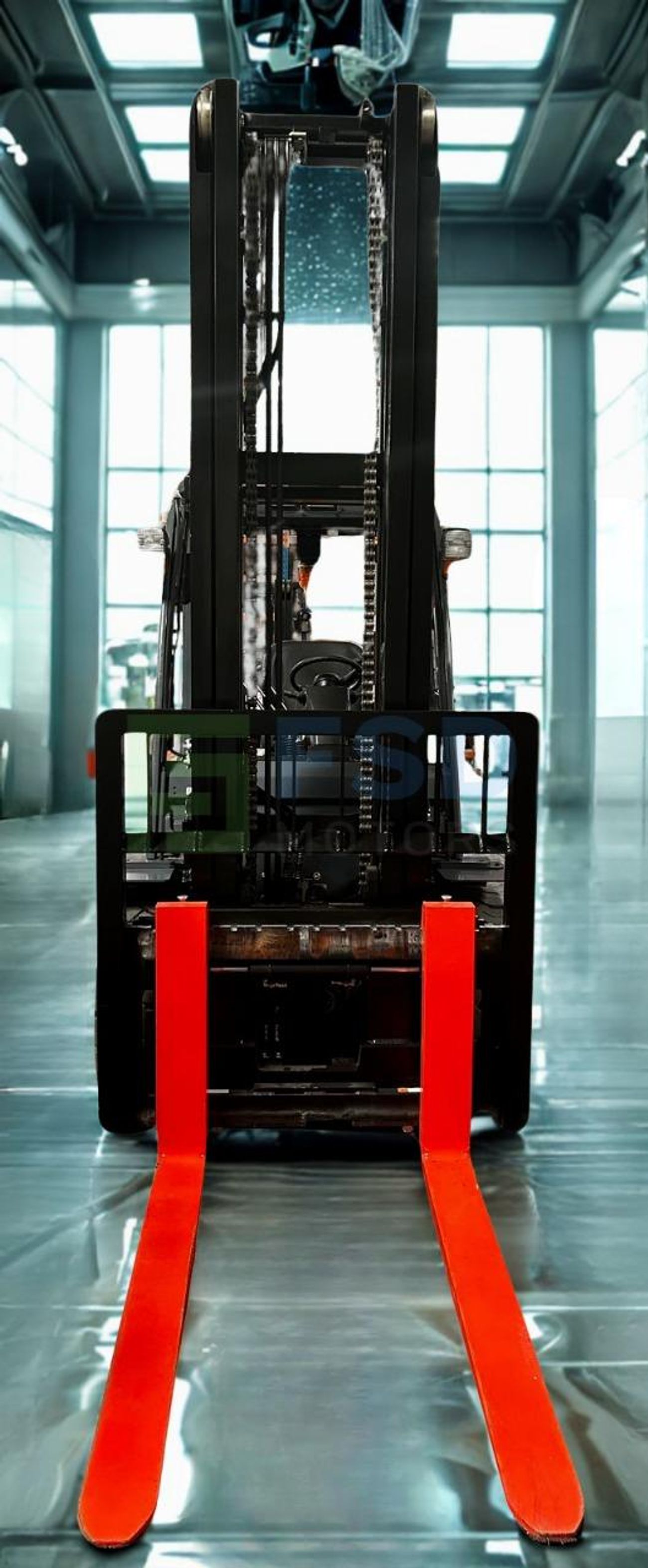

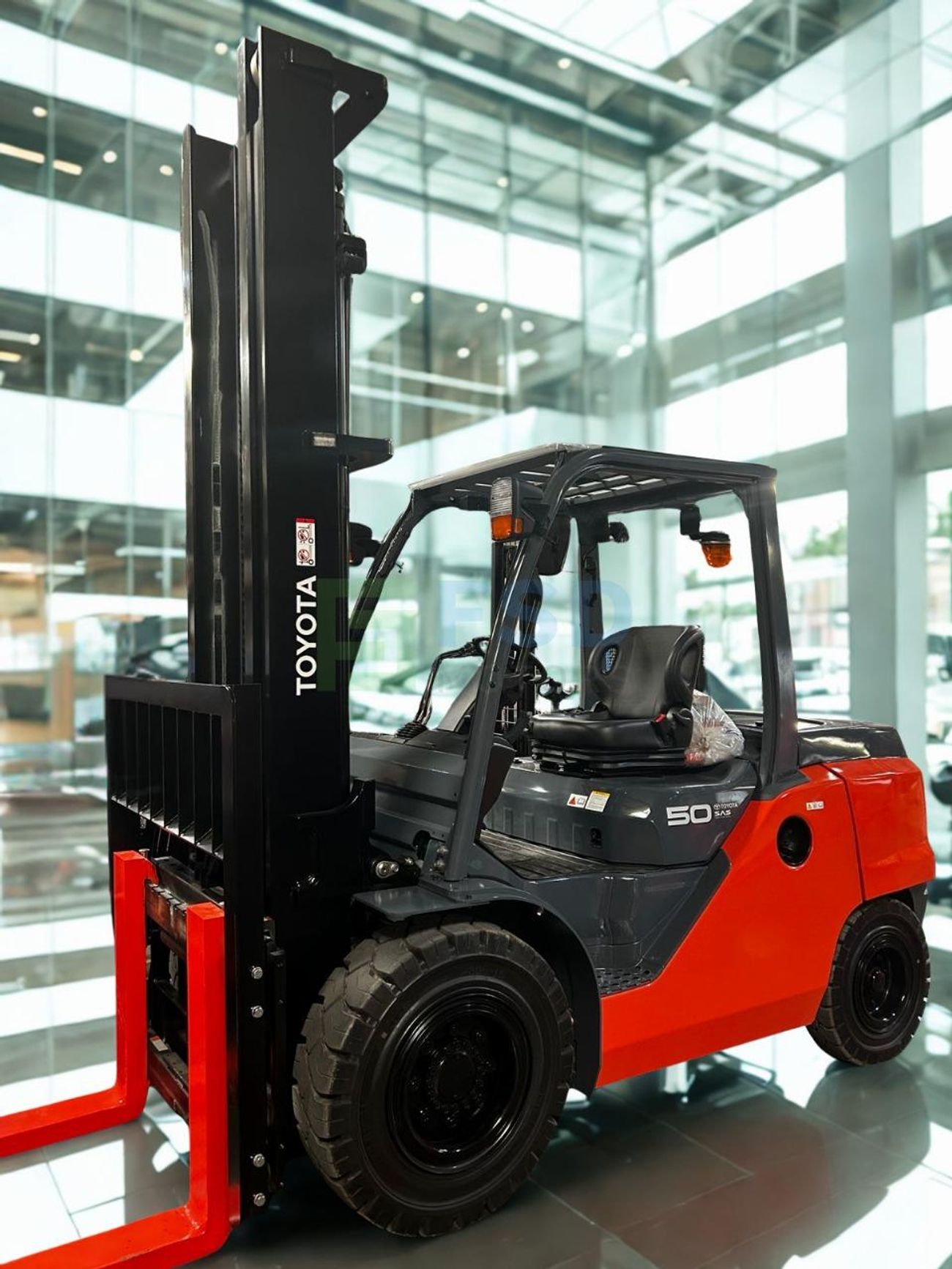

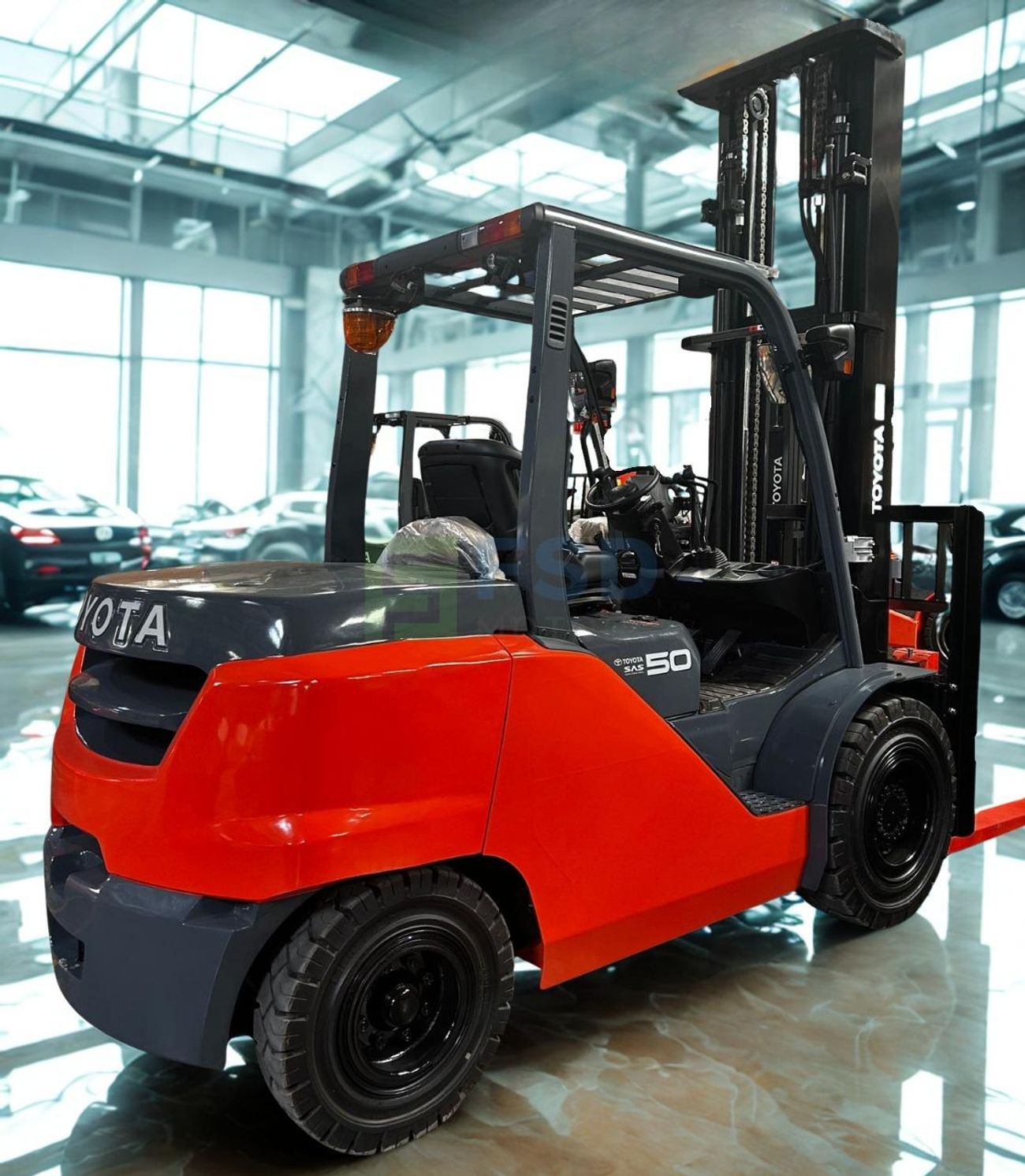

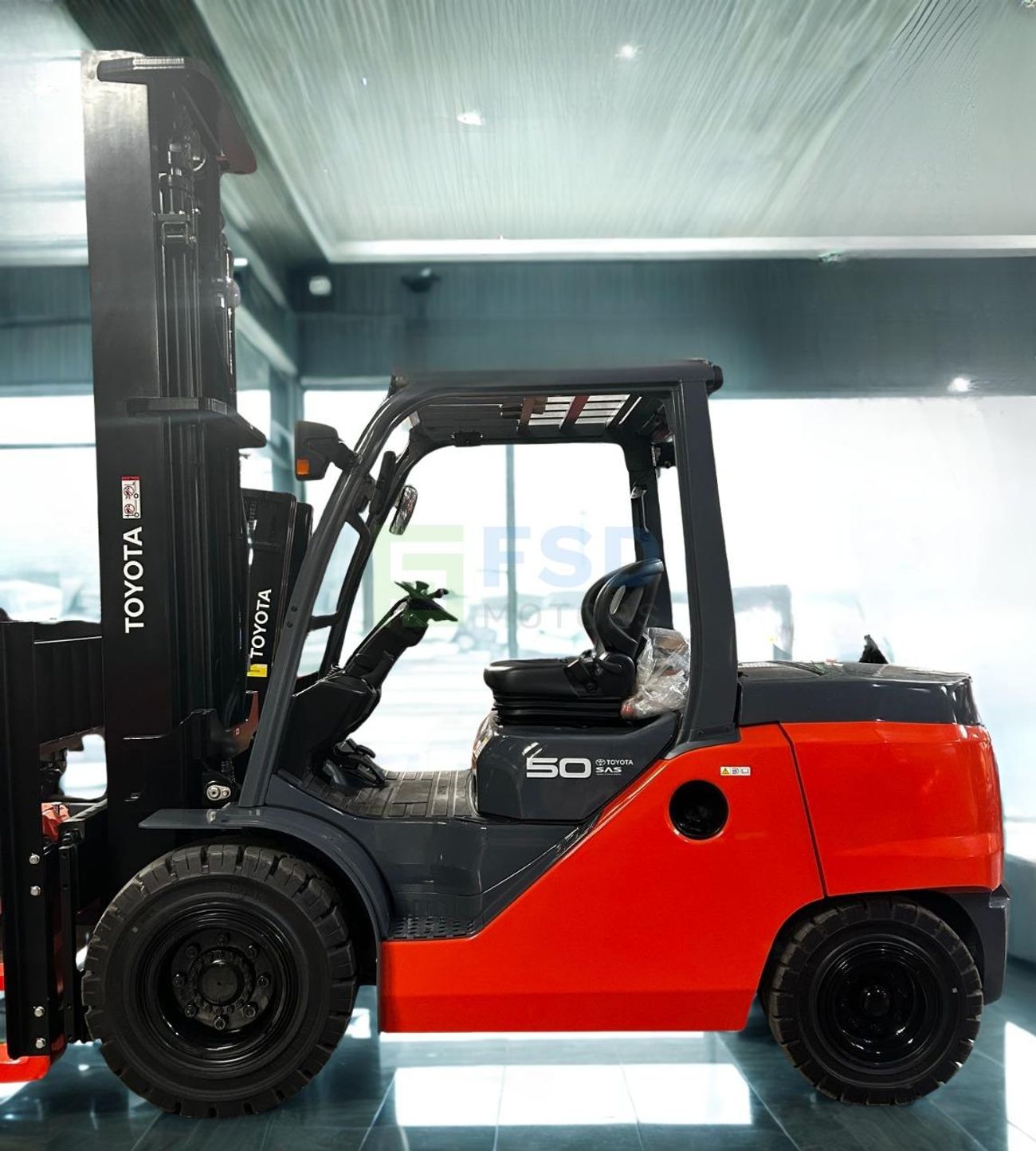

Toyota Fork lift TOYOTA 5 TON 2 STAGE DIESEL FORKLIFT TRUCK MODEL 8FD50N. (Export Only)

Export Only.
Worldwide Shipping Services Available.
Vehicle Specifications:-
Assembled in China, Origin is Japan, built as per Toyota
Production System, Japanese Standards.
Rated Capacity 5,000 kg (MODEL 8FD50N)
Load Centre 600 mm
Transmission Power shift
Maximum Lift Height 4,500mm
Residual Capacity at Height of 4500 mm is 4570 kg @ 600 mm LC
Mast Type 2 Stage Limited Free Lift Mast.
Mast Lowered Height 3,300 mm
Mast Extended Height 5,935 mm (W LBR)
Free Lift 125 mm
Fork Length 1,520 mm x 65mm (Thick) x 150mm (Width]
Overall Width 1450 mm
Overhead Guard Height 2,300 mm
Carriage SIDE SHIFT
Tyres SOLID
Engine TOYOTA 14Z-II
Cylinder 6
Displacement 5,204 cc
EQUIPPED WITH
Full Traffic Lights (Front & Rear Combination Lights)
Rear View Mirrors, Spark Guard Net, Seat with Rear Pillar Assist Grip,
Yellow Beacon on overhead guard + Back Up Buzzer, Tool Set + Operators Manual.
MAIN FEATURES AND BENEFITS
Manufactured according to Toyota Production Systems (TPS). This ensures the highest
quality in production and therefore excellent reliability.
TOYOTA 14Z-II Engine - This 5.2 litre in-line 6-cylinder Diesel Engine is world renown for
longevity and reliability. The drive train features an advanced full-floating design that
achieves low levels of noise & vibration which reduces driver fatigue.
Leak-less Valve System - Reduces the likelihood of loss of hydraulic pressure that might
cause the forks to drop and the mast to tilt forward, thereby increasing workplace
safety.
Key-lift Interlock - When the engine is turned off, the hydraulic pressure locks the forks
in position minimizing the potential of serious accidents.
