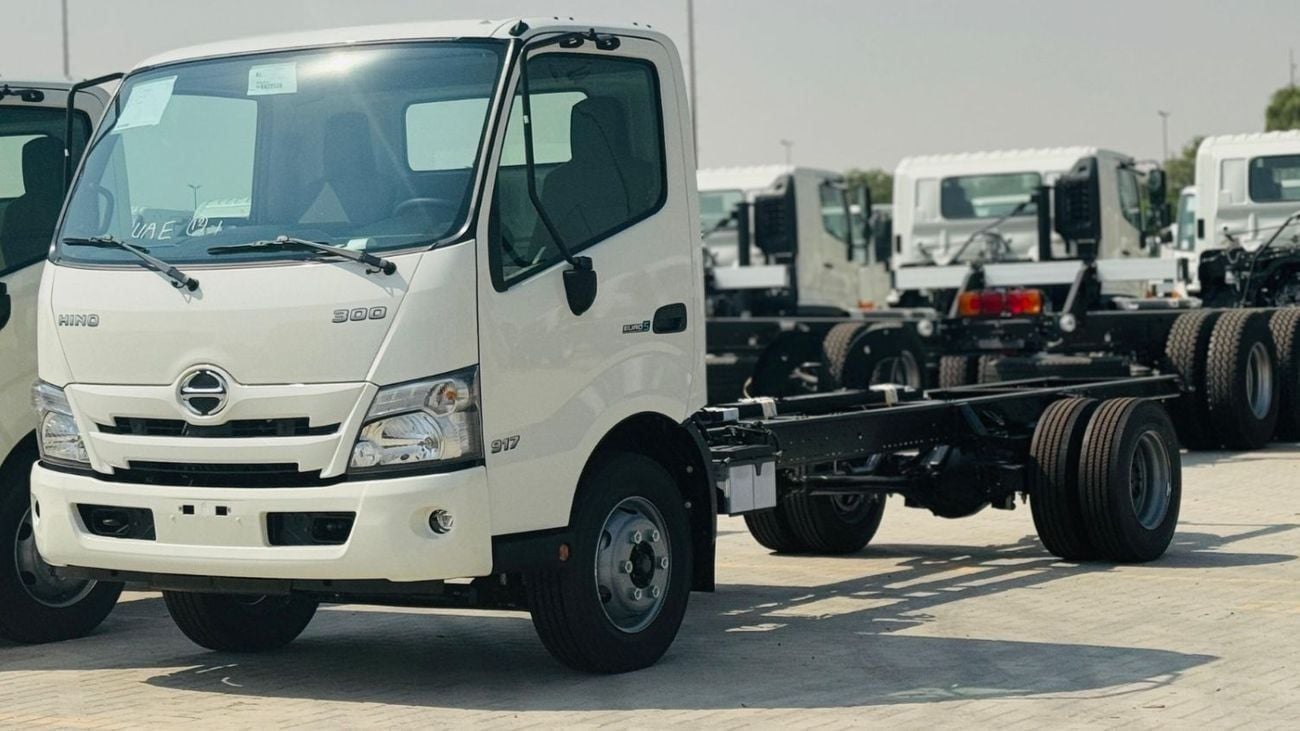

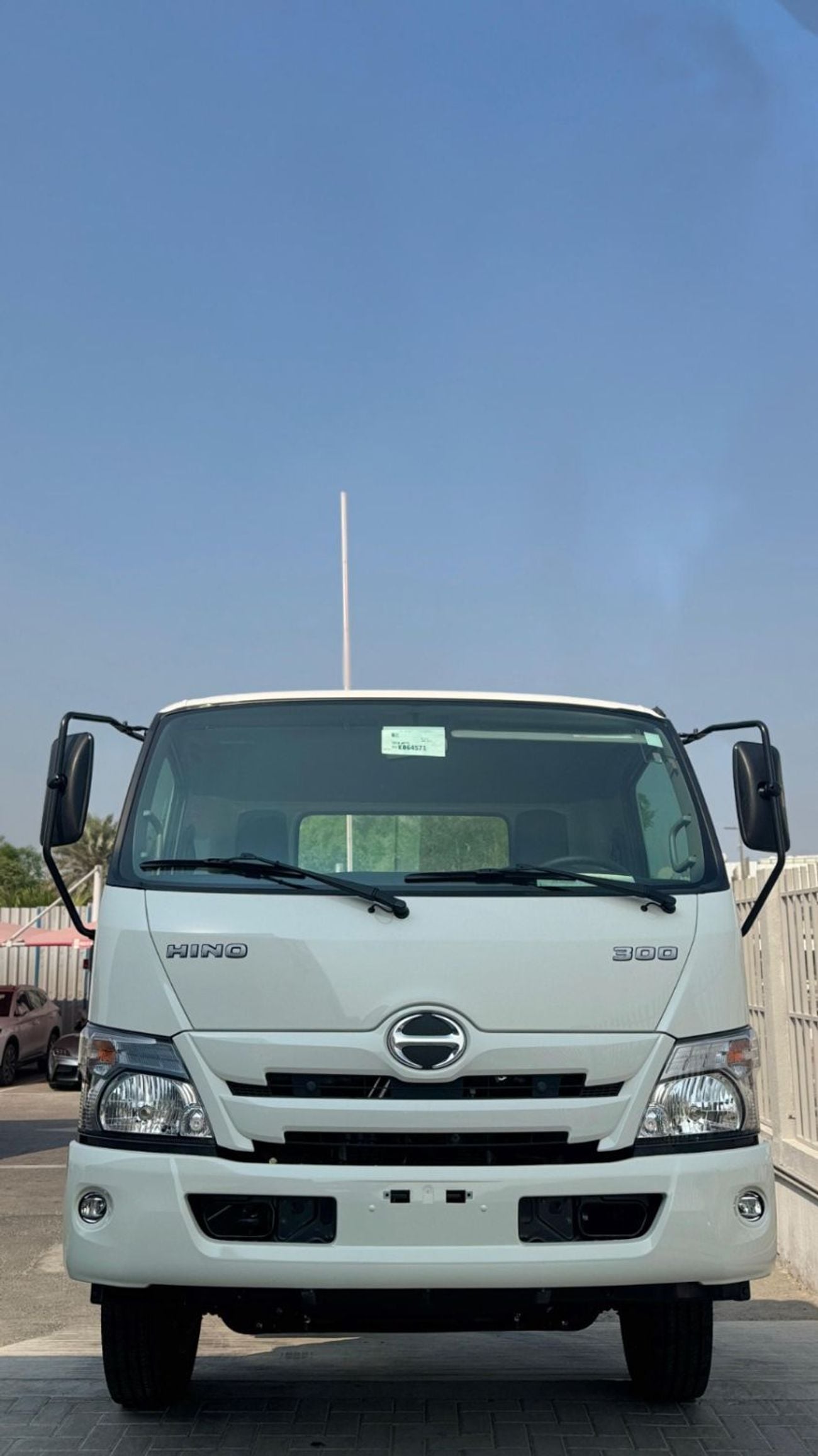

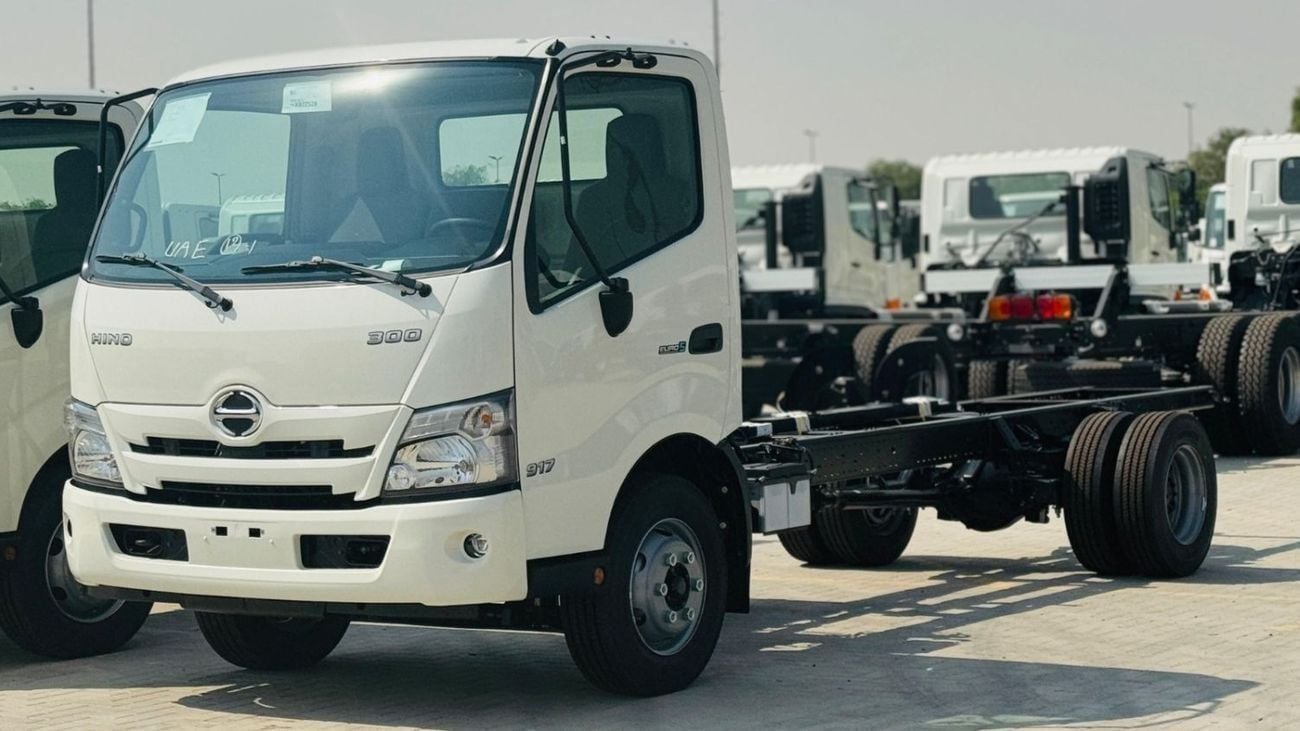

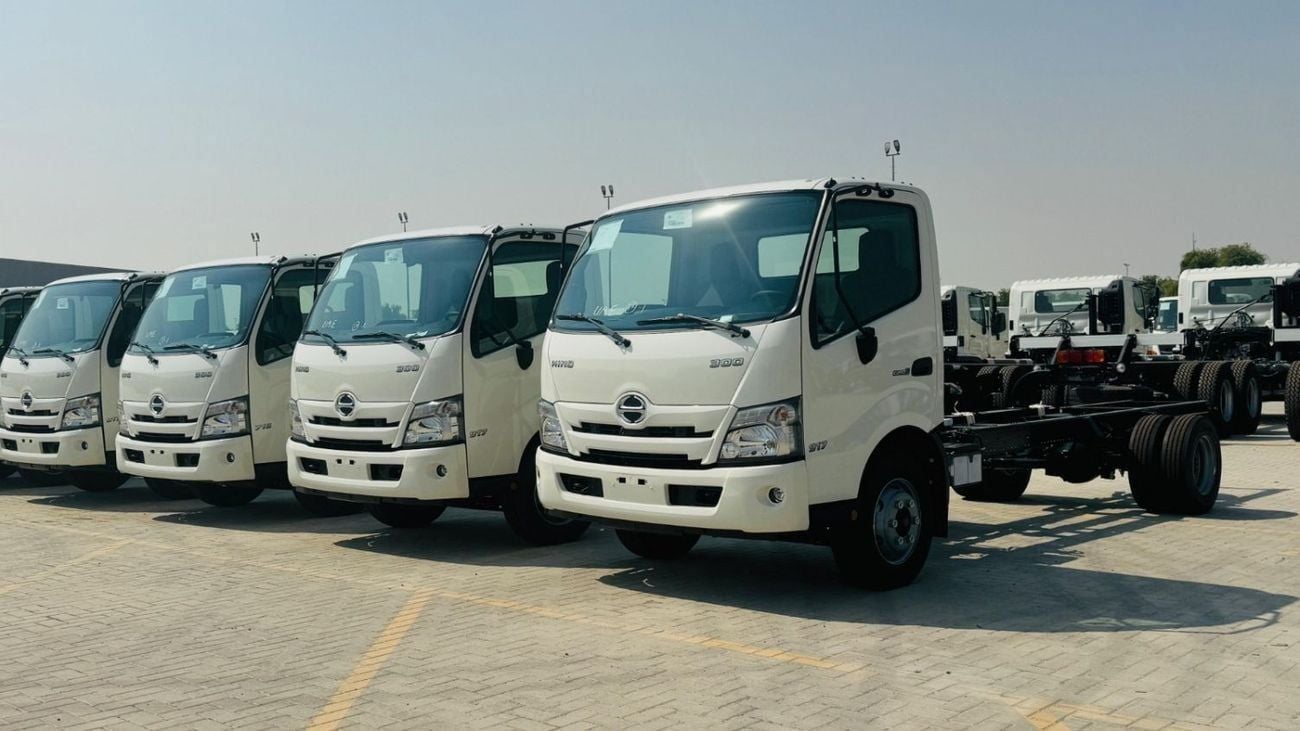

Hino 300 Hino 300 Series 917 SWB Euro 5

Export Only.
Worldwide Shipping Services Available.
Vehicle Specifications:-
ENGINE (DIESEL)
Model NO4C-WM
Air Intake Turbo
Euro Emissions Euro 5
Displacement 4009
No Cylinders 4
Engine Power 165 PS @ 2,500 rpm
Engine Torque 464 N.m @ 1,300 - 2,500 rpm

PERFORMANCE
Max. Speed 115
Gradeability 52.4
Turning Radius
Curb to Curb 6.2
Wall to Wall 6.9
Fuel Tank Capacity 150

DIMENSIONS
Wheelbase 3,430
Overall Length 6,120
Cabin Width 1,995
Overall Height 2,235
Ground Clearance 200
Front Tread 1,655
Rear Tread 1,590
Rear Chassis Height 790
Rear Overhang 1,575
Rear Axle Width 2,055
Cab to Frame end 4,435

ADDITIONAL OPTIONS
Audio wtih Bluetooth Yes
Power Windows Yes
Central Lock Yes
SRS Airbag (Driver+Passenger) Yes
Fog lamp Yes
Factory fitted Air conditioner Yes(Denso)

WEIGHTS
Kerb Weight
Total 2,400
Front 1,560
Rear 840
Gross Vehicle Mass
Total 8,500
Front Axle 3,020
Rear Axle 5,760
Payload on Chassis 6,100
Gross Combained Mass

GEARBOX
Model AISIN RE61
Type Manual
No of Gears 6+1
Rear axle Gear ratio 5.571

CHASSIS, BRAKES & TIRES
Frame Width 750
Frame Section 192.8 x 65 x5.9
Service Brakes
Type Vacuum - Hydraulic
Front Drum
Rear Drum
Anti Lock Brakes (ABS) Yes
Parking Brake Mechanical
Exhaust Brake Yes
Alternator 24V-80A
Number of Axles 2
Traction Type 4× 2
Number of Wheels 6 +1 Spare
Tire Size 215/75R17.5-126/124
Tube/Tubeless Tubeless
