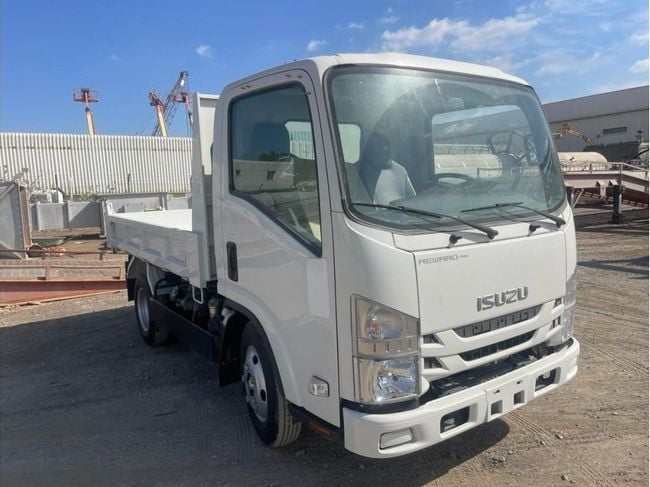

Isuzu NMR STD Isuzu NMR85E2S Dump Truck 4x2

Model Code No. NMR85E2S
Grade Light Duty
Brand / Model Isuzu / N-Series
Cabin / Body Type Standard Single Cabin / Dump Truck
Drive Handle Left Hand Drive
Drive Sysytem 4x2
Production Country Japan
Engine 4JJ1-TC
Fuel System Diesel
Cylinders In-line, 4-Cylinders
Displacement cc (Ltr) 2,999 cc (3.0 Ltr)
Max. Power kW (ps) / rpm 96kW (130ps) / 2,800 rpm
Max. Torque Nm (kgm) / rpm 330 Nm (34 kgm) / 1,600 - 2,600 rpm
Fuel Tank Capacity (Ltr) 75 Ltr
Transmission Manual, MYY-5T 5-speed
Axle Capacity Front (kg) 2,900 kg, Rear (kg) 5,000 kg
Tyre Front/Rear & Spare: 195/85R16
Front & Rear Hydraulic vacuum assisted dual circuit with ABS
Gross Vehicle Weight GVW kg (Ton) 5,500 kg (5.5 Ton)
Overall Length x Width x Height (mm) 4,770 x 1,815 x 2,185 mm
Front Overhang (FOH) mm 1,110 mm
Rear Overhang (ROH) mm 1,185 mm
Cab to Axle (CA) mm 2,022 mm
Cab to End of Frame (CE) mm 3,207 mm
