ROX 01 VIP 6-SEATER GCC Specs 2025 Model

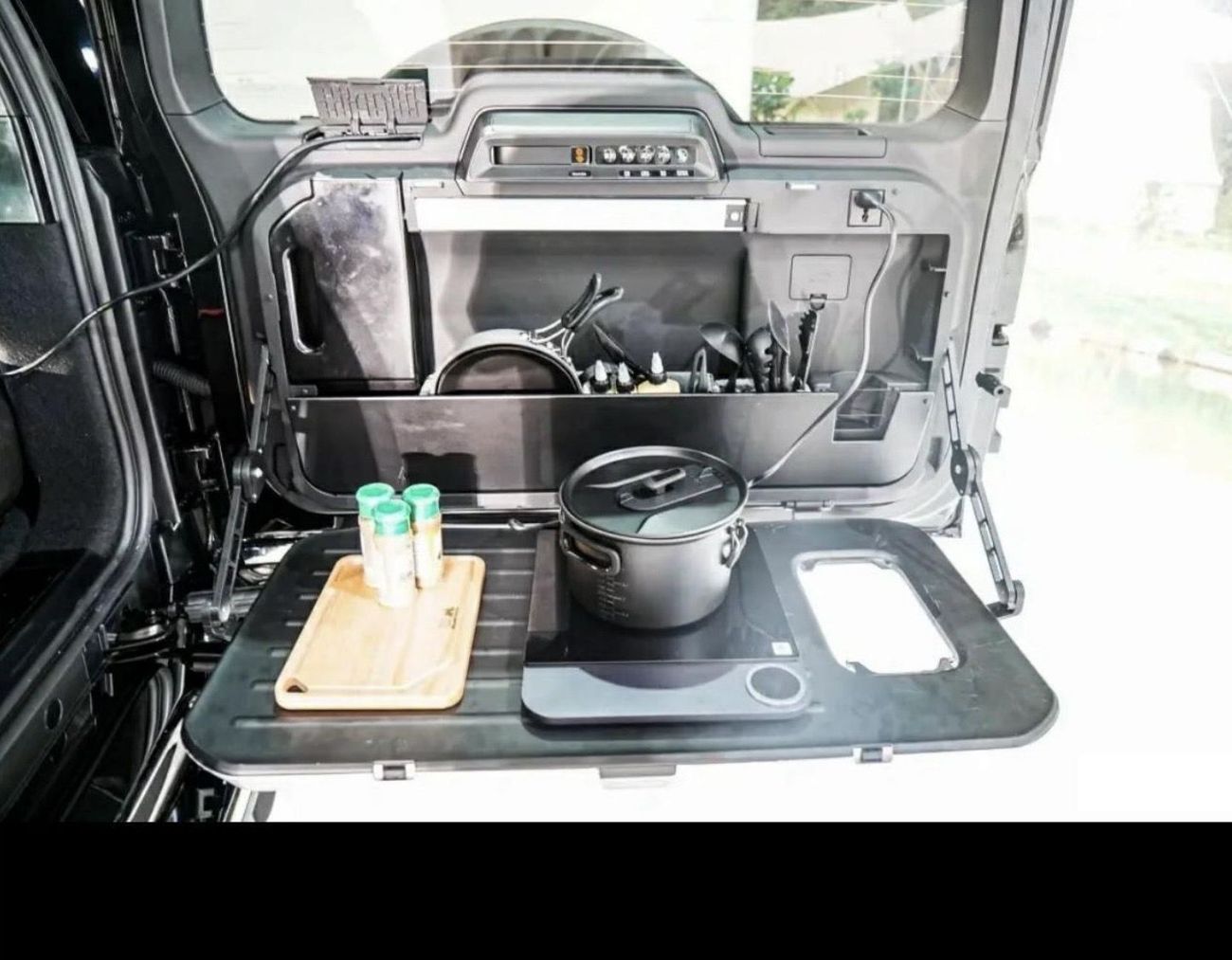

ROX-001 VIP 6-SEATER KITCHEN SIDE STAND 21"INCH ALLOY WHEELS 2025
BLACK ORANGE-
BLACK, WHITE -
GREY, WHITE -
SILVER BLACK -
SILVER ORANGE -
WHITE BLACK -
7-SEATER
BLACK, ORANGE-
Basic Information ●Standard ○Optional -none
Manufacturer ROX
Level Medium to large SUV
Energy Type Extended-Range Electric Vehicle
Environmental Standards Country Ⅵ
Year Make 2025
WLTC EV Range(km) 252
CLTC EV Range(km) 306
Battery fast charging time (hours) 0.4
Battery slow charging time (hours) 8.8
Battery fast charging capacity range (%) 20-80
Battery slow charging capacity range (%) 0-100
Maximum Power (kW) 350
Maximum Torque (N·m) 740
Gearbox Single-Speed Electric Drive Unit
Body Structure 5-door 6-seater SUV
Engine 1.5T 152HP L4
Motor(Ps) 476
Length*Width*Height(mm) 5050*1980*1869
Official 0-100km/h acceleration (s) 5.5
Maximum Speed(km/h) 190
WLTC Comprehensive Fuel Consumption(L/100km) 0.45
Fuel consumption at minimum state of charge (L/100km) WLTC 7.95
Electric energy equivalent fuel consumption (L/100km) 2.79
Vehicle Warranty Five years or 100000 kilometers
Curb Weight (kg) 2660
Maximum Full-load Weight (kg) 3189
Total mass of the semi-trailer (kg) 750
Body ●Standard ○Optional -none
Length (mm) 5050
Width (mm) 1980
Height (mm) 1869
Wheelbase(mm) 3010
Front Track (mm) 1692
Rear Track (mm) 1701
Minimum ground clearance with full load（mm） 205
Minimum ground clearance with no load（mm） -
Approach angle(゜) 22.2
Departure angle(゜) 25.1
Longitudinal passing angle(゜) 19.7
Maximum climbing angle(゜) 45
Minimum turning radius（m） 5.98
Maximum wading depth（mm） 700
Body Structure SUV
Door opening method Swing door
Doors 5
Seats 6
Fuel Tank Capacity (L) 70
Trunk Capacity (L) 548
drag coefficient（Cd） -
Engine ●Standard ○Optional -none
Engine model B15F
Displacement (mL) 1496
Displacement（L） 1.5
Intake System Turbocharged
Engine Layout Transverse
Cylinder Arrangement L
Number of Cylinders 4
Valves per Cylinder 4
Compression Ratio -
Valve Train System DOHC
Cylinder diameter（mm） -
Trip（mm） -
Maximum Power (kW) 112
Maximum Horsepower (PS) 152
RPM at Peak Power -
Maximum Torque (N·m) -
RPM at Peak Torque -
Maximum net power(kW) 110
Energy Type Extended-Range Electric Vehicle
Fuel Grade 95
Fuel supply method Direct injection
Cylinder head material Aluminum alloy
Cylinder material Aluminum alloy
Emission Standard Country Ⅵ
Electric Motor ●Standard ○Optional -none
Front motor model TZ210XS000
Rear motor model TZ220XS000
Motor Type PMSM
Total Motor Power (kW) 350
Total motor horsepower(Ps) 476
Total Motor Torque (N·m) 740
Maximum power of front motor(kW) 150
Maximum Torque of front motor(N·m) 340
Maximum power of rear motor(kW) 200
Maximum Torque of rear motor(N·m) 400
System total power(kW) 350
System comprehensive power(Ps) 476
System comprehensive Torque(N·m) 740
Number of drive motors Dual motor
Motor layout Front+Rear
Three point system warranty Eight years or 160000 kilometers
Battery/Charging ●Standard ○Optional -none
Battery Type NMC Lithium-ion Battery
Battery Brand CATL
Battery pack capacity(kWh) 58.4
WLTC EV Range(km) 252
CLTC EV Range(km) 306
Gearbox ●Standard ○Optional -none
Abbreviation Single-Speed Electric Drive Unit
Number of Gears 1
Gearbox Type Fixed gear ratio gearbox
Chassis & Suspension ●Standard ○Optional -none
Drivetrain 4WD
Four wheel drive system 4WD
Front Suspension type Double Wishbone Suspension
Rear Suspension type Multi-link Independent Suspension
Power type Electric power assist
Vehicle structure Monocoque
Tires & Brake ●Standard ○Optional -none
Front Brake Ventilated Disc
Rear Brake Ventilated Disc
Parking Brake Electronic Parking Brake
Front Tire Specification 275/45 R21
Rear Tire Specification 275/45 R21
Spare tire specification ●Tire repair tool
○Full size
Spare tire placement ○Backpack
Passive safety ●Standard ○Optional -none
Driver/Passenger airbag Host●/Vice●
Front/rear side airbags Forward●/Back-
Front/rear head airbags(curtain airbags) Forward●/Back●
Active safety ●Standard ○Optional -none
ABS anti-lock braking system ●
Braking force distribution(EBD/CBC,etc.) ●
Brake assist (EBA/BAS/BA,etc.) ●
Traction control(ASR/TCS/TRC,etc.) ●
Vehicle stability control(ESC/ESP/DSC,etc.) ●
Tire pressure monitoring function Tire pressure display●
Seat belt not fastened reminder Front row●
Second row●
ISOFIX child seat interface ●
Lane Departure Warning System ●
Active braking/active safety systems ●
Fatigue driving tips ○
DOW door opening warning ●
Forward Collision Warning ●
Rear collision warning ●
Low speed warning ●
Built in driving recorder ●
Roadside assistance call ●
Anti rollover system ●
Driving Control ●Standard ○Optional -none
Driving mode switch
●Motion
●Economy
●Standard/Comfortable
●Snowfield
●Cross-country
Energy recovery system ●
Automatic parking ●
Hill start assist ●
Variable suspension function ●Suspension soft and hard adjustment
Dragging mode ●
4WD/Off road ●Standard ○Optional -none
Hanging hook ○Hand movement
Trailer power outlet -
Assisted driving hardware ●Standard ○Optional -none
Front/rear parking radar Front ●/Rear ●
Driving assistance imaging ●360 degree panoramic image
Transparent chassis/540 degree image ○
Assisted driving chip ○2 Nvidia Orin-X
●Double TDA4
Forward perception camera ●Binocular
Number of cameras ●6
○11
Front perception camera pixels ●2 million
○8 million
Surround camera pixels ●2 million
Number of ultrasonic radars ●12
○14
Number of millimeter wave radars ●5
Lidar brand ○HESAI
Quantity of LiDAR ○AT128
○FT120
Lidar model ○3
Number of laser radar lines ○128 lines
○120 lines
Lidar 10% reflectivity detection range ○200m
○100m
Number of LiDAR point clouds ○1530000/s
○190000/s
Driving ●Standard ○Optional -none
Cruise control system ●Full speed adaptive cruise control
Driving Assistance level ●L2
Reverse side warning system ●
Satellite navigation system ●
Navigation traffic information display ●
Map Brand ●Autonavi
High precision map ○
Parallel assistance ●
Lane Keeping Assist System ●
Lane centering ●
Road traffic sign recognition ●
Assisted parking and entry ●
piloted parking ●
Memory Parking ○
Auxiliary lane change ●
Automatic exit (entry) of auxiliary ramp ○
Remote summoning ●
Assisted driving section ○Expressway section
Appearance/anti- ●Standard ○Optional -none
Rim material ●Aluminum Alloy
Electric suction door ●Tailgate
Electric trunk -
Electric trunk position memory -
Roof rack ●
