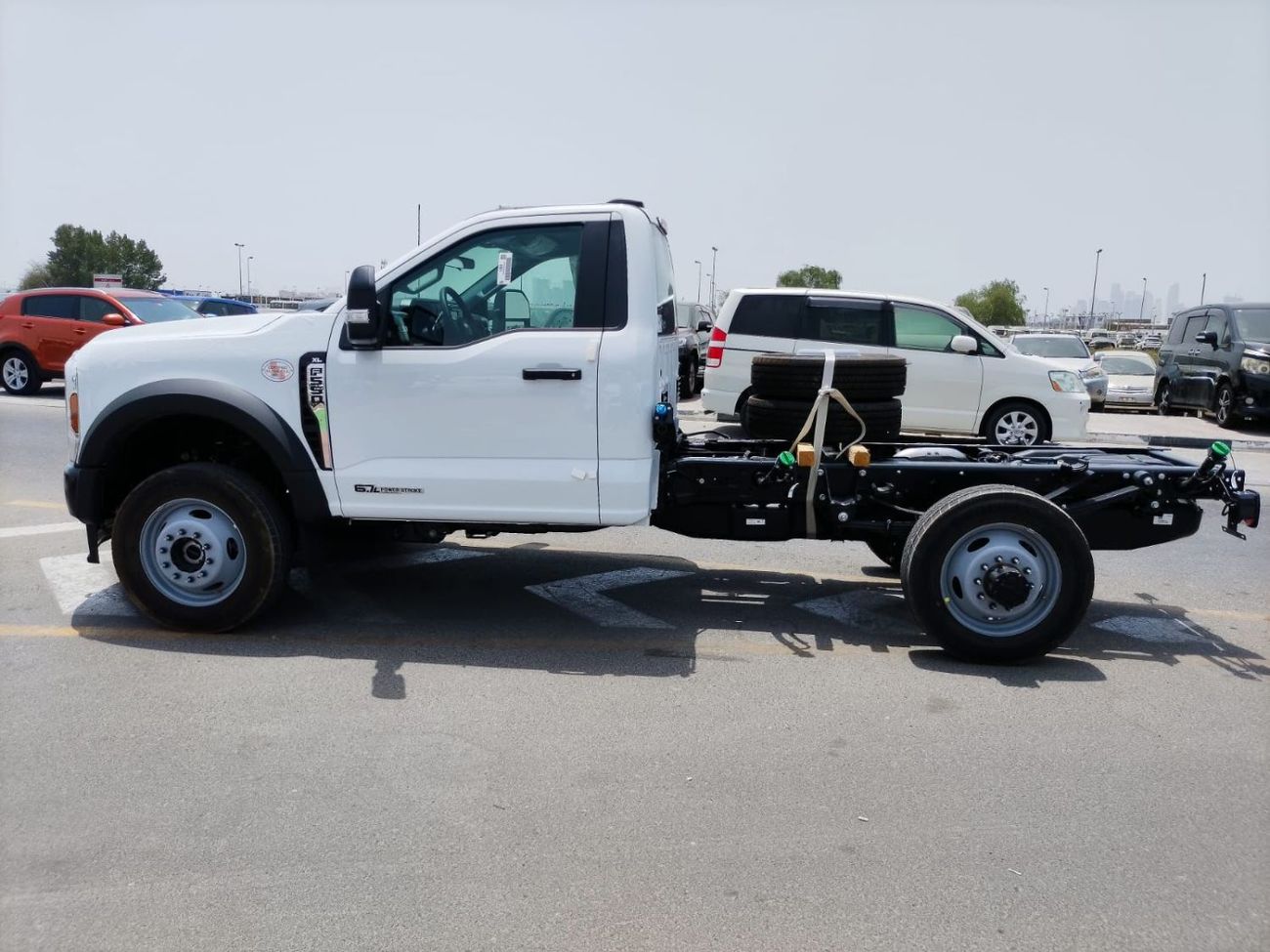

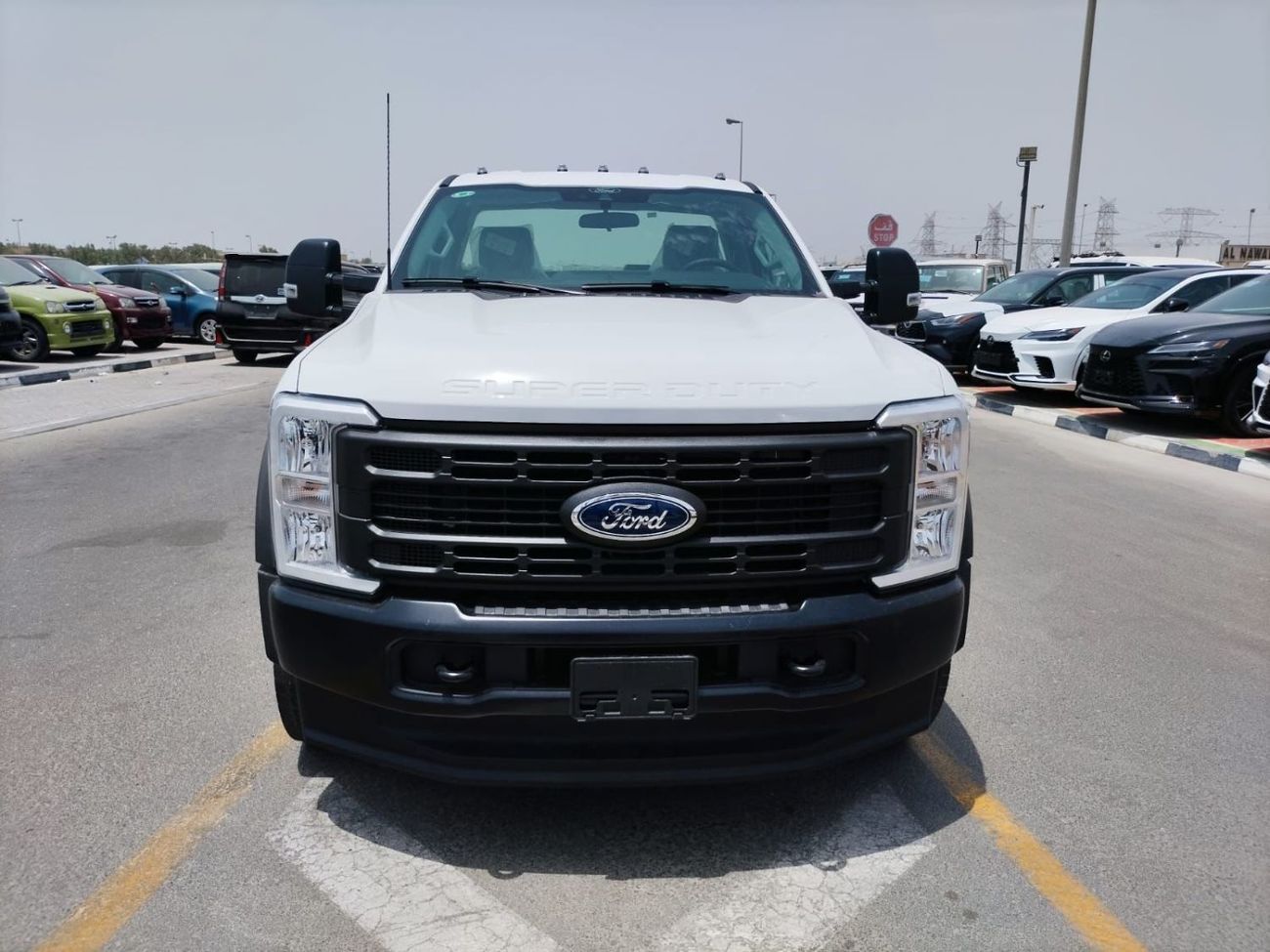

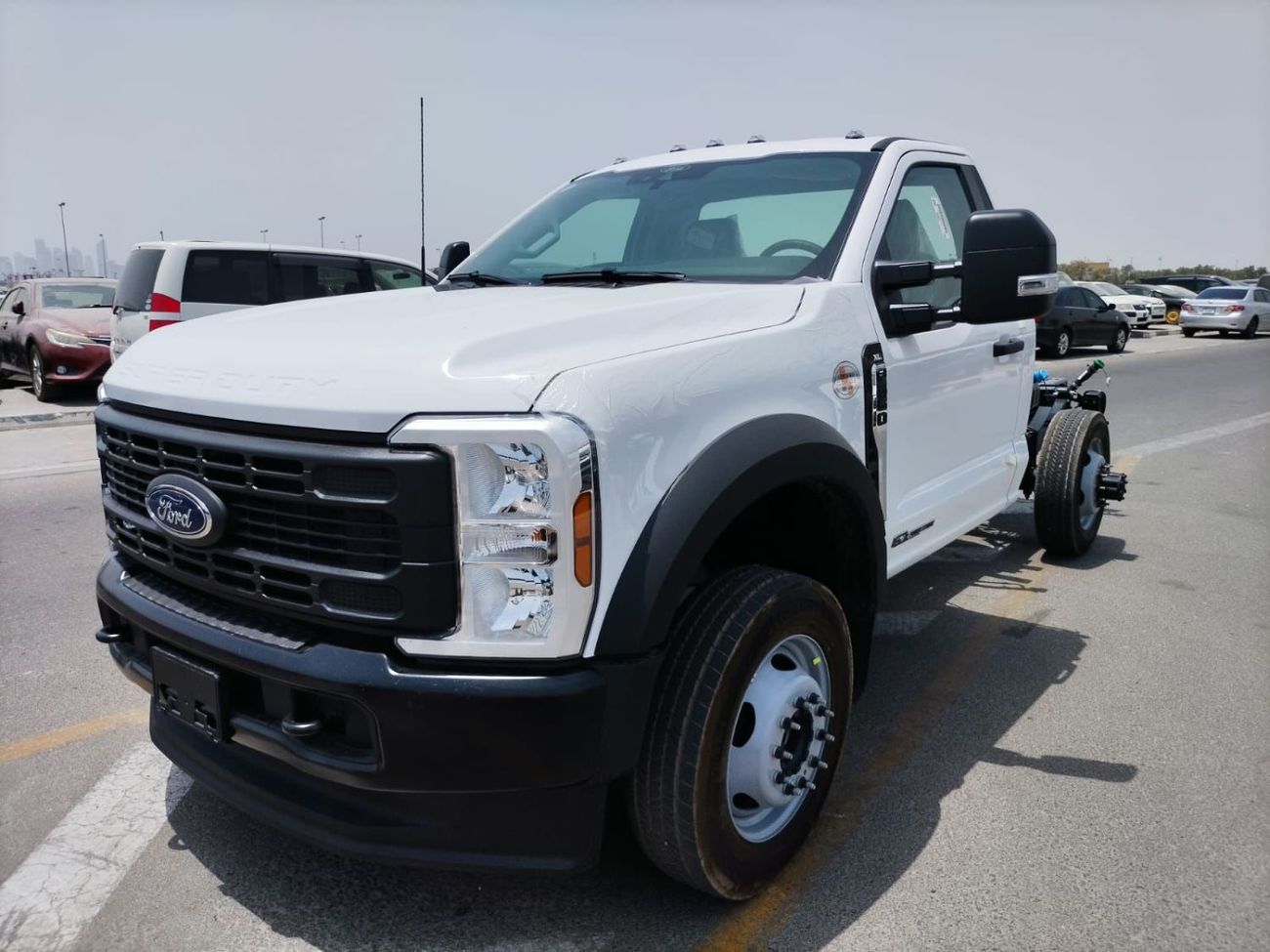

Ford F 550 2025 Ford F550 XL Superduty 6.7L Diesel

ENGINE & PERFORMANCE

Engine: 6.7L Power Stroke V8 Turbo Diesel (OHV, 32V)
Horsepower: 330 hp @ 2,200 rpm
Torque: 950 lb-ft (1,289 Nm) @ 1,800 rpm
Transmission: TorqShift 10-Speed Automatic (10R140)
Fuel System: High-pressure common-rail direct injection
Fuel Compatibility: B20 Bio-Diesel compatible
Emission System: DEF/SCR with operator-controlled regeneration

FUEL & CAPACITY

Fuel Tank Capacity: 40 gallons (151 liters)
DEF Tank Capacity: ~5.5 gallons (21 liters)
Emission Compliance: 50-state legal

DIMENSIONS & WEIGHTS

Overall Length: 290.7 in (7,385 mm)
Overall Width (w/o mirrors): 80 in (2,032 mm)
Overall Height: ~82.5 in (~2,100 mm)
Wheelbase: 205 in (5,207 mm)
Cab-to-Axle Options: 84", 120", 145"
Ground Clearance: ~8.5 in (216 mm)
Curb Weight: ~7,350–7,950 lb (3,335–3,607 kg)
GVWR: 18,000 lb (8,165 kg)
GCWR: 30,000 lb (13,607 kg)
GAWR Front: 6,500 lb (2,948 kg)
GAWR Rear: 13,660 lb (6,195 kg)

SUSPENSION & BRAKES

Front Suspension: Non-independent axle with leaf springs
Rear Suspension: Rigid axle with multi-leaf springs
Brakes: 4-wheel vented disc with ABS and brake assist
Hill Hold Assist: Included

DRIVETRAIN & TIRES

Drive Type: 4x4
Axle Ratio: 4.88:1

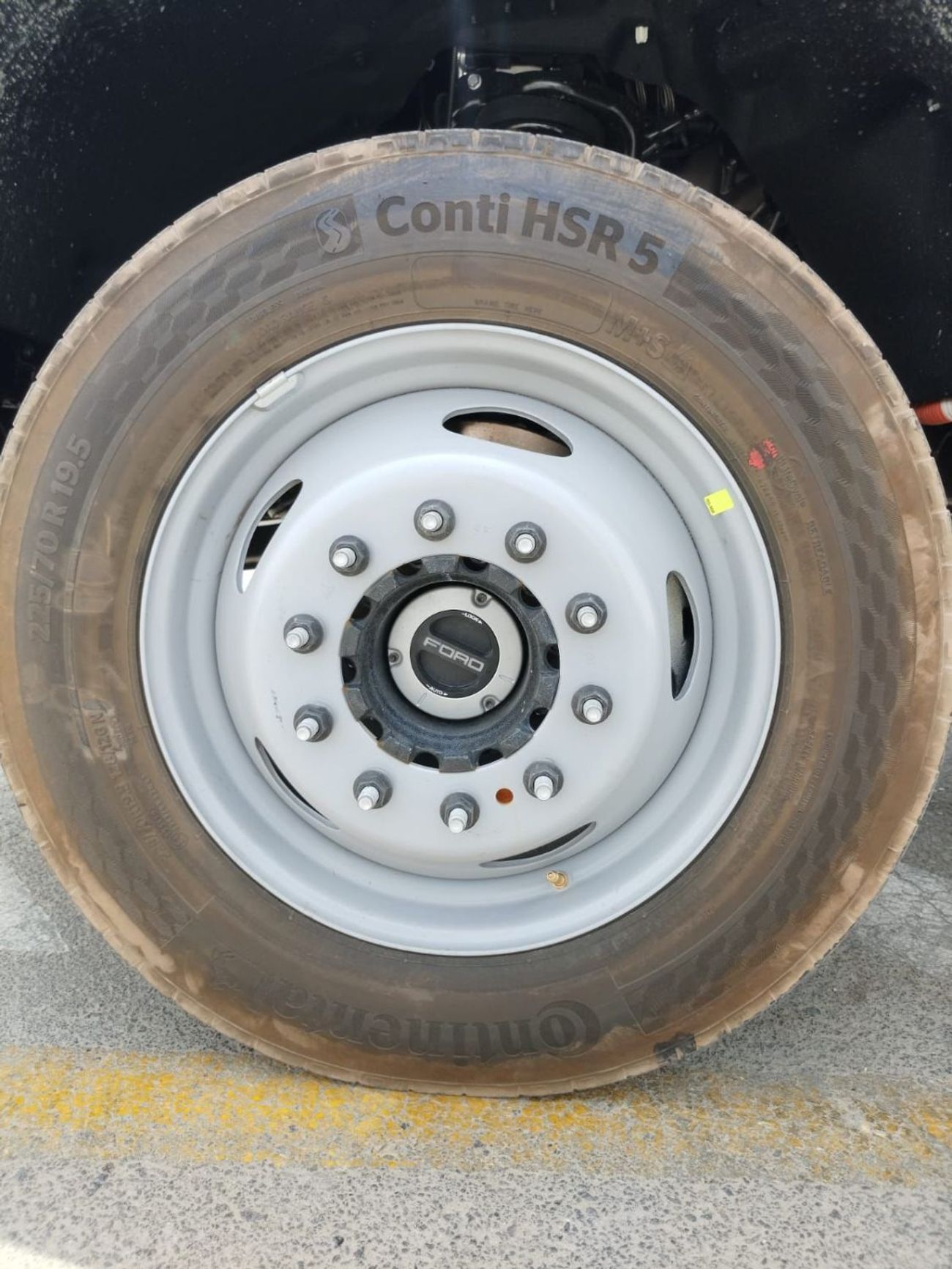

Tires: LT225/70R19.5 all-season
Wheels: 19.5" × 6" steel dual rear wheels
Hubs: Auto-locking front hubs

TOWING & HAULING

Conventional Towing Capacity: Up to 18,500 lb (8,391 kg)
5th Wheel / Gooseneck Towing Capacity: Up to 33,500 lb (15,196 kg)
Integrated Trailer Brake Controller: Standard
Tow/Haul Mode: Included
Trailer Sway Control: Included

ELECTRICAL & BATTERY

Alternator: 190A standard, 250A or dual alternators optional
Battery: Dual 750 CCA AGM batteries (diesel models)
Upfitter Switches: 6-position panel
PTO Capability: Yes (Power Take-Off)

SAFETY & DRIVER ASSISTANCE

Airbags: Front, side, curtain
Pre-Collision Assist with Automatic Emergency Braking
Lane Departure Warning
Rear View Camera
Blind Spot Monitoring with Trailer Coverage
Cross Traffic Alert
Safety Canopy System
AdvanceTrac with Roll Stability Control

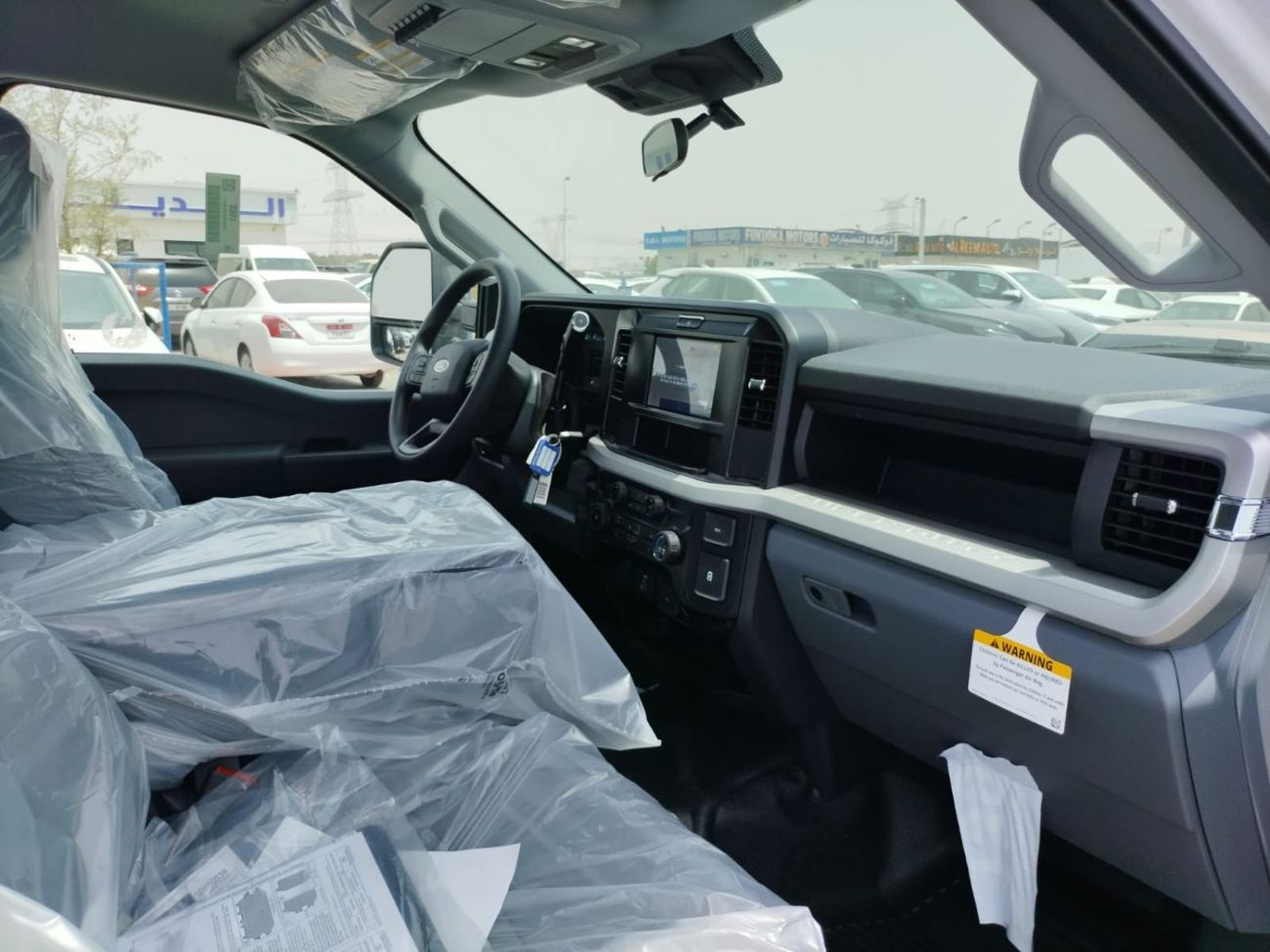

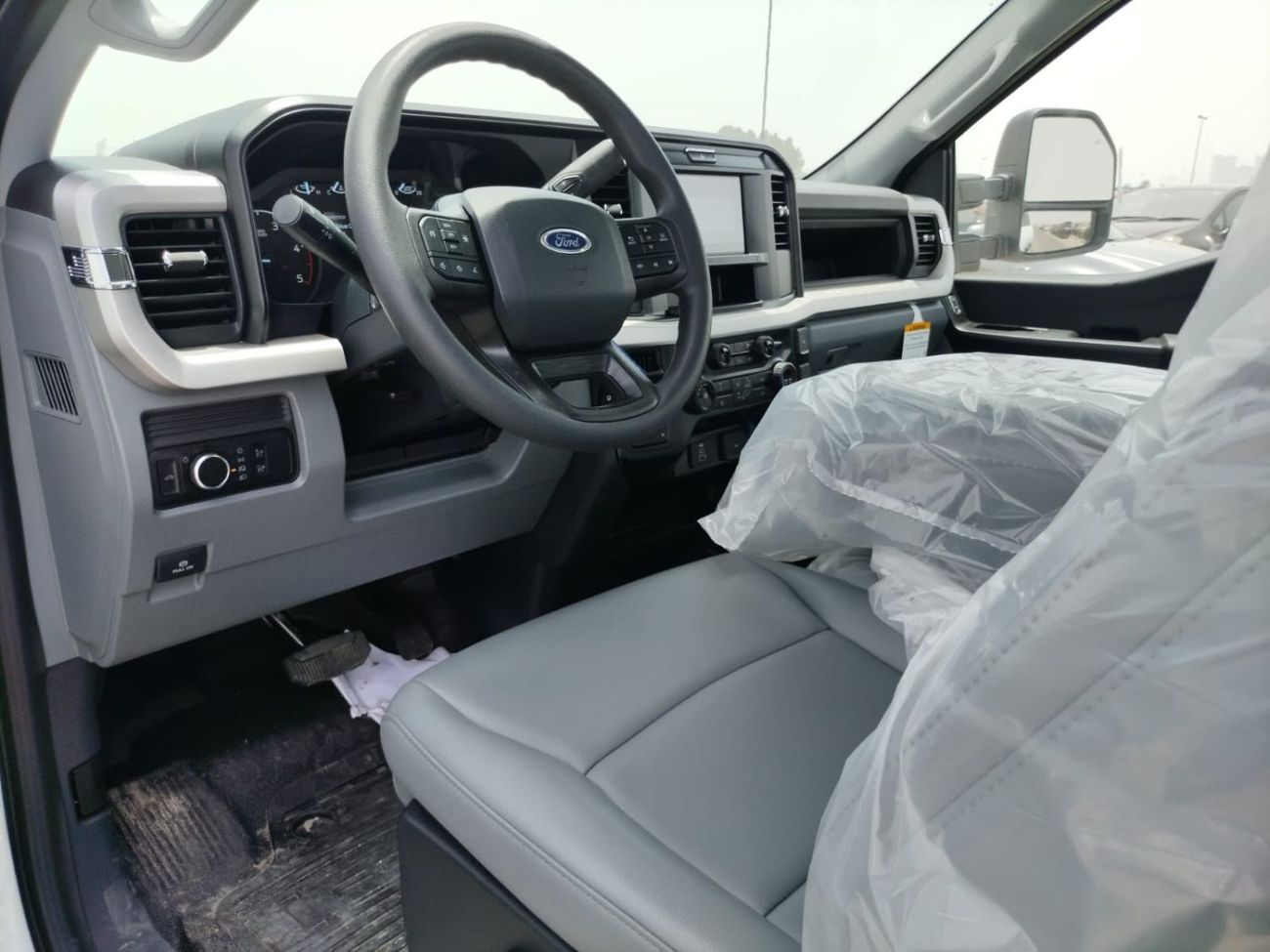

INTERIOR & COMFORT

Trim: XL (Base work-grade)
Seats: Vinyl or cloth bench; manual adjust
Infotainment: SYNC 4 with 8" touchscreen
Audio: 4-speaker system
Climate Control: Manual air conditioning
Steering: Tilt and telescoping
Power Windows & Locks: Standard
Cruise Control: Standard
USB Ports: Type-A and Type-C
Optional Upgrades: Power seats, navigation, dual-zone AC

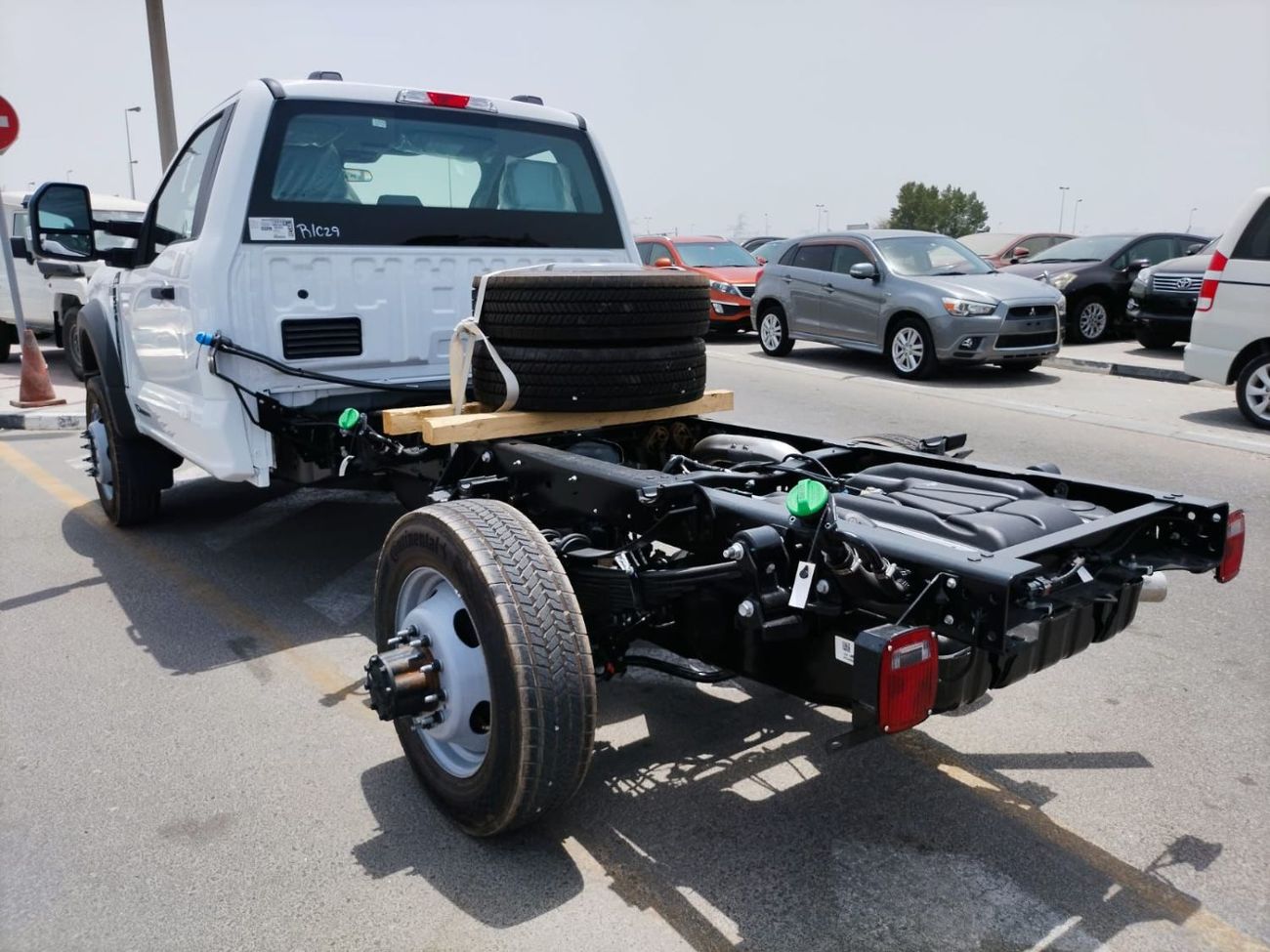

CHASSIS & UPFITTING

Frame: Fully boxed high-strength steel
Skid Plates: Available
Snow Plow Prep Package: Available
Upfitter Interface Module: Included
Optional Payload Plus Upgrade: Increases GVWR to 19,500 lb
