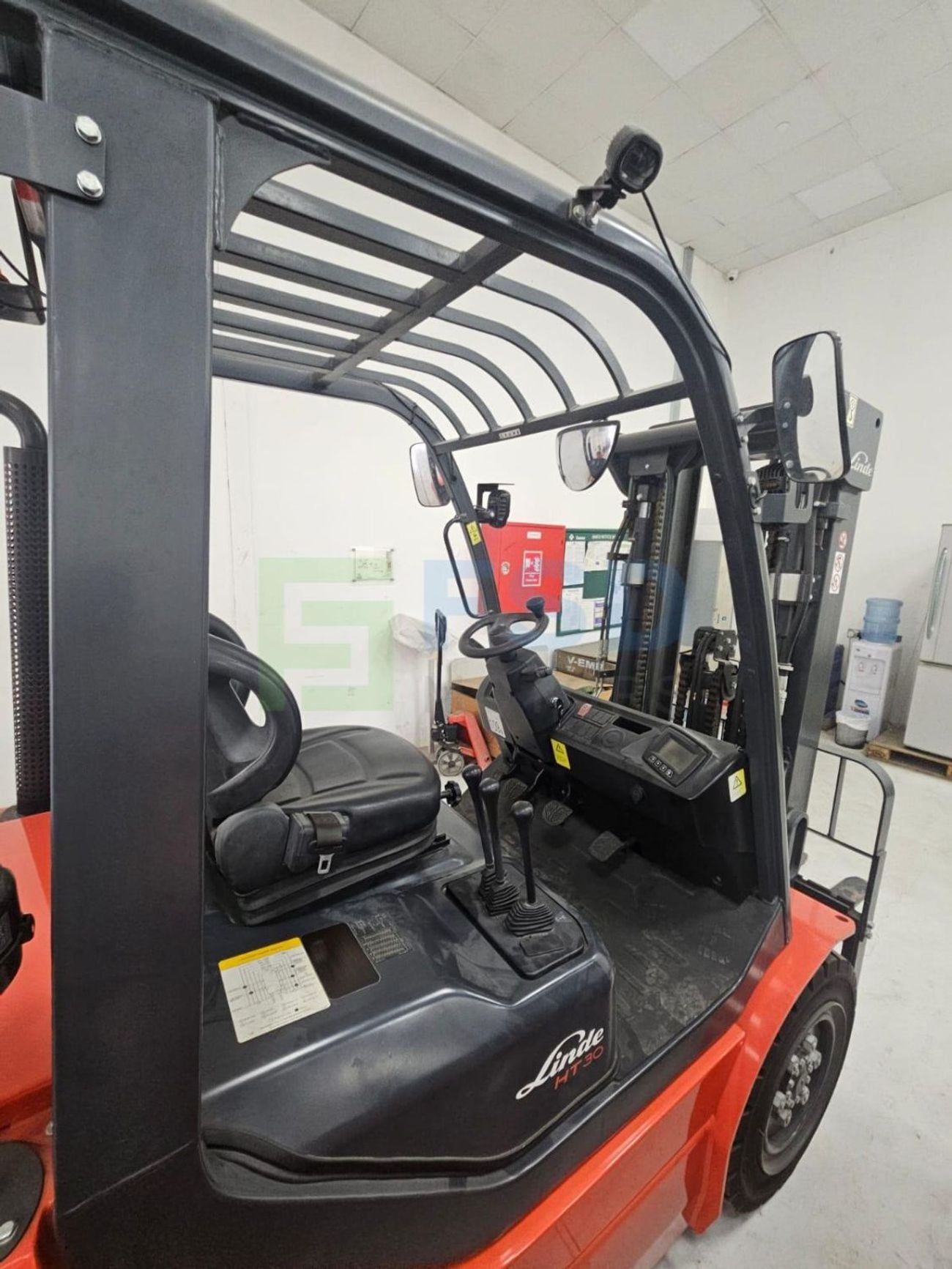

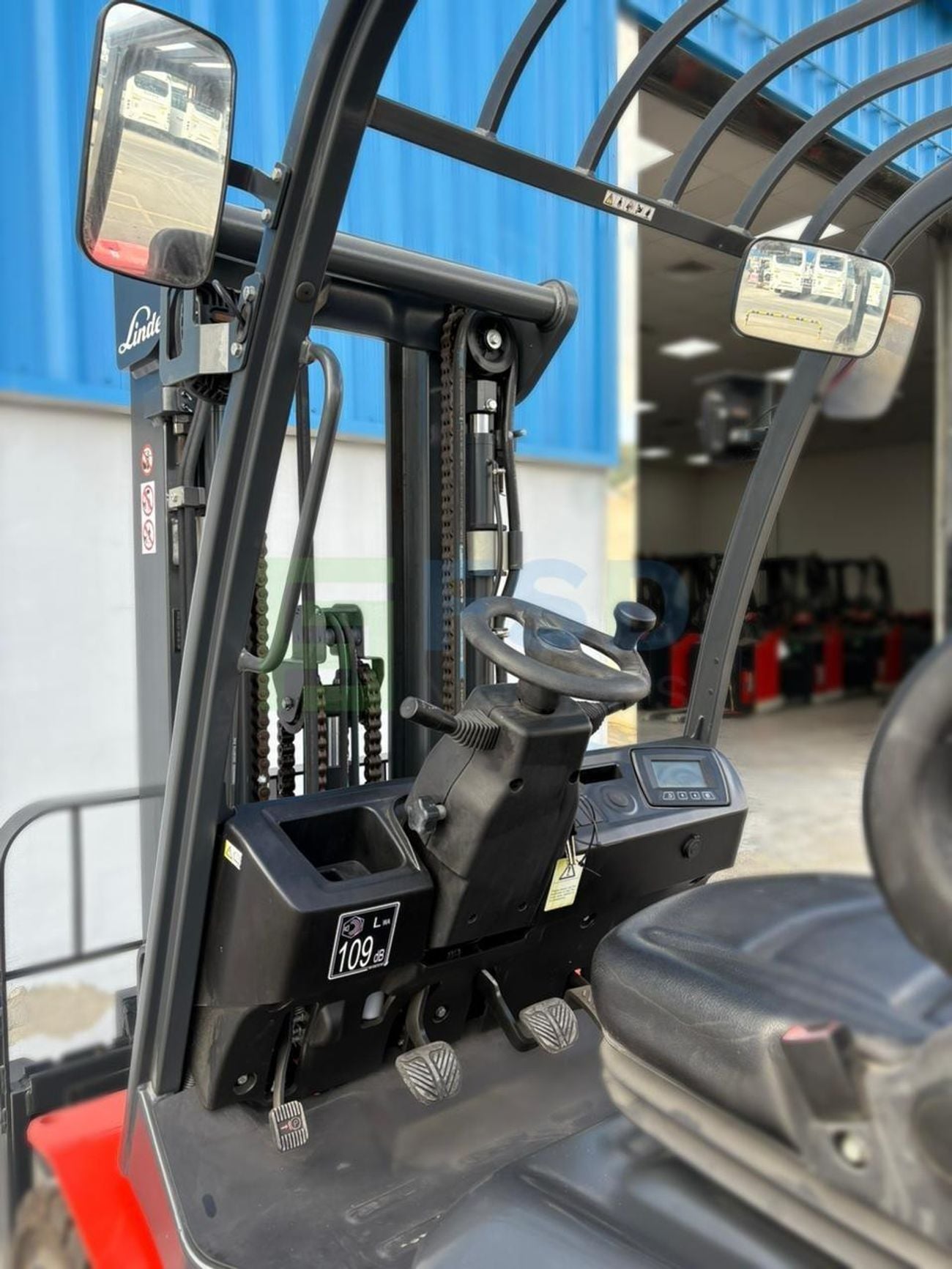

s Linde Diesel Forklift Trucks 3.0 Ton HT30DB-01 MY-2025

Export Only.
Worldwide Shipping Services Available.
Vehicle Specifications:-
Model Summary Description
Full Product Description Linde Diesel Forklift Trucks 3.0 Ton HT30DB-01 MY-2025
Make Linde
Model Forklift
Year: 2024
Fuel Type Diesel
SWP LHD
Condition New
Charecteristics
Operator type: Seat
Rated capacity/rated load 3
Load centre distance 500(mm)
Load distance, centre of drive axle to fork 504(mm)
Wheelbase 1760(mm)
Wheight
Service weight 4075 kg
Axle loading, laden front/rear 5831/774
Axle loading, unladen front/rear 1905/2200
Wheels
Tyres: PN
Tyre size, front 28x9-15NHS/18PR
Tyre size, rear 6.50-10NHS/14PR
Wheels, number front/rear (x = driven wheels) 2x/2
Tread, front / Tread, rear 995/953
Diemensions
Tilt of mast/fork carriage forward/backward 12-Jun
Height, mast lowered 2146 mm
Free lift 150 mm
Lift 3000 mm
Height, mast extended 3715 mm
Height of overhead guard (cabin) 2231 mm
Height of seat/stand-on platform 1202 mm
Coupling height 586 mm
Length to face of forks 2790 mm
Overall width 1265 mm
Fork dimensions ISO 2331 45/122/1000
Fork-carriage width 1100 mm
Ground clearance, laden, below mast 145 mm
Ground clearance, centre of wheelbase 161 mm
Aisle width with pallet 1000 x 1200 across forks 4145 mm
Aisle width with pallet 800 x 1200 along forks 4345 mm
Turning radius 2440 mm
Minimum pivoting point distance 673.5 mm
Performances
Travel speed, laden/unladen 17.2/17.5
Lift speed, laden/unladen 0.51/0.57
Lowering speed, lade/unladen 0.40/0.45
Drawbar pull, laden/unladen 16500/11100
Gradeability, laden/unladen 22/25
Service brake Mechanical/hydraulic
Drive
Engine manufacturer/type Weichai WP3.2
Engine power according to ISO 1585 36.8
Rated speed 2300
Number of cylinders/displacement Apr-70
