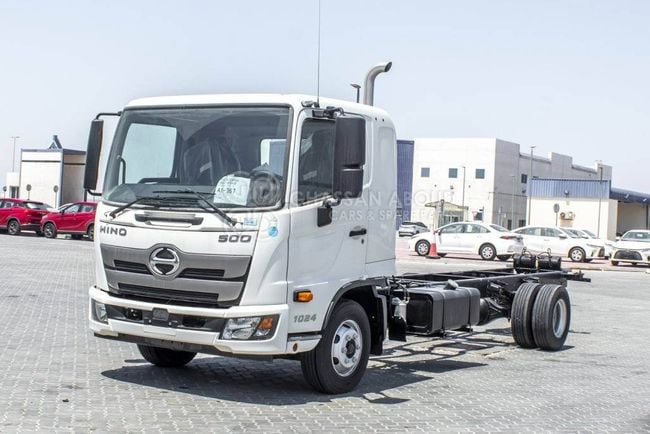

Hino 500 HINO FD 7 Ton Payload (approx) Single Cab 4×2 w/ Airbag MT MY2024

Engine & Transmission
Engine:
Model J08E-WF, Turbo 6 Cylinder
Max Output:
245 PS @ 2,500 RPM
Max Torque:
726 @ 1,500 RPM
Gearbox Model:
LX06
Displacement:
7,684 cc
Transmission:
Manual 6+1
Final Gear Ratio:
4.875
Dimension, Capacities & Suspensions
Gross Vehicle Mass:
10,400 KG
Chassis Payload:
7,000 kg
Wheel Base:
4,850 mm
Overall Length:
8,095 mm
Cabin Width:
2,190 mm
Overall Height:
2,895 mm
Rear Overhang:
2,060 mm
Rear Axcel Width:
2,165 mm
Front Tread:
1,800 mm
Rear Tread:
1,660 mm
Chassis Length:
5,905 mm
Ground Clearance:
220 mm
Rear Chassis Height:
855 mm
Front Kerb Weight:
2,320kg
Rear Kerb Weight:
1,080kg
Front Axle Weight:
3,600 kg
Rear Axle Weight:
7,000 kg
Alternator:
24V - 90A
Fuel Tank Capacity:
200 Liters
Frame Width:
820 mm
Frame Section:
231.6 X 73. X 6.8 mm
Parking Brake:
Mechanical, internal
Exhaust Brake:
Yes
Service Brake:
Air over Hydraulic
Front Brake:
Drum (320 x 110 mm )
Rear Brake:
Drum (325 x 110 mm )
Tyre Size:
235/75 R 17.5
Tyre Size:
Tubeless
Rim Size:
17.5
Interior features & Safety
Power Windows
Fog Lamp
SRS Airbag
Audio with Bluetooth
Central Lock
Factory fitted Air Conditioner
