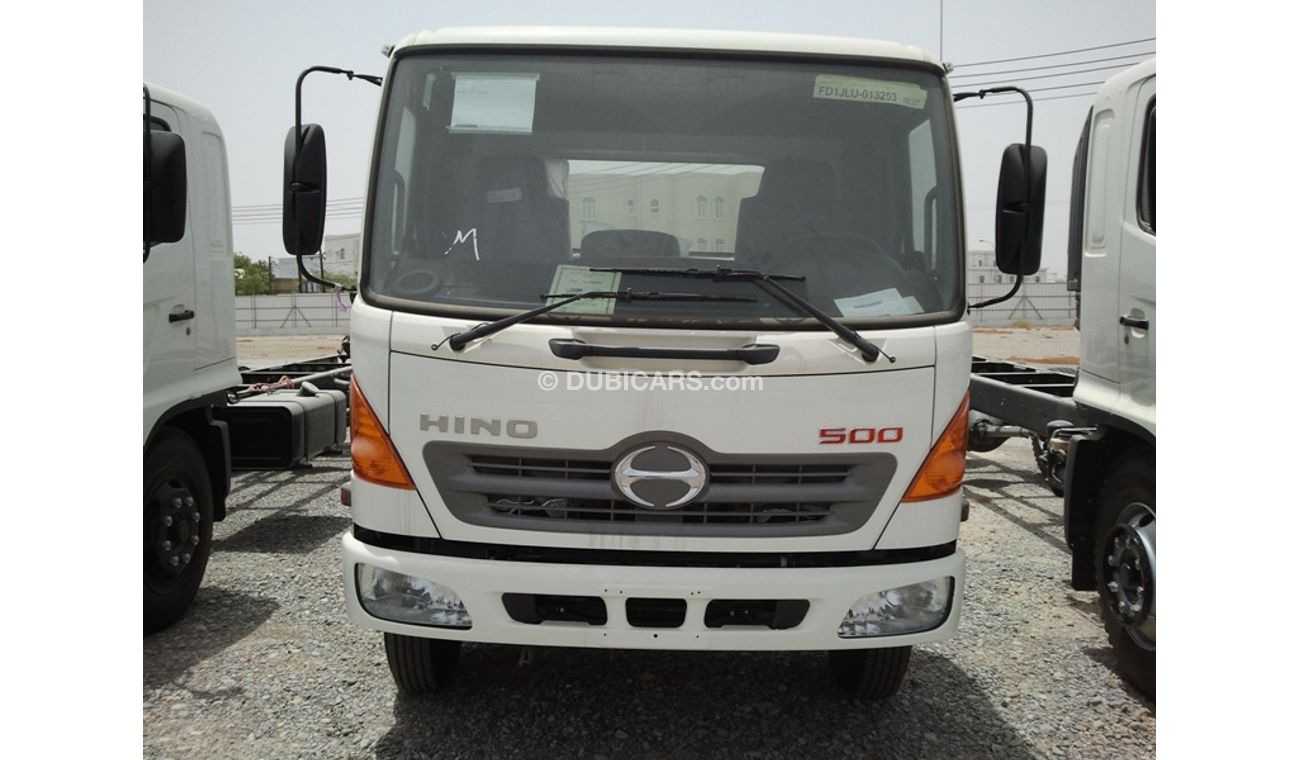

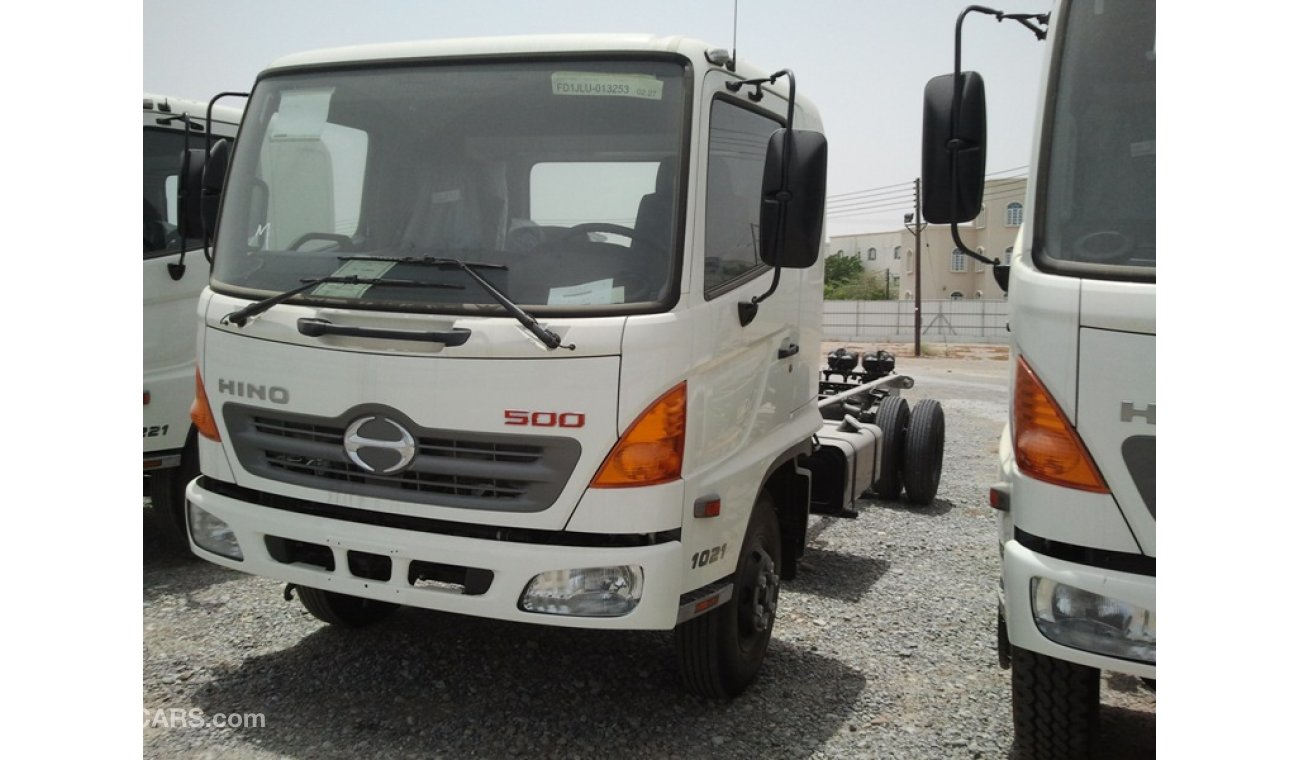

Hino 500 2016 model HINO FD1JLUA 10.4 TON GVW 4x2 TRUCK CHASSIS

SPECIFICATION - HINO FD1JLUA 10.4 TON GVW 4x2 TRUCK CHASSIS
MAKE & TYPE
Model Yr.
HINO FD1JLUA 4 x 2 TRUCK CHASSIS
2016
Country of Origin
Wheelbase
JAPAN.
4850 mm
GVW
Chassis Carrying Capacity
10,400Kg
7,300 Kg
CAB
Forward Control, compact cabin with A/C, Radio and CD Player, Colour: White.
ENGINE
6 Cylinder, In-line type, Water cooled, 210 PS Diesel Engine
Power: 210 PS @ 2900 rpm, Torque: 554 Nm @ 1500 rpm
FRAME
Ladder shaped channel section side rail
CLUTCH
Dry single plate with damper springs/350 mm
GEARBOX
6 + 1; Synchromesh 2nd – 6th. - Without PTO
STEERING
Telescopic and tilt steering column with locking device. Recirculating ball with hydraulic booster integral type.
AXLES
Front: Reversed Elliot, ‘I” Section beam;
Rear: Full floating Single reduction, single speed by Hypoid Gearings.
SUSPENSION
Front: Semi Elliptic leaf springs with shock Absorbers
Rear: Semi Elliptic MAIN & Auxiliary leaf Springs.
TYRES
7 Nos. 8.25R16-14PR Bridgestone Tyres (Incl. 1 Spare Tyre) on Disc Wheels
BRAKES
Service: Air over Hydraulic Dual Circuit.
Auxiliary & Parking Brake: Internal Expanding acting on transmission output shaft
ELECTRICAL
24 V System, 2 x 12 V 65 Ah batteries
FUEL TANK
200 L
